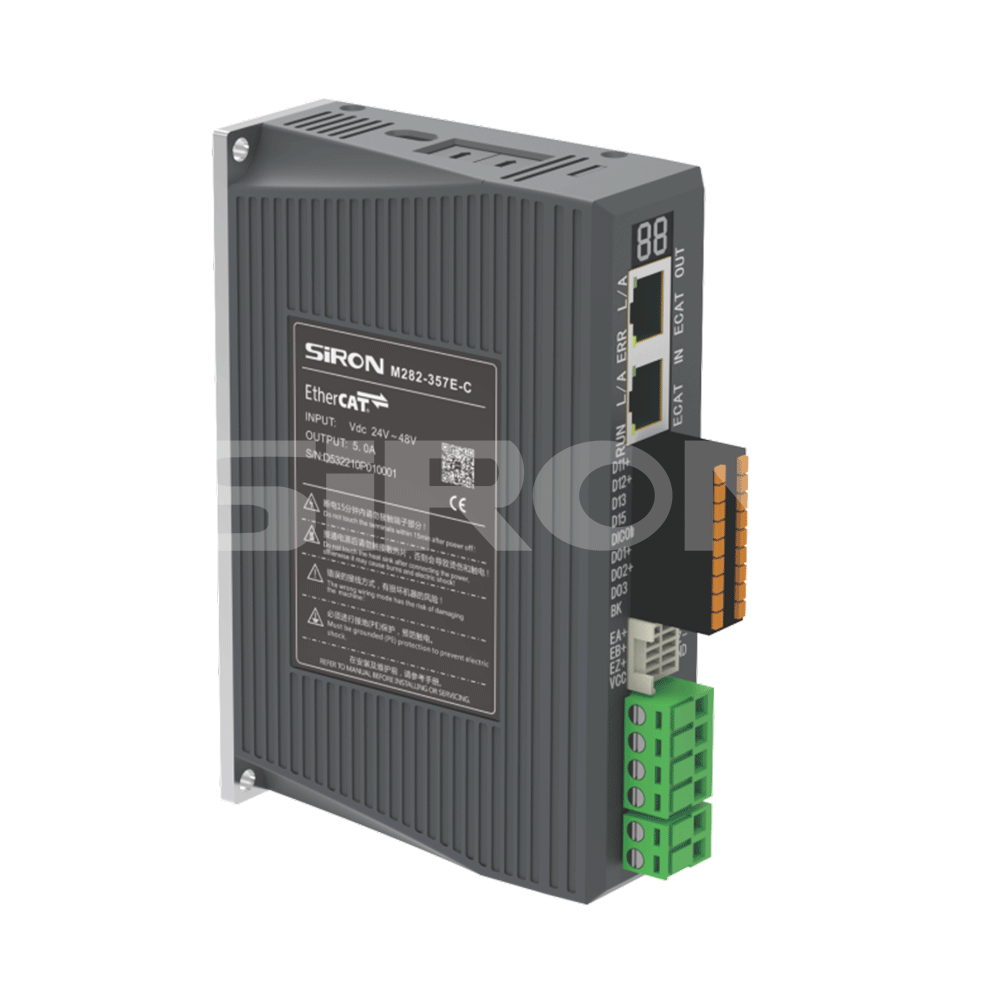

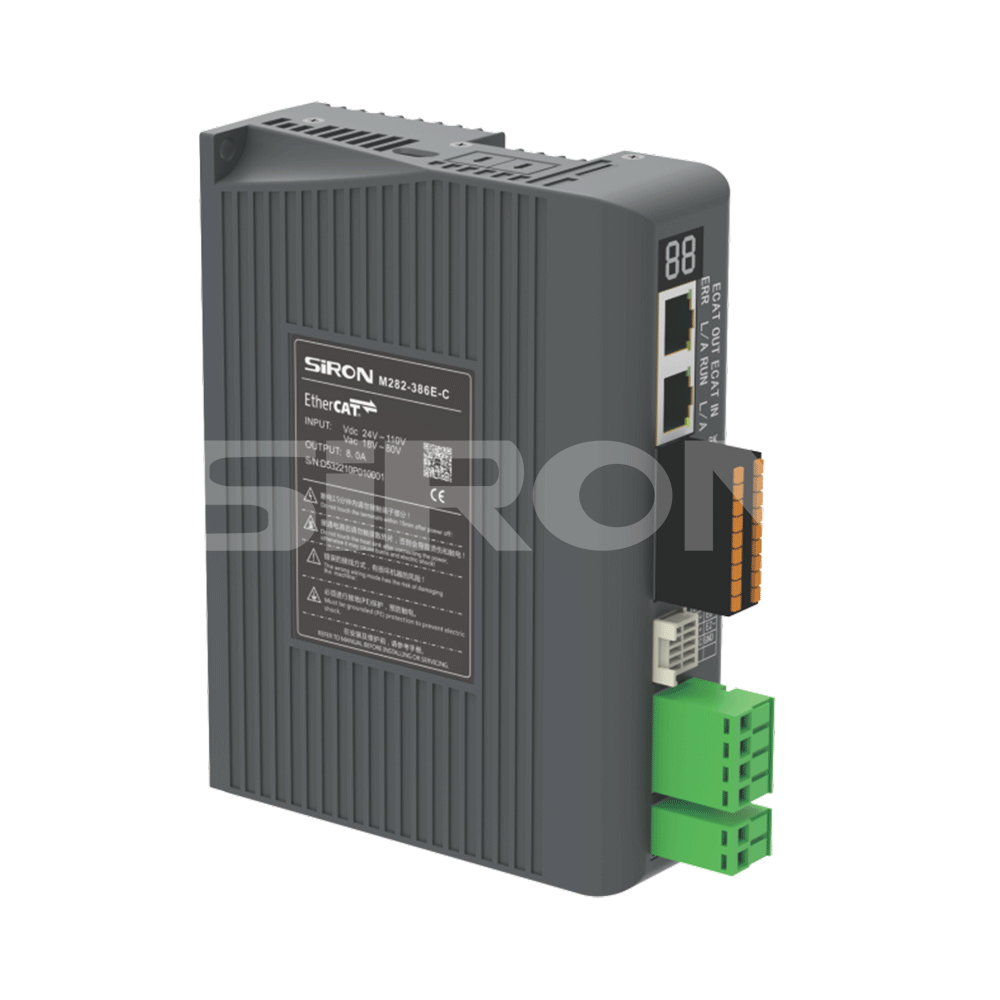

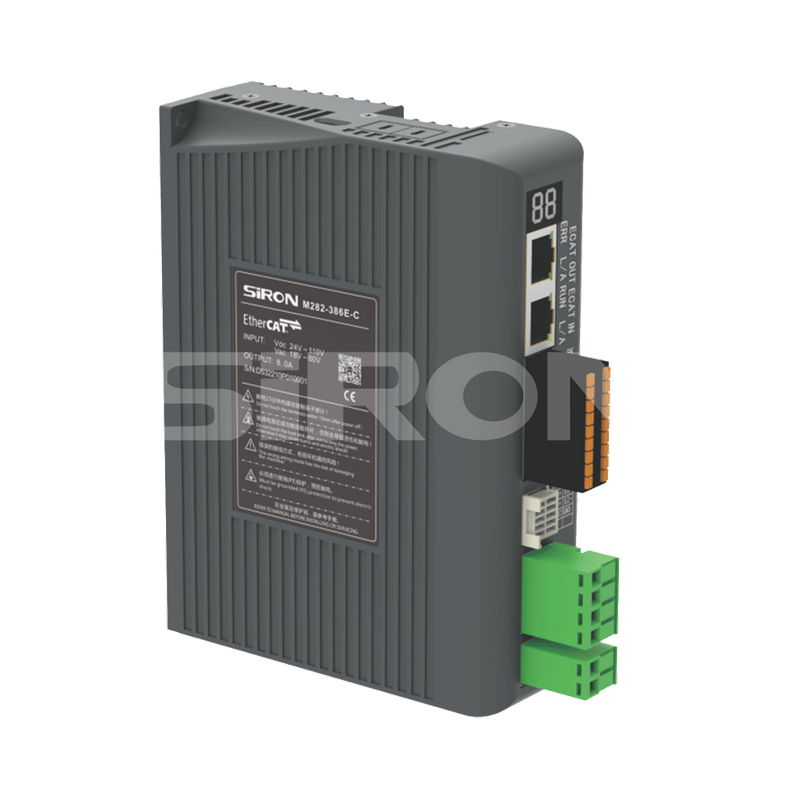

SiRON M282-357/386-C Series Bus type two-phase stepper driver - EtherCAT

Name: SiRON M282-357/386-C Series Bus type two-phase stepper driver - EtherCAT
Brand: SiRON
Rating: 5.0 (55 reviews)

Features

* The open-loop stepper drive motor parameter automatic setting function has protection functions such as overvoltage and overcurrent.
* The closed-loop stepper driver samples the new generation of 32-bit DSP technology, which can mount up to 31 axes and achieve
multi axis bus synchronization control. The driver has 15 internal positions and 15 internal speeds.
* Supports automatic zeroing, absolute/relative positioning, JOG and other functions, which can be directly controlled using a touch
screen or a controller with RS485 interface.
* Adopting RS485 interface and supporting standard Modbus RTU protocol, it is a fully digital drive control integrated closed-loop one to two stepper driver
* Up to 31 drives can be controlled simultaneously, and the drives have an 8-terminal internal position table that supports automatic internal position switching, zero return, position triggering, JOG, and other functions

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M282-357/386-C
Brand:
SiRON
Code:
8501109990

RS485 stepper driver EtherCAT stepper driver Open loop stepper driver Closed loop stepper driver

Product Description

About selection

Selection example: M282-357E-C represents the M282 series bus-type two-phase stepping driver, with a voltage input range of 24V to 48VDC, a maximum peak current of 5.0A, an open-loop type, and an EtherCAT communication interface. It is an economical type.

Specification

Model		M282-357E-C	M282-357CE-C	M282-386E-C	M282-386CE-C
Name		Bus-type two-phase open-loop stepper driver -EtherCat	Bus-type two-phase closed-loop stepper driver -EtherCat	Bus-type two-phase open-loop stepper driver-EtherCat	Bus-type two-phase closed-loop stepper
Voltage input range (V)		24~48VDC		driver EtherCat— 24~110VDC/18V~80VAC
Maximum peak current(A)		5		8
Drive weight(kg)		0.3		0.6
Inputloutput		2-channel differential input, 4-channel 24V single-ended input; 3-channel differential output; Independent brake output signal
EtherCATCommunicafionSpeciicafion	Physical Layer	100BASE-TX
	Communicafionconnecto	RJ45×2(lnput:CN4A;Output:CN4B)
	Netwok Architecure	concatenation
	transmission speed	2x100 Mbps(full duplex)
	Data frame length	The maximum is 1484 bytes
	Applicaton layer protboc	CoE:CANopen over EtherCAT
	Synchronization mode	DC Synchronous mode (SYNCO)Asynchronous mode(Free Run)
	Communication object	SDO: Non-Periodic Data Object, PDO: Periodic Data Object, EMCY: Urgent Object
	Layer specifications	CiA402 Drive Profile
	Supporled contol modes	PP:Position Mode of Profile HM:Return-to-Zero Mode(HM) PV:Speed Mode of Profile CSP:Circular Synchronous Position Mode
Ervironmental parameers	Storage temperature	-20℃~65℃
	Usage temperature	0℃~50℃
	Vibration frequency	Less than 0.5G(4.9m/s 2),10Hz to 55Hz(non-continuous operation)
	Usehumidity	40～90%RH(No condensation)
	hnstalafon evironmen	No corrosive gases,flammable gasesoil mists or dust,etc
