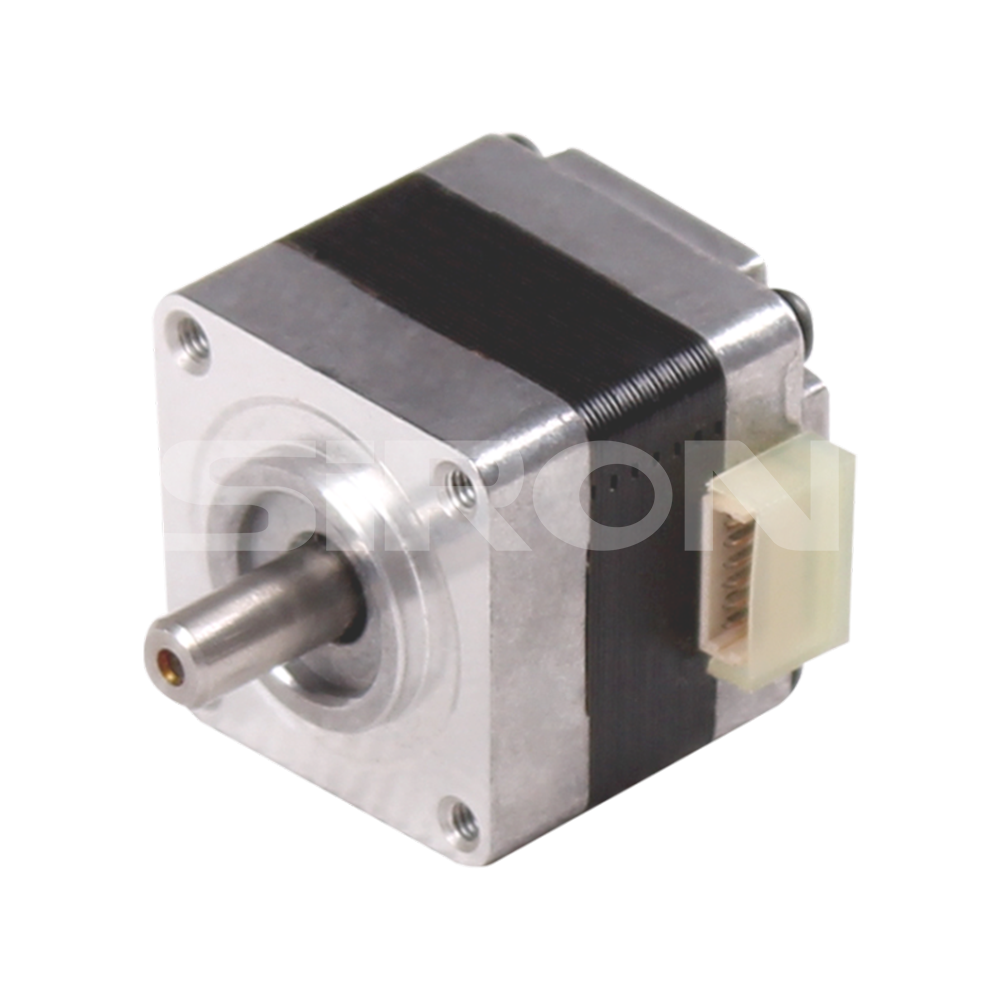

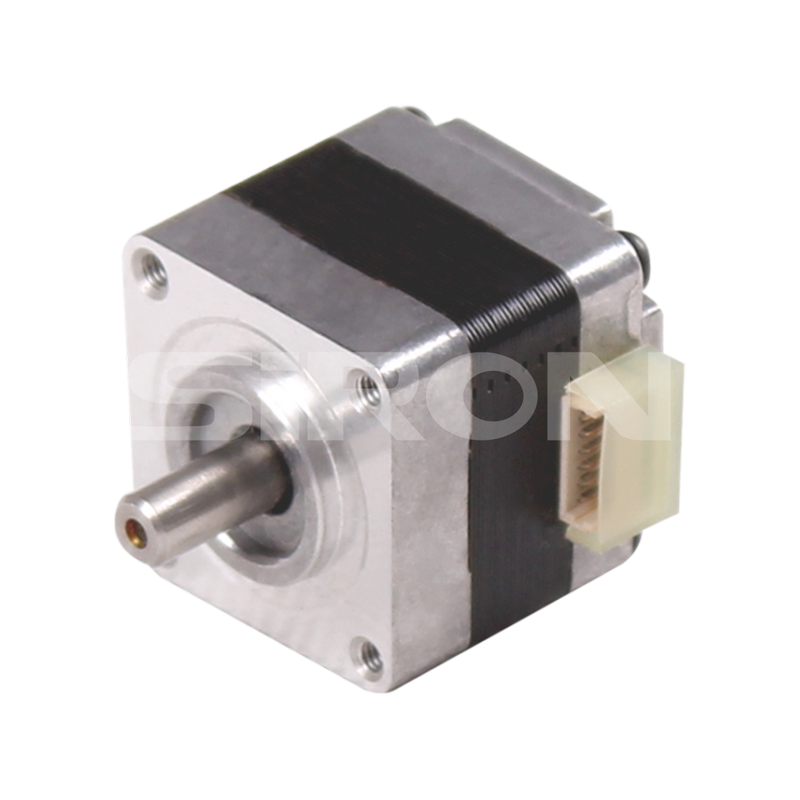

SiRON M272-25 Series 1.8° 25mm Three-phase Stepper Motor

Name: SiRON M272-25 Series 1.8° 25mm Three-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (54 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-25
Brand:
SiRON
Code:
8501109990

1.8° step angle 25mm frame size 0.33N.m holding torque

Product Description

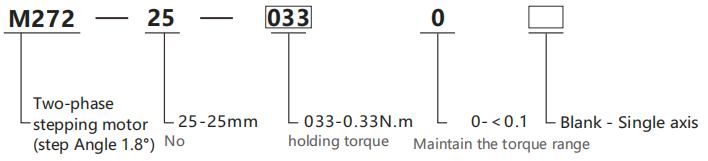

About selection

Selection example: M272-25-0330 represents the M272 series two-phase stepping motor, with a frame size of 25mm, a holding torque of 0.033N.m, and a single axis.

Specification

Model	M272-25-0330
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	7N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

Electrical properties

Model	M272-25-0330
Adapter drive	M280-430
Curment per phase	0.7
Holding tbrque	0.033
Positioning torque	0.003
Each resistance	4
Each inductance	2.4
Number of laad wires	4
Moment of inertia	2
waight	0.055
Body length	24
