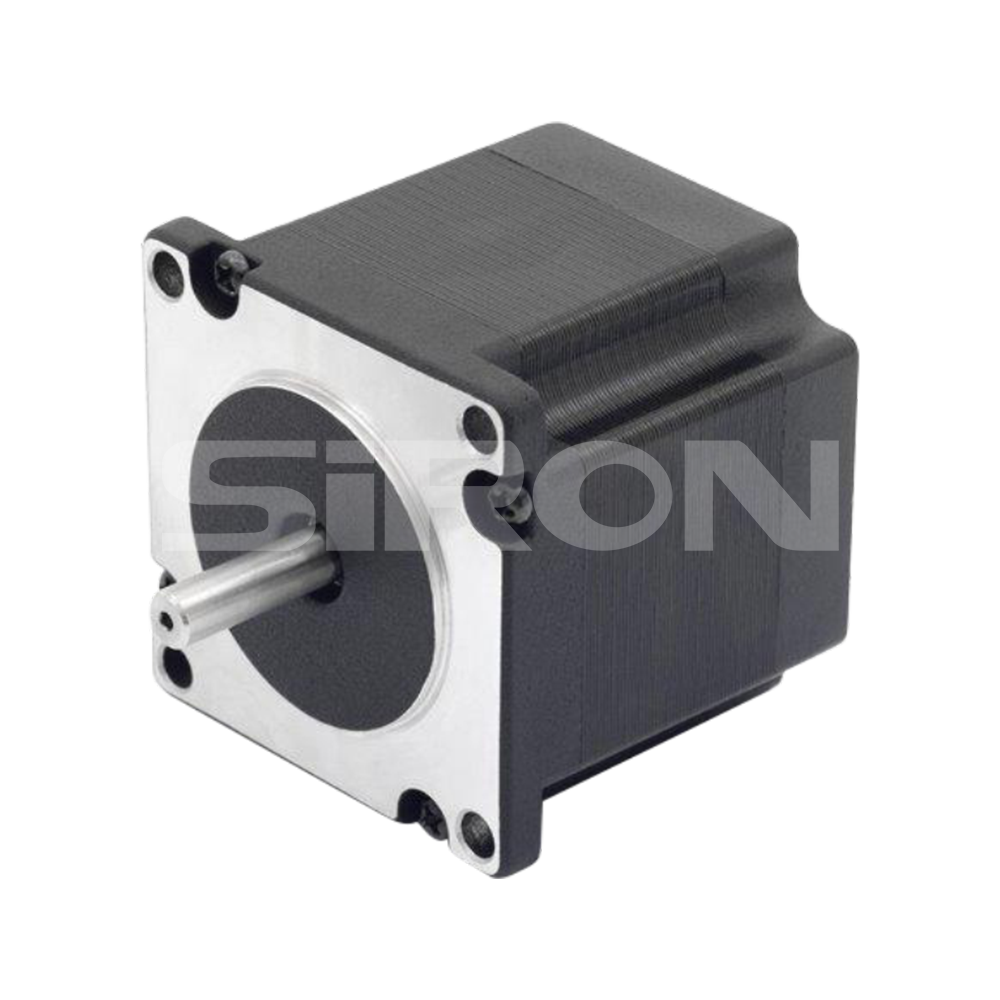

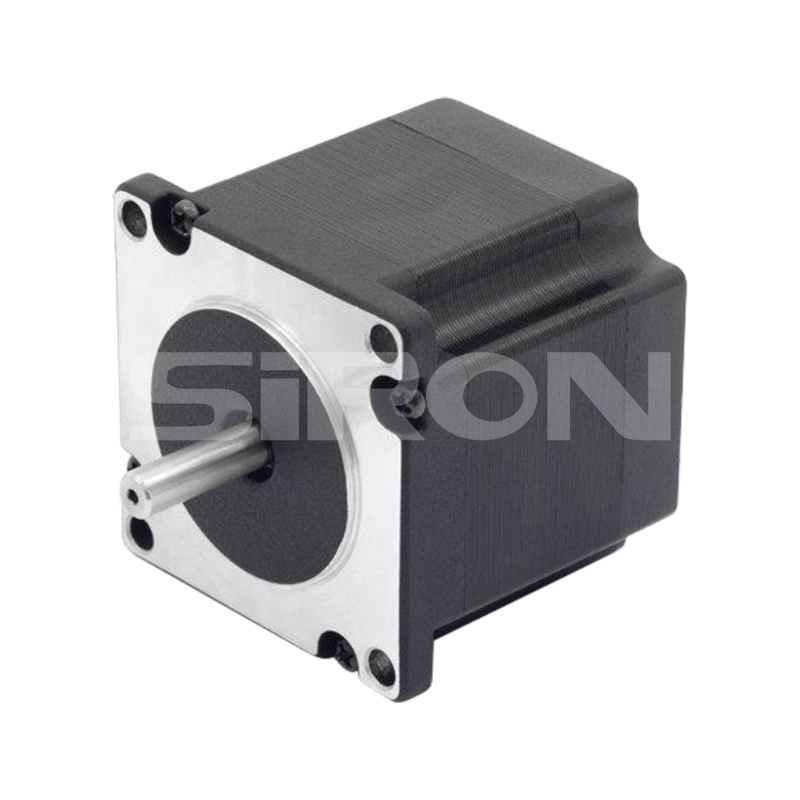

SiRON M271-57 Series Three-phase Stepper Motor

Name: SiRON M271-57 Series Three-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (26 reviews)

Features

* 1.2° step angle, three-phase stepper motor;
* High resolution, low noise;
* High torque, low vibration, high efficiency;
* Precise position control;
* It can realize precise control and convenient adjustment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M271-57
Brand:
SiRON
Code:
8501109990

1.2° step angle 57mm frame size 0.45N.m holding torque 0.9N.m holding torque 1.5N.m holding torque

Product Description

About selection

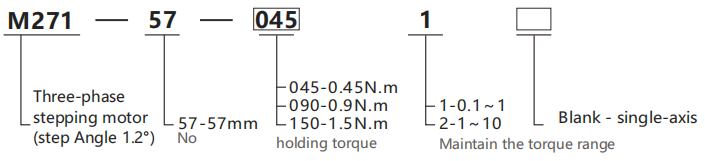

Selection example: M271-57-0451 represents the M271 series three-phase stepping motor, with a frame size of 57mm, a holding torque of 0.45N.m, and a single axis.

Specification

Model	M271-57 Series
Radial Play	0.02mm@450g	Step Angle	1.2°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	10N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	900VAC/1s	Insulation Class	Class B

Electrical properties

Model	M271-57-0451	M271-57-0901	M271-57-1502
Adapter drive	M281-3606	M281-3606	M281-3606
Cuent per phase	5.2	5.6	5.8
Holding tbrque	0.45	0.9	1.5
Positioning torque	0.021	0.04	0.068
Each resistance	1.3	0.7	1.05
Each inductance	1.4	1.7	2.4

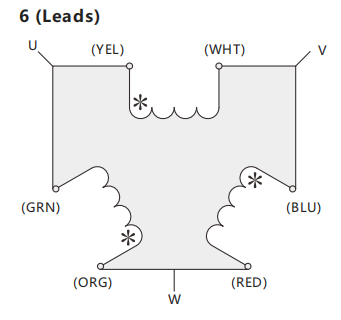

Number oflead wires	6	6	6
Moment of inertia	110	300	480
weight	0.45	0.75	1.1
Body length	42	56	79
