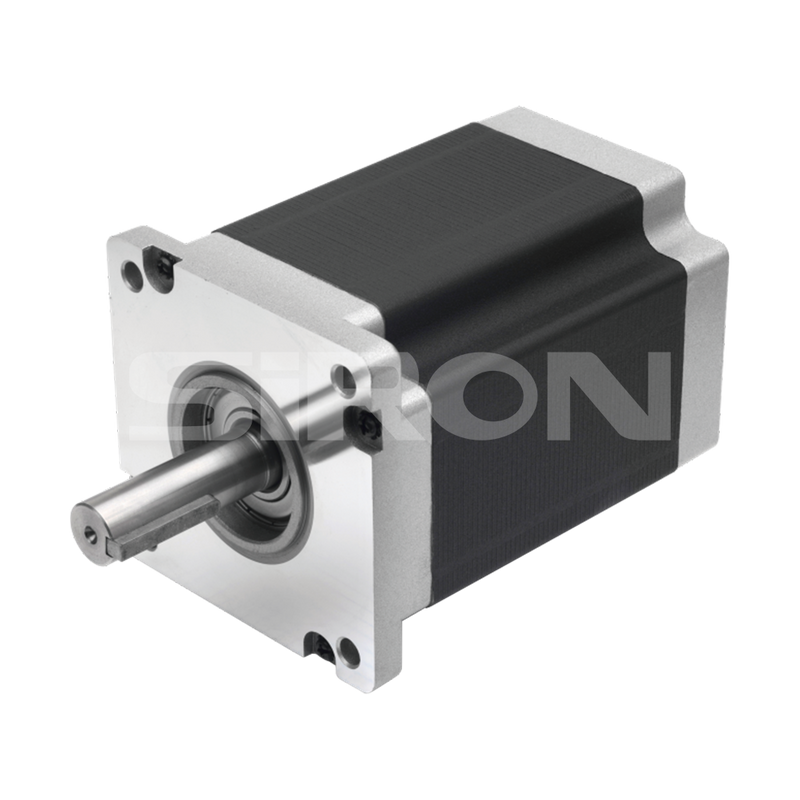

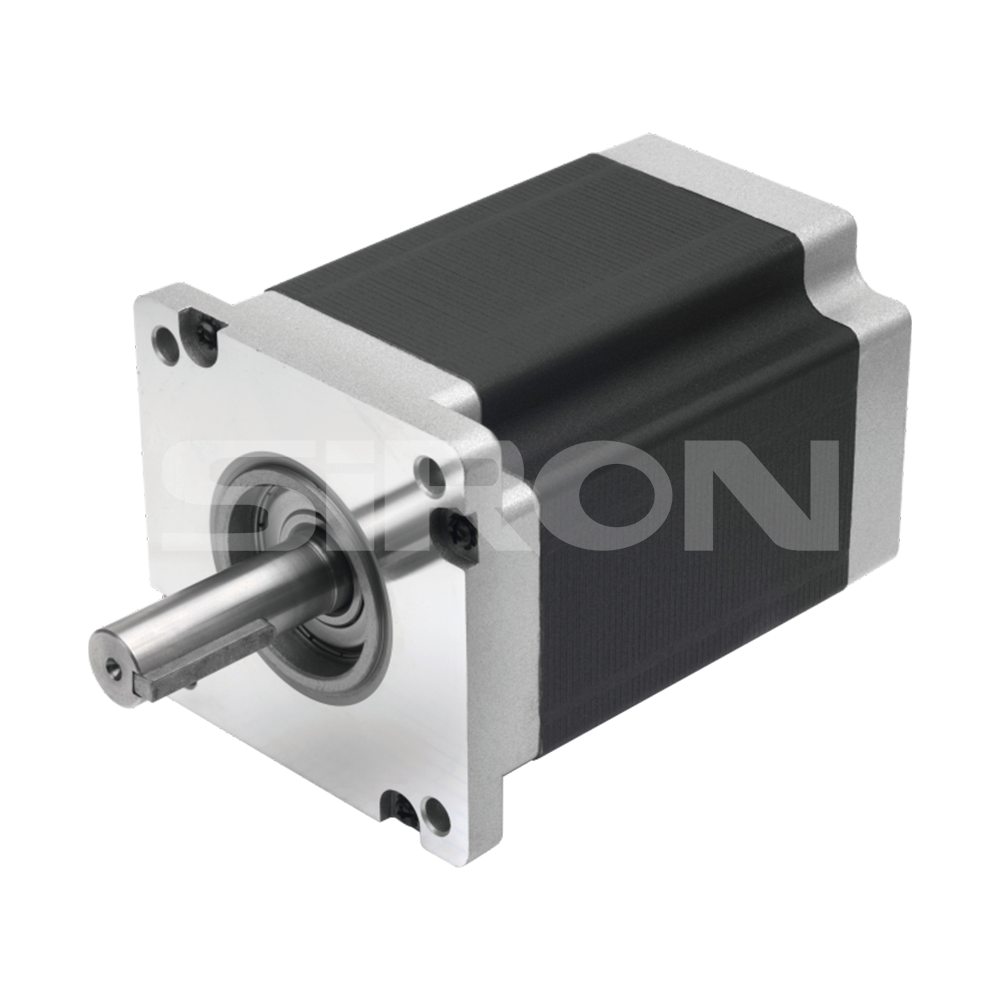

SiRON M271-110 Series Three-phase Stepper Motor

Name: SiRON M271-110 Series Three-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (22 reviews)

Features

* 1.2° step angle, three-phase stepper motor;
* High resolution, low noise;
* High torque, low vibration, high efficiency;
* Precise position control;
* It can realize precise control and convenient adjustment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M271-110
Brand:
SiRON
Code:
8501109990

1.2° step angle 110mm frame size 13.92N.m holding torque

Product Description

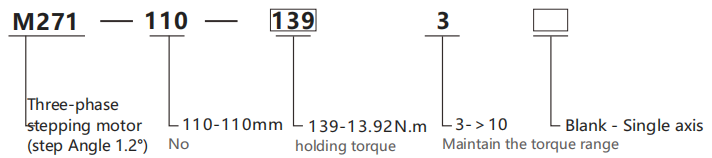

About selection

Selection example: M271-110-1393 represents the M271 series three-phase stepping motor, with a frame size of 110mm, a holding torque of 13.92N.m, and a single axis.

Specification

Model	M271-110-1393
Radial Play	0.02mm@450g	Step Angle	1.2°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	330N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	100N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	1800VAC/1s	Insulation Class	Class B

Electrical properties

Model	M271-110-1393
Adapterdrive	M281-3606
Current per phase	4.1
Halding torque	13.92
Positioning torque	1.01
Each resistance	1.96
Each inductance	18

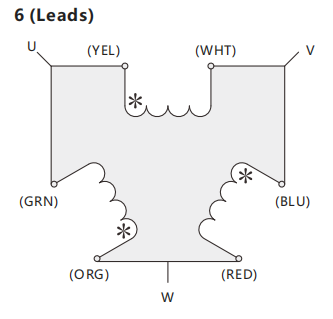

Number of lead wires	6
Moment of inartia	10500
weight	8
Body length	173
