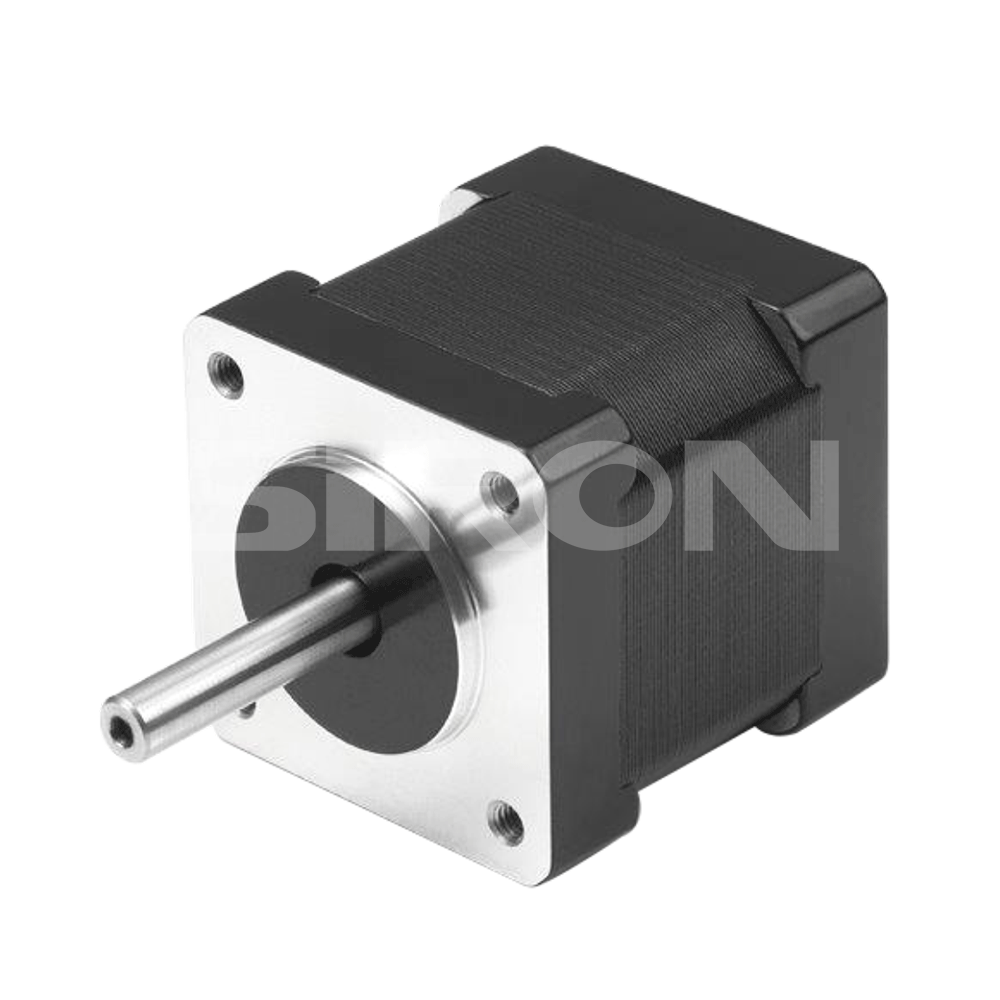

SiRON M270-35 Series Two-phase Stepper Motor

Name: SiRON M270-35 Series Two-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (60 reviews)

Features

* 0.9° step angle;
* High resolution, low noise;
* High torque, low vibration, high efficiency;
* Precise position control;
* It can realize precise control and convenient adjustment.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M270-35
Brand:
SiRON
Code:
8501109990

0.9° step angle 35mm frame size 0.05N.m holding torque 0.09N.m holding torque

Product Description

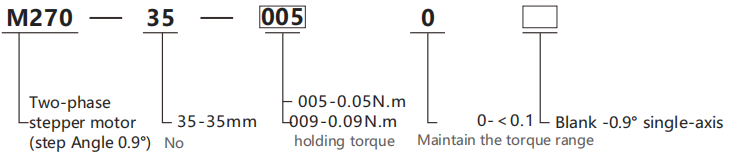

About selection

Selection example: M270-35-0050 represents the M270 series two-phase stepping motor, with a frame size of 35mm

Specification

Model	M270-35 Series
Radial Play	0.02mm@400g	Step Angle	0.9°
Axial Play	0.08mm@400g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	10N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

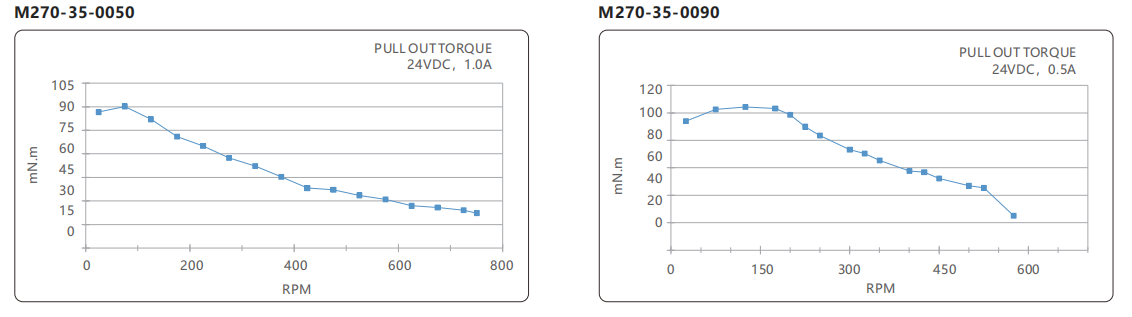

Electrical properties

Model	M270-35-0050	M270-35-0090
Adapter drive	M280-430	M280-430
Curren per phase	1	0.5
Holdingtorque	0.05	0.09
Positioning torque	0.005	0.008
Each resistance	10	6.1
Each inductance	8.5	6.9
Number of lead wires	4	4
Moment of inertia	8	11
weight	0.1	0.15
Body length	20	26
