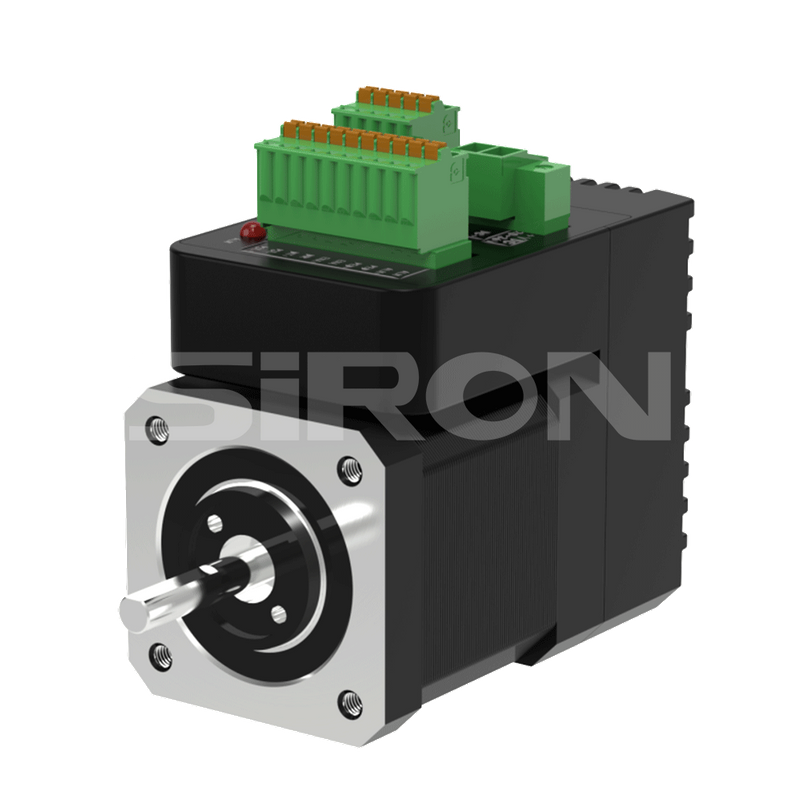

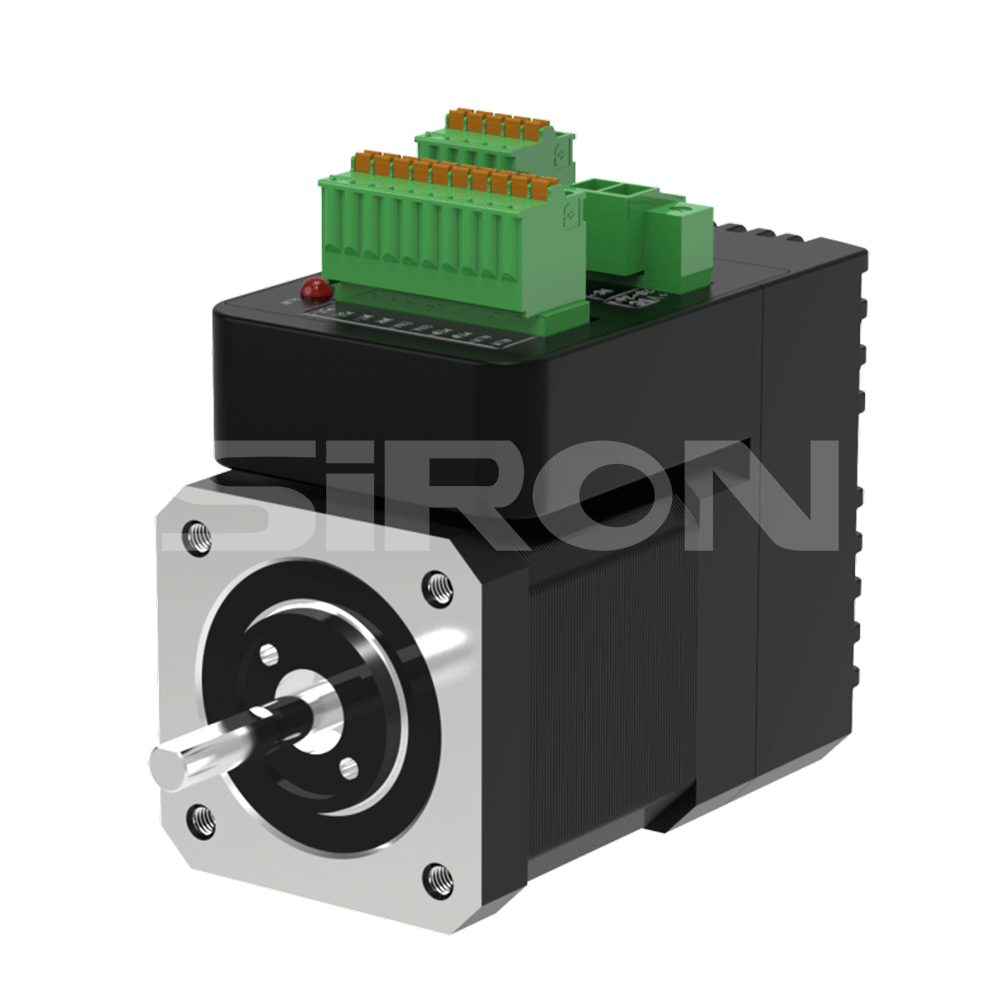

M260
SiRON
8501109990
About selection

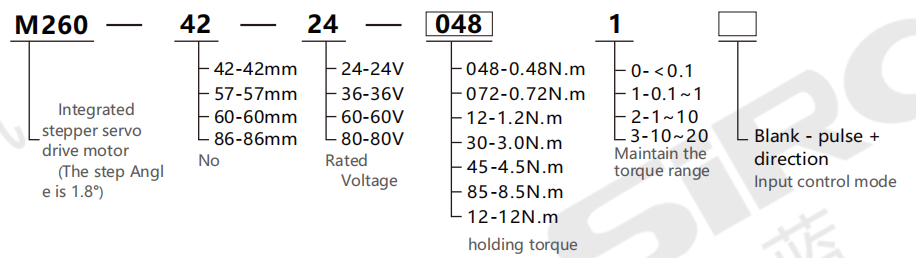

Selection example: M260-42-24-0481 represents the M260 series integrated stepping servo drive motor, with a frame size of 42mm, a rated voltage of 24V, a holding torque of 0.48N.m, and input control mode pulse + direction
Dial code setting
| Pluse/rew | Default | 800 | 1600 | 3200 | 6400 | 2800 | 25600 | 51200 | 1000 | 2000 | 4000 | 5000 | 8000 | hooo0 | 20000 | 40000 |
| SW1 | ON | OFF | ON | OFF | ON | OFF | ON | OFF | ON | OFF | ON | OFF | ON | OFF | ON | OFF |
| SW2 |  ON | ON | OFF | OFF | ON | ON | OFF | OFF | ON | ON | OFF | OFF | ON | ON | OFF | OFF |
| SW3 | ON | ON | ON | ON | OFF | OFF | OFF | OFF | ON | ON | ON | ON | OFF | OFF | OFF | OFF |
| SW4 | ON | ON | ON | ON | ON | ON | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF |
Specification
Ⅰ.42 series(24V)
| Machine base number | 42 Series | |
| Model | M260-42-24-0481 | M260-42-24-0721 |
| StepAngle | 1.8° | |
| Supply voltage | 24 | |
| Holding torque | 0.48 | 0.72 |
| Each resistance | 3.1 | 4.0 |
| Each inductance | 7.9 | 10 |
| Current per phase | 1.2 | |
| Moment ofinertia | 7.7 | |
| Body length | 75 | 88 |

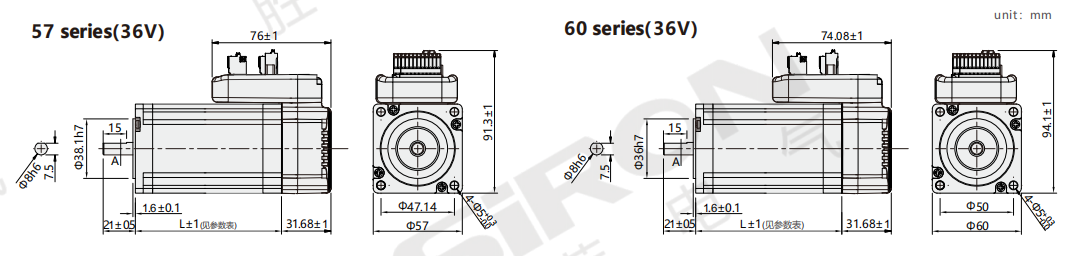

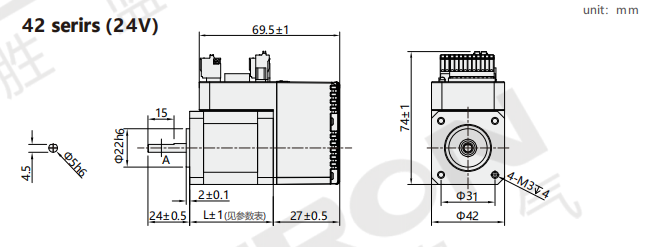

Dimensions
Ⅱ.57 series (36V)
| Machine base number | 57 series | ||
| Model | M260-57-36-122 | M260-57-36-202 | M260-57-36-302 |
| StepAngle | 1.8° | ||
| Supply woltage | 36 | ||
| Holding torque | 1.2 | 2.0 | 3.0 |
| Eachreslstance | 0.44 | 0.37 | 0.48 |
| Eachinductanoe | 1.4 | 1.7 | 2.0 |
| Ourrentper phase | 4.0 | 5.0 | 4.0 |
| Moment ofinerdia | 28 | 48 | 78 |
| Body length | 87 | 108 | 143 |
Ⅲ.60 series(36V)
| Machine base number | 60 series | |
| Model | M260-60-36-202 | M260-60-36-302 |
| StepAngle | 1.8° | |
| Supply votage | 36 | |
| Halding torgue | 2.0 | 3.0 |
| Each reslstance | 1.0 | 0.43 |
| Eachinductanoe | 0.8 | 2.0 |
| Ourrent per phase | 5.0 | |
| Moment ofinerfa | 310 | 690 |
| Body length | 97 | 117 |

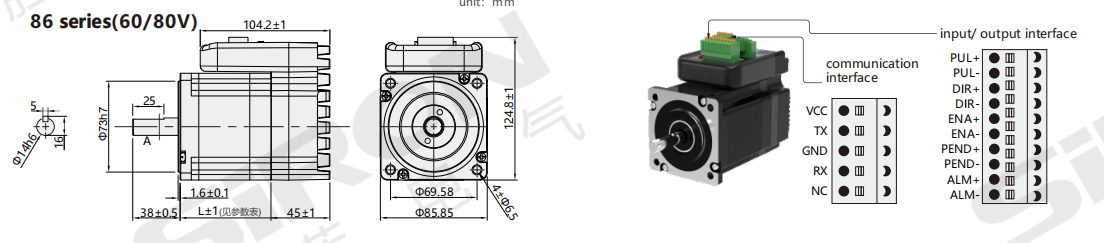

Ⅳ.86 series(60/80V)
| Machine base number | 86 series | ||
| Model | M260-86-60-452 | M260-86-80-852 | M260-86-80-123 |
| StepAngle | 1.8° | ||
| Supplyvottag | 60 | 80 | 80 |
| Hokaing toroue | 4.5 | 8.5 | 12 |
| Eachresistance | 0.43 | 0.55 | 0.76 |
| Eachinductanoe | 2.7 | 7.1 | 8.4 |
| Curent per phase | 6.0 | ||
| Momentofineria | 180 | 290 | 400 |
| Body length | 121 | 141 | 201 |
