SiRON M202 AC 220V 40 60 80 Flange Servo Motor

Name: SiRON M202 AC 220V 40 60 80 Flange Servo Motor
Brand: SiRON
Rating: 5.0 (84 reviews)

Feature

* 17 bit magnetic encoder for single coil absolute value/17 bit magnetic encoder for multi coil absolute value can be selected;
* Adopting new technology, compact structure, short body and small size;
* Applied to automation equipments and instruments in the field of operation and control, for example: 3D printing equipments, lithium battery liquid injection machine, labeling machine, robot, CNC machine tools, etc.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M202
Brand:
SiRON
Code:
8503009090

AC220V Servo Motor 40 Flange Servo Motor 60 Flange Servo Motor 80 Flange Servo Motor

Product Description

About selection

企业微信截图_17550808356397

Selection example: M202-40-A101K30-D12-B represents the M202 series servo motor, with a flange size of 40mm, a rated voltage of AC220V, a power of 100W, a rated speed of 3000r/min, a magnetic single-turn absolute value of 17bit, and a brake.

Note: 1，220V: The power selectable range is 100W to 1000W. 2，The M202 series servo motors can be matched with the M212E series servo drivers.

Table 1: Flanges

Code	40		60		80
Flange size	40mm		60mm		80mm

Table 2:Power

100W～1000W

Code	10	20	40	60	75	10
Power	100W	200W	400W	600W	750W	1000W

Table 3:Encoder Types

Code	D12			D11
Encodertype	17-bit magnetic coding single-turn absolute value			17-bit magnetic coding multi-turn absolute value

Specification

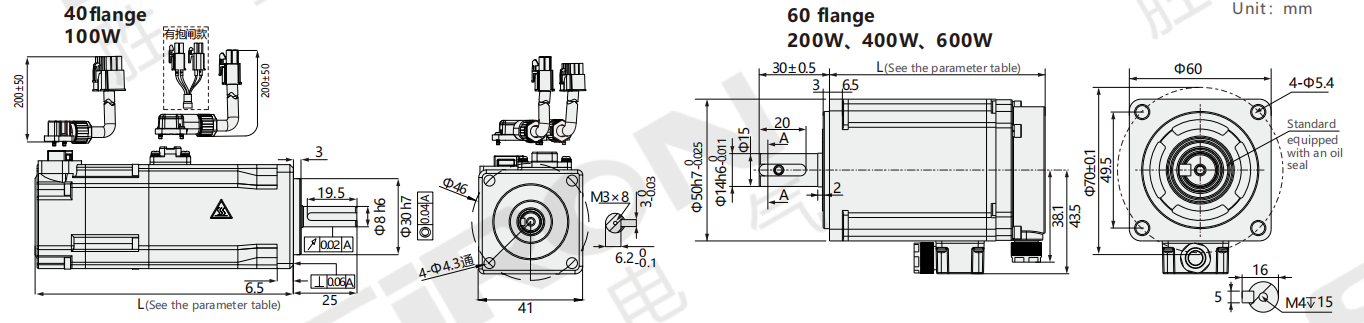

Ⅰ、40 flanges (220V )

Flange series	40 flanges series
Motor model	M202-40-A101K30-D12	M202-40-A101K30-D11
Rated power	0.10
Rated current	1.0
Rated speed	3000
Rated torque/Peak torque	0.32/0.96
Back electromotive force	17.5
Torque coefficient	0.3
Rotor inertia(without brake)	0.06×10-⁴
Wire Resistance	14
Inductance between leads	10
Polar logarithm	5
Motor insulation level/Protection level	Class F/IP65
Encoder motor winding	PE U V W
Encoder wiring	E-E+SD-0V SD++5V PE 234 56 7 1
Operating environment	Ambient temperature:-20℃ to+40℃Ambient humidity:Relative humidity<90%(under non-frosting conditions)
L without /with brake	81.5/101.5

Ⅱ、60 flanges(220V )

Flange series	60 flanges series
Motor model	M202-60-A201K30-D12	M202-60-A201K30-D11	M202-60-A401K30-D12	M202-60-A401K30-D11	M202-60-A601K30-D12	M202-60-A601K30-D11
Rated power	0.20		0.40		0.60
Rated current	1.7		2.5		4.1
Rated speed	3000		3000		3000
Rated torque/Peak torque	0.64/1.91		1.27/3.81		1.9/5.7
Back electromotve force	33		31		32.5
Torque coefficient	0.38		0.51		0.46
Rotor inertia(without brake)	0.38×10⁴		0.52×10⁴		0.75×10⁴
Wire Resistance	4.5		3.24		2.55
Inductance between leads	43		5.8		3.9
Electrical constant	4.74		1.79		1.53
Polar logarithm	5
Motorinsulation level/Protection level	Class F/IP65
Encoder motor winding	PE U V W
Encoder wiring
Operating environment	Ambient temperature:-20℃to+40℃Ambient humidity:Relative humidity<90%(under non-frosting conditions)
Lwithout/with brake	76/106		92/122		110/140

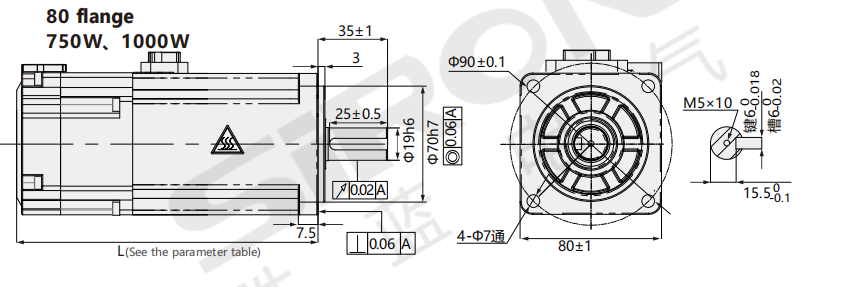

Ⅲ、80 flanges(220V )

Flangeseries	80 flanges series
Motor model	M202-80-A751K30-D12	M202-80-A751K30-D11	M202-80-A102K25-D12 M202-80-A102K25-D11	M202-80-A102K30-D12	M202-80-A102K30-D11
Rated power	0.75		1.0	1.0
Rated current	4.4/13.8		4.6/13.8	4.8/14.4
Rated speed	3000		2500	3000
Rated torque/Peak torque	2.39/7.17		3.82/11.64	3.2/9.6
Backelectromotive force	34		54	42
Torque coefficient	0.54		0.83	0.7
Rotor inertia(without brake)	1.48×10⁻⁴		2.27×10⁻⁴	2.4×10⁻⁴
Wire Resistance	1.08		2.4	1.4
Inductance between leads	42		9.5	7.2
Polar logarithm	3.89		3.7	/
	5
	Class F/IP65
	PE U v w
	E-E+SD-OV SD++5V PE 234 5 6 7 1
Operating environment	Ambient temperature:-20℃ to+40℃Ambient humidity:Relative humidity<90%(under non-frosting conditions)
Lwithout /with brake	98.5/134		113/147	120/154
