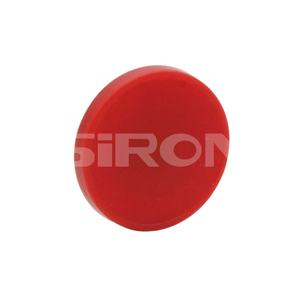

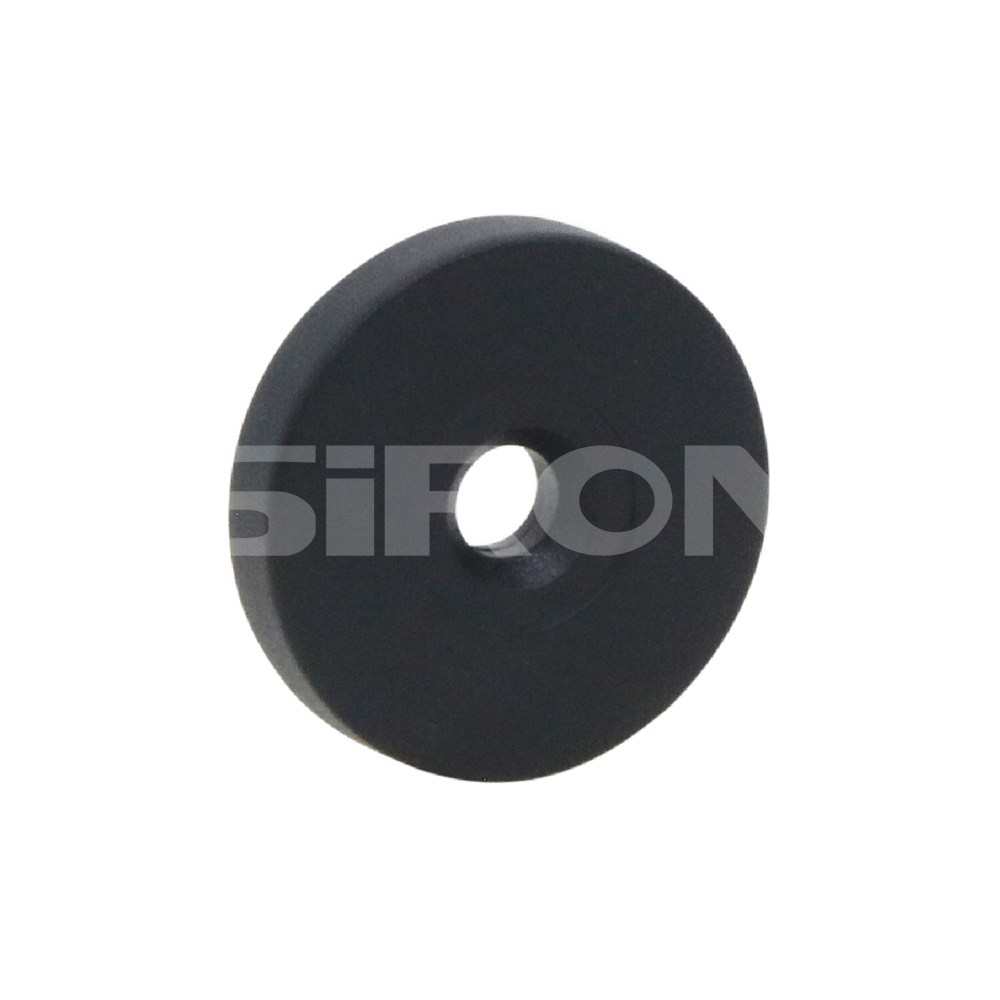

SiRON K509-A5 Industrial Code Carrier

Name: SiRON K509-A5 Industrial Code Carrier
Brand: SiRON
Rating: 5.0 (56 reviews)

Features:

* This label is an electronic label packaged with ABS, in accordance with ISO 15693 standard;
* Available worldwide, where RFID chips store unique identifiers as well as other updated information;
* Suitable for patrol management, metal product management, fixed asset management, etc

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K509-A5 Series
Brand:
SiRON

Industrial Reader Industrial code carrier IP68 fast identification stable performance one-click parameter adjustment

Product Description

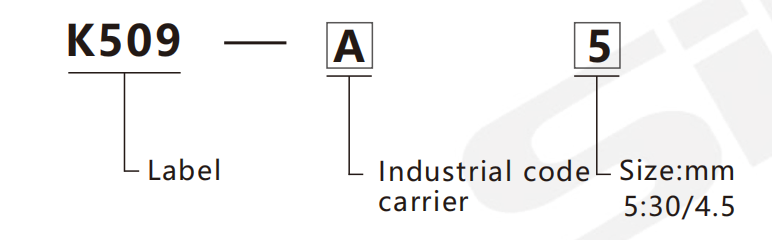

About selection

Specifications

Model	K509-A5
Working mode	Readable and writable
Air protocol	ISO15693,ISO 18000-3
Nfc	Supports NFC Type5
Operating frequency	13.56MHz
Chip type	NXP Icode Slix, Memory 896-bit, 100,000 write cycles lifespan; Fujitsu MB89R118C1-DIAP15, FRAM Memory 2K-byte, unlimited read and write cycles lifespan
Read distance	Built-in Icode Slix chip: >8cm on non-metallic surfaces; Built-in Fujitsu chip: >5cm on non-metallic surfaces
Service life	100,000 write cycles, data retention for more than 20 years
Applicable environment	For non-metallic surfaces
Product material	PPS housing, black or customizable color (color customization available for orders of 5,000 units or more)
Operating temperature	-30℃~+120℃(-22°F~+248°F)
Storage temperature	-40℃~+140℃(-40°F~+284°F)
Storage humidity	5%～95%
Installation mode	Installed with super glue, double-sided tape, plastic screws, or hanging mounting
Individual weight	Approx. 3.5g
Chemical resistance	Resistant to weak acids and weak alkalis
Drop test	Passed 200 drop tests from a height of 1 meter
Suitable for industral readers	K509-1/2/3/4 series
