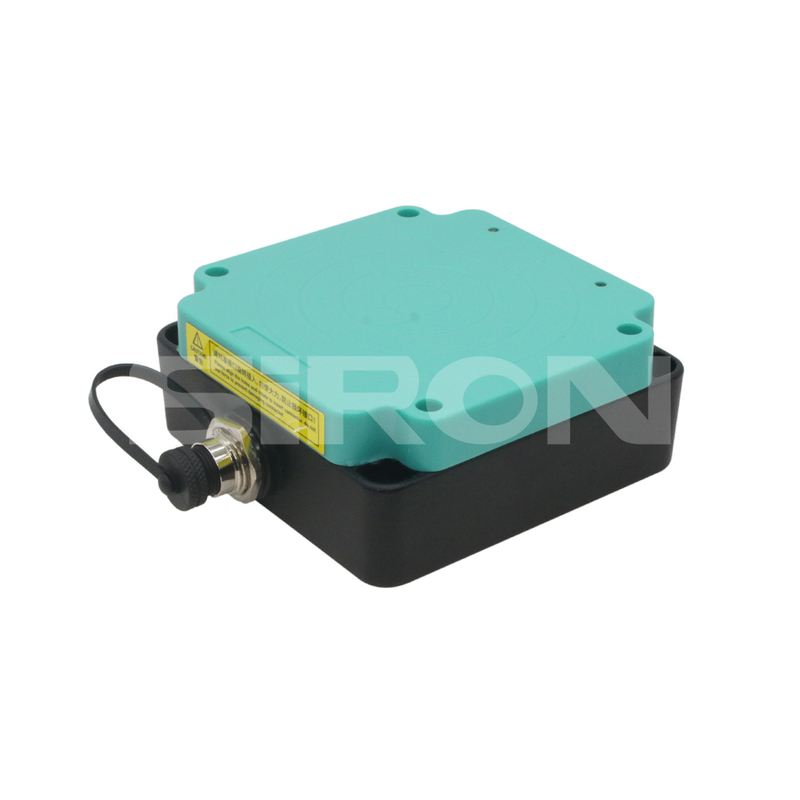

SiRON K509-5 High Frequency RFID Industrial Reader

Name: SiRON K509-5 High Frequency RFID Industrial Reader
Brand: SiRON
Rating: 5.0 (88 reviews)

* Industrial design, rugged, in line with harsh industrial production line environment, full support for ISO 15693/14443A standard
electronic labels;
* LED flashing prompts working status, buzzer ringing mode, convenient for users to control the working status of the product;
* Suitable for production lines, automated food processing production lines, automated sorting systems, parts assembly production
lines, engineering forklifts or mine engineering trucksAutomobile management and other industrial fields;
* Communication ports with isolation protection, lightning and ESD protection for key communication ports. Upgrade modes: ① serial
port upgrade, ② network port upgrade;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K509-5 Series
Brand:
SiRON

Industrial Reader Sturdy And Durable Waterproof and dustproof resistant to drops and shocks Frequency RFID

Product Description

Specifications

Model	K509-5
NFC RF chip	ZC100
Air mouth agreement	ISO 15693 / ISO 14443A
Operating frequency	13.56MHz
Read distance	1ISO15693:110mm ；ISO14443A: 60mm ((depends on the tag type)
Write distance	ISO15693:100mm；ISO14443A: 50mm （related to the tag type）
Tag RSSI	Supported
Antenna	PCB integrated antenna
Communication interface	RJ45、RS232、RS485
Communication protocol	ModbusTCP、ModbusRTU、TCP/UDP protocols
WiFi (optional)	Supports IEEE 802.11 n/b/g
Heating device (optional)	Low-temperature automatic heating (at -5°C) - optional (determined according to the on-site project environment)
Communication rate	Serial port communication rate: 9600 ~ 115200 bps; RJ45 communication rate: 10/100 Mbps
Read/disk mode	Supports continuous (automatic), command, and trigger operation modes
Data reporting mode	Buffer, timing, and real-time modes
Working condition	LED indicator light, buzzer
Reliable firmware upgrades	Expandable upgrade mechanism
Universal Input/Output (GPIO)	2-channel input, 2-channel output
Application software interface	Provides API development kit and C & Java application examples
Power source	Operating voltage: DC 9~24V
Power dissipation	Maximum power consumption: 3W; Maximum starting current: 1A
Communication harness	Industrial connection pigtail (one-to-five)
Humidness	5% ~ 95%, non-condensing
Class of protection	IEC Ip67
Operating temperature	-40ºC ~ +85ºC
Temperature protection	Supports temperature compensation function for extremely cold areas (optional)
Applicable label	K509-A series
