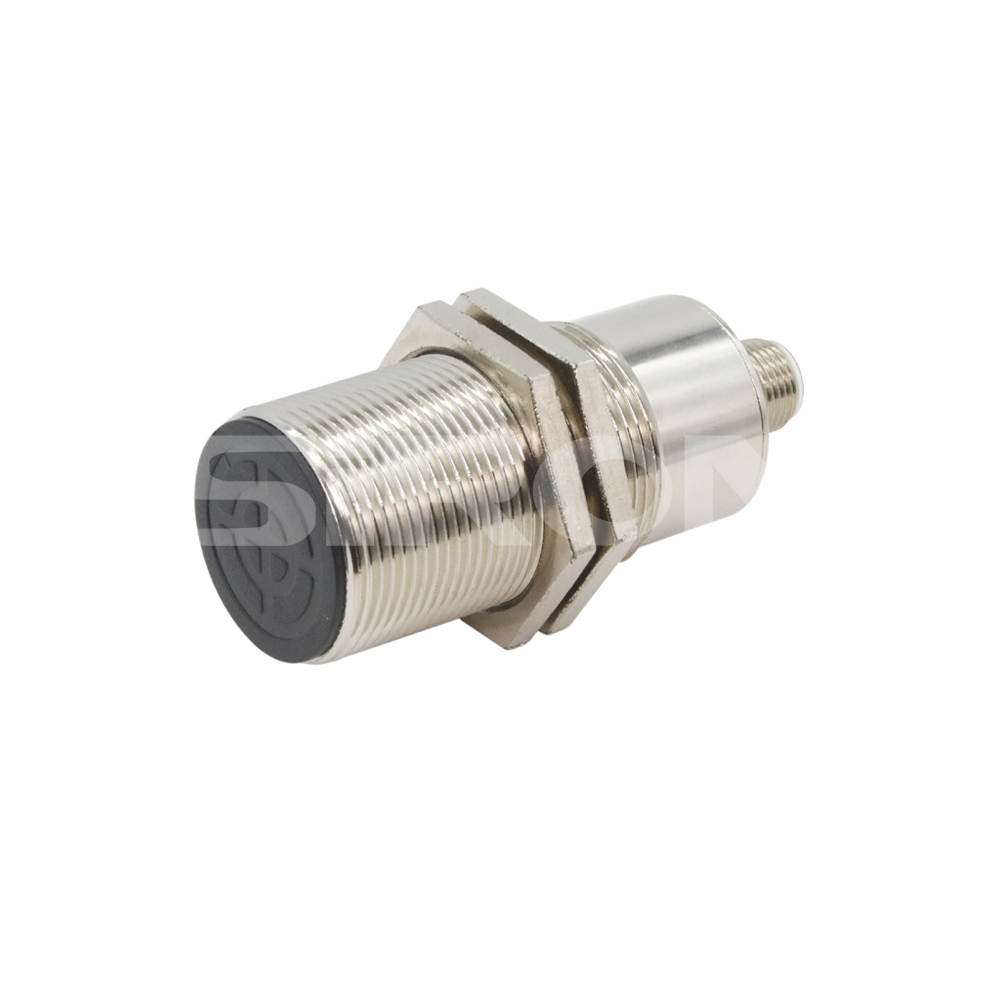

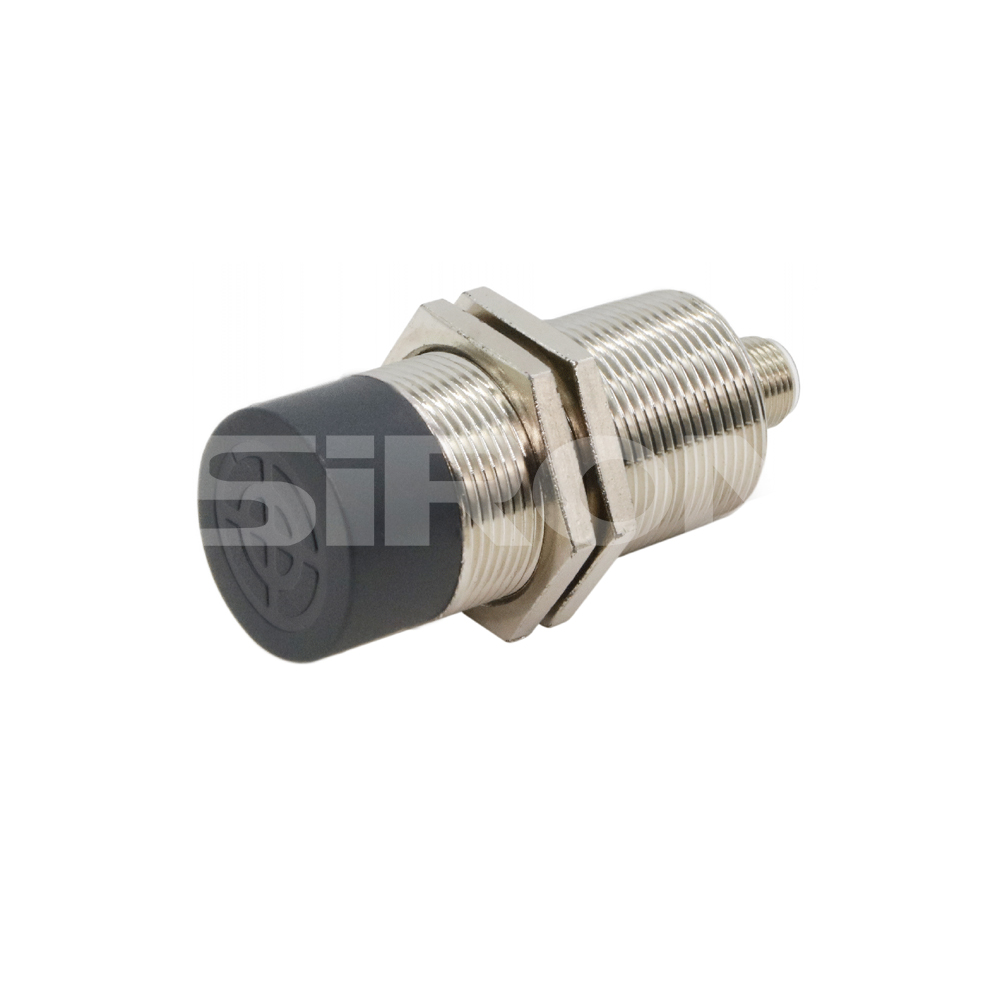

SiRON K509-2/3 High Frequency RFID Industrial Read/write Head

Name: SiRON K509-2/3 High Frequency RFID Industrial Read/write Head
Brand: SiRON
Rating: 5.0 (72 reviews)

*Full support for electronic tags in line with ISO 15693/14443A standard, support VUP protocol, support Rs485;
* LED flashing prompts the working status, which is convenient for users to control the working status of the product;
* Suitable for production lines, automated food processing production lines, automated sorting systems, parts assembly production lines and other industrial fields;
* Upgrade mode: serial port upgrade;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K509-2/3 Series
Brand:
SiRON

Industrial Reader Sturdy And Durable Waterproof and dustproof resistant to drops and shocks Frequency RFID

Product Description

Specifications

Model	K509-2	K509-3
NFCRF chip	ZC100
Air mouth agreement	ISO 15693/ISO 14443A
Operating frequency	13.56MHz
Read distance	0~80mm (depending on the label) For example, for Ø30 industrial labels, the recognition distance is 60mm	0~60mm (depending on the label) For example, for Ø30 industrial labels, the recognition distance is 45mm
antenna	PCB Integrated Antenna
Communication interface	RS485
Communication protocol	VUP Protocol
Communication rate	Serial Communication Baud Rate: 9600~115200 bp
Working condition	LED Indicator (Orange)
Reliable firmware upgrades	Expandable Upgrade Mechanism
Application software interface	API Development Kit and C, C#, and Java Application Routines Provided
Powersource	Operating Voltage: DC 24V
Power dissipation	Maximum Power Consumption: 2W
Communication harness	M12 Female Connector Harness
Humidness	5%~95%, Non-Condensing
Class of protection	IEC IP67
Operating temperature	-40℃~+70℃
Storage temperature	Normal Temperature
ESD pertormance	Air Discharge: ±10KV, Contact Discharge: ±8KV
Applicable label	K509-A series
