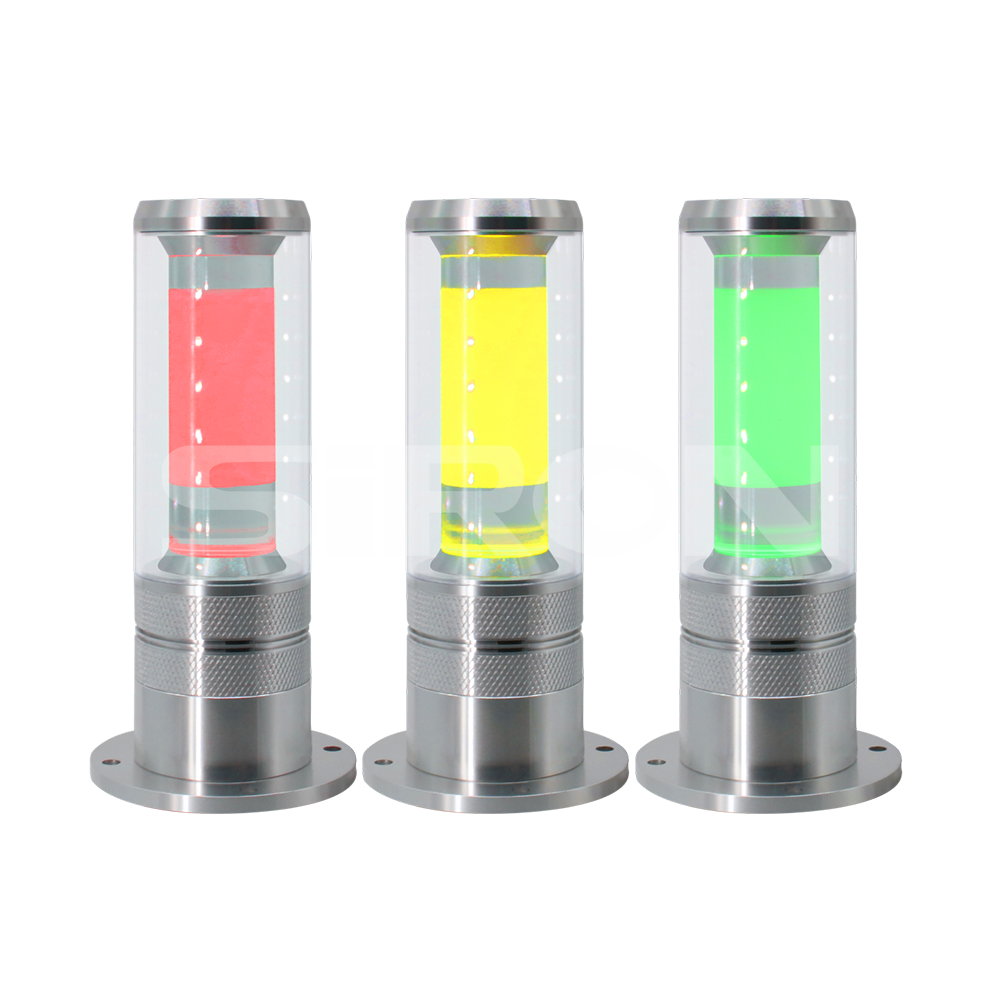

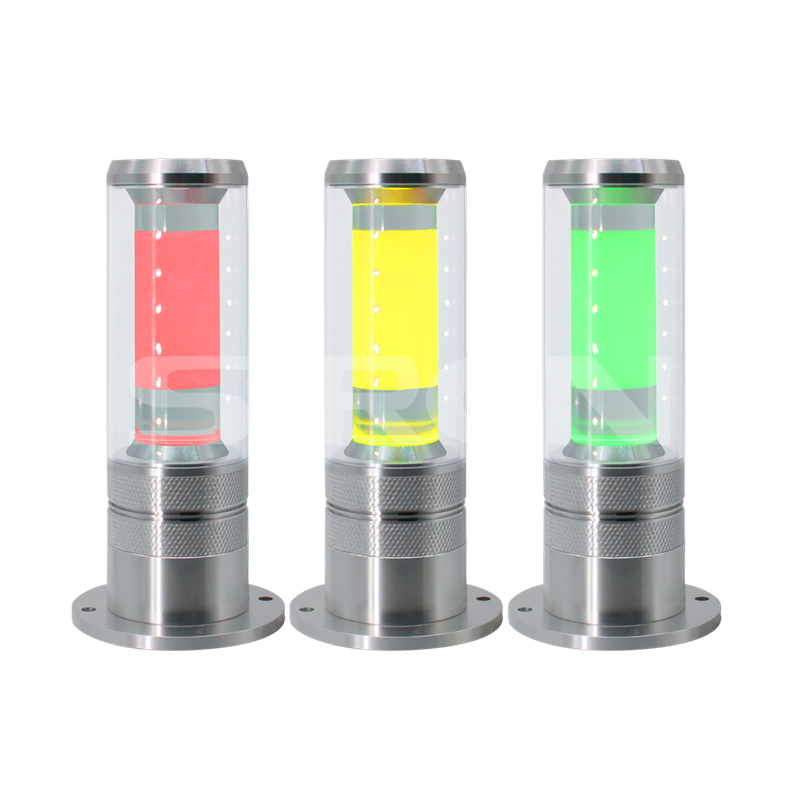

SiRON D036-1 Series LED Device Warning Light

Name: SiRON D036-1 Series LED Device Warning Light
Brand: SiRON
Rating: 5.0 (61 reviews)

Features:

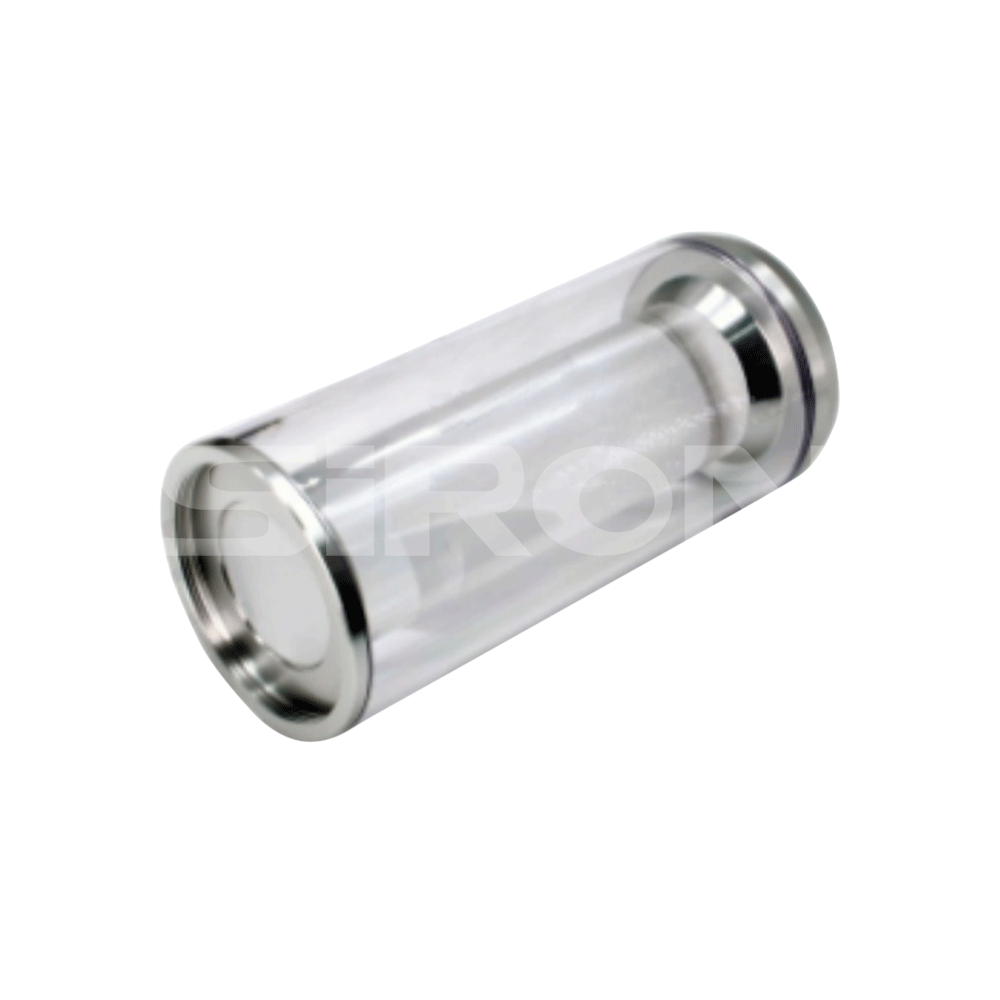

*Embedded acrylic light guide column. Uniform color, unique appearance.

*Full aluminum alloy material. Make sure the warning light has good heat dissipation.

*Perfect details. Avoid water chestnut injury.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

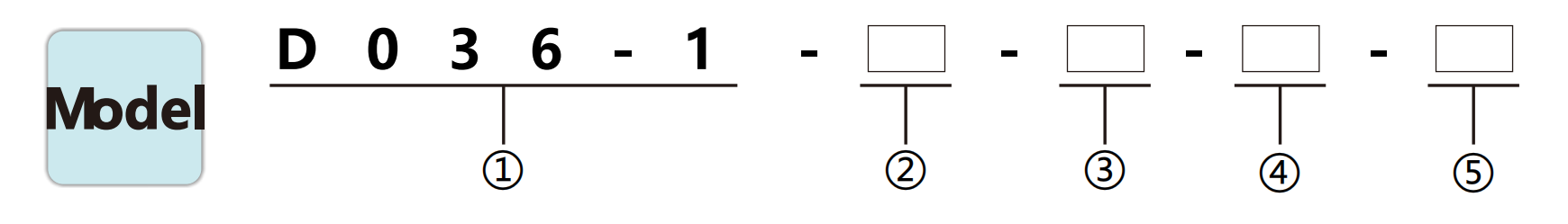

Type analysis
①	LED signal lamp series	D036-1
②	Color layers（Acquiesce）	3：Single-layer tricolor (red yellow green)
③	Working condition	Blank:Always on B:Always on withbuzzer S:Flashing Q: Flashing withbuzzer
④	Connection mode	Blank: common positive/negative Universal C: contacttype
⑤	Rated voltage	Blank：24VDC 220：220VAC

Specifications

Model number	D036-1
Appearance
Input voltage/lnput current	Input voltage:24V/220V Input current:40~150mA
The material	Lamp shade PC(bulletproof glue)+embedded acrylic light guide column +anodized aluminum alloy
Color layer	Single-layer tricolor (red yellow green)
Power/sound in tensity/protection level	Power:0.9W monochrome,total power less than 3.6W Sound intensity:Buzzer>85dB Protection level:IP40
Lhigt source/Luminous angle	Light source:Patch 2835 LED,0.2W/pcs Luminous Angle:single lamp 120°light,
Working condition	The whole light is 360°visible
Connection mode	Steady/steady with buzzer/Shiny/shiny with buzzer
Service life/Standard wiring length	Direct power input type (total positive/negative general)/ Contact type service life:50000h
Operating temperature/Storage temperature	Wiring length:1500mm Operating temperature:-20~45℃
Operating humidity/Storage humidity	Storage temperature:-40~70℃ Operating humidity:10~90%storage humidity
Luminescent lamp source color	Red Yellow Green
