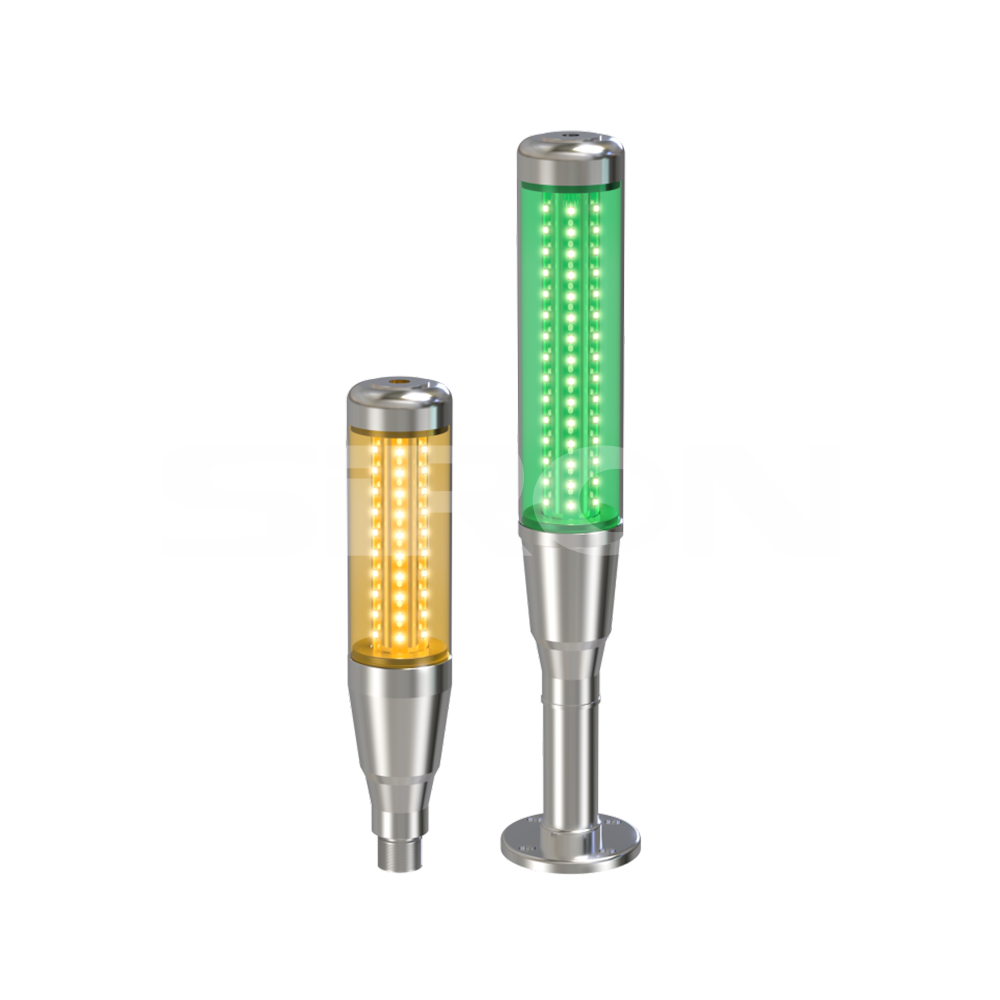

D034 Series
SiRON
9405410000
ABOUT SELECTION
|
| ||

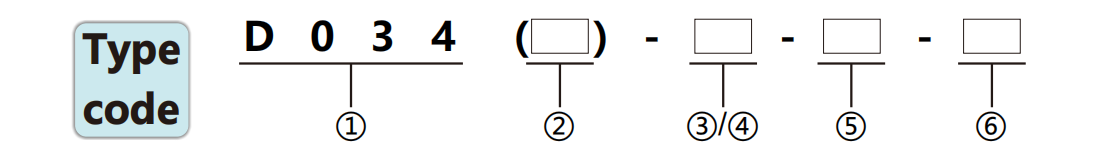

| Type analysis | ||
| ① | LED signal lamp series | D034 |
| ② | Non-smart/smart | Blank: signal light (Z)：USB smartsignal light |
| ③ | Light source colo | 3：Reddish yellow-green （RYG） |
| ④ | Light source color | R：red Y：yellow G：green |
| ⑤ | Working status | Blank: Always on B: Always on withbuzzer S: Flashing Q: Flashing withbuzzer with buzzer |
| ⑥ | Signal polarity | Blank：NPN P：PNP |
Note: 1. Only PNP isselected when the workingstate of D034 series is shiny and shiny with buzzer.
2. D033(Z) light source color can only choose three colors;The workingstate can onlybe steady on,
steady on with buzzer; No signal polarity is optional.
Specifications
| Model | D034 | D034(Z) | ||

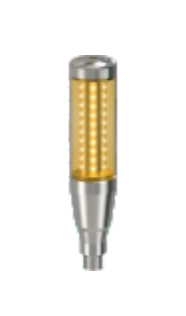

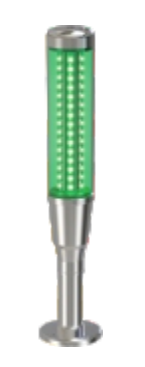

| Appearance |   |  | ||
| Nominal woltage | 24VDC | 5VDC | ||
| Rated current | Red light 0.06A,yellow light 0.07A,green light 0.07A | Red light 0.12A,yellow light 0.18A,green light 0.24A | ||
| Installation method | lengthen | Nut lock | ||
| Working status | Steady/steady with buzzer/Shiny/shiny with buzzer | Steady on/steady on with buzzer | ||
| Layer number of color | Three-colour | |||
| The material | Lamp shade transparent PC+lamp shell aluminum alloy | |||
| Protection grade | IP20 | |||
| Bean Angle | 360° | |||
| Service life | 50000h | |||
| Environment temperature | -25~55℃ | |||
| Signal polanity | NPN common positive electrode/PNP common negative electrode | -- | ||
| Standard wiring length | Standard 1500mm | The length of the USB cable is 1000mm | ||
| Luminescent lamp source color |
| |||
