SiRON D021-E Series LED Signal Lamp Highlight Light Beads

Name: SiRON D021-E Series LED Signal Lamp Highlight Light Beads
Brand: SiRON
Rating: 5.0 (95 reviews)

Features:

*Exquisite and beautiful structure, unique and innovative appearance. Fully functional and cost-effective.

*High light LED patch. High brightness, large Angle, low thermal resistance.

*The overall aluminum alloy structure design has good heat dissipation. Long service life.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

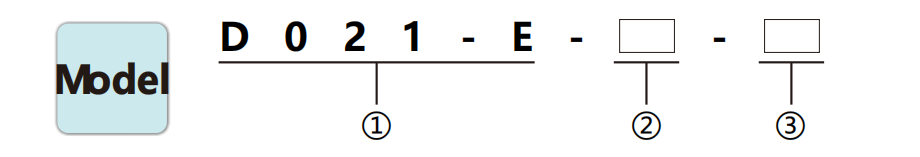

Type analysis
①	LED signal lamp series	D021-E
②	Working condition	Blank：Always on B：Always on with buzzer
③	Signal polarity	Blank：NPN P：PNP

Specifications

Model number	D021-E
Appearance
Input voltage/lnput current	Input voltage:DC 24V Input current:monochrome 100mA Buzzer 25mA
Thematerial	PC lamp shade +aluminum alloy lamp case
Power	2.4W～3.2W
Lhigt source/Luminous angle	Light source:Patch 2835 LED luminous Angle:360°
Sound intensity/Class of protection	Sound intensity:>95dB Protection level:IP50
Color layer	Single layer tricolor
Working condition	Always on/Always on with buzzer
Installation mode/Number of flashes	Installation mode:bending type90°Number of flashes:60-70/min
Service life/Standard wiring length	Working life:70000h Distribution length:500mm
Connection mode	NPN common positive electrode /PNP common negative electrode
Ambient temperature/storage temperature	-20~45℃/-40~70℃
Ambient humidity/Storage humidity	10~90%
Luminescent lamp source color	Red Yellow Green
