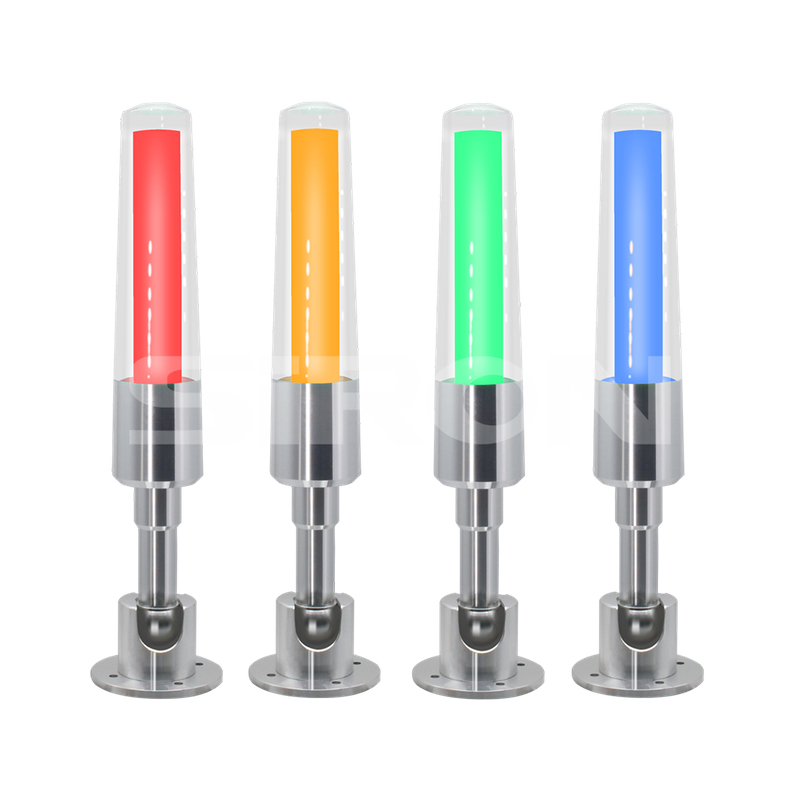

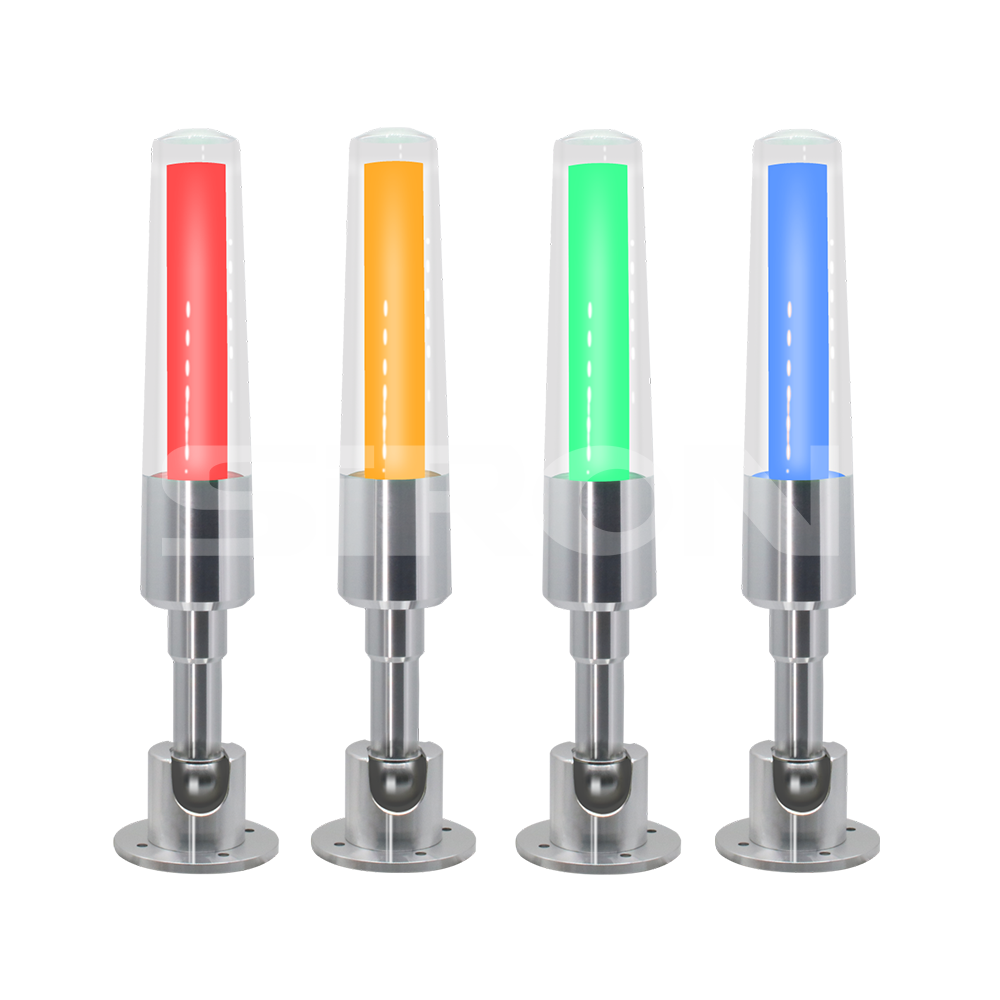

D021-C Series
SiRON
9405410000
ABOUT SELECTION
|
| ||

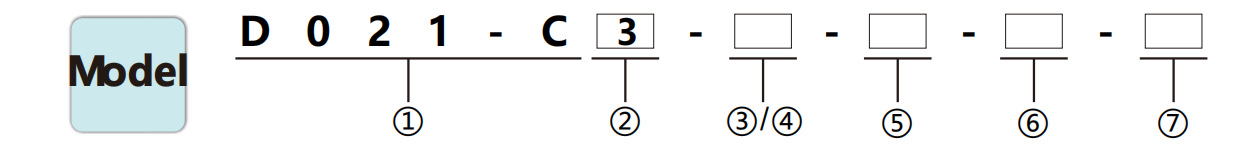

| Type analysis | ||
| ① | LED signal lamp series | D021-C |
| ② | Mounting holes | 3: Three-holebase 4: Four-holebase |
| ③ | Color layers（Acquiesce） | 3：Singlelayertricolor（RYG） 4：Singlelayerfourcolor（RYGB） |
| ④ | Color selection (Articles made to order） | R: red Y: yellow G: green B: blue （Top down color ordering） |
| ⑤ | Working condition | Blank：Always on B：Always on with buzzer S：Flashing Q：Flashing with buzzer |
| ⑥ | Connection mode | Blank: common positive/ negative Universal C: contacttype |
| ⑦ | Rated voltage | Blank ：24VDC 220：220VAC |
Specifications
| Appearance/Body color | Appearance:Base ball rod design light body color: silver |
| Input voltage/lnput current | Input voltage:24V DC/220V AC Input Current:40~160mA |
| The material | PC(bullet proof rubber)lamp shade +acrylic lamp body core shaft+aluminum alloy base |
| Power | Single color 0.96W, total power4.6W |
| Lhigts ource/Luminous angle | Light source:Patch 2835 LED,0.2W/pcs luminous Angle:The whole lamp can be seen by 360° |
| Sound intensity/Class of protection | Sound intensity:Buzzer> 85dB Protection level:IP40 |
| Color layer | Single layer 3 color/ Single layer 4 color |
| Working condition | Always on/Always on with buzzer/Flashing/Flashing with buzzer |
| Installation mode | Bend |
| Service life/Standard wiring length | Working life:50000h Wiring length:1500mm |
| Number of holes in base | 3 holes/4 holes |
| Connection mode | Direct power input type (common positive/negative)/contact type |
| Operating temperature/Storage temperature | Operating temperature:-20~45℃ Storage temperature:-40~70℃ |
| Operating humidity/Storage humidity | Operating humidity:10~90%Storage humidity:10~90% |
| Luminescent lamp source color |
Red Yellow Green Blue |

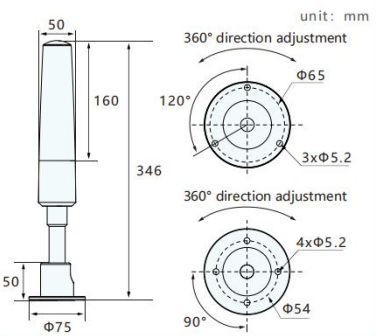

Dimension

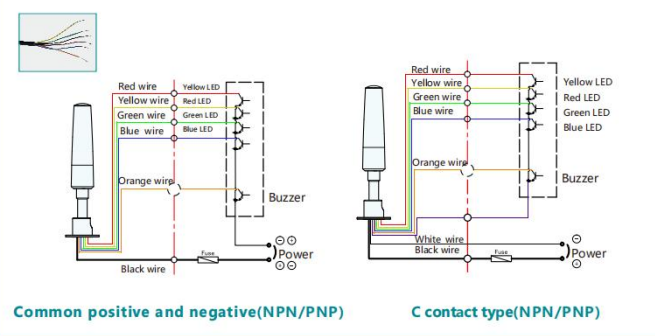

Wiring diagram
