SiRON D000/1/2/3/4 Series LED Signal Light Highlight Light Beads

Name: SiRON D000/1/2/3/4 Series LED Signal Light Highlight Light Beads
Brand: SiRON
Rating: 5.0 (83 reviews)

Features:

*The wiring is simple and clear, with a built-in high decibel buzzer.

*The nameplate of the lamp panel adopts laser lettering.

*The surface of aluminum alloy is hard and oxidized corrosion-resistant and scratch-resistant.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

ABOUT SELECTION

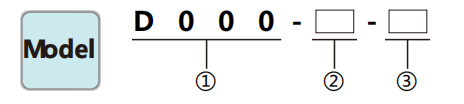

Model analysis
①	LED signal light series	D000、D001、D002、D003、D004
②	Color layer display	A:Overall display B:Muti-layer display
③	Extension cord length	3000mm(Standard)

Specifications

Model number	D000-A	D001-A	D002-A	D003-A	D004-A
Appearance
Name	Small LED signal light		Medium LED signal light
Luminous light source color	Red Green Yellow
The material	Light shade transparent PC+light shell A6061 silver aluminum
Diameter	φ52.00mm		φ68.00mm		φ104.00mm
Nominalcoilvoltage	24V DC
Nominal operating curent	48mA		96mA		48mA
Signal polarity	NPN(Active low)
Protection degree	IP40
Sound Source	Buzzer“BBB…… ”
Standard wiring length	Standard 3000mm
Sound Intensity	85dB/1m
Led SignalLight Source	LED luminous diode
Luminous Type	Stabilization
Expected Life	50000h
Net Weight Kg	0.37	0.37	0.91	1.14	0.66
Application place	Suitable for all kinds of computers, networks, office equipment; Laboratories as well as sophisticated testing equipment and small robotic arms.	Suitable for all kinds of small automation equipment, packaging and cleaning equipment and small processing machine tools.	uitable for medium-sized CNC machine tools, machining centers and plastic packaging machinery and other medium and large equipment	Suitable for all kinds of medium and large CNC machine tools, machining centers, large printing machinery and places that need to do signal indication at a distance.	Suitable for conveyor belts, heavy machinery and other places that need to make eye-catching alarm instructions

Model number	D000-B	D001-B	D002-B	D003-B	D004-B
Appearance
Name	Small LED signal light		Medium LED signal light		Warning light
Luminous light source color	Red Green		Red Yellow Green Blue		Red Green
The material	Light shade transparent PC+light shell A6061 silver aluminum
Diameter	中52 . 00mm		中68 . 00mm		φ104.00mm
Nominal coil voltage	24V DC
Nominal operating curent	24mA
Signal polarity	NPN(Active low)
Protection degree	IP40
Sound Source	Buzzer"BBB……"
Standard wiringlength	Standard 3000mm
Sound Intensity	85dB/1m
Led SignalLight Source	Red/Green	Red/Green	Red/Yellow/Green/Blue	Red/Yellow/Green/Blue	Red/Green
Luminous Type	Stabilization
Expected Life	50000h
Net Weight Kg	0.37	0.37	0.91	1.14	0.66
Application places	Suitable for all kinds of computers, networks, office equipment; Laboratories as well as sophisticated testing equipment and small robotic arms.	Suitable for all kinds of small automation equipment, packaging and cleaning equipment and small processing machine tools.	Suitable for medium-sized CNC machine tools, machining centers and plastic packaging machinery and other medium and large equipment.	Suitable for all kinds of medium and large CNC machine tools,machining centers, large printing machinery and places that need to do signal indication at a distance.	Suitable for conveyor belts, heavy machinery and other places that need to make eye-catching alarm instructions.

PRODUCT FEATURES
