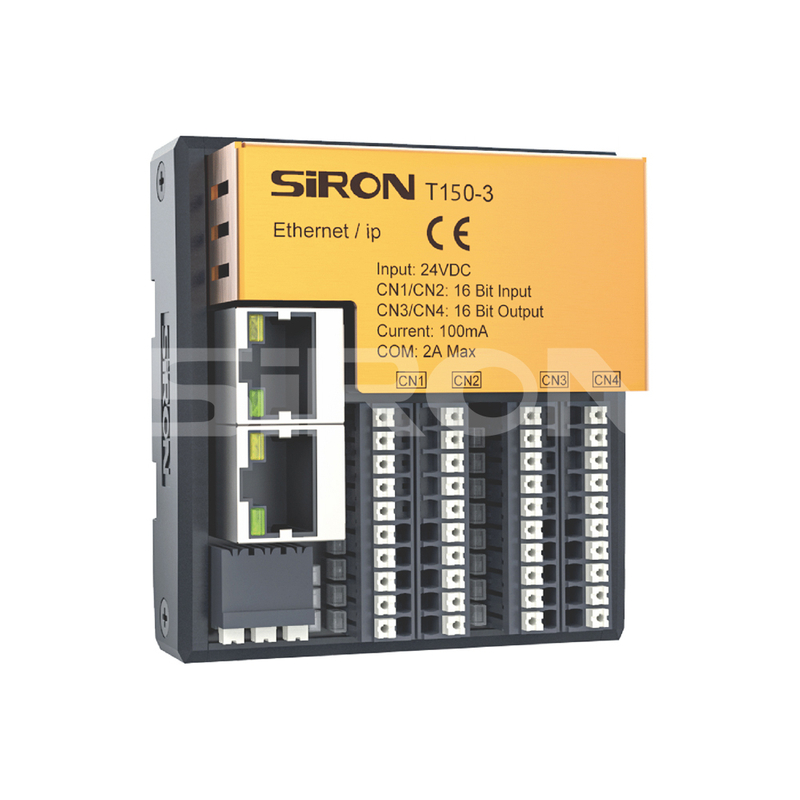

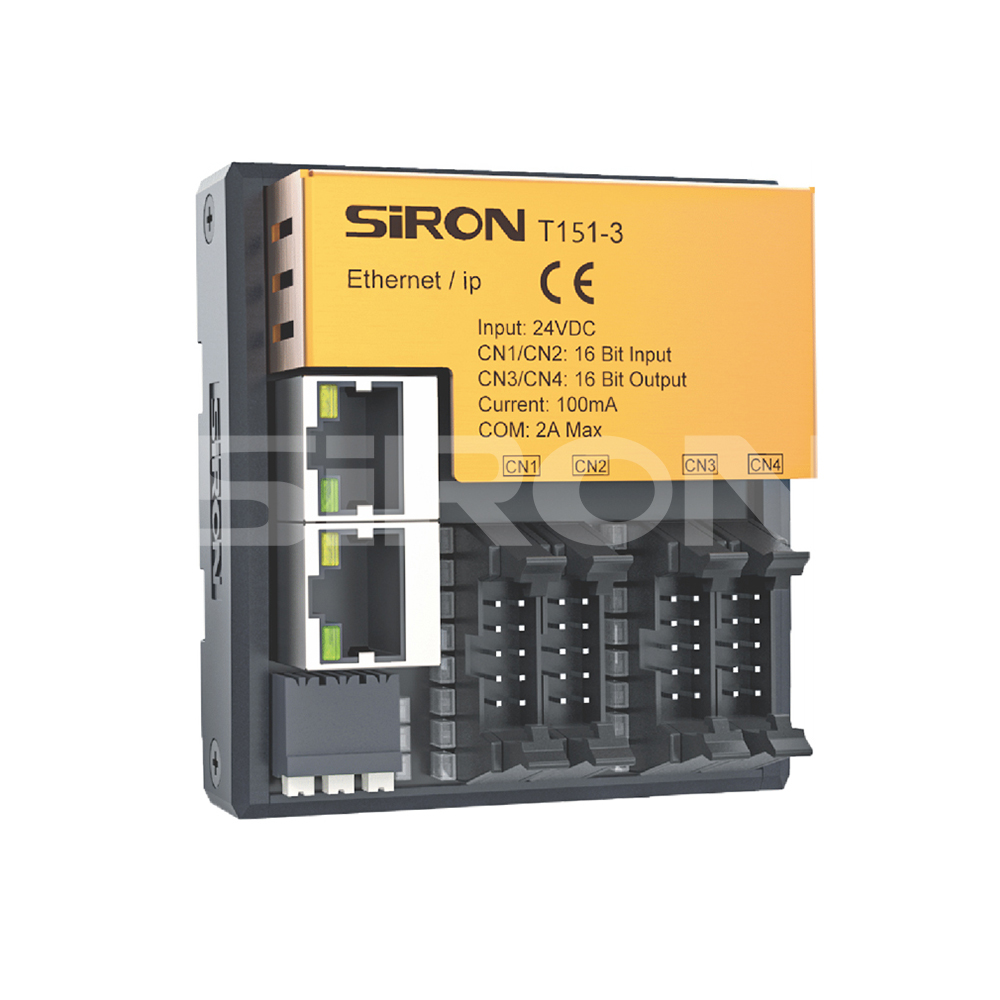

T15-C
SiRON
8471800000
About selection

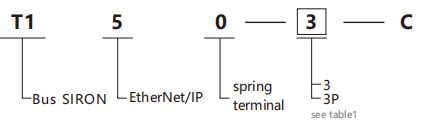

Selection example: T150-3-C represents the T1 second-generation bus module, with the protocol being EtherNet/IP, and the connection me thod being spring terminal. The input/output characteristics are: 16-channel digital input and 16-channel digital output (NPN).
Table 1: Input/Output Characteristics
| Code | Input | Output |
| 3 | 16 channels digital input(NPN&PNP) | 16 channels digital output(NPN) |
| 3P | 16 channels digital input(NPN&PNP) | 0 channel digital output(PNP) |
| 4 | 32 channel digital input(NPN&PNP) | 32 channels digital output |
| 5 | 0 channel analog input | 0 channel analog output(NPN) |
| 5P | 0 channel analog input | 0 channel analog output(PNP) |
Specifications
| Rated voltage | 24V DC(12～30V) |
| Current consumption | 60mA |
| Size | 80×75×38mm |
| Protection grade | IP20 |
| Working temperature | -20～60℃ |
| Storage temperature | -20～75℃ |
| Relative humidity | 95%,No condensation |
| Weight | 130g |
Communication bus interface
| EtherCATEthernet interface | Interface | Signal | Signal definition | ||
 | 1 | TX+ | Data sending positive end | ||
| 2 | TX- | Data sending negative end | |||
| 3 | RX+ | receiving positive end | |||
| 4 | / | / | |||
| 5 | / | / | |||
| 6 | RX- | Data receiving negative end | |||
| 7 | / | / | |||
| 8 | / | / | |||
| Connector housing | PE | Chassis ground | |||

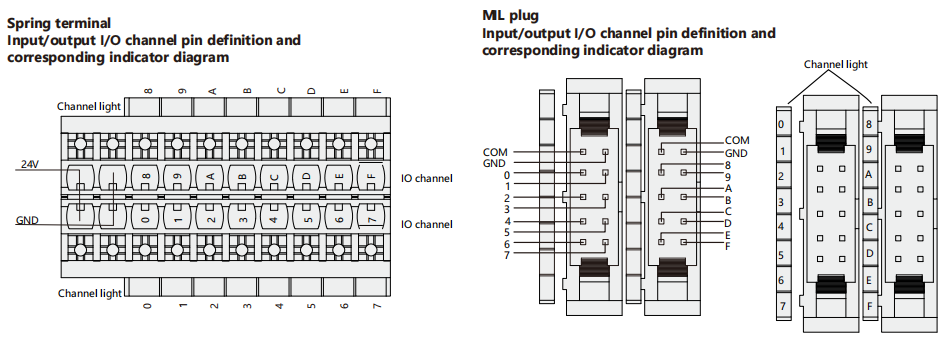

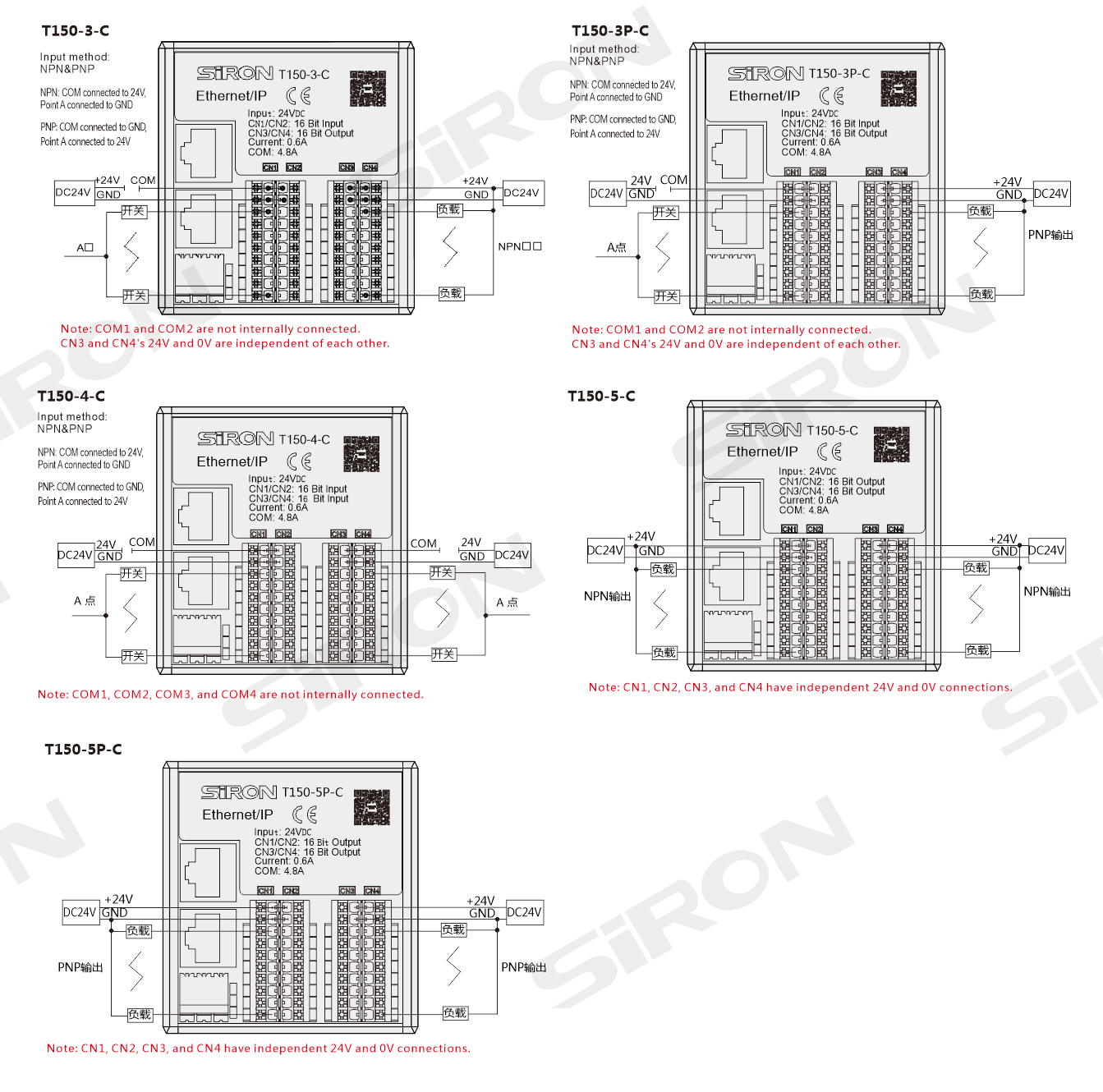

Wiring diagram

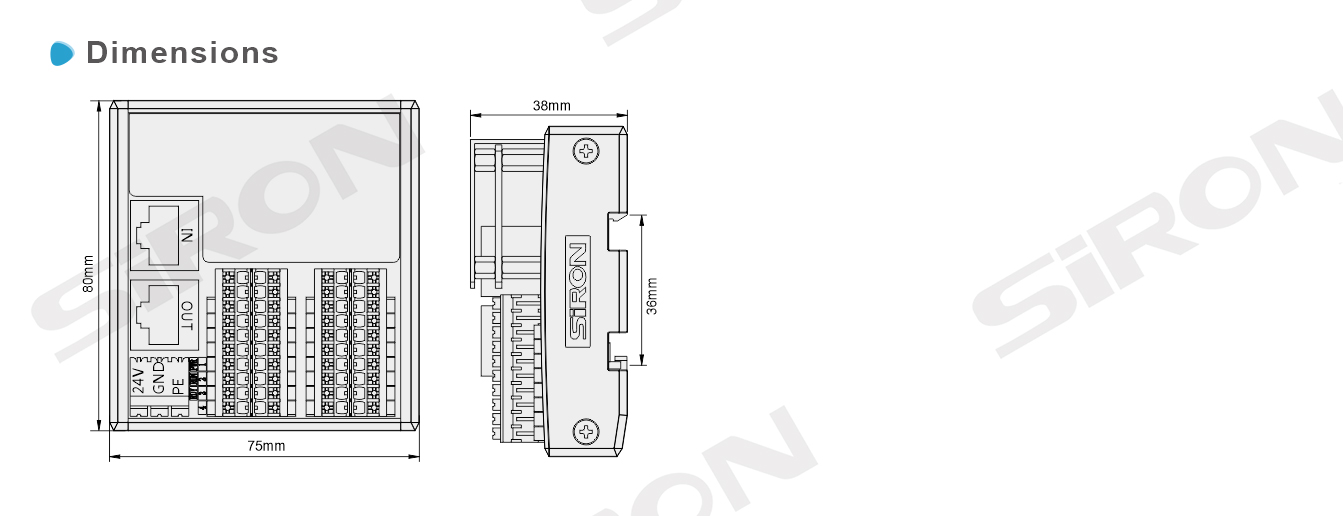

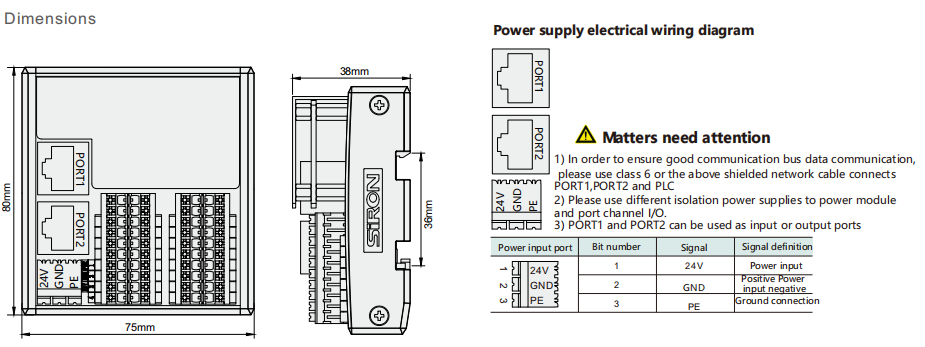

Dimensions
Topological structure diagram
