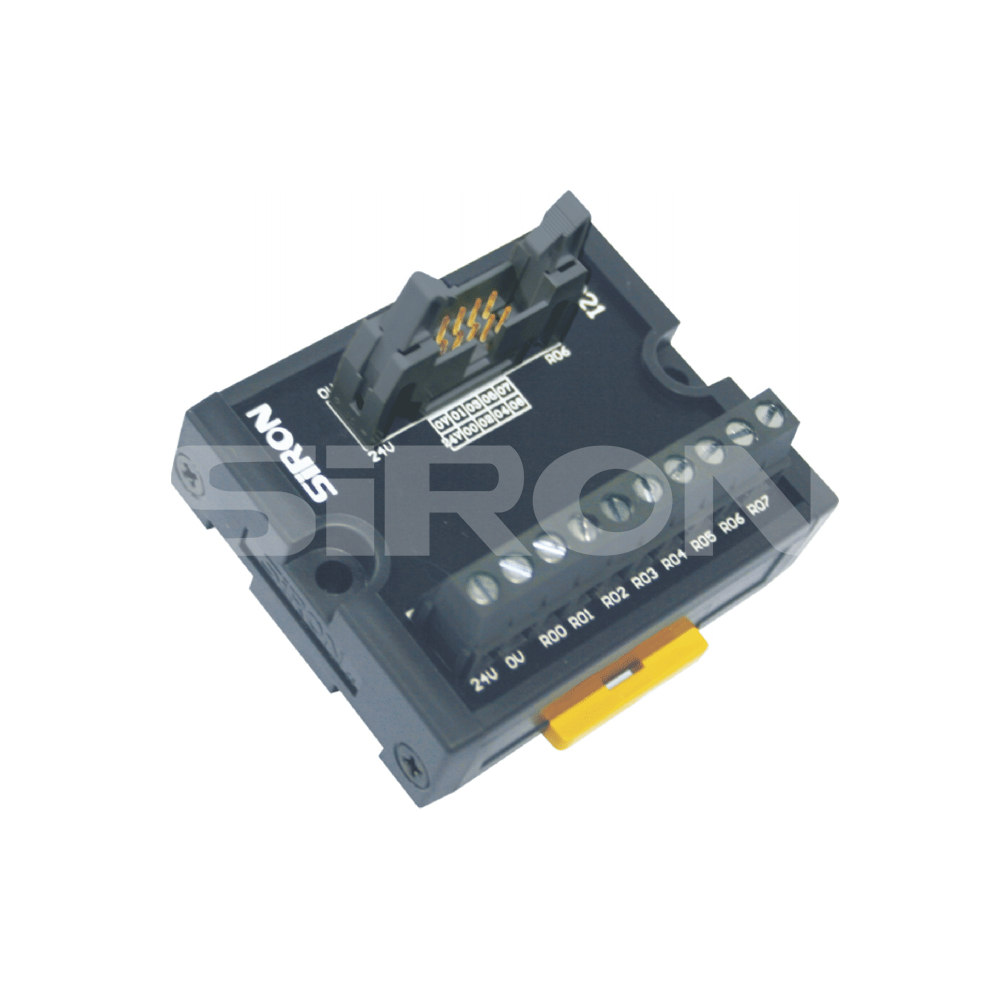

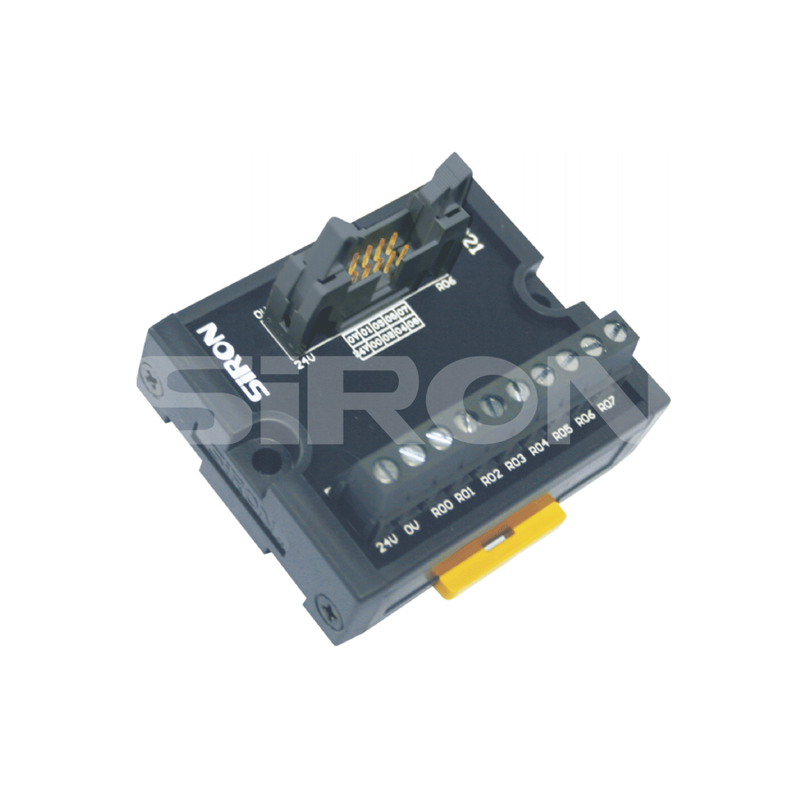

SiRON T021 Series 8 bit transition terminal block

Name: SiRON T021 Series 8 bit transition terminal block
Brand: SiRON
Rating: 5.0 (41 reviews)

Features

Both models use 10P connectors one by one corresponding to 10p terminals, regardless ofinput/output,can be used

bidirectional connection;

Switching board is mainly used for switching, with the company's other products in this series, to fully realize the connectionofhigh-efficiencyand energy-saving wiring.

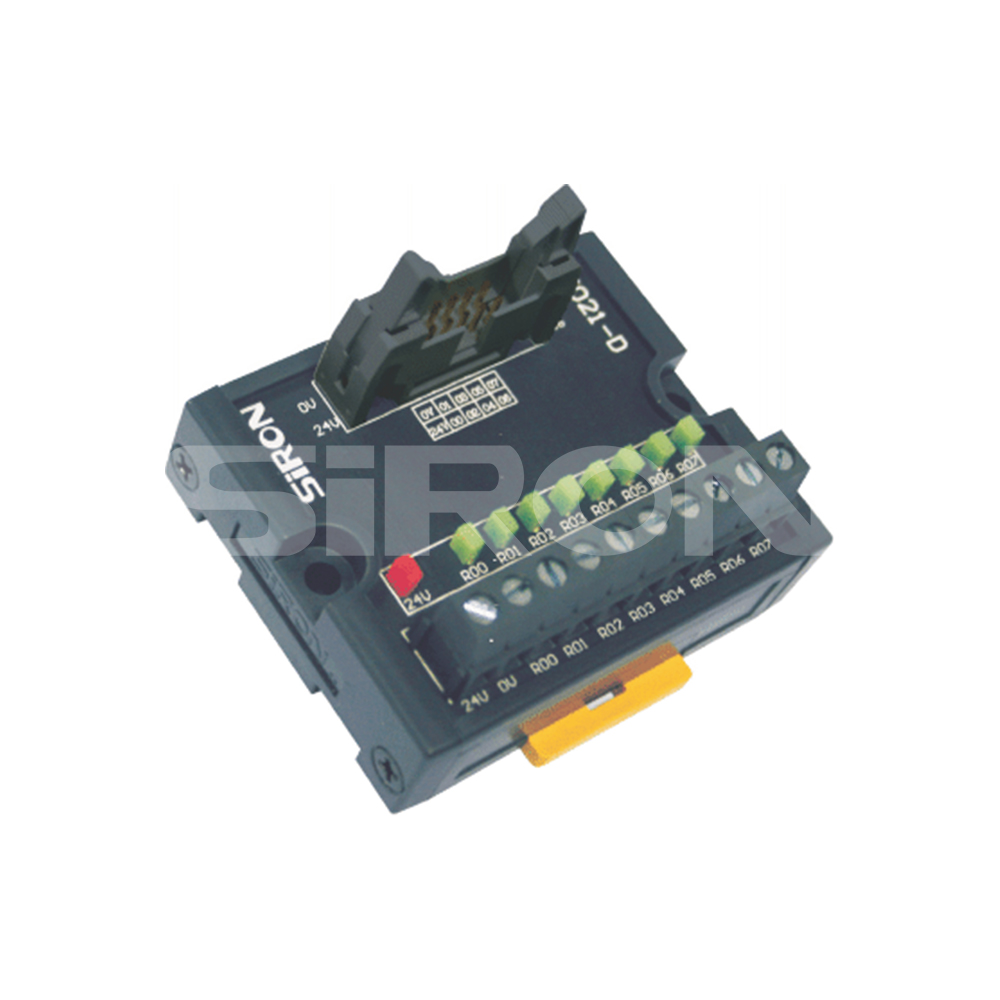

T021-D uses LED display,the action statusis clear.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Suitable wire

主图11端子台

Type selection reference

Model

T021

T021-D

Name

8-bit conversion terminal block

8-digit conversion terminal block with indicator light

Suitable PLC

Panasonic

KEYENCE	KV-B16XA/XC	KV series of small PLC
Panasonic	FPO-C16T/C16CT(IN) FPO-C16P/C16CP(IN) FPO-C32T/C32CT/T32CT(IN) FPO-C32P/C32CP/T32CP(IN) FPO-E16T/P(IN) FPO-E32T/P(IN) FPO-E8X FPO-E16X FP -C28(IN) FP -C32(IN)	FPO-C16T/C16CT(Out) FPO-C16P/C16CP(Out) FPO-C32T/C32CT/T32CT(Out) FPO-C32P/C32CP/T32CP(Out) FPO-E16T/P(Out) FPO-E32T/P(Out) FP0-E8YT FP0-E16YT Fp -C32(Out) Fp -C28(Out)

Suitable cable

Suitable cable:X200-1 X210-1 X216-1 X216-2 X216-3，For details, please refer to the directory cable series

Specifications

Input	Nominal operating current	1A
	Nominal coil voltage	DC24V
Corresponding output Devices		Button Switch,Photoelectric Switch,Solenoid,Indicator, Stepping Servo Motor,etc.
