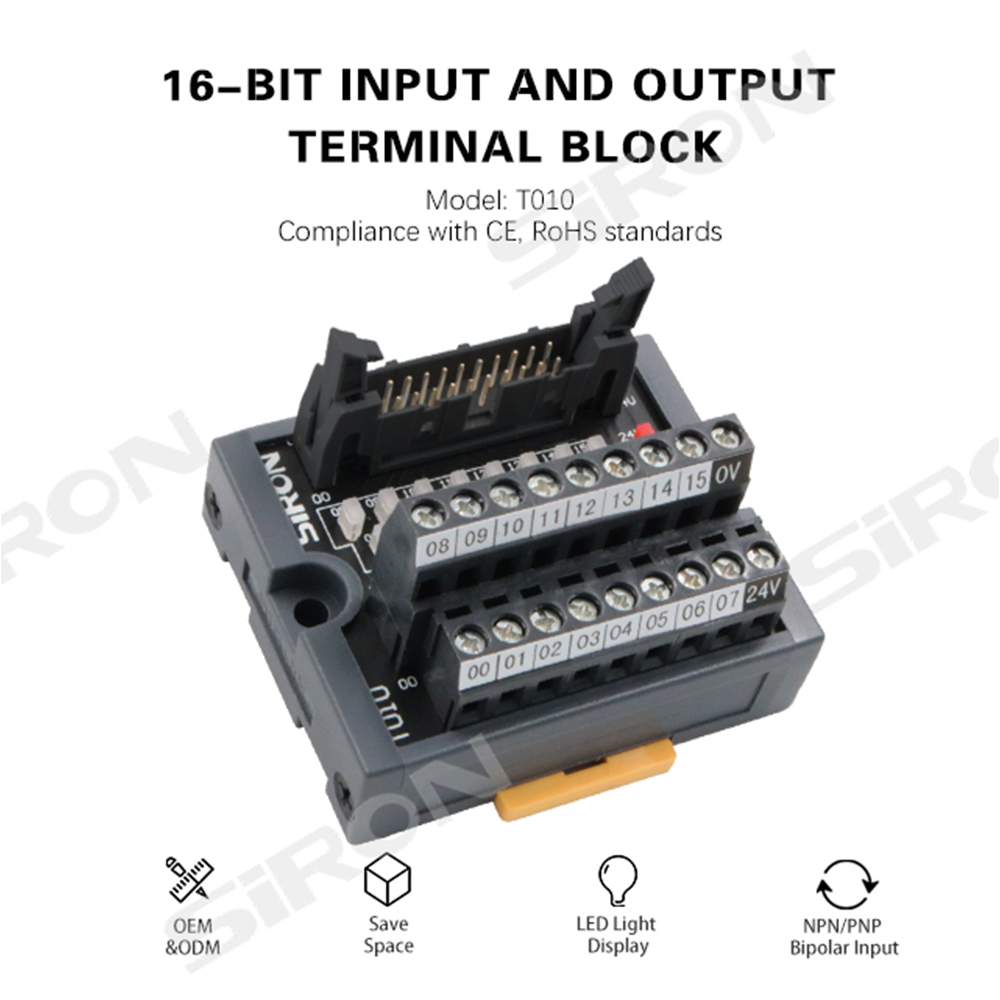

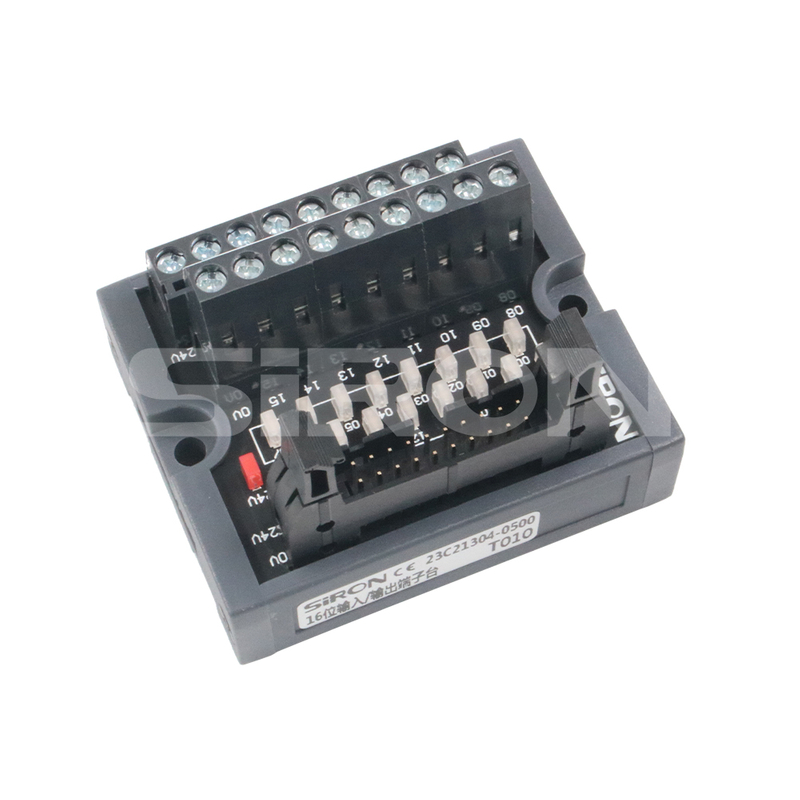

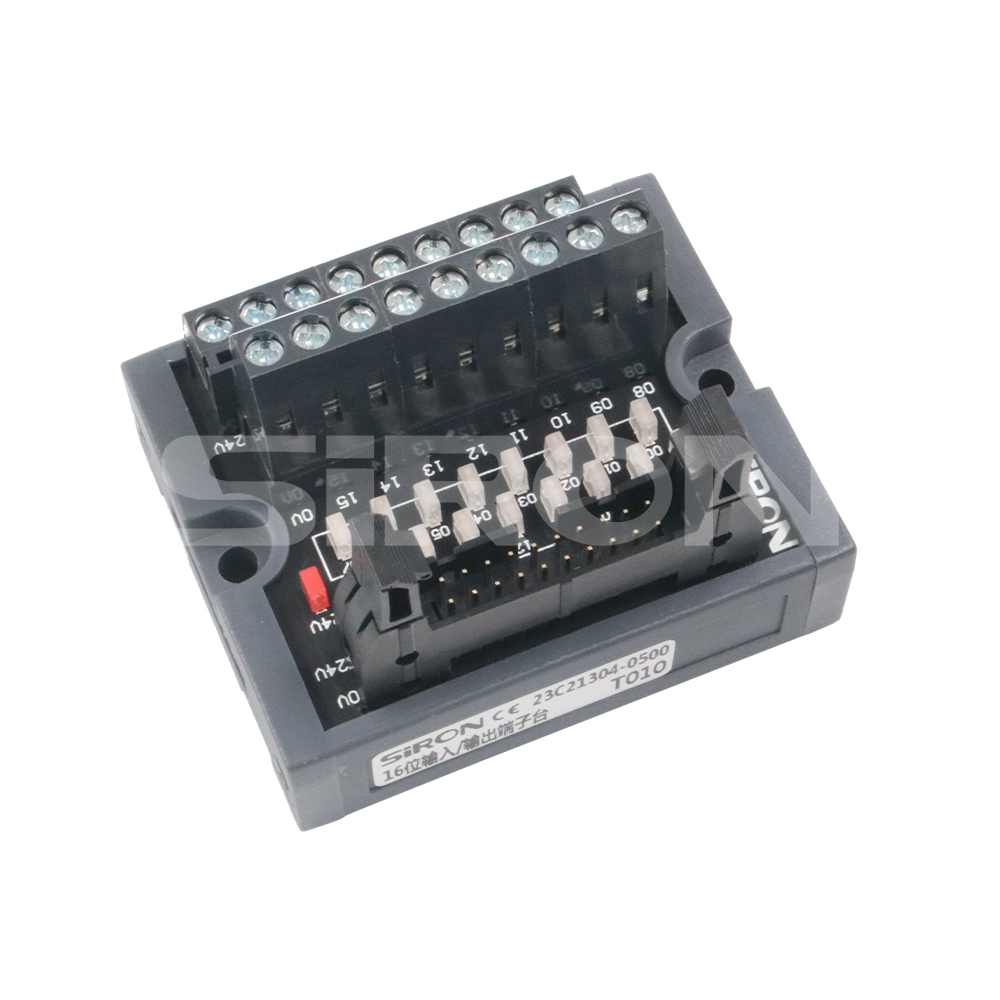

SiRON T010 Series 16 Bit Input/output Terminal Block

Name: SiRON T010 Series 16 Bit Input/output Terminal Block
Brand: SiRON
Rating: 5.0 (15 reviews)

Features

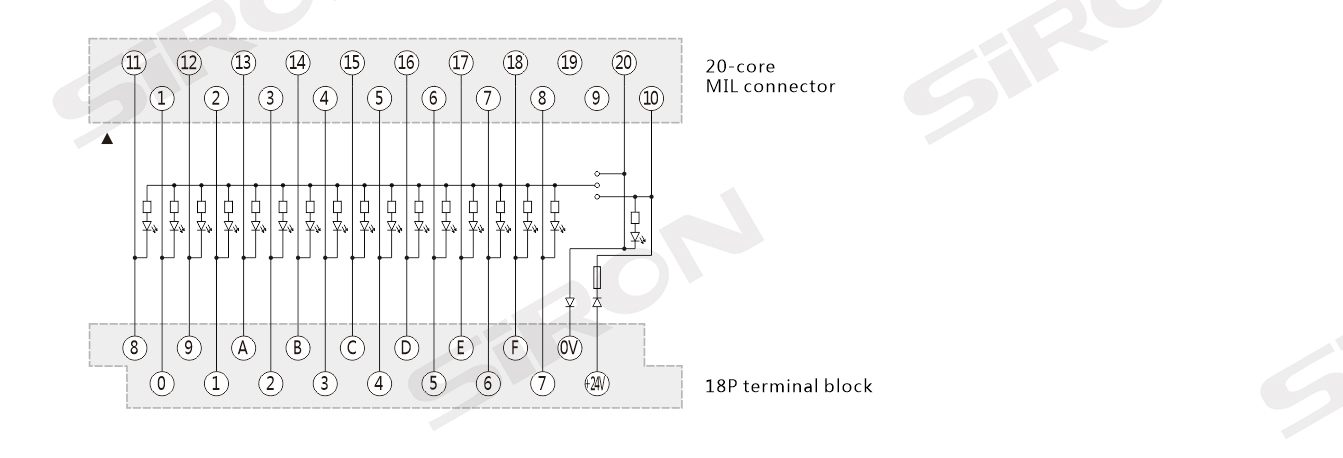

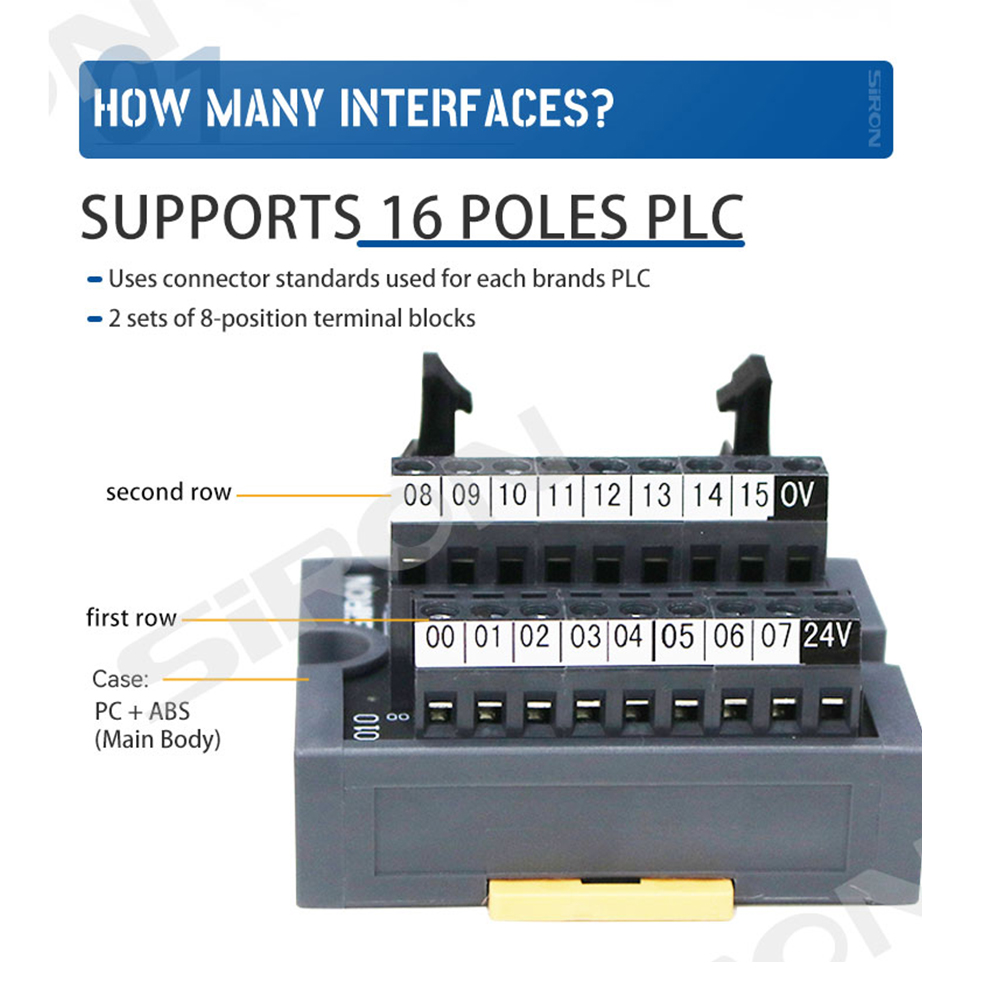

Utilizes a 20pin MlL connector as the incoming terminal.Used in combination with the comesponding xseries cable of the company,it's directly applicable to any PLC module with 16 bit l/0 on the market. The terminal block is divided into 2 sets of 8 bit terminals.
NPN/PNP bipolar input corresponding, and the indicator light will also follow the input signal of differentand bright color; Green-NPN : Red-PNP.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Suitable wire

主图11端子台

Suitable PLC

Panasonic

OMRON	CJ1W-MD231(IN) CJ1W-MD233(IN) CJ1W-MD231(OUT) CJ1WMD234(OUT) CJ1W-MD232
MITSUBISHI	FX1NC-16MT(IN) FX1NC-16MT(OUT) FX1NC-32MT(IN) FX1NC-32MT(OUT) FX2NC-16MT(IN) FX2NC-16MT(OUT) FX2NC-32MT(IN) FX2NC-32MT(OUT) FX3UC-32MT(IN) FX3UC-32MT(OUT) FX2NC-16EX FX2NC-16EYT FX2NC-16EX-C FX2NC-17EYT-C FX2NC-16EXL-C
AB	NX70-X32D NX70-Y32T NX70-X32D1 NX70-XY32(OUT) NX70-XY32(IN)
Yokogawa	F3WD32-3F

Suitable cable

Suitable cable:X213-1 X21B-1 X21B-2 X215-1，X215-2 X215-5 X215-6 X218-2,X218-3 X218-4 X218-5，For details, please refer to the directory cable series

Specifications

lnput	Nominal operating current	1A
lnput	Nominal coil voltage	DC24V
Corresponding output Devices		The input side oroutput side load switches. Input side of theswitching elements. The output side of the load.
