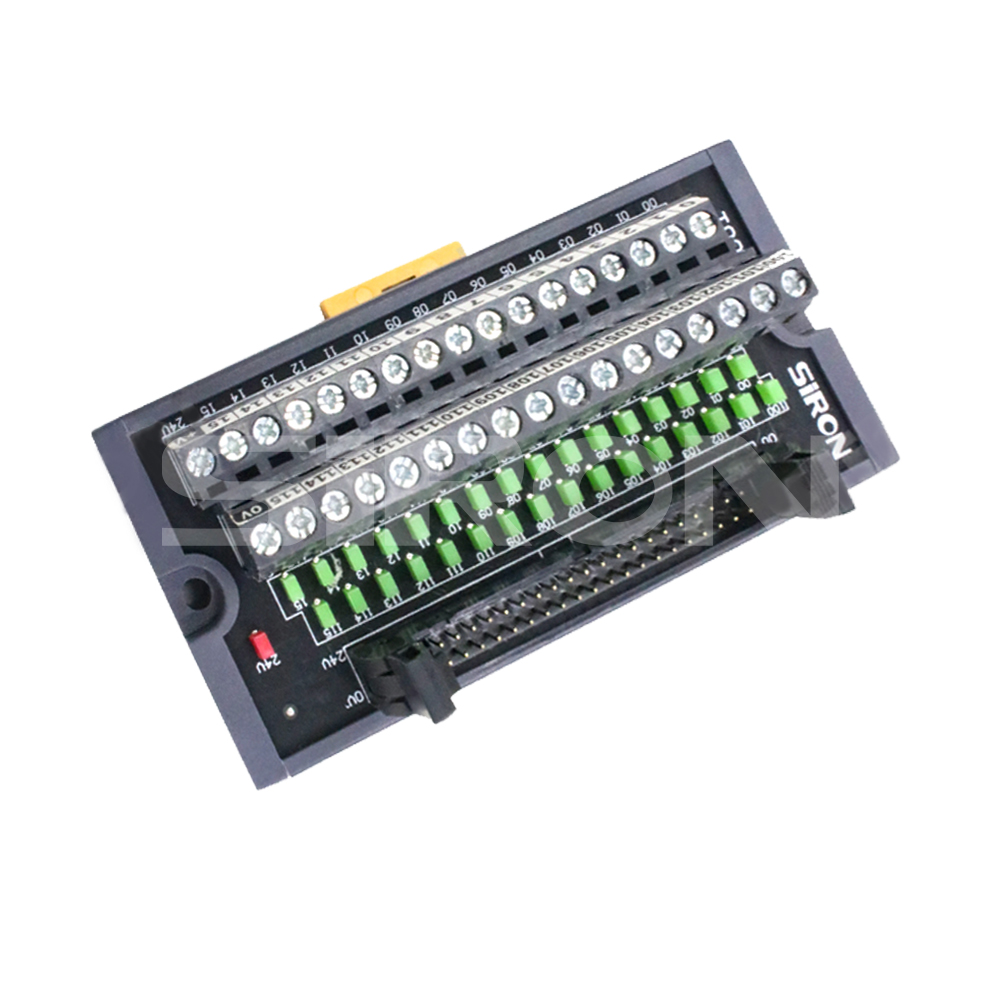

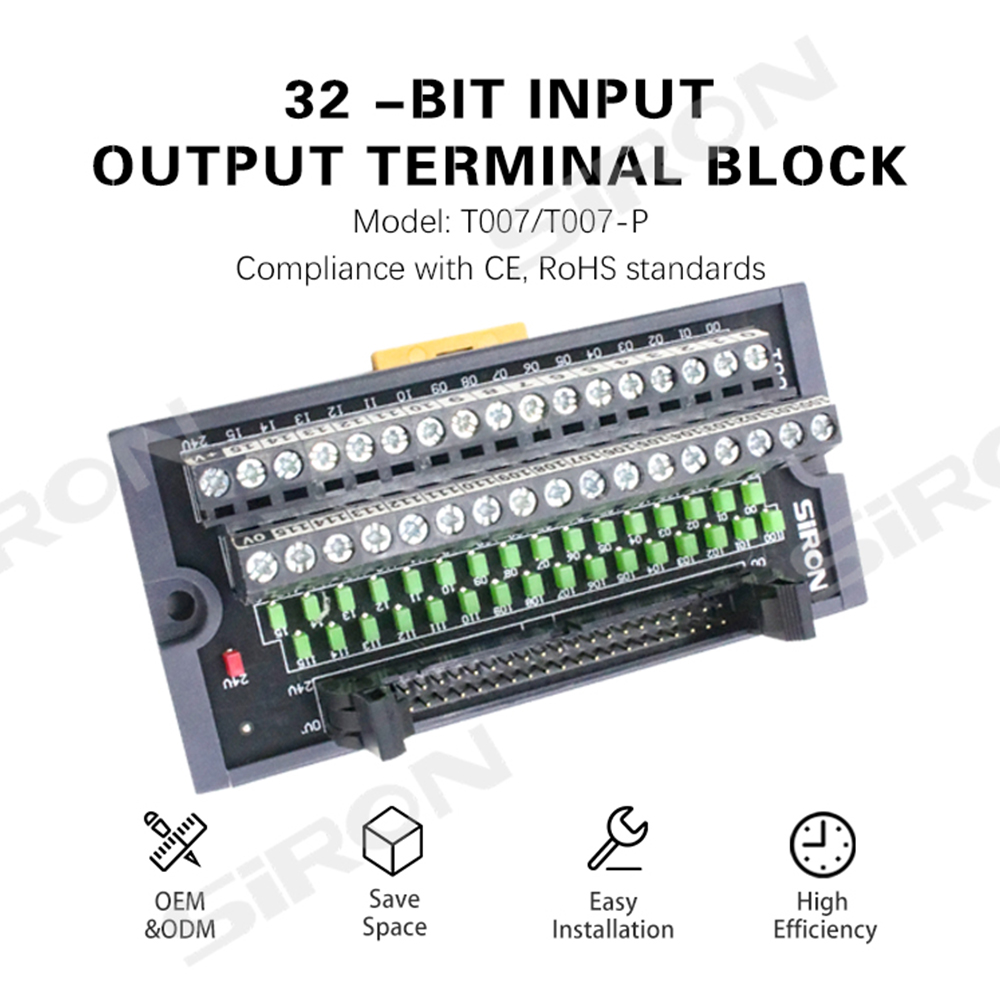

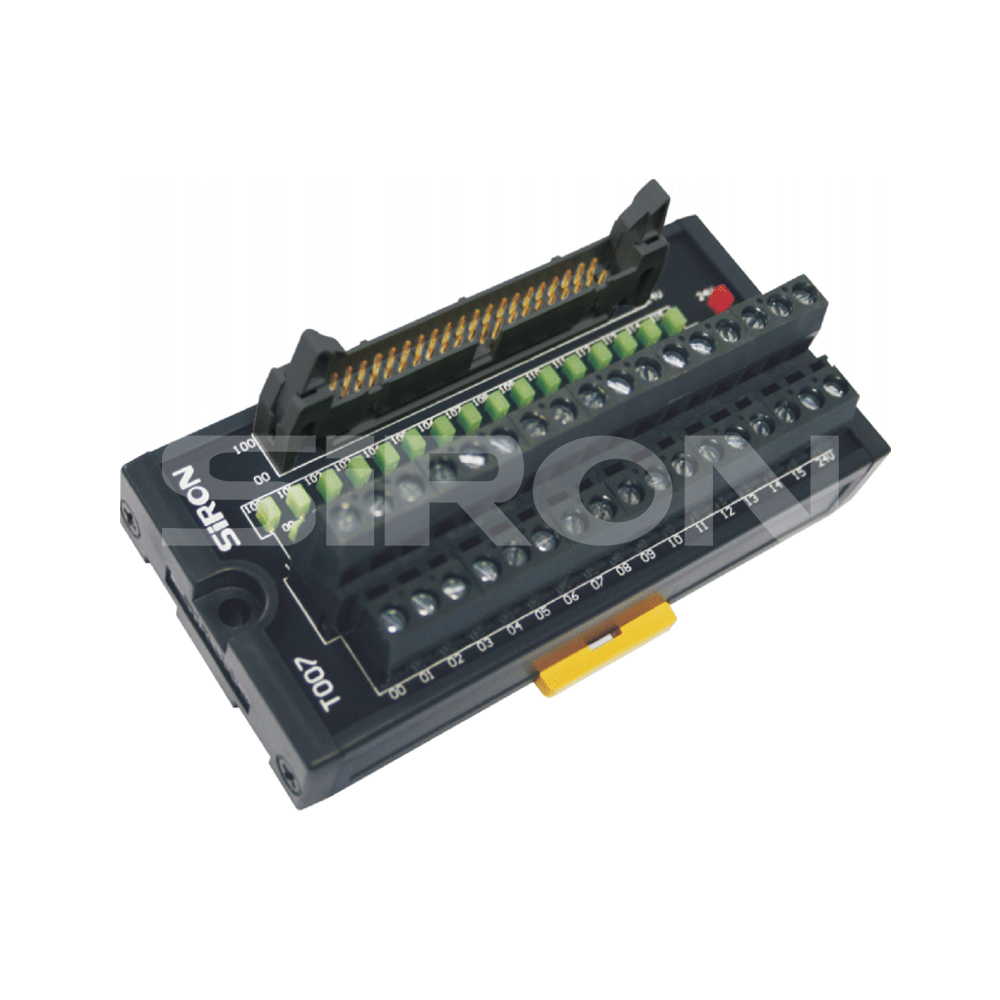

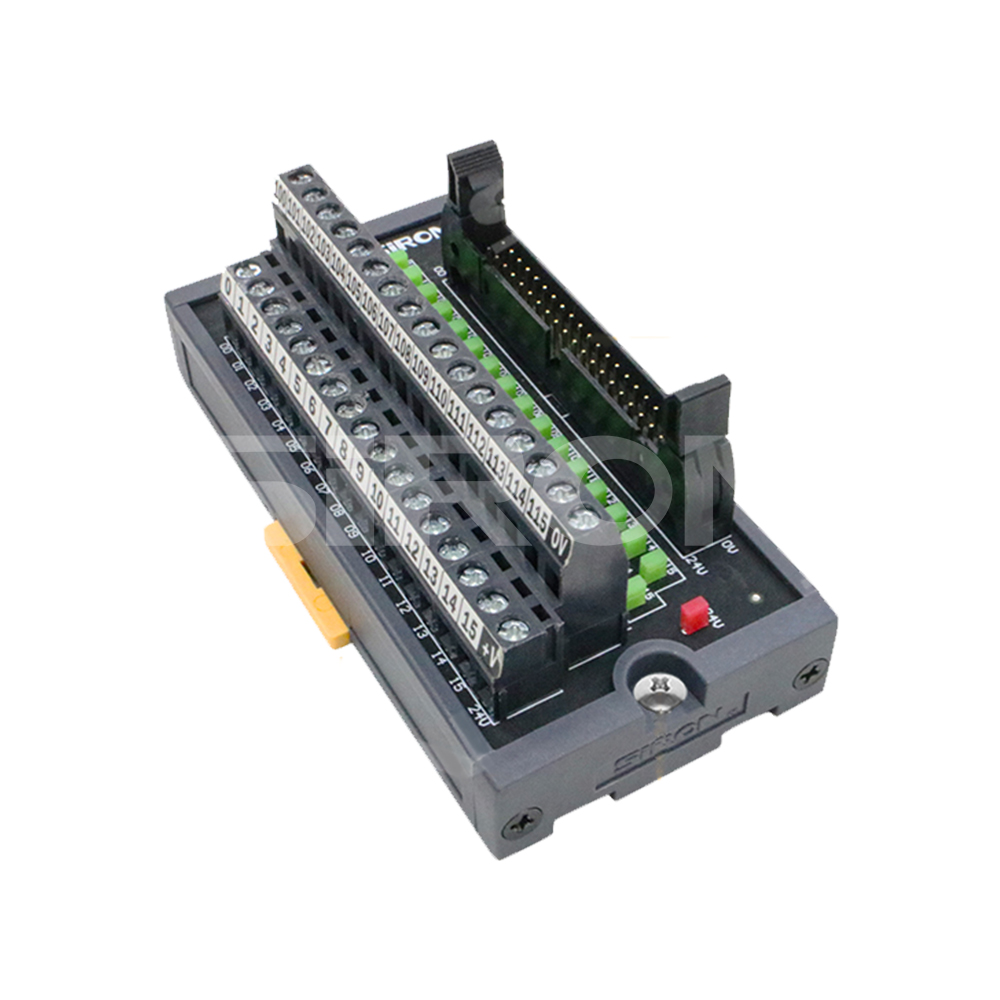

SiRON T007~T009 Series 32 Bit Input/output Terminal Block

Name: SiRON T007~T009 Series 32 Bit Input/output Terminal Block
Brand: SiRON
Rating: 5.0 (45 reviews)

Features

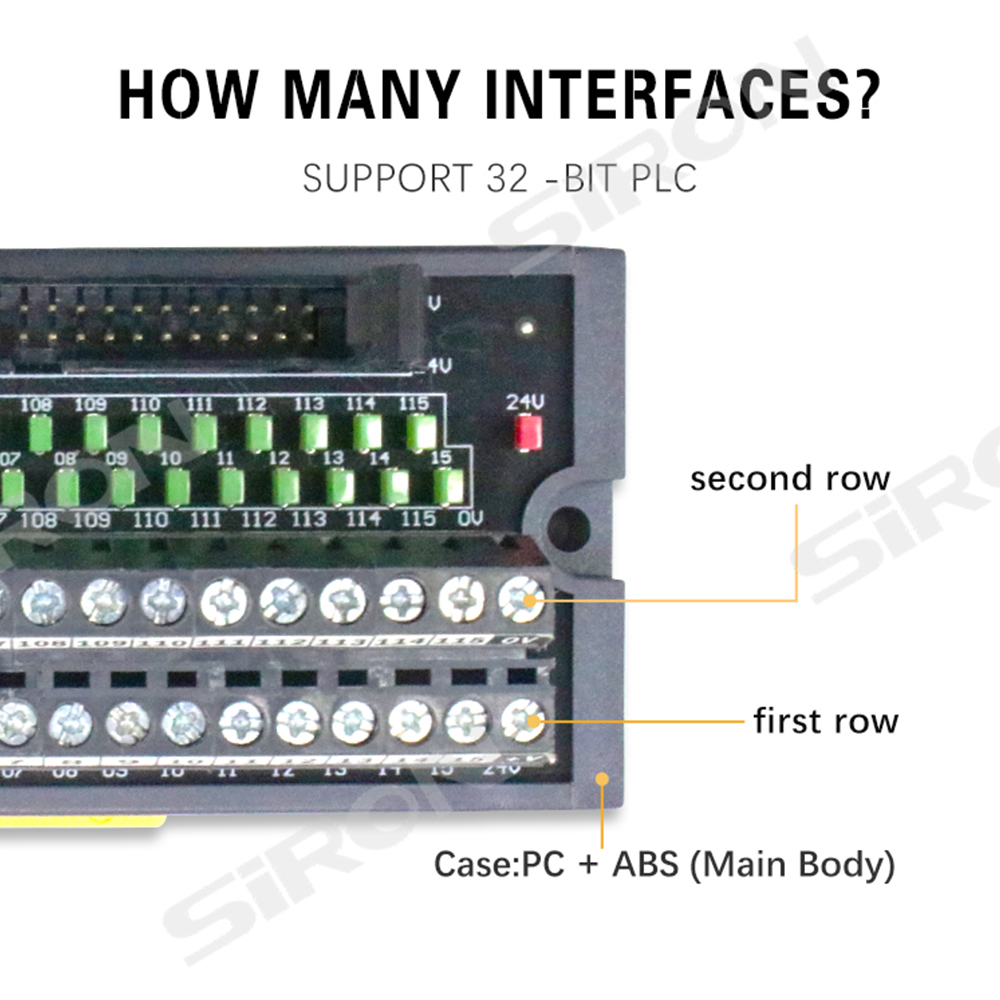

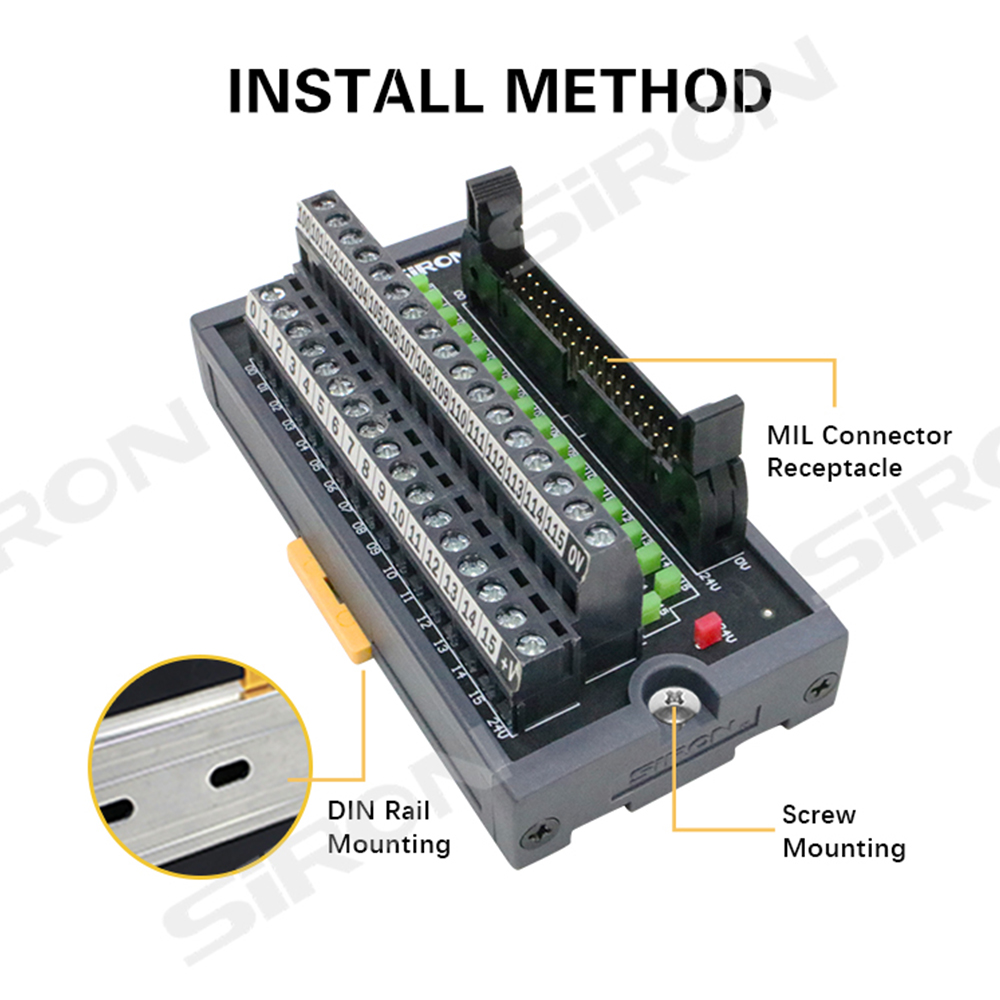

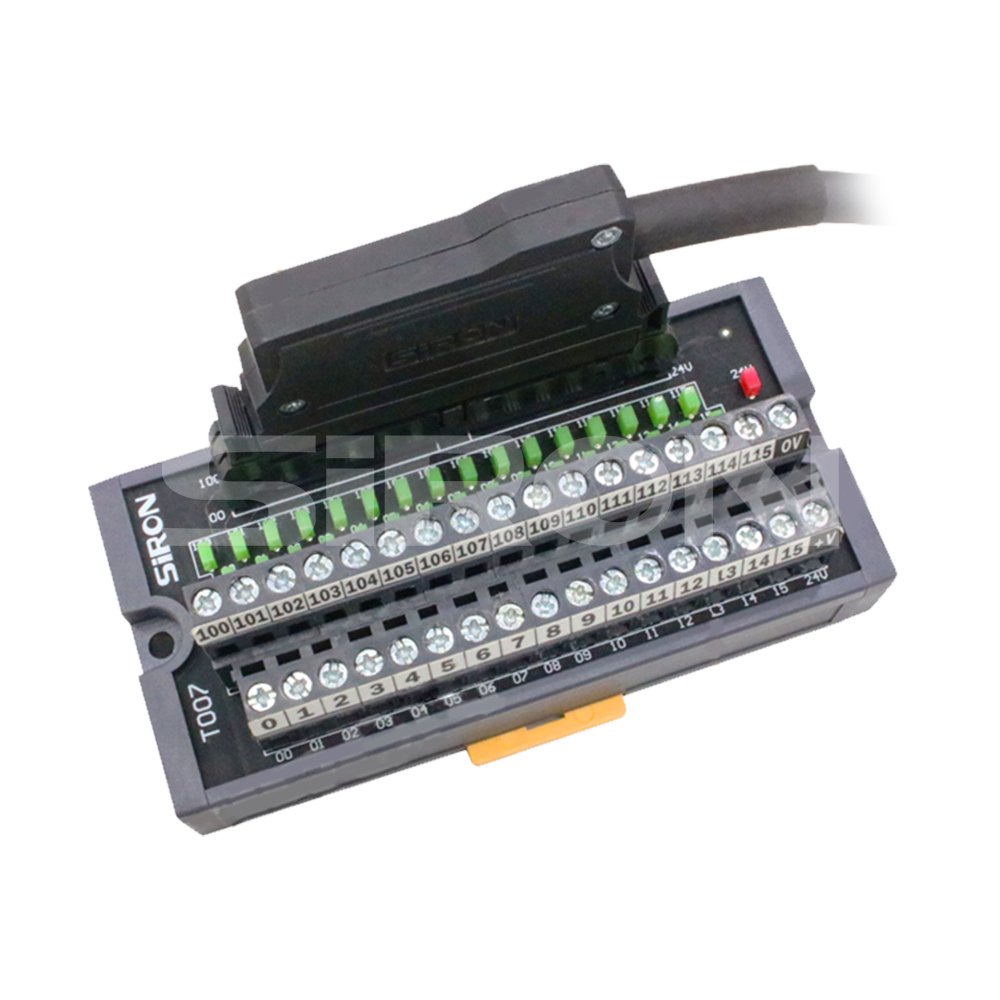

T007/T007-P utilizes a 40pin MlL. connector as the incoming terminal. Used in combination with the comesponding x series cable of thecompany,it is applicable to any PLC module with 32 bit l/0 on the market. The terminal block is divided into 2 sets of 16 bit terminals.

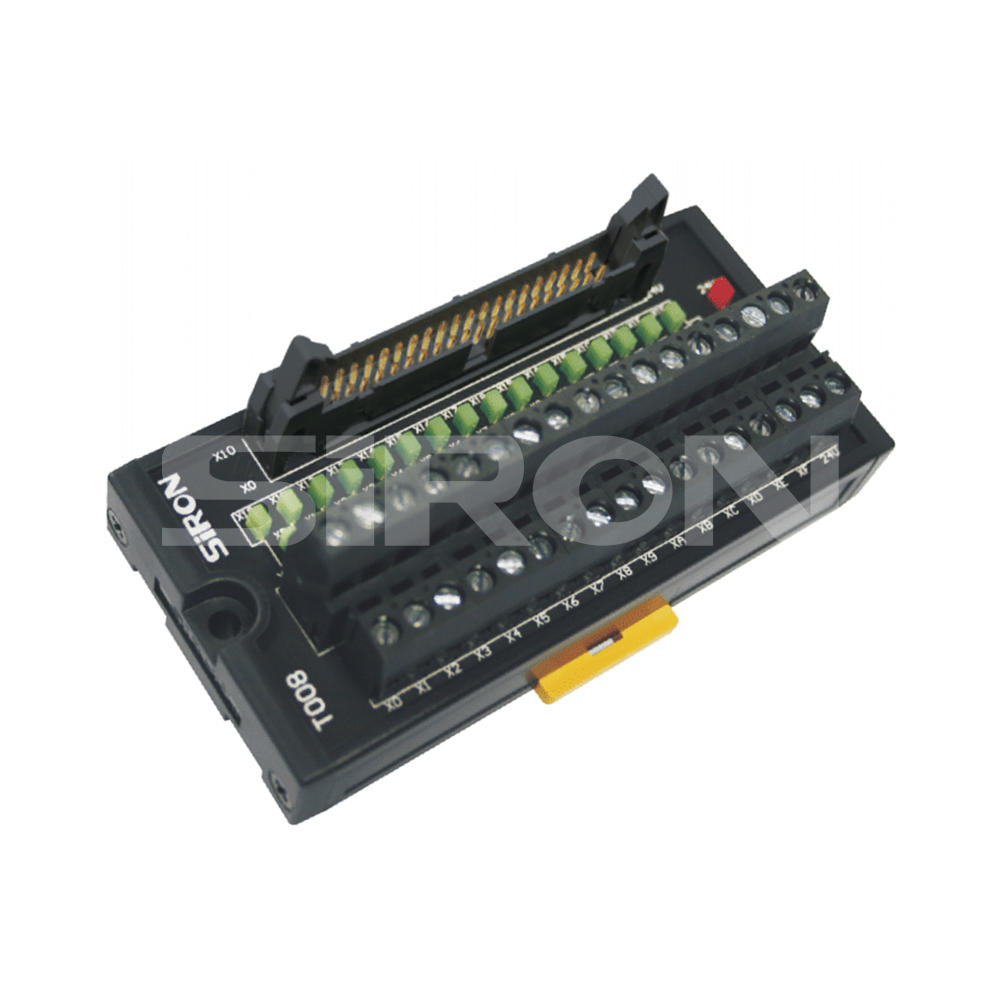

T008/T008-P utiizes a 40pin MlL connector as the incoming terminal. Used in combination with the comesponding x series cable of thecompany, it's directly applicable to the input PLC of MTSUBlSHl, the terminal block is divided into 2 sets of 16 bit terminals.
T009/T009-P utiizes a 40pin MlL. connector as the incoming terminal. Used in combinalion with the comesponding x series cable of thecompany.it's directly applicable to the output PLC of MTSUBlSHl,the terminal block is divided into 2 sets of 16 bit terminals .

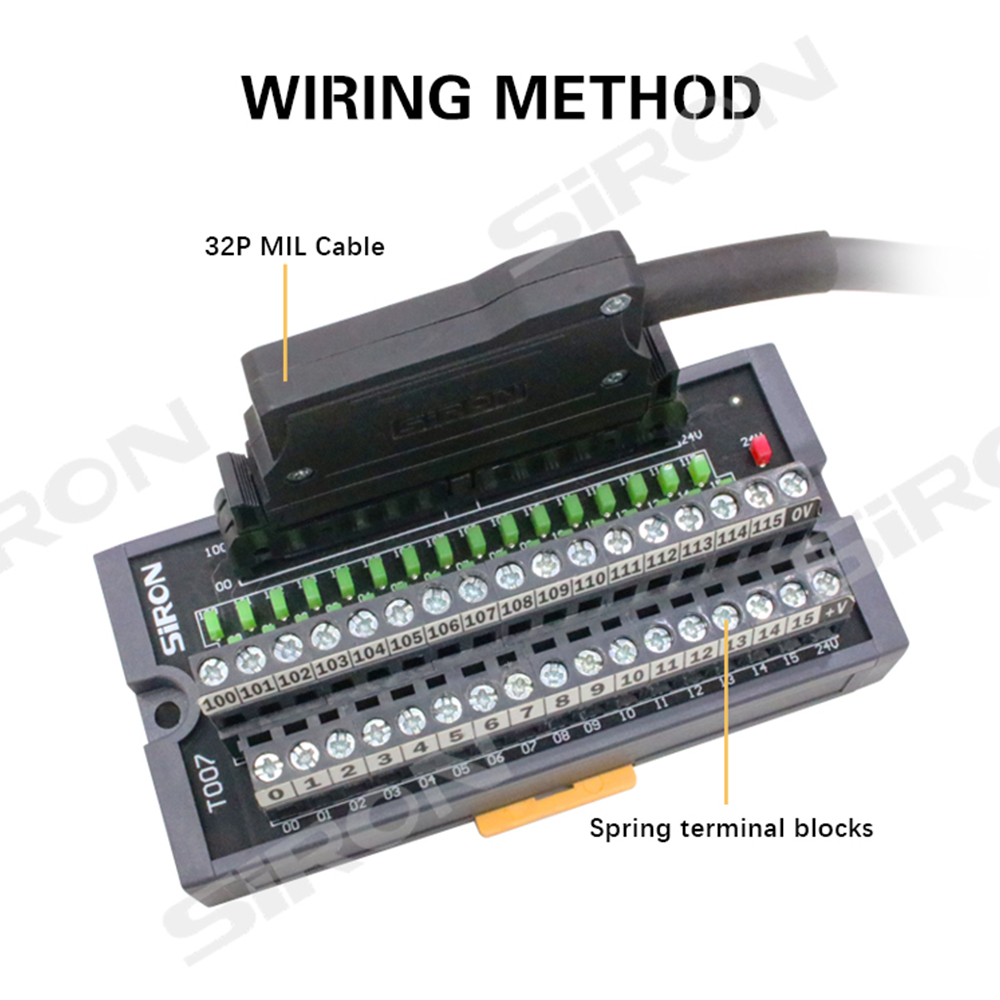

Each signal position has a LED status indication for visual inspection making wiring and inspection work

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T007/T008/T009
Brand:
SiRON
Code:
8536901100

NPN/PNP Terminal block 32 bit input/output conversion terminal block AWG16 light terminal block DC24V input/output terminal block

Product Description

Suitable wire

主图11端子台

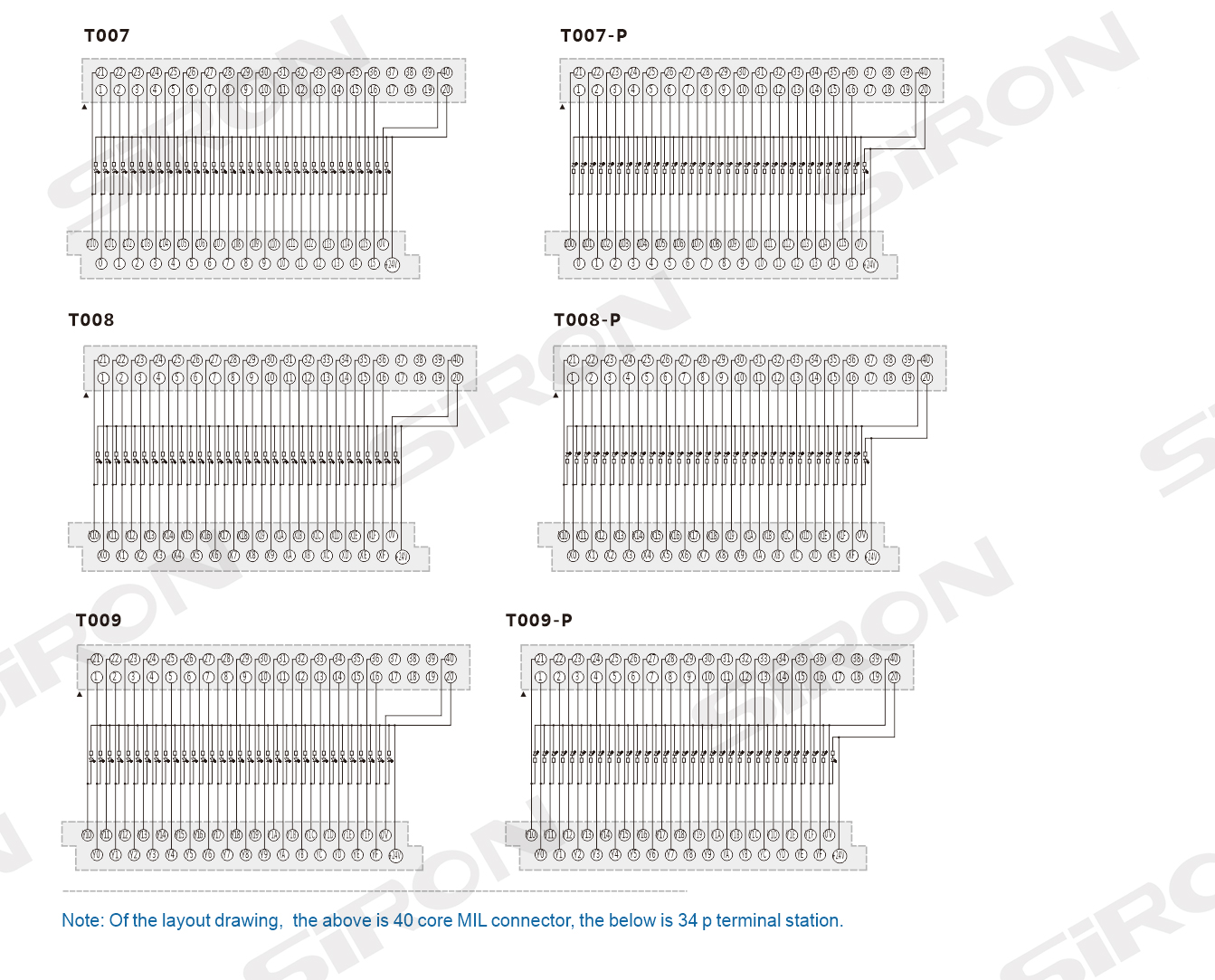

Type selection reference

Model

T007/T007-P

T008/T008-P

T009/T009-P

Name

32-bit input/output terminal block

Suitable PLC

Panasonic

KEYENCE	KV-C32XA/C KV-C64XA/C KV-C32TA/C KV-C64TA/C
OMRON	CJ1W-ID231/CJ1W-ID261 CJ1W-MD261(IN) CJ1W-ID232/CIiW-ID262 CJ1W-MD263(IN) CJ1W-MD563IN) CJ1W-OD231/CJ1W-OD261 CJ1W-MD261(Out) CJ1W-OD232/CJiW-OD233 Cl1W-OD262/CI1W-OD263 CJ1W-MD263(Out) CJ1W-MD563(Out)
SIEMENS	6ES7321-1BL00-0AA0 6ES7321-1EL00-0AA0 SM322/6ES7322-1BL00-0AA0 SM323/6ES7322-1BL00-0AA0 6ES7321-1BH00-0AA0 6ES7321-1BH02-0AA0 6ES7321-1BH01-0AB0 6ES7321-1BH50-0AA0 6ES7321-1CH20-0AA0 6ES7322-1FL00-0AA0 6ES7322-1BH00-0AA0 6ES7322-1BH10-0AA0 6ES7322-1FH10-0AA0 6ES7322-1BH01-0AA0
Yokogawa	F3WD64-3N(IN) F3WD64-3F(IN)		F3WD64-3N(OTU) F3WD64-3F(OTU)
MITSUBISHI		QX41-S1 QX41 QX42 QX42-S1 QX71 QX72 QY41P QY42P QY71 QH42P QX81 QY8
Panasonic		FPG-XY64D2T/P FP2-C1D(IN) FP2-X32D2 FP2-X64D2 FP2-C1D(OUT) FP2-XY64D2T/XY64D7T(IN) FP2-XY64D2P/XY64D7P(IN)	FPG-XY64D2T/P FP2-C1D(OUT) FP2-32T/P FP2-Y64T/P FP2-XY64D2T/XY64D7T(OUT) FP2-XY64D2P/XY64D7P(OUT)

Suitable cable

Suitable cable:X211-1X218-6X219-1X215-8，X212-1X211-2X218-7X215-4，X212-1 X217-1 X217-2，X217-1 X217-2 X212-1 X219-2，For details, please refer to the directory cable series

Specifications

Input	Nominal operating current	1A
	Nominal coil voltage	DC24V
Corresponding output Devices		The input side or output side load switches	Input side of the switching elements	The output side of the load
