SiRON T003-D Series Terminal Block Customized for Panasonic FP Series with Indicator

Name: SiRON T003-D Series Terminal Block Customized for Panasonic FP Series with Indicator
Brand: SiRON
Rating: 5.0 (43 reviews)

Features

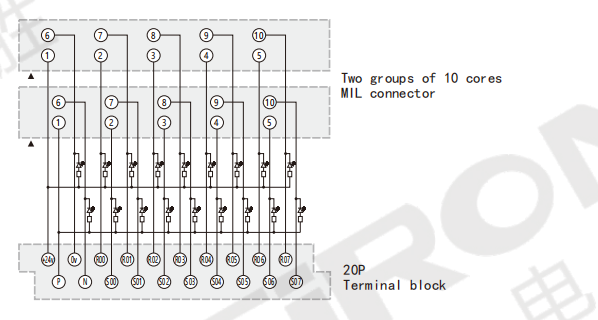

Utilizes a 20pin MlL connector as the incoming terminal.Used in combination with the comesponding xseries cable of the company,it's directly applicable to any PLC module with 16 bit l/0 on the market. The terminal block is divided into 2 sets of 8 bit terminals.
NPN/PNP bipolar input corresponding, and the indicator light will also follow the input signal of differentand bright color; Green-NPN : Red-PNP.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Suitable wire

主图11端子台

Suitable PLC

Panasonic

Suitable cable

Suitable cable:X216-1/X216-2，For details, please refer to the directory cable series

Specifications

lnput	Nominal operating current	1A
lnput	Nominal coil voltage	DC24V
Corresponding output Devices		The input side oroutput side load switches. Input side of theswitching elements. The output side of the load.
