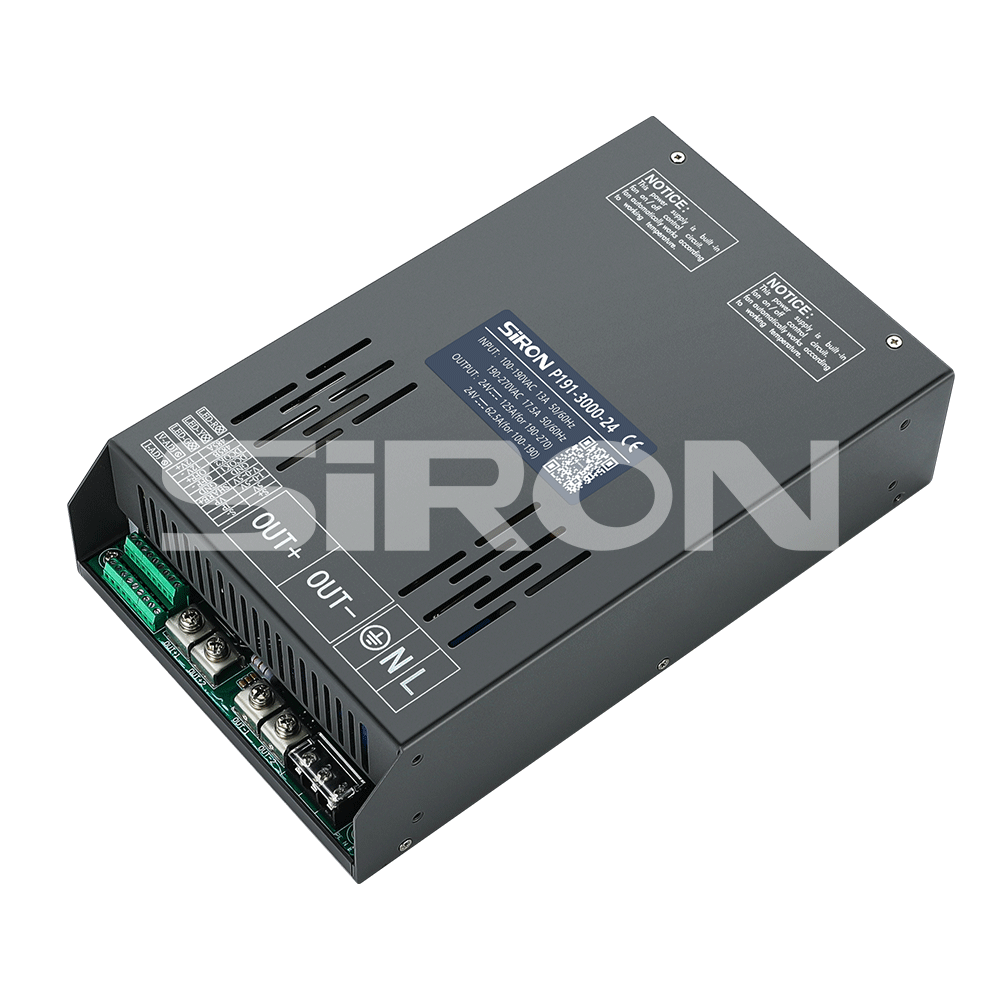

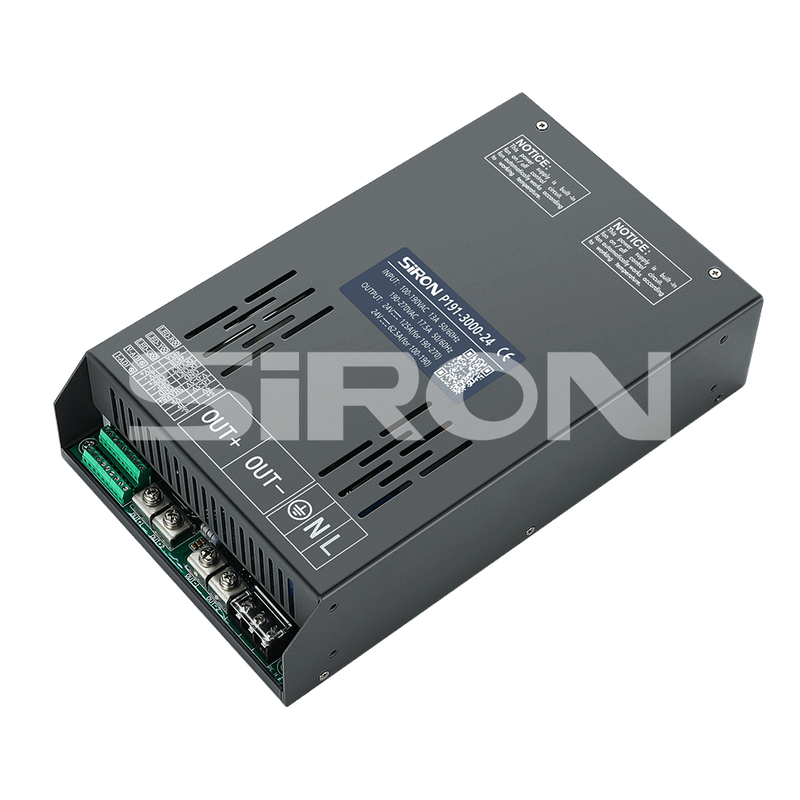

SiRON P191-3000 Series 3000W High Power Switching Power Supply

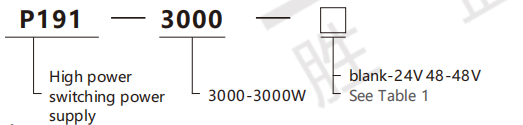

Order

Table 1

Note: When 1 2 V is selected, the power efficiency is 2 7 0 0 W

Selection reference

Model	Tape digital display	P191- 3000-12	P 1 9 1 - 3 0 0 0 - 2 4	P 1 9 1 - 3 0 0 0 - 3 6	P 1 9 1 - 3 0 0 0 - 4 8	P 1 9 1 - 3 0 0 0 - 6 0	P 1 9 1 - 3 0 0 0 - 2 2 0
Output characteristic	Dc voltage	12V	24V	36V	48V	60V	220V
	Rated current	1 8 0 A	125A	83.3A	62.5A	50A	13.6A
	Current range	0～180A	0 ～ 1 2 5 A	0～ 83.3A	0 ～ 6 2 . 5 A	0 ～ 5 0 A	0 ～ 1 3 . 6 A
	Rated power	2700 W	3 0 0 0 W	3 0 0 0 W	5000W	3 0 0 0 W	3 0 0 0 W
	Ripple	200 m V	200 m V	260 m V	300 m V	500mV	1000 m V
	Voltage regulation range	6~12V	12~24V	18～36V	24～48V	36～72V	48～96V
	Voltage accuracy	±1.0%
	Linear adjustment rate	±1.0%
	Load adjustment rat	±1.0%
	Start &rise time	1500ms,700ms/230VAC(full load)
Input characteristic	Voltage range	95 - 190 VAC (output current 50%) / 195 - 265 VAC (output current 100%)
	Frequency range	45～65Hz
	Efficiency factor	PF≥0.99/240VAC(full load)
	Power	87%	90%	91.5%	92%	92.5%	93%
	Alternating current	<18A
	Leakage current	<3.0mA/240VAC
Protection	Short-circuit	Enter constant current
	Over  temperature	Turn off the output. When the temperature drops, it will automatically resume or restart to resume
Feature	Output voltage regulation	0~15V	0～26.4V	0~39.6V	0~52.8V	0~668V	0～242V
	Output constan ourrent adjustment	0~180A	0～125A	0～83.3A	0～62.5A	0～50A	0～13.6A
	Flow equalization	Parallel load sharing
	Auxiliary power supply	12V,0.5A
	Output remote control switch	Default boot-up, high-level shutdown (5 to 12 V)
	Alarm output	Power supply is normal (switching point ≤ 36V, 0.1A)
Environmental characteristics	Operating temperature	-20~+60℃
	Working humidity	- 2 0 ～ 9 0 % R H No cold condensation
	Store temperature/humidity	- 40℃~85℃,10～95%RH,No condensation
	Vibration resistance	10~500Hz,2G for 10 minutes per cycle, 60 minutes each for X, Y and Z
Safety regulation	Withstand voltage	I/P-0/P:1.2KVAC;I/P-FG:1.2KVAC;0/P-FG:0.5KVAC
	Insulation impedance	Input and output：100Mhms/500VDC/25℃/70%RH
Product size		2 8 9 × 1 7 4 × 6 9 mm ( L × W × H )
Package		3.3k g

Note: 1. Unless otherwise specified, all parameters are measured under 230 VA C voltage input, rated load and 25 ° C conditions. The ripple and noise voltages were measured at the end of a 20 M H-Z band width oscilloscope with 1.2 inch twisted-pair wires and 0.1 u and 47 u capacitors, and the measurements were carried out under a 20 M H-Z band width. 3. Precision: It includes setting error, linear adjustment rate and load adjustment rate. 4. In the case of low input voltage, the output should be derated. Please refer to the static characteristic curve graph for the specific details. 5. The starting time was measured under the cold machine starting condition. For more frequent switch machines, the starting time can be achieved
