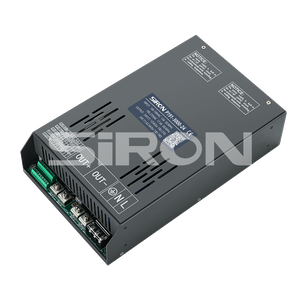

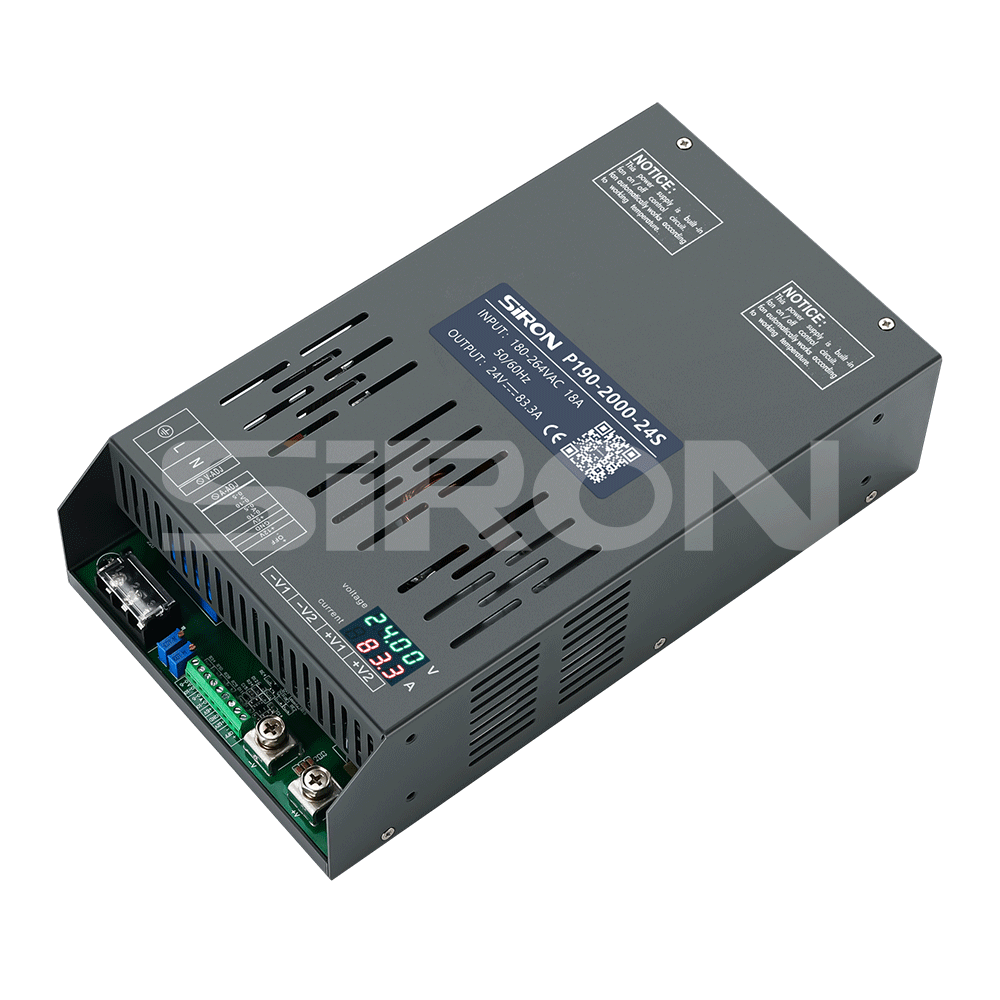

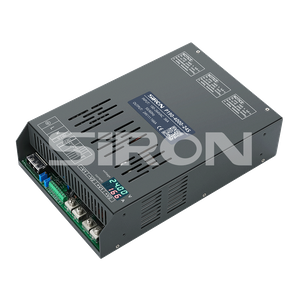

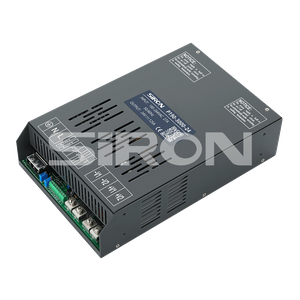

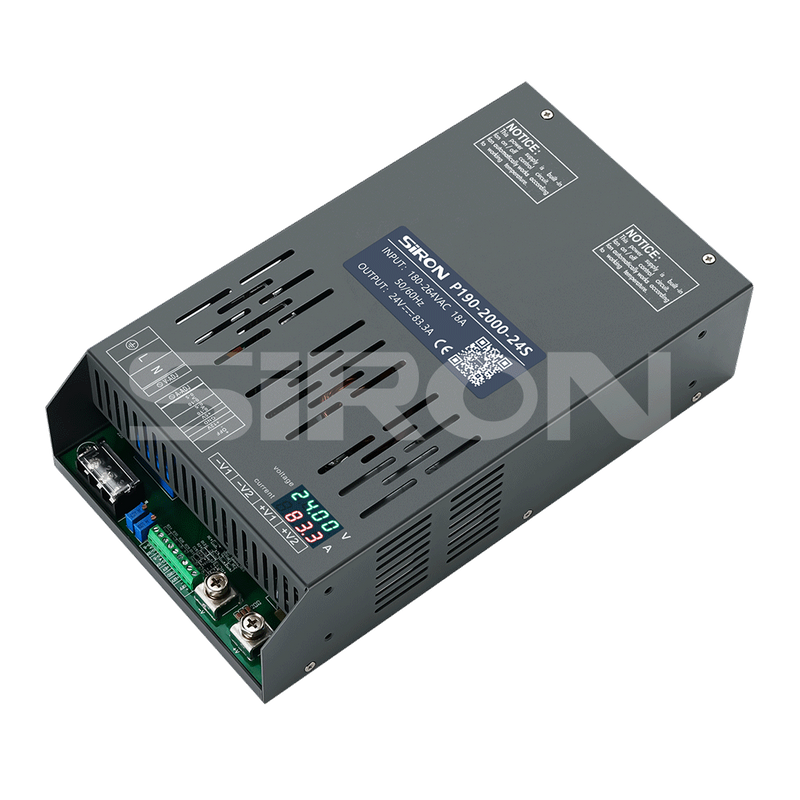

SiRON P190-2000 Series 2000W High Power Switching Power Supply

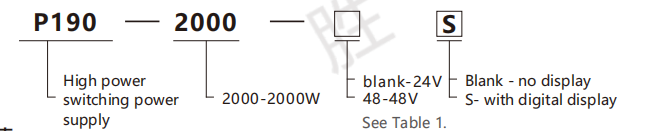

Order

Table 1

Selection reference

Model	Nodigtal display	P190-2000-12	P190-2000-24	P190-2000-36	P190-2000-48	P190-2000-72	P190-2000-96	P190-2000-110	P190-2000-150	P190-2000-220
	Tape digtal dsplay	P190-2000-12S	P190-2000-24S	P190-2000-365	P190-2000-48S	P190-2000-72S	P190-2000-965	P190-2000-1105	P190-2000-150S	P190-2000-2205
Output characteristic	Dc wonltage	12V	24V	36V	48V	72V	96V	110V	150V	220V
	Raled current	166A	83.3A	55.5A	41.6A	27.7A	20.8A	18.1A	13.3A	9A
	Current range	0~166A	0~83.3A	0~55.5A	0~41.6A	0~27.7A	0~20.8A	0~18.1A	0~13.3A	0~9A
	Rahed power	2000W	2000W	2000W	2000W	2000W	2000W	2000W	2000W	2000W
	Ripple	200mV	200mV	260mV	350mV	500mV	600mV	850mV	900mV	1000mV
	Voltage regulabion range	6~12V	12~24V	18~36V	24~48V	36~72V	48~96V	55~110V	75~150V	110~220V
	Voltage  acuracy	±1.0%
	Linear adjusimient rate	±1.0%
	Load adjustment rate	±1.0%
	Start&rise time	1500ms,100ms/230VAC(full load)
Input characteristic	Woltage range	180~264VAC/245~370VDC
	Frequancy range	45~65Hz
	Eciengy fachor	PF≥0.65/230VAC(full load)
	Power	85%	86%	87%	89%	90%	90%	90%	91%	91%
	Alternating curent	<20A
	Leakage cument	<3.0mA/240VAC
Protection	Snort-ciruit	Enter constant current
	Over temperature	Turn off the output. When the temperature drops, it will automatically resume or restart to resume
Feature	Ouput voltage regulation	0~13.2V	0~26.4V	0~39.6V	0~52.8V	0~79.2V	0~105.6V	0~121V	0~165V	0~242V
	Output constant current adjustment	0~166A	0~83.3A	0~55.5A	0~41.6A	0~27.7A	0~20.8A	0~18.1A	0~13.3A	0~9A
	Extemalpotenometer	External potentiometer control (voltage, current)
	Analog woltage coni	0-5V / 0-10V control (voltage, current)
	Amliany powersupply	12V,0.5A
	Remsle ontiol sailch	It turns on by default and turns off at a high level(3~12V)
Environmental characteristics	Operating bemperature	-20~+60℃
	Working humidity	-20~90%RH ‘No condensation
	Store temperature/humidity	-40℃~85℃,10~95%RH,No condensation
	Vibration resistance	10~500Hz,2G for 10 minutes per cycle, 60 minutes each for X, Y and Z
Safety regulation	Withstand wolage	I/P-0/P:1.2KVAC;I/P-FG:1.2KVAC;0/P-FG:0.5KVAC
	Insulation impedance	Input versus output：100Mhms/500VDC/25℃/70%RH
Product size		277×155×70mm (L×W×H)
Package		2 . 6 k g

Note: 1. Unless otherwise specified, all parameters are measured under 230 VA C voltage input, rated load and 25 ° C conditions. The ripple and noise voltages were measured at the end of a 20 M H-Z band width oscilloscope with 1.2 inch twisted-pair wires and 0.1 u and 47 u capacitors, and the measurements were carried out under a 20 M H-Z band width. 3. Precision: It includes setting error, linear adjustment rate and load adjustment rate. 4. In the case of low input voltage, the output should be derated. Please refer to the static characteristic curve graph for the specific details. 5. The starting time was measured under the cold machine starting condition. For more frequent switch machines, the starting time can be achieved
