SiRON P191-6000 Series 6000W High Power Switching Power Supply

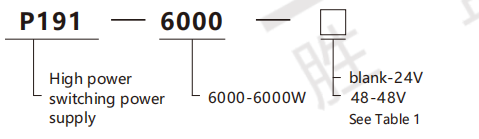

Order

Table 1

Selection reference

Model	Tape digital display	P 1 9 1 - 6 0 0 0 - 2 4	P 1 9 1 - 6 0 0 0 - 3 6	P 1 9 1 - 6 0 0 0 - 4 8	P 1 9 1 - 6 0 0 0 - 6 0	P 1 9 1 - 6 0 0 0 - 1 1 0	P 1 9 1 - 6 0 0 0 - 2 2 0
Output characteristic	Dc voltage	24V	36V	48V	60V	110V	220V
	Rated current	250A	166.6A	125A	100A	54.4A	27.2A
	Current range	0～250A	0 ～166.6A	0~125A	0 ～100A	0 ～54.4A	0 ～27.2A
	Rated power	6000W	6000W	6000W	6000W	6000W	6000W
	Ripple	500 m V	500 m V	600 m V	600 m V	1000mV	1500 m V
	Voltage regulation range	1 2 ～ 2 4 V	1 8 ～ 3 6 V	2 4 ～ 4 8 V	3 0 ～ 6 0 V	5 5 ～ 1 1 0 V	1 1 0 ～ 2 2 0 V
	Voltage accuracy	±1.0%
	Linear adjustment rate	±1.0%
	Load adjustment rat	±1.0%
	Start &rise time	1500ms,700ms/230VAC(full load)
Input characteristic	Voltage range	95 - 190 VAC (output current 50%) / 195 - 265 VAC (output current 100%)
	Frequency range	45～65Hz
	Efficiency factor	PF≥0.99/240VAC(full load)
	Power	90%	91.5%	92%	92%	92.5%	93%
	Alternating current	<56A
	Leakage current	<3.0mA/240VAC
Protection	Short-circuit	When the current reaches a constant level and the voltage is lower than 10% of the rated voltage, it will be shut down and the output will be locked out after 1 second. After restarting, the output will be restored.
	Over  temperature	Disconnect the output. Once the temperature drops, it will automatically recover or restart the recovery process.
	Over current	The user can set the overcurrent value. After a delay of 5 seconds, the output will be turned off. Once restarted, it will resume.
	Over voltage	The user can set the overvoltage value to cut off the output voltage, and it will be restored after restart.
Feature	Output voltage regulation	0 ～ 2 6 . 4 V	0 ～ 3 9 . 6 V	0 ～ 5 2 . 8 V	0 ～ 6 6 V	0 ～ 1 2 1 V	0～242V
	Output constan ourrent adjustment	0 ～ 2 5 0 A	0 ～ 1 6 6 . 6 A	0 ～ 1 2 5 A	0 ～ 1 0 0 A	0 ～ 5 4 . 5 A	0 ～ 2 7 . 2 A
	485 communication	M O D B US Communication protocol
	Isolating auxiliary power supply	12V,0.5A Need to customize
	Output remote control switch	Default boot-up, high-level shutdown (5 to 12 V)Need to customize
	Alarm output	Power supply is normal (switching point ≤ 36V, 0.1A)Need to customize
Environmental characteristics	Operating temperature	-20~+60℃
	Working humidity	- 2 0 ～ 9 0 % R H No cold condensation
	Store temperature/humidity	- 40℃~85℃,10～95%RH,No condensation
	Vibration resistance	10~500Hz,2G for 10 minutes per cycle, 60 minutes each for X, Y and Z
Safety regulation	Withstand voltage	I/P-0/P:1.2KVAC;I/P-FG:1.2KVAC;0/P-FG:0.5KVAC
	Insulation impedance	Input and output：100Mhms/500VDC/25℃/70%RH
Product size		4 3 2 × 1 7 9 × 2 4 2 mm ( L × W × H )
Package		9k g

Note: 1. Unless otherwise specified, all parameters are measured under 230 VA C voltage input, rated load and 25 ° C conditions. The ripple and noise voltages were measured at the end of a 20 M H-Z band width oscilloscope with 1.2 inch twisted-pair wires and 0.1 u and 47 u capacitors, and the measurements were carried out under a 20 M H-Z band width. 3. Precision: It includes setting error, linear adjustment rate and load adjustment rate. 4. In the case of low input voltage, the output should be derated. Please refer to the static characteristic curve graph for the specific details. 5. The starting time was measured under the cold machine starting condition. For more frequent switch machines, the starting time can be achieved
