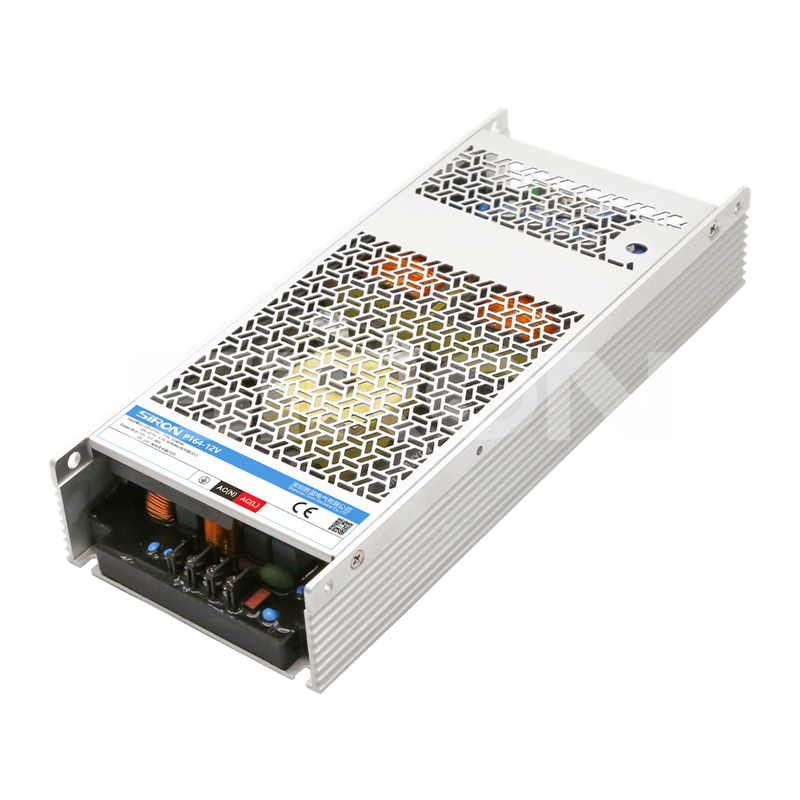

SiRON P164 Series 750W Fan-less Semi-glue-filled Switching Power Supply

Name: SiRON P164 Series 750W Fan-less Semi-glue-filled Switching Power Supply
Brand: SiRON
Rating: 5.0 (43 reviews)

Features

Dual use (same terminal input voltage), low standby power consumption, high efficiency;
4000VAC high isolation low voltage ripple noise, output short circuit, overcurrent, overvoltage protection;
Overvoltage class lll (in line with EN62477), to meet the 5000m altitude application;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

Model	Voltage
P164	5V

Selection reference

Product Attributes

Model		P164 series
(@230VAC) Electric shock		Cold start, 60A
Overcurrent Protection		110 % - 170 0% lo, constant current protection, self-recovery
Short circuit protection		Hiccup type, with long-term short-circuit protection and self-recovery
Isolation withstand voltage		Input-output: 4kVAC, input-PE :2kVAC, output-PE: 1.75kVAC(Test for 1 minute, leakage current <10mA)
Operating temperature		-40℃to+85℃
E M C	EMI	CIS P R 3 2 / E N 5 5 0 32 Cla s s B ；IE C / E N 6 1 0 0 0 - 3 -2 Cla s s A ；
performance	EMS	IEC/EN61000-4-2 Contact 土 8KV；IE C / E N 6 1 0 0 0 - 4 -3 1 0 V / m ； IEC/EN61000-4-4 土2KV；IEC/EN61000-4-6 10 Vr.m.s； IEC/EN61000-4-5,11；MS-SOP-DQC-007
Safety standard		UL/EN/BS EN62368、EN60335、EN61558、GB4943
MTBF		MIL-HDBK-217F@25℃>300000h
Dimensions		2 3 7 × 1 0 0 × 4 1
