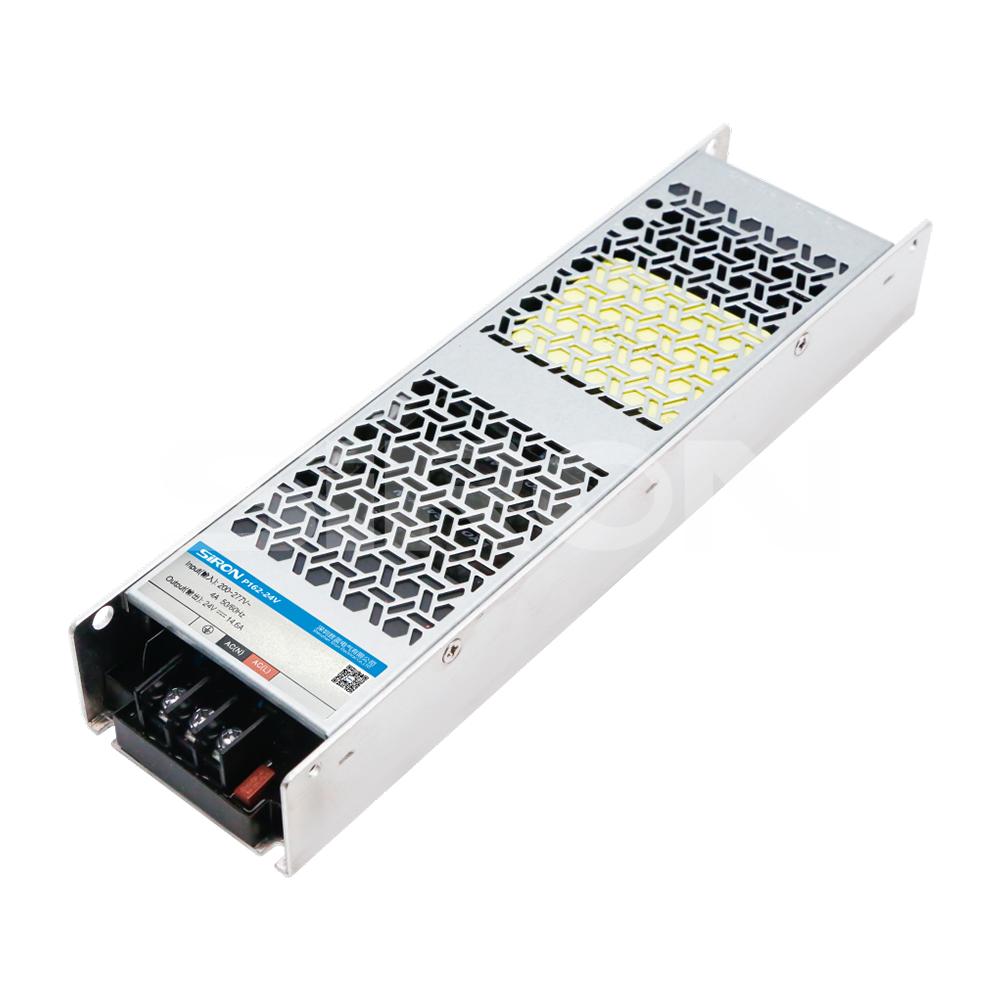

SiRON P162 Series 350W Fan-less Semi-glue-filled Switching Power Supply

Name: SiRON P162 Series 350W Fan-less Semi-glue-filled Switching Power Supply
Brand: SiRON
Rating: 5.0 (84 reviews)

Features

Dual use (same terminal input voltage), low standby power consumption, high efficiency;
4000VAc hiah isolation low voltage ripple noise, output short circuit, overcurrent, overvoltage protection
Overvoltage class lll (in line with EN62477), to meet the 5000m altitude application;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

Model	Voltage
P162	5V

Selection reference

Product Attributes

Model		P162 series
(@230VAC) Electric shock		Cold start, 60A
Overcurrent Protection		110%- 200%lo, delayed protection, delay time of 1 second, self-recovery after abnormal resolution
Short circuit protection		Hiccup type, with long-term short-circuit protection and self-recovery
Isolation withstand voltage		Input-output: 4kVAC, input-PE :2kVAC, output-PE: 1.2kVAC(Test for 1 minute, leakage current <10mA)
Operating temperature		-40℃to+85℃
E M C	EMI	CISPR32/EN55032 ClassB；IEC/EN61000-3-2 ClassA；IEC/EN6100-3-3
performance	EMS	IEC/EN61000-4-2 Contact ±6KV；IEC/EN61000-4-3 10V/m IEC/EN61000-4-4 土2KV；IEC/EN61000-4-6 10 Vr.m.s； IEC/EN61000-4-5,11；MS-SOP-DQC-007
Safety standard		UL/EN/BS EN62368、EN60335、EN61558、GB4943
MTBF		MIL-HDBK-217F@25℃>300000h
Dimensions		220×62×31
