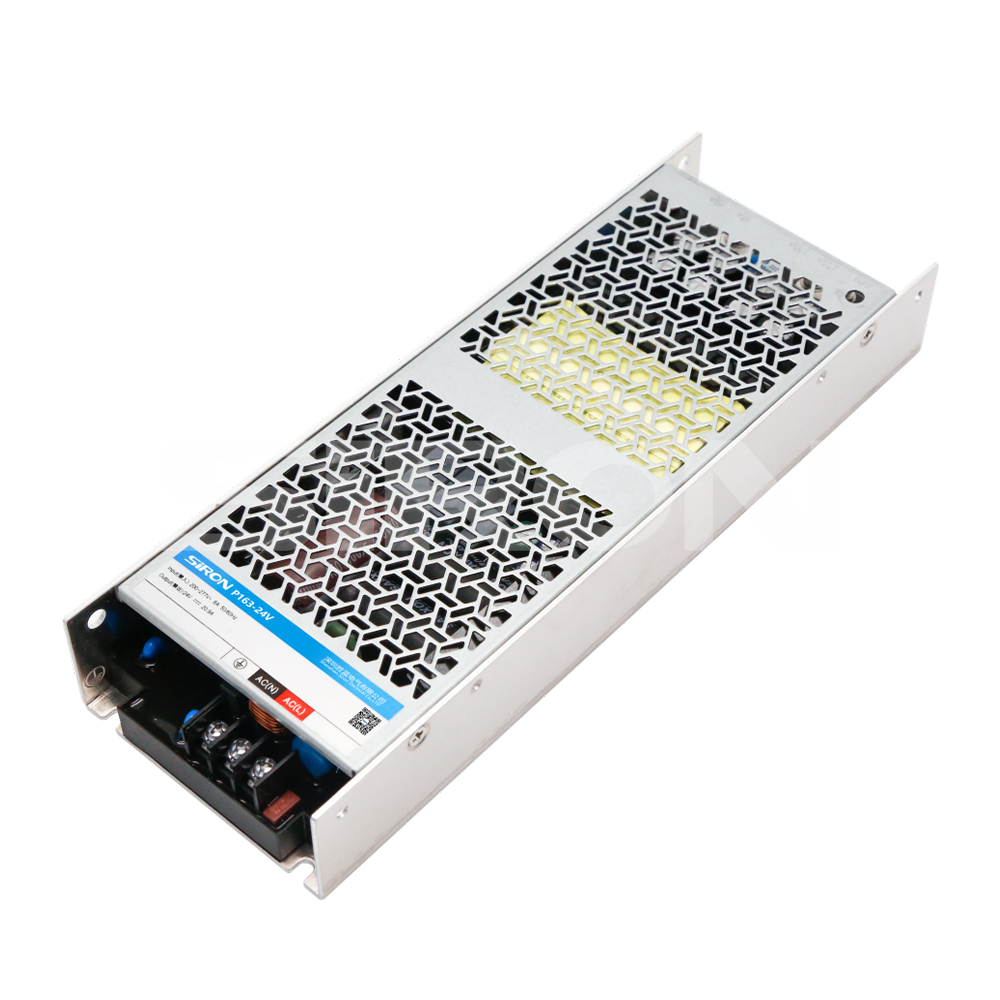

P163
SiRON
8504401400
Order
| Model | Voltage |
| P163 | 5V |
Selection reference
Model | Rated output | Type | (uF) Maximum capacitiveload | Output ripple noise | ||
| Power | Voltage/current | Voltage adjustable range | ||||
| P163-12V | 500.4W | 12V/41.7A | 11.4-12.6V | 94% | 10000 | 4000 |
| P163-24V | 501.6W | 24V/20.9A | 22.8-25.2V | 94.5% | 8000 | 3000 |
| P163-28V | 501.2W | 28V/17.9A | 26.6-29.4V | 94.5% | 6000 | 2000 |
| P163-30V | 500.2W | 30.5V/16.4A | 29-32V | 94.5% | 6000 | 2000 |
| P163-36V | 500.4W | 36V/13.9A | 34.2-37.8V | 95% | 6000 | 2000 |
| P163-48V | 501.6W | 48V/10.45A | 45.6-50.4V | 95% | 4000 | 1000 |
| P163-55V | 489.5W | 55V/8.9A | 45.0-58.0V | 95% | 2000 | 600 |
Product Attributes
| Model | P163 series | |
| (@230VAC) Electric shock | Cold start, 60A | |
| Overcurrent Protection | ＞ 110%lo | |
| Short circuit protection | Hiccup type, with long-term short-circuit protection and self-recovery | |
| Isolation withstand voltage | Input-output: 4kVAC, input-PE :2kVAC, output-PE: 1.5kVAC(Test for 1 minute, leakage current <10mA) | |
| Operating temperature | -40℃to+70℃ | |
| E M C | EMI | CISPR32/EN55032 ClassB；IEC/EN61000-3-2 ClassA/D；IEC/EN6100-3-3 |
| performance | EMS | IEC/EN61000-4-2 Contact 土8KV；IEC/EN61000-4-3 10V/m IEC/EN61000-4-4 土2KV；IEC/EN61000-4-6 10 Vr.m.s； IEC/EN61000-4-8 30A/m；IEC/EN61000-4-5,11；MS-SOP-DQC-007 |
| Safety standard | UL/EN/BS EN62368、EN60335、EN61558、GB4943 | |
| MTBF | MIL-HDBK-217F@25℃>300000h | |
| Dimensions | 232×81×31 | |
