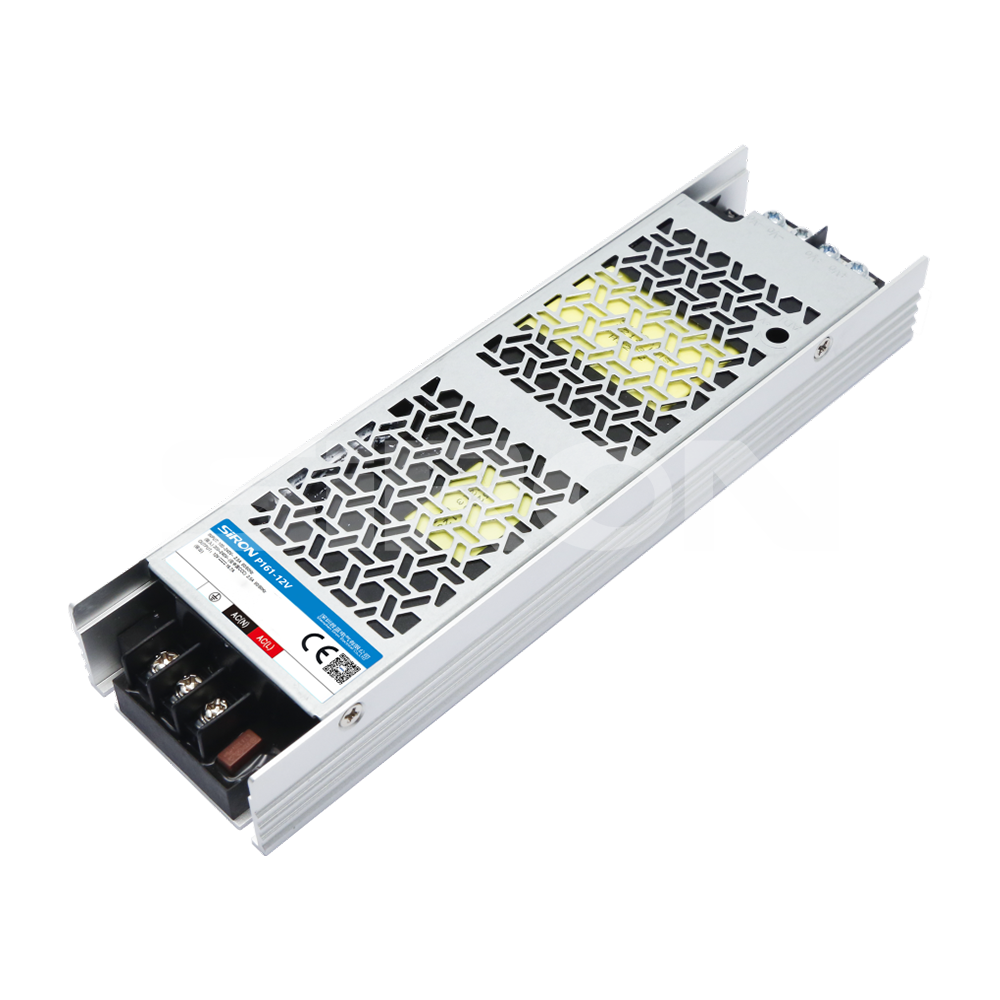

SiRON P161 Series 200W Fan-less Semi-glue-filled Switching Power Supply

Name: SiRON P161 Series 200W Fan-less Semi-glue-filled Switching Power Supply
Brand: SiRON
Rating: 5.0 (29 reviews)

Features

Ultra-narrow strip case, semi-glue filling process, fanless design, low standby power consumption, high efficiency;

Output short-circuit, constant current, over-voltage, over-temperature protection, to meet 5000m altitude applications
Active PFc, 4000VAC high isolation voltage, 150% peak power lasting 1 second output;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

Model	Voltage
P161	5V

Selection reference

Product Attributes

Model		P161 series
(@230VAC) Electric shock		Cold start, 80A
Overcurrent Protection		105%- 200%lo, delayed protection, delay time of 1 second, self-recovery after abnormal resolution
Short circuit protection		Hiccup type, with long-term short-circuit protection and self-recovery
Isolation withstand voltage		Input-output: 4kVAC, input-PE :2kVAC, output-PE: 1.2kVAC(Test for 1 minute, leakage current <10mA)
Operating temperature		-40℃to+70℃
E M C	EMI	CISPR32/EN55032 ClassB；IEC/EN61000-3-2 ClassA；Class C and Class D
performance	EMS	IEC/EN61000-4-2 Contact ± 6KV；IEC/EN61000-4-3 10V/m IEC/EN61000-4-4 士4KV；IEC/EN61000-4-6 10 Vr.m.s IEC/EN61000-4-5,11；MS-SOP-DQC-007
Safety standard		UL/EN/BS EN62368、EN60335、EN61558、GB4943
MTBF		MIL-HDBK-217F@25℃>300000h
Dimensions		194×55×26
