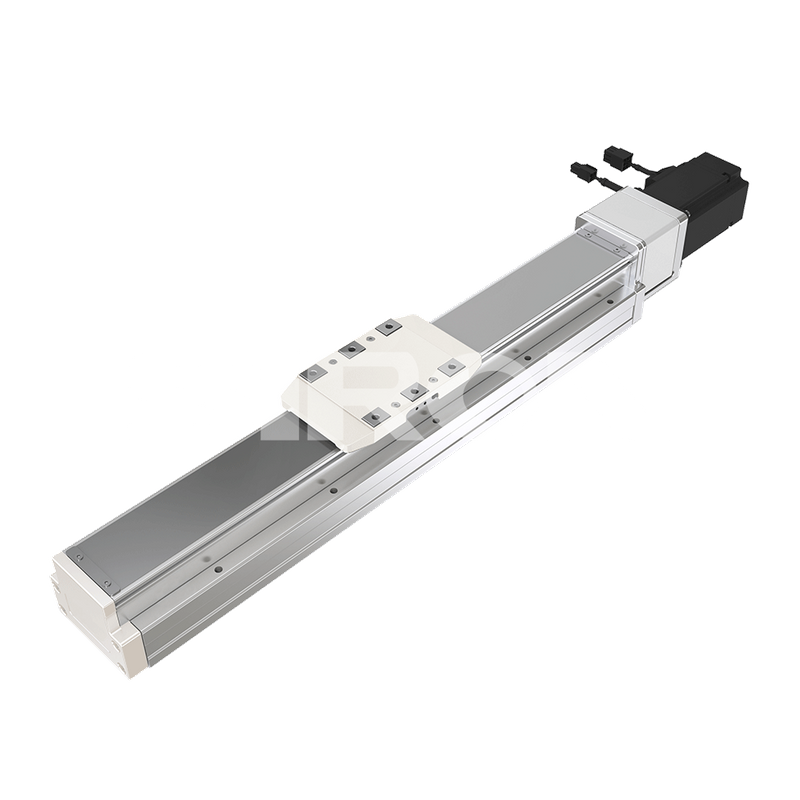

SiRON M312 Embedded Ball Screw Compact Module

Name: SiRON M312 Embedded Ball Screw Compact Module
Brand: SiRON
Rating: 5.0 (9 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M312
Brand:
SiRON
Code:
9001909090

1050mm Maximum stroke 1000mm/s Maximum speed Φ16mm Ball bearing screw

Product Description

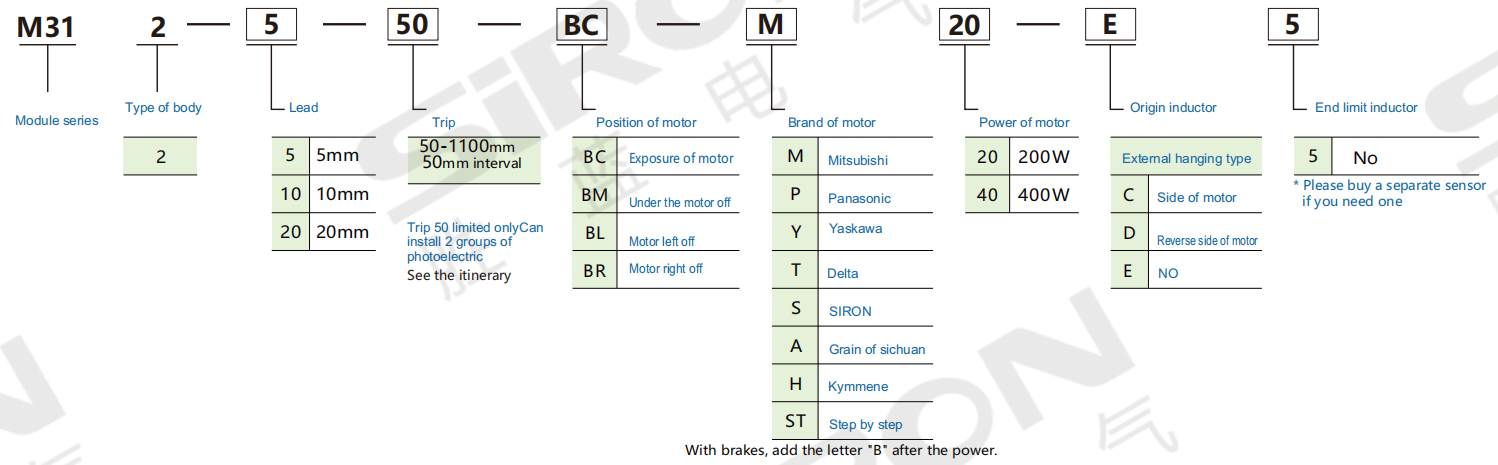

About selection

Selection example: M312-5-50-BC-M20B-E5 is M312 series, guide 5mm, stroke 50, motor exposed, Mitsubishi 200W with brake, no origin sensor, no limit sensor;

Note: If you need other styles, please consult our sales staff. Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Specifications	Motor power		200W/400W
	Repeatability(mm)		±0.01
	Ball screw lead(mm)		5	10	20
	Maximum speed(mm/s)		250	500	1000
	Maximum payload(kg)	Horizontal	50	30	18
		Vertical	15	8	3
	Rated thrust(n)		683/1388	341/694	174/347
	Stroke pitch(mm)		50-1050mm/50 interval
Sarts	AC Servo motoroutput(w)		200/400
	Can be equipped with stepping motor		57/60
	Ball screw(mm)		C7 φ16
	Coupling(mm)		10×11(14)/10×14
	Home sensor	Outside	K017-A6

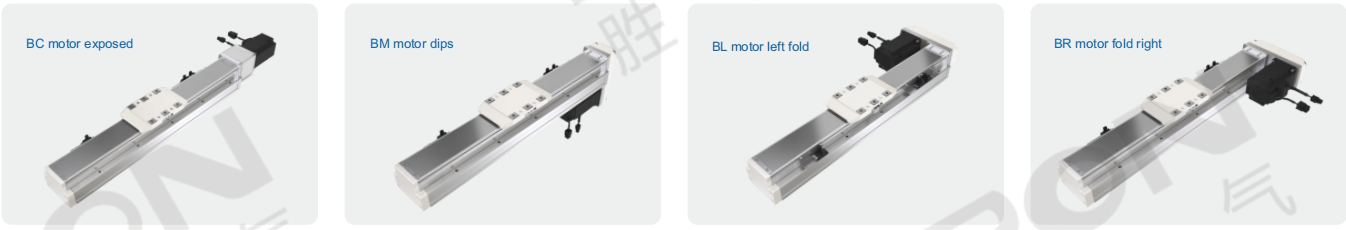

Installation method

企业微信截图_17742521511127

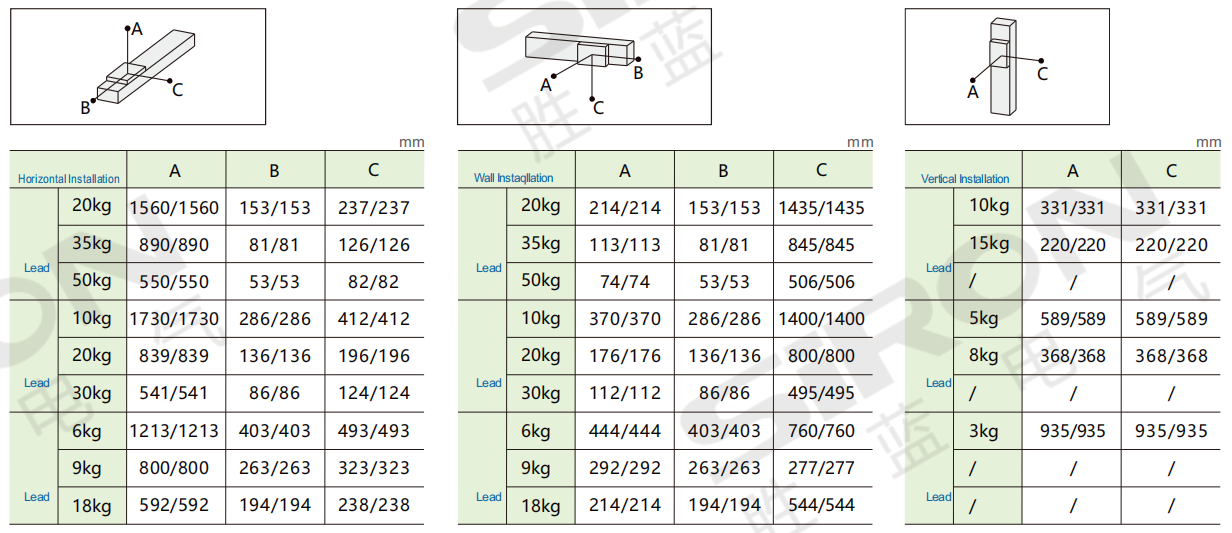

Allowable overhang

企业微信截图_17742522425641

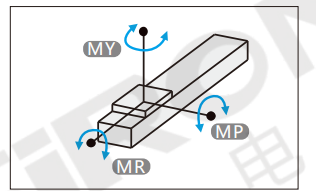

Static loading moment

企业微信截图_17742522861566

MY	318/318
MP	318/318
MR	626/626

Suitable motor brand

Brand	The motor mark	Whether the brakes	Motor capacity	voltage	Motor model	voltage
Mitsubishi	M	No brakes(horizontal style)	200/400	220	HG-KR23/HG-KR43	MR-J4-20A MR-J4-40A
Mitsubishi	M	With brake(vertical style)	200/400	220	HG-KR23B/HG-KR43B	MR-J4-20A MR-J4-40A
Panasonic	P	No brakes(horizontal style)	200/400	220	MHMD022P1S/MHMD042G1U	MADHT1207 MBDHT2510
Panasonic	P	With brake(verticalstyle)	200/400	220	MHMD022P1T/MHMD042G1V	MADHT1207 MBDHT2510
Delta	T	No brakes(horizontal style)	200/400	220	ECMA-C20602ES/ECMA-C20604ES	ASD-B20221-B ASD-B20421-B
Delta	T	With brake (verticalstyle)	200/400	220	ECMA-C20602FS/ECMA-C20604FS	ASD-B20221-B ASD-B20421-B

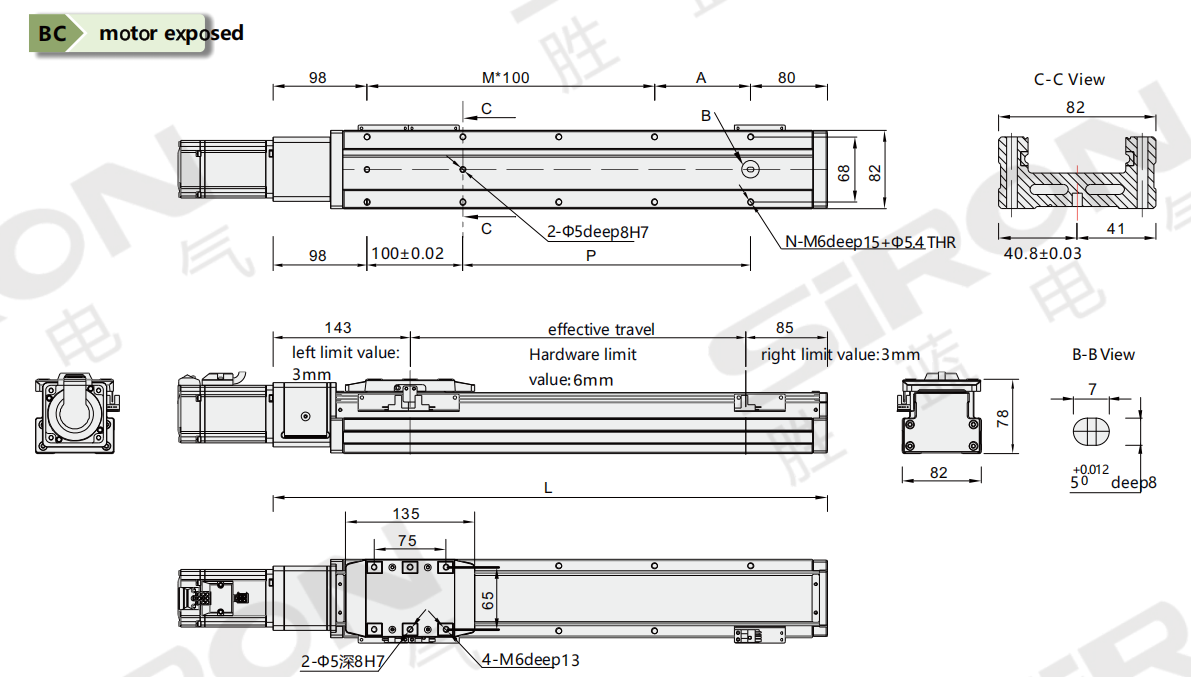

General dimension drawing

企业微信截图_17742524256553

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
L	278	328	378	428	478	528	578	628	678	728	778	828	878	928	978	1028	1078	1128	1178	1228	1278	1328
A	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11
N	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26
P	100	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
weight(kg)	3.60	3.95	4.30	4.65	5.00	5.35	5.70	6.05	6.40	6.75	7.10	7.45	7.80	8.15	8.50	8.85	9.20	9.55	9.90	10.25	10.60	10.95

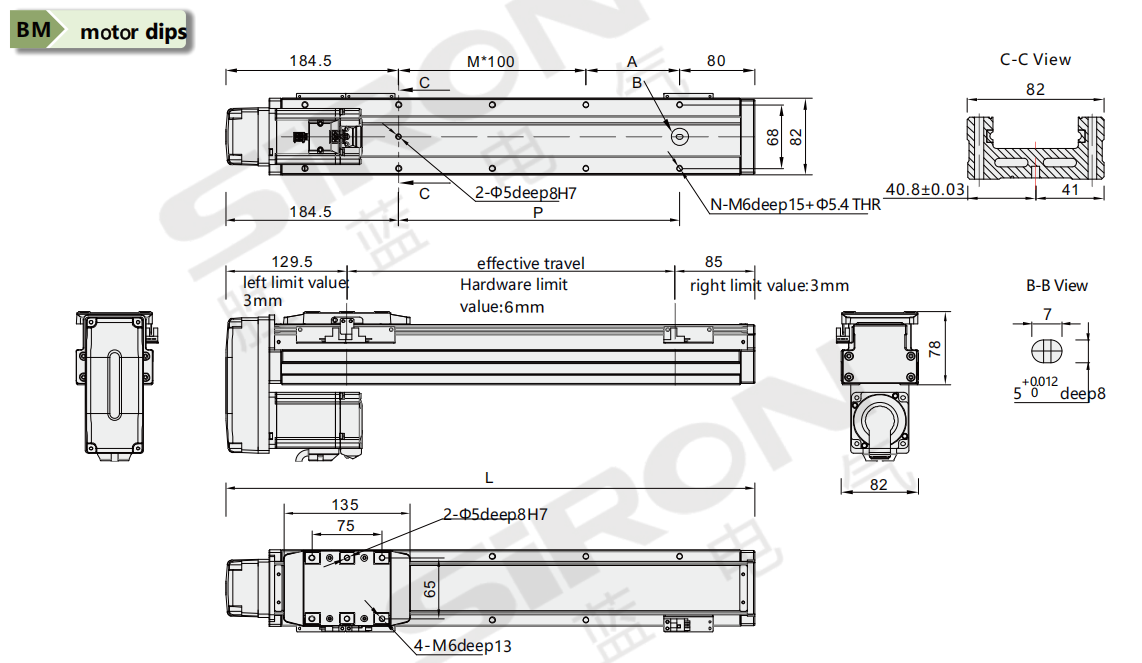

企业微信截图_17742528252941

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
L	264.5	314.5	364.5	414.5	464.5	514.5	564.5	614.5	664.5	714.5	764.5	814.5	864.5	914.5	964.5	1014.5	064.5	1114.5	1164.5	1214.5	1264.5	1314.5
A	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	0	0	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10
N	4	4	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24
P	100	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
weight(kg)	3.80	4.15	4.50	4.85	5.20	5.55	5.90	6.25	6.60	6.95	7.30	7.65	8.00	8.35	8.70	9.05	9.40	9.75	10.10	10.45	10.80	11.15

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff.

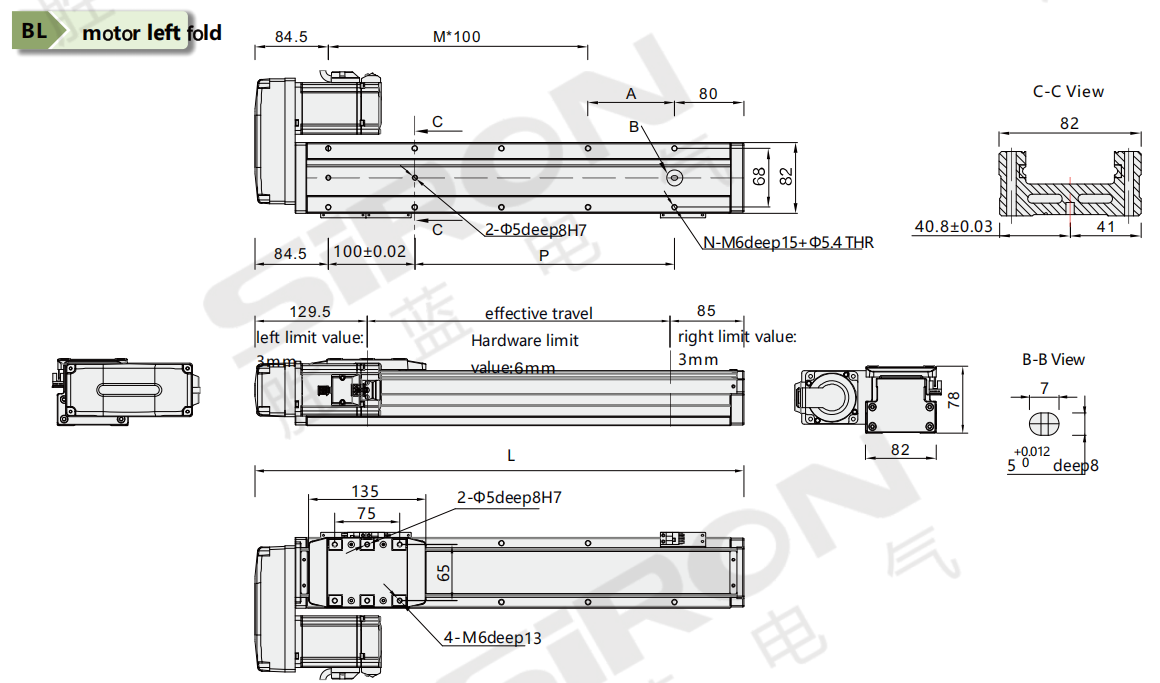

企业微信截图_17742530023863

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
L	264.5	314.5	364.5	414.5	464.5	514.5	564.5	614.5	664.5	714.5	764.5	814.5	8645	914.5	964.5	1014.5	1064.5	1114.5	1164.5	1214.5	1264.5	1314.5
A	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11
N	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26
P	100	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
weight(kg)	3.80	4.15	4.50	4.85	5.20	5.55	5.90	6.25	6.60	6.95	7.30	7.65	8.00	8.35	8.70	9.05	9.40	9.75	10.10	10.45	10.80	11.15

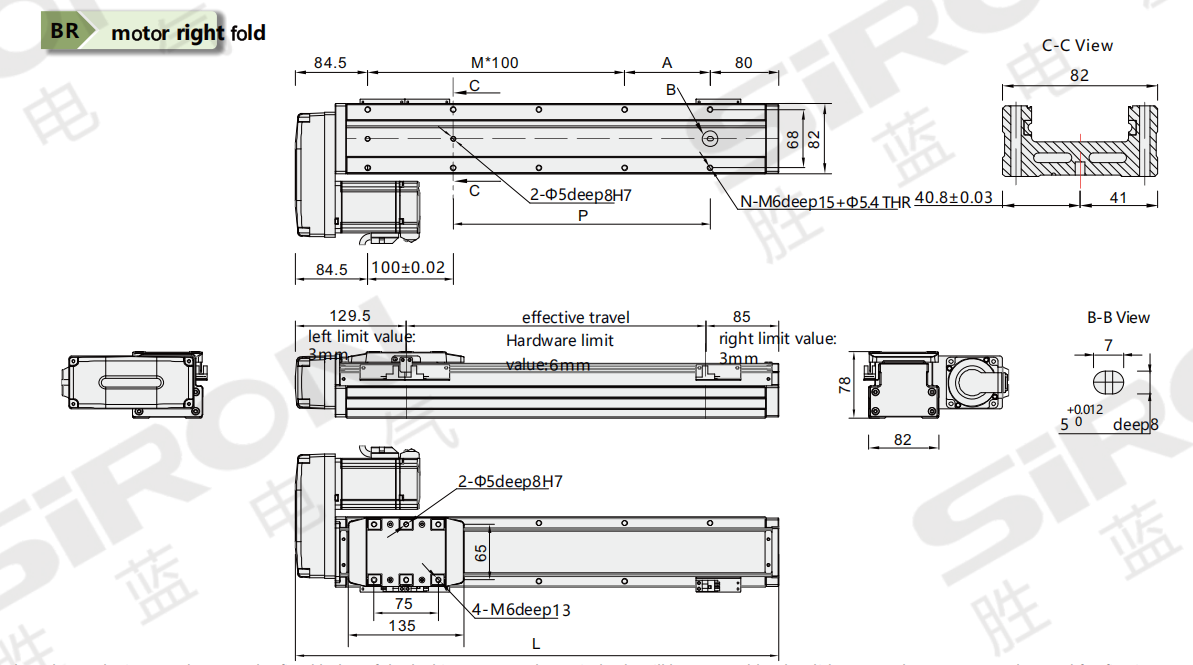

企业微信截图_17742533194633

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100
L	264.5	314.5	364.5	414.5	464.5	514.5	564.5	614.5	664.5	714.5	764.5	814.5	864.5	914.5	964.5	1014.5	1064.5	1114.5	1164.5	1214.5	1264.5	1314.5
A	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50	100	50
M	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11
N	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20	22	22	24	24	26
P	100	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
weight(kg)	3.80	4.15	4.50	4.85	5.20	5.55	5.90	6.25	6.60	6.95	7.30	7.65	8.00	8.35	8.70	9.05	9.40	9.75	10.10	10.45	10.80	11.15

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff. .
