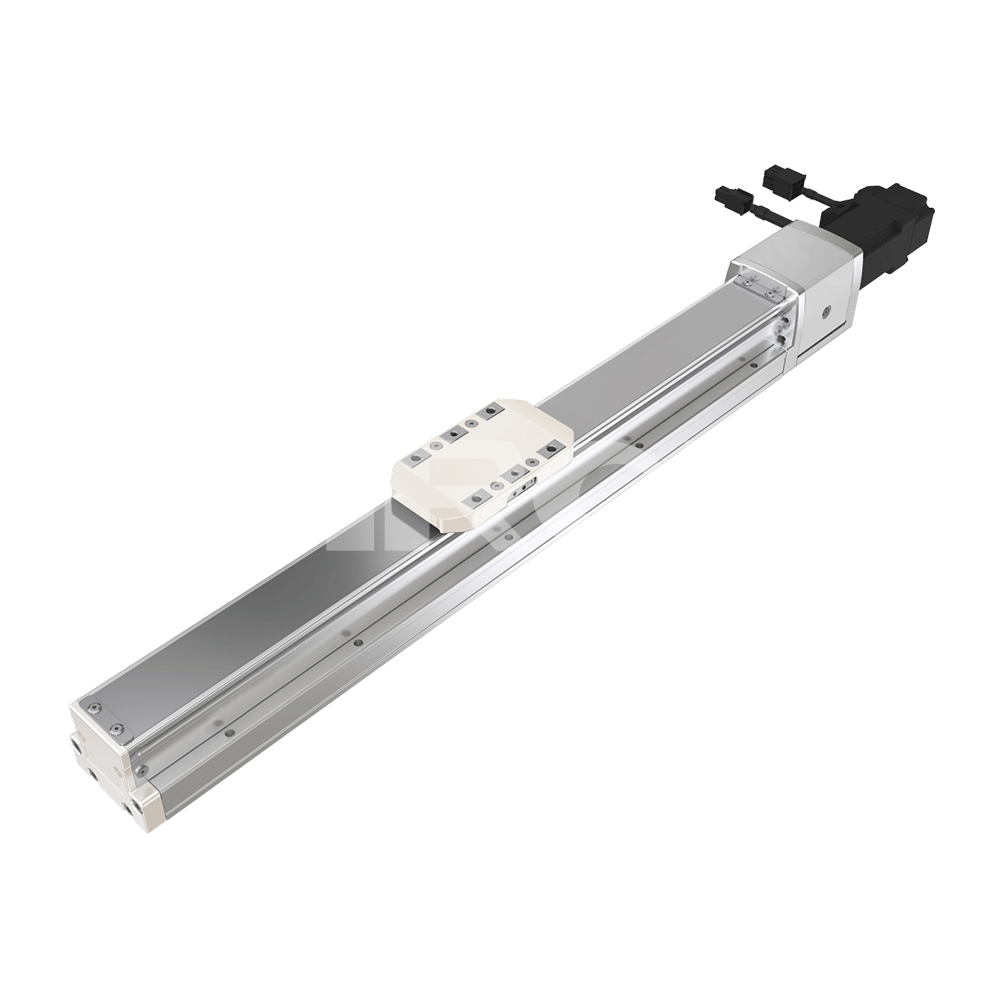

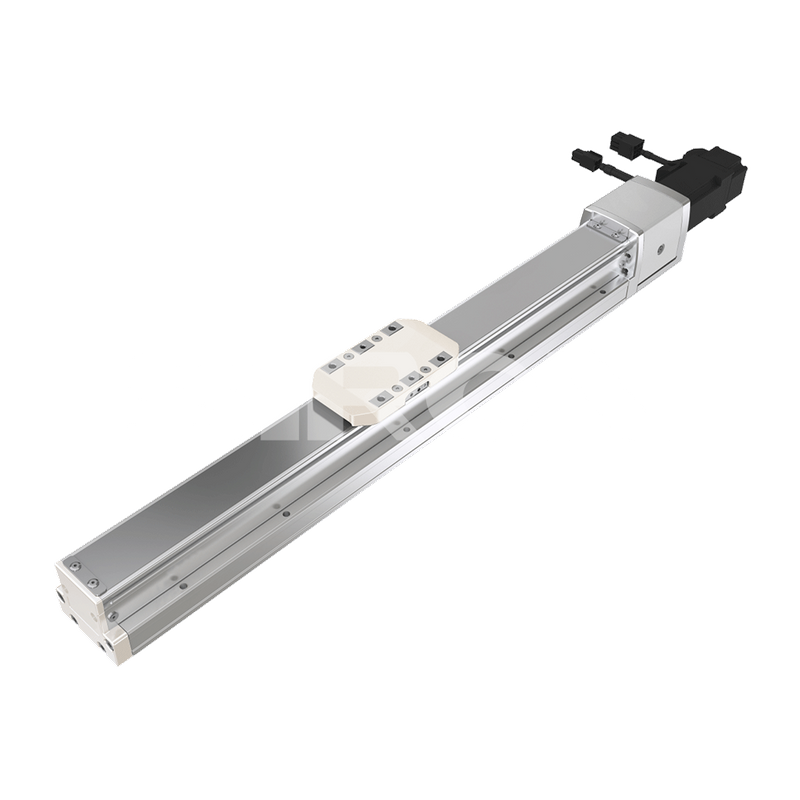

SiRON M311 Embedded Ball Screw Compact Module

Name: SiRON M311 Embedded Ball Screw Compact Module
Brand: SiRON
Rating: 5.0 (72 reviews)

Features:

*Track embedded screw sliding table, using track embedded, equal height straightness greatly improved, sliding table travel up to 1250mm, no removal of the cover, easy assembly,More rigid; Special steel belt structure design, can reduce dust, can be used in clean room environment;

* The width is reduced, so that the equipment installation space is smaller, the body and the slide seat one molding steel, improve the original aluminum slide seat stiﬀness;
* Do not need to remove the steel belt, can be ﬁxed from the top down or from the bottom up ﬁxed; Installation datum dock is added on the side of the body; The bottom of the body has a positioning PIN hole, convenient assembly time;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M311
Brand:
SiRON
Code:
9001909090

800mm Maximum stroke 1000mm/s Maximum speed Φ12mm Ball bearing screw

Product Description

About selection

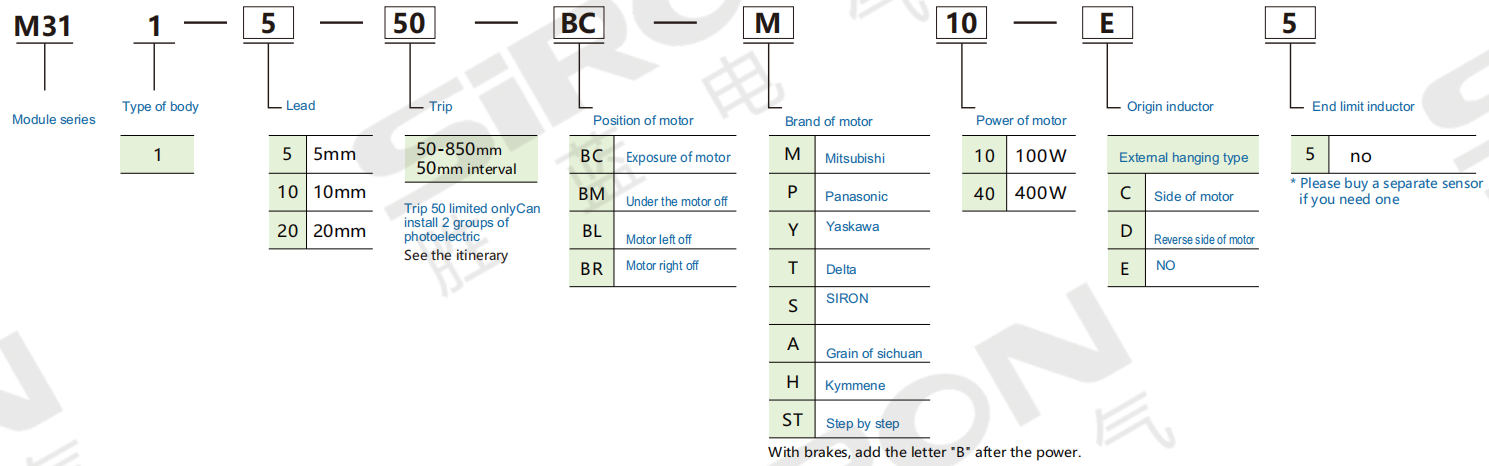

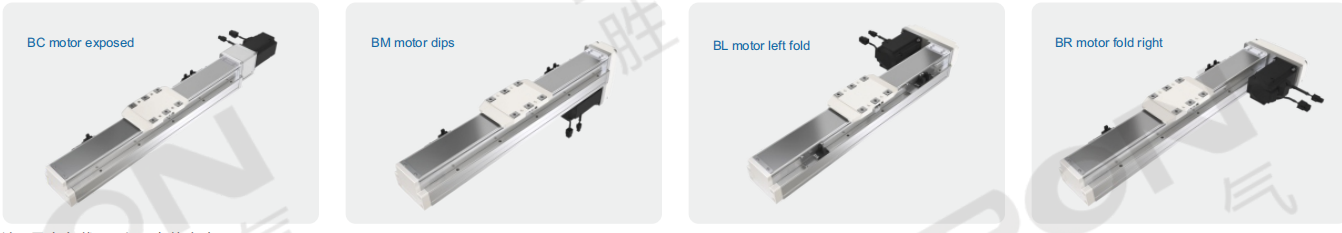

Selection example: M311-5-50-BC-M10B-E5 is M311 series, guide 5mm, stroke 50, motor exposed, Mitsubishi 100W with brake, no origin sensor, no limit sensor;

Note: If you need other styles, please consult our sales staff.

Origin sensor: the limit of selection stroke 50mm: (1) Origin type limit should be placed on different sides, (2) induction plates should be installed on both sides of the slide seat;

Product specification

Project			Specification
Speciications	Repeatability(mm)		±0.01
	Bal screwlead(mm)		5	10	20
	Maximum speed(mm/s)		250	500	1000
	Maximum payload(kg)	Horizontal	30	15	10
		Vertical	10	5	2.5
	Rated thrust(n)		341	170	85
	Stroke pitch(mm)		50-850mm/50 interval
Sarts	AC Servo motor output(w)		100
	Can be equipped with stepping motor		57
	Ball screw(mm)		C7φ12
	Coupling(mm)		7×8
	Home sensor	Outside	K017-A6

Installation method

企业微信截图_17742372855685

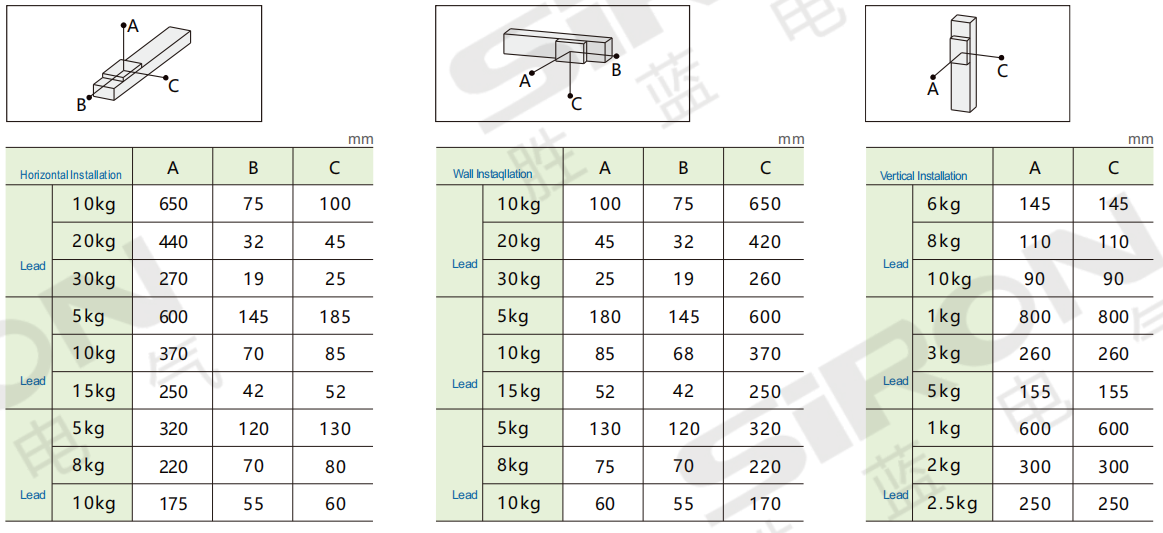

Allowable overhang

企业微信截图_17742373346956

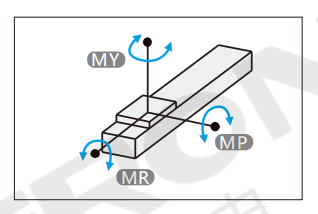

Static loading moment

企业微信截图_17742425778498

MY	103
MP	103
MR	114

The data indicated in the torque table represents the center of gravity Under normal usage conditions that comply with catalog violations, the guaranteed lifespan is 10,000 kilometers The standard specifications cannot be followed when using the inverted hoist. If you have any needs, please consult our sales staff

Suitable motor brand

Brand	The motor mark	Whether the brakes	Motor capacity	voltage	Motor model	voltage
Mitsubishi	M	Nobrakes(horizontal style)	100	220	HG-KR13	MR-J4-10A
Mitsubishi	M	With brake(vertical style)	100	220	HG-KR13B	MR-J4-10A
Panasonic	P	Nobrakes(horizontal style)	100	220	MSMD012G1U	MADHT1505
Panasonic	P	With brake(vertical style)	100	220	MSMD012G1V	MADHT1505
Delta	T	Nobrakes(horizontal style)	100	220	ECMA-C20401ES	ASD-B20121-B
Delta	T	With brake(vertical style)	100	220	ECMA-C20401FS	ASD-B20121-B

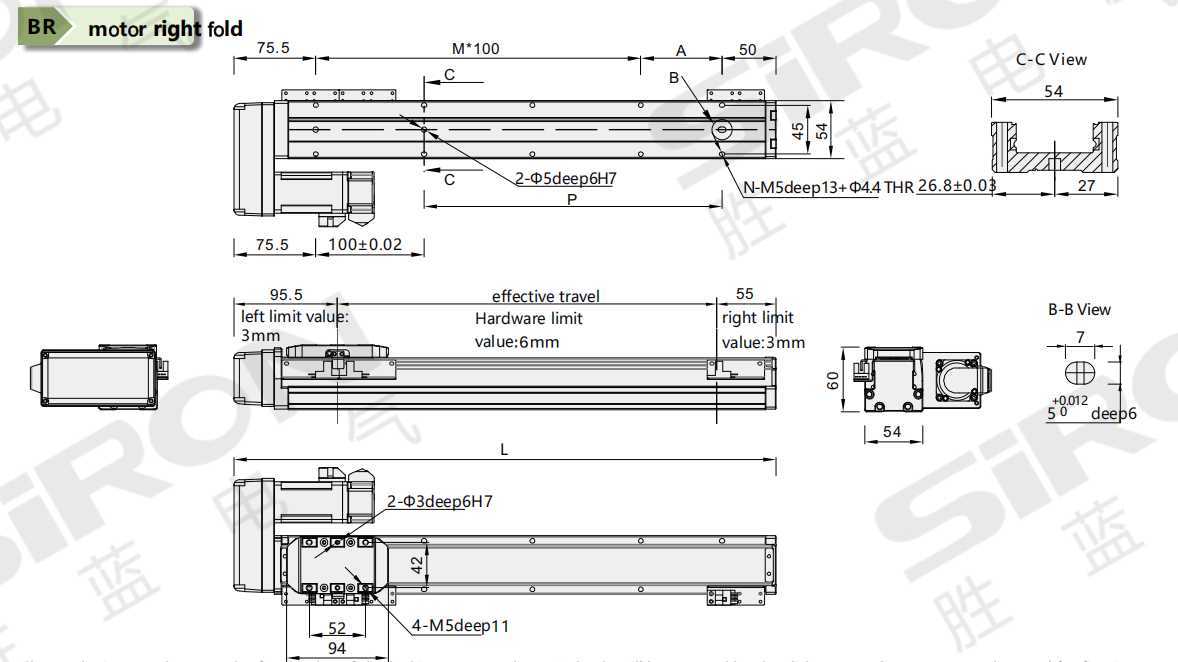

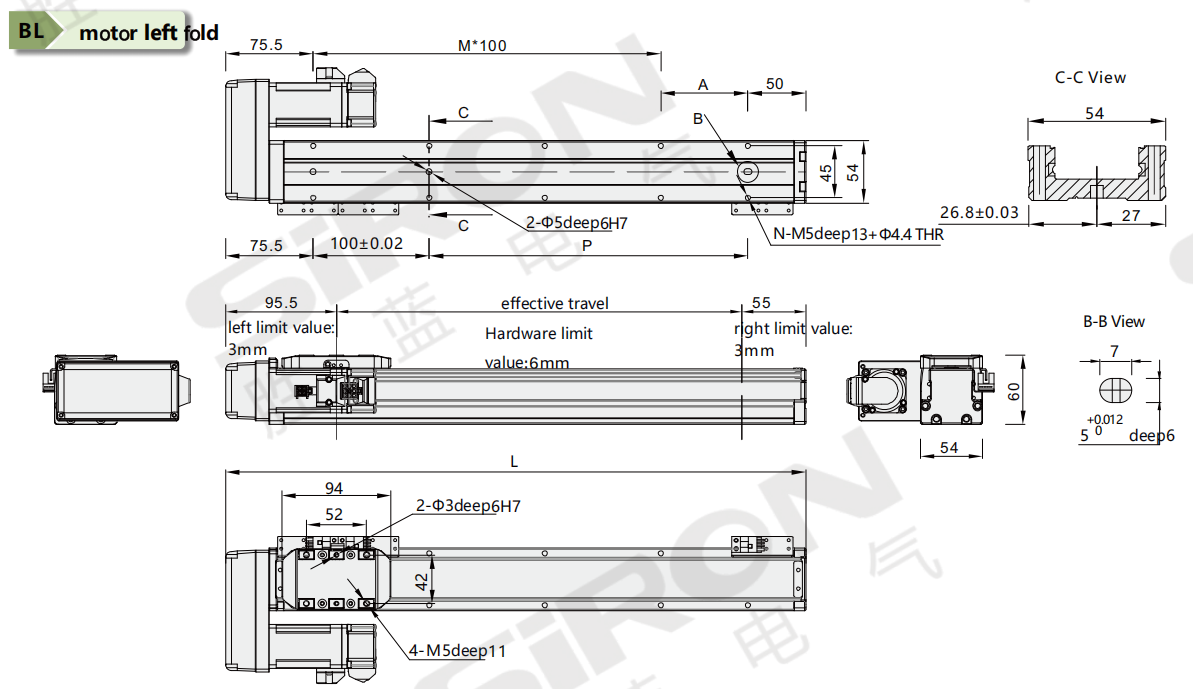

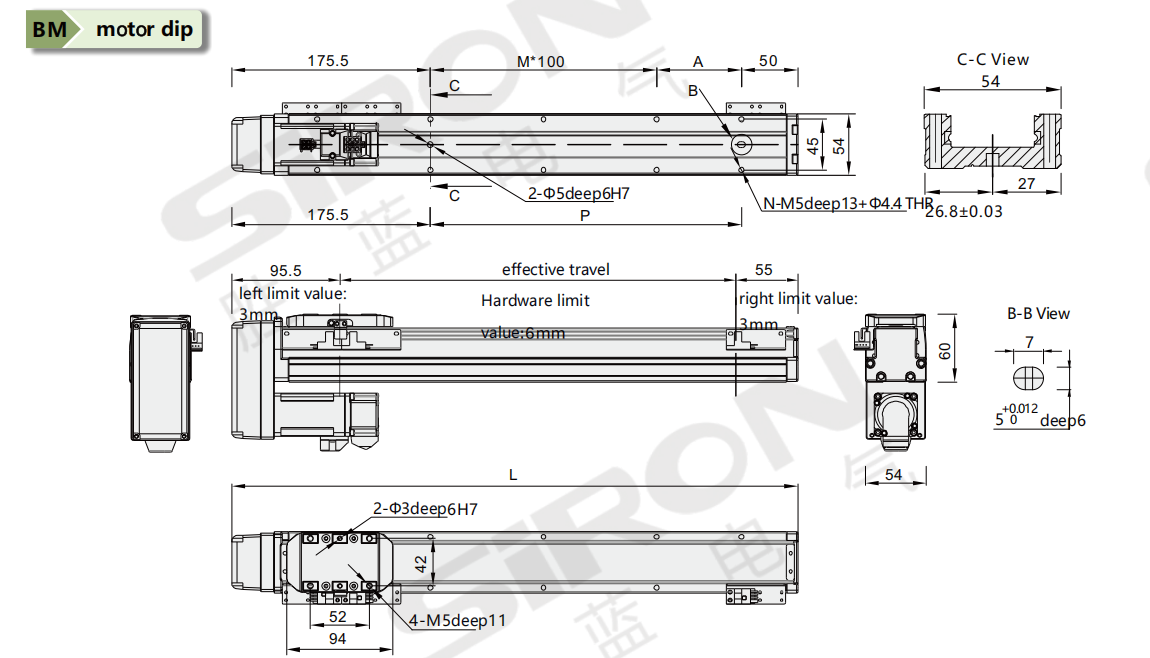

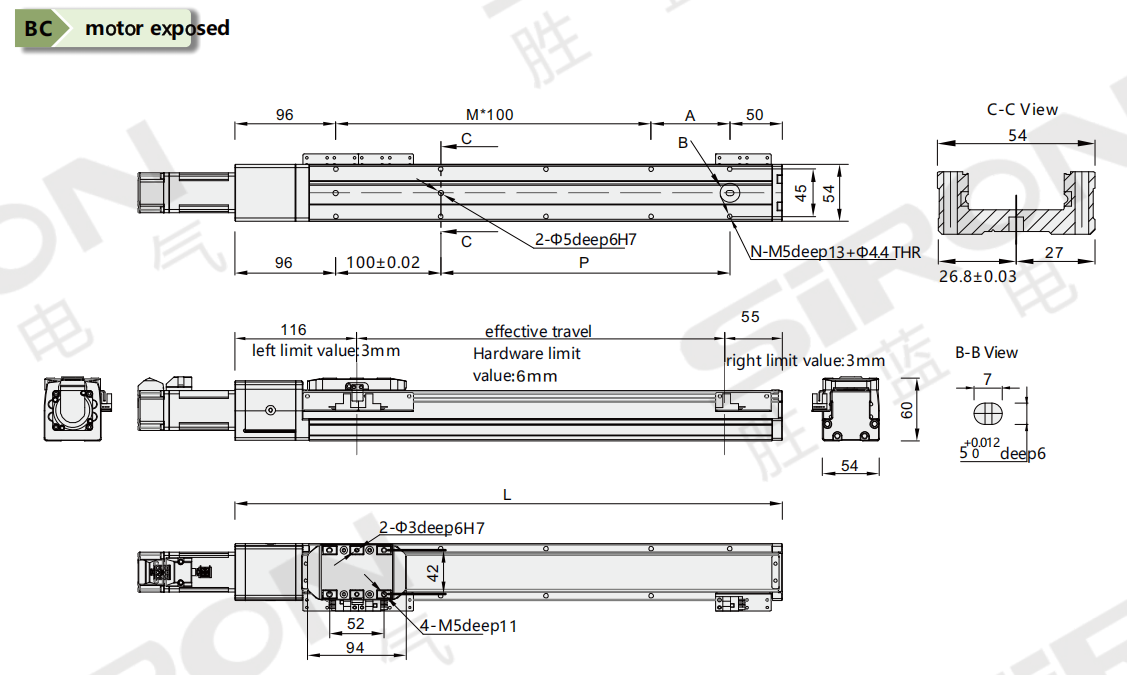

General dimension drawing

企业微信截图_17742511457014

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked.

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850
L	221	271	321	371	421	471	521	571	621	671	721	771	821	871	921	971	1021
A	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8
N	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20
P	75	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	2.03	2.23	2.42	2.62	2.82	3.01	3.21	3.41	3.60	3.80	4.00	4.19	4.39	4.59	4.78	4.98	5.18

企业微信截图_17742513917793

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850
L	200.5	250.5	300.5	350.5	400.6	450.5	500.5	550.5	600.5	650.5	700.5	750.5	800.5	850.5	900.5	950.5	1000.5
A	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	0	0	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7
N	4	4	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18
P	75	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	2.20	2.40	2.59	2.79	2.99	3.18	3.38	3.58	3.77	3.97	4.17	4.36	4.56	4.76	4.95	5.15	5.35

企业微信截图_17742515236634

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850
L	200.5	250.5	300.5	350.5	400.5	450.5	500.5	550.5	600.5	650.5	700.5	750.5	800.5	850.5	900.5	950.5	1000.5
A	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8
N	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20
P	75	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	2.20	2.40	2.59	2.79	2.99	3.18	3.38	3.58	3.77	3.97	4.17	4.36	4.56	4.76	4.95	5.15	5.35

企业微信截图_17742516166062

When the stroke is 50 and 100, as the fixed holes of the locking type on the main body will be covered by the slide seat, only 4 screws can be used for fixation. It is recommended that the customer use the bottom-locking type fixed holes for the main body to be locked

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850
L	200.5	250.5	300.5	350.5	400.5	450.5	500.5	550.5	600.5	650.5	700.5	750.5	800.5	850.5	900.5	950.5	1000.5
A	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75	25	75
M	0	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8	8
N	4	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20	20
P	75	25	75	125	175	225	275	325	375	425	475	525	575	625	675	725	775
weight(kg)	2.20	2.40	2.59	2.79	2.99	3.18	3.38	3.58	3.77	3.97	4.17	4.36	4.56	4.76	4.95	5.15	5.35

Note: When the motor is folded down, if a brake motor is selected or the total length limit of the motor is exceeded, the standard PIN hole cannot be applied. If you have any needs, please consult our sales staff.
