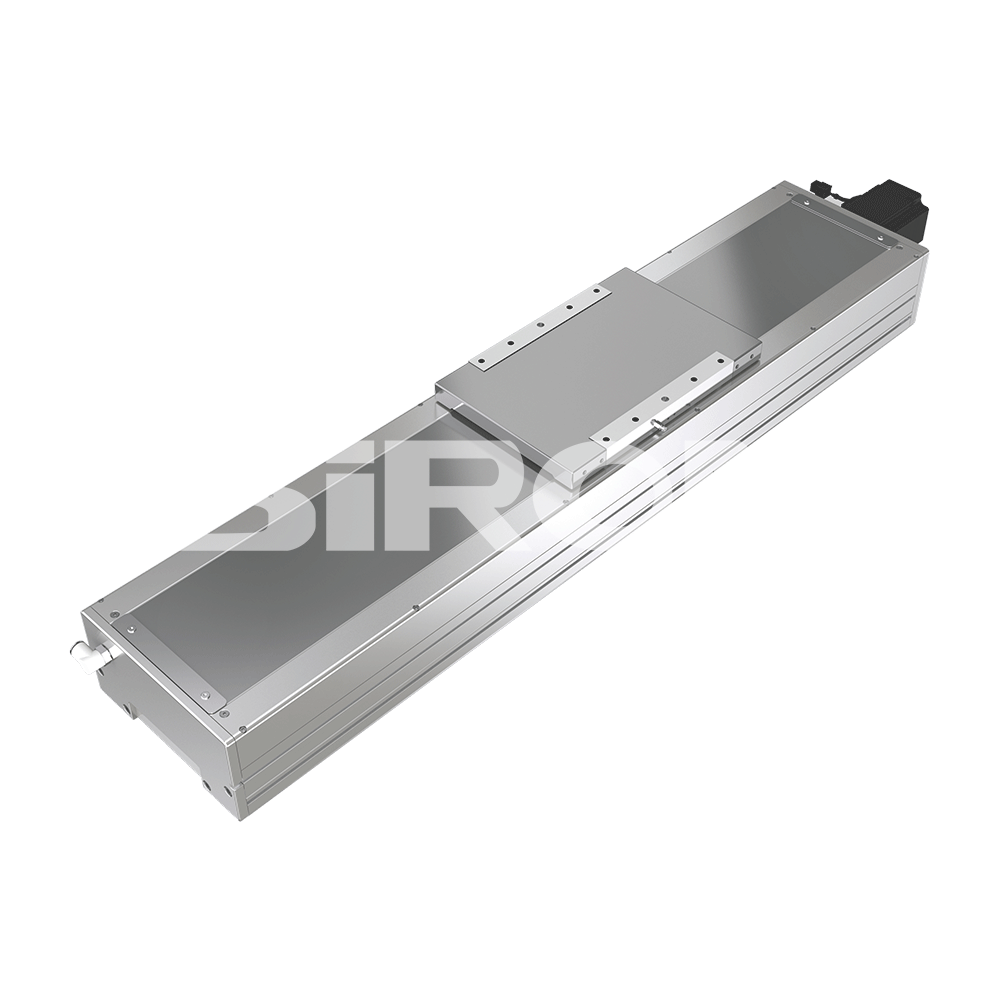

SiRON M362-22 Dust-free Lead Screw Module

Name: SiRON M362-22 Dust-free Lead Screw Module
Brand: SiRON
Rating: 5.0 (16 reviews)

Features:

The fully enclosed linear sliding table module is mainly composed of aluminum body, diagonal bearing fixing seat, cover plate, sliding seat and other components. The linear module adopts corrosion resistance and high strengthThe aluminum alloy material is the base, which is installed with a high-precision linear guide rail pair. The aluminum alloy moving seat is installed on the slider, and the middle of the moving seat is connected with the synchronous belt.The motor drives the sliding block to move reciprocally through the synchronous wheel. The high-precision synchronous wheel and synchronous belt can ensure the repetitive accuracy and positioning accuracy of the moving block, and the flexibility is not rustingThe e steel belt is sealed on the moving seat, the whole can reach the requirements of dust-free grade.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M362-22
Brand:
SiRON
Code:
9001909090

1500mm Maximum stroke 2000mm/s Maximum speed Φ25mm Ball bearing screw

Product Description

About selection

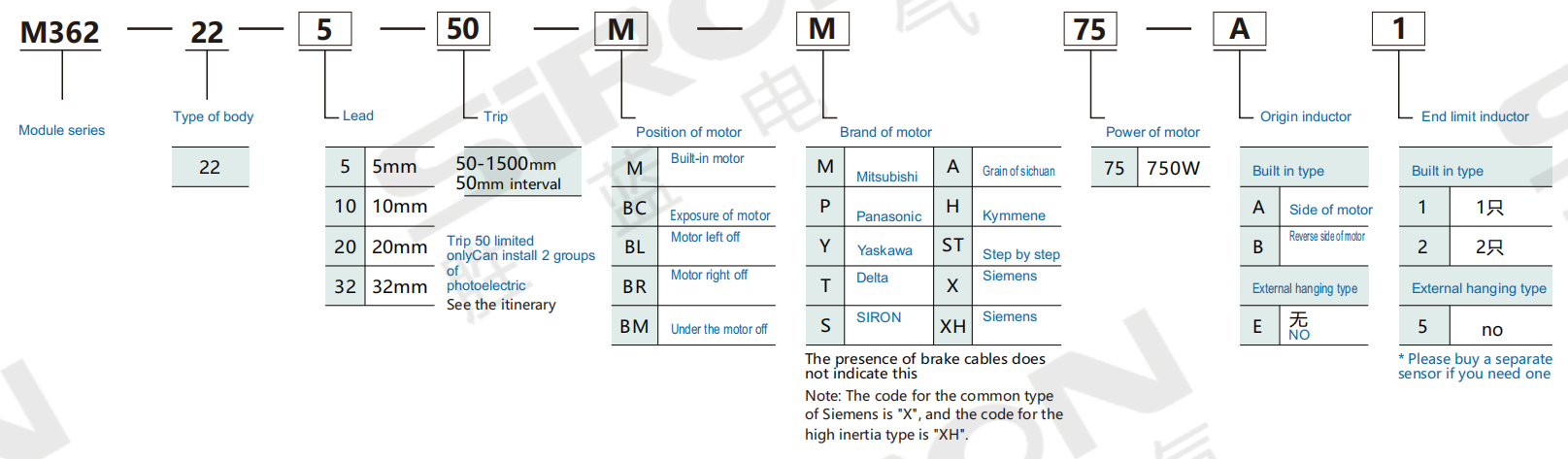

Model selection example: M362-22-5-50-M-M75-A1 is M362 series, the body model is 22, the lead is 5mm, the stroke is 50, the motor is built-in, Mitsubishi motor, the power is 750W, and the built-in motor side of the origin sensor is, A built-in limit sensor.

Product specification

Project			Specification
Specifications	Repeatability(mm)		±0.005
	Ball screw lead(mm)		5	10	20	32
	Maximum speed(mm/s)		250	500	1250	1600
	Maximum payload(kg)	Horizontal	150	150	105	60
		Vertical	55	45	20	20
	Rated thrust(n)		2563	1281	640	320
	Stroke pitch(mm)		50 - 1500 mm/50 interval
Sarts	AC servo motor capacity(W)		750
	Outer diameter of ball bearing screw(mm)		C7φ25
	High rigidity linear slide rail(mm)		W23×H18
	Coupling(mm)		17×19/20×19
	Home sensor	Outside	K017-A2(NPN)
		Built-in	EE-SX674(NPN)
