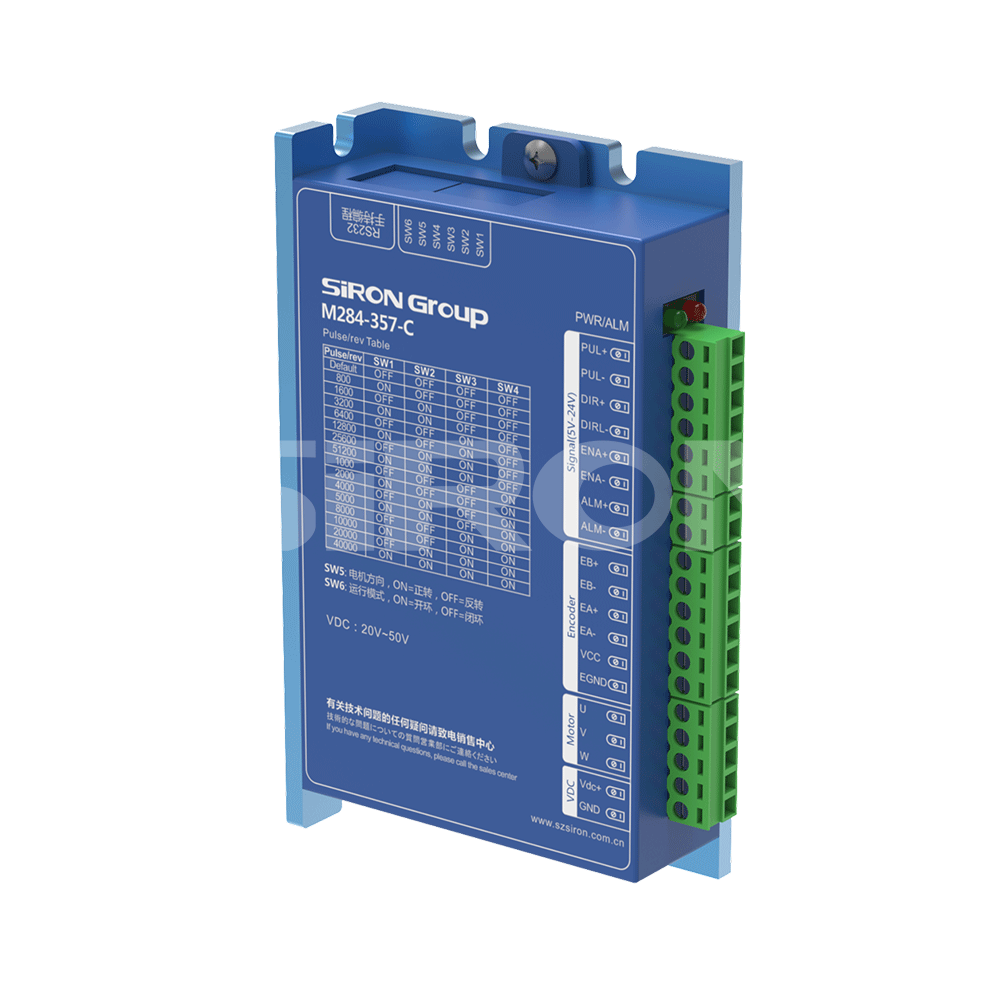

SiRON M284-357-C Series Three Phase Closed-loop Stepper Driver

Name: SiRON M284-357-C Series Three Phase Closed-loop Stepper Driver
Brand: SiRON
Rating: 5.0 (70 reviews)

Features

*By adopting the latest dedicated motor control DSP chip and vector closed-loop control technology, the problem of step loss in open-loop stepper motors is completely overcome
*It has protection functions such as overvoltage, overcurrent, and tracking error out of tolerance
*Closed loop vector control ensures high-speed and high torque output of the motor, while also ensuring that the motor does not lose step
*Automatic setting of power-on parameters

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M284-357-C
Brand:
SiRON
Code:
8501109990

7.0A stepper driver EtherCAT stepper driver Open loop stepper driver Closed loop stepper driver

Product Description

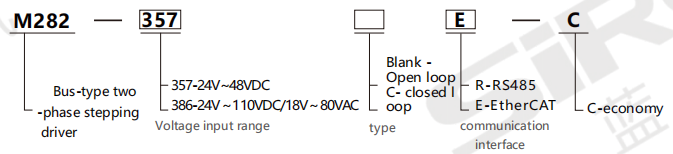

About selection

Selection example: M282-357E-C represents the M282 series bus-type two-phase stepping driver, with a voltage input range of 24V to 48VDC, a maximum peak current of 5.0A, an open-loop type, and an EtherCAT communication interface. It is an economical type.

Specification

Model		M284-357-C
		minimum value	typical value	maximum value
Voltage input range(V)		DC20~50
Maximum peak current (A)		-		7
Input power supply voltage (VDC or VAC		20	36	50
Logic input current (mA)		7	10	16
Pulse frequency (kHz)		-	-	200
Subdivision Range (ppr)		200～51200
Signal input		Differential/single-ended,pulse/direction
Environmental parameters	Storage temperature	-20℃~65℃
	Usage temperature	0℃~50℃
	Vibration frequency	Less than 0.5G(4.9m/s 2),10Hz to 55Hz(non-continuous operation)
	Use humidity	40-90%RH(No condensation)
	Instalalion environment	Avoid places with dust, oil stains, corrosive gases, excessive humidity and strong vibration. Flammable gases and conductive dust are strictly prohibited
