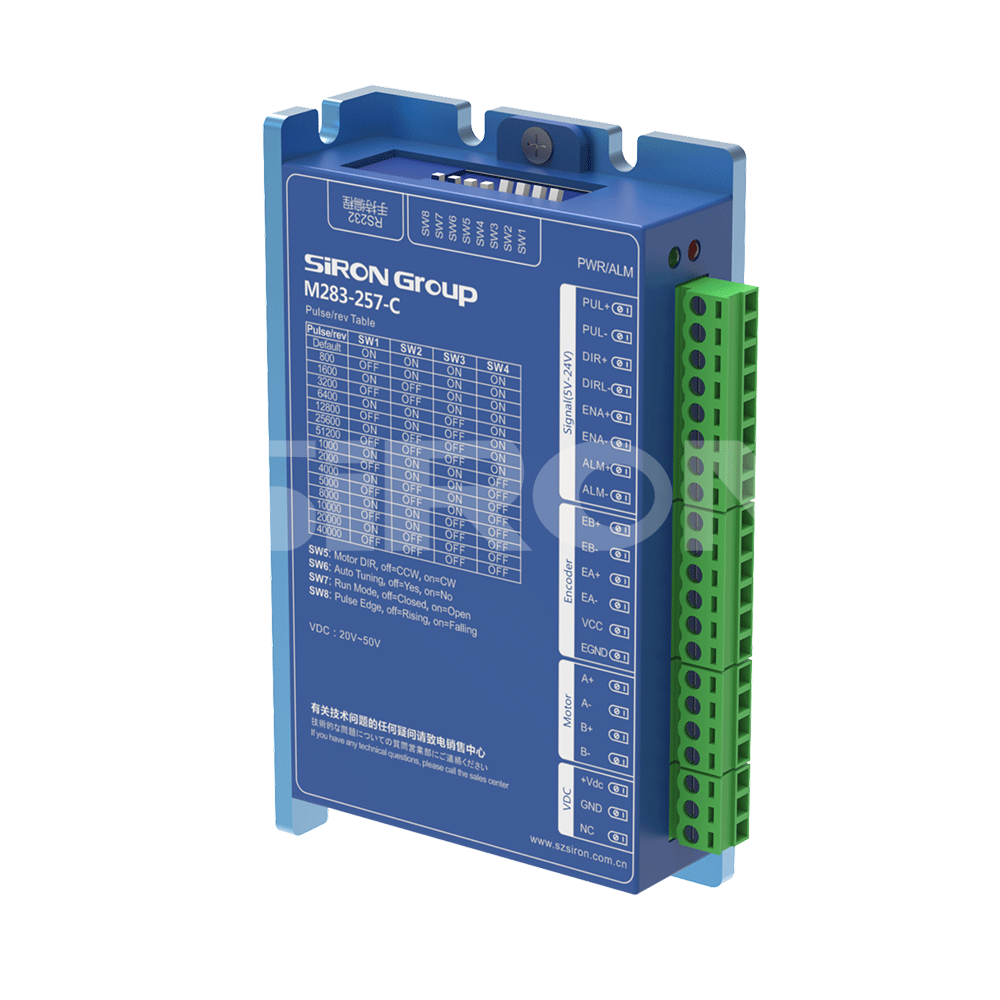

SiRON M283-257/86-C Series Two phase closed-loop stepper driver

Name: SiRON M283-257/86-C Series Two phase closed-loop stepper driver
Brand: SiRON
Rating: 5.0 (85 reviews)

Features

* By adopting the latest dedicated motor control DSP chip and vector closed-loop control technology, the problem of step loss in open-loop stepper motors is completely overcome
* It has protection functions such as overvoltage, overcurrent, and tracking error out of tolerance
* Closed loop vector control ensures high-speed and high torque output of the motor, while also ensuring that the motor does not lose step
* Servo control mode, very low noise during motor operation

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M284-257/86-C
Brand:
SiRON
Code:
8501109990

6.0A stepper driver 20 to 50v stepper driver pulse stepper driver

Product Description

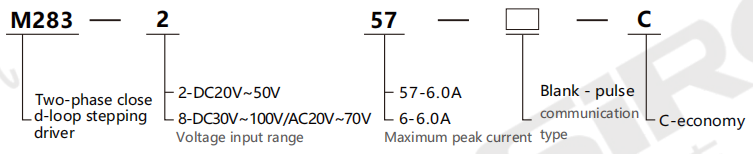

About selection

Selection example: M283-257-C represents the M283 series two-phase closed-loop stepping driver, with a voltage input range of DC20V to 50V, a maximum peak current of 6.0A, and a communication type of pulse type and economy type

Specification

Model		M283-257-C			M283-86-C
		Minimum value	Typical value	Maximum value	Minimum value	Typicalvalue	Maximum value
Voltage input range(V)		DC20~50(It is recommended to be above 36V)			DC30~100/AC20~70
Maximum peak current(A)		-	-	6	-	-	6
Input powersupplyvoltage(VDCor VAC)		20	36	50	24	60	70
Logic input current(mA)		7	10	20	7	10	16
Pulse frequency(kHz)				200	-	200	500
Subdivision Range(ppr)		400-51200(The Default setting can be debugged The software is set to any subdivision.)			/
Pulse form		Pulse +direction,CW/CCW( set via software)			Pulse +direction,CW/CCW(requires software adjustment)AB phase
Logic input current(mA)		10~20
Insulation resistance(M)		/			500
Ervironmental parameters	Storage temperature	-20℃~65℃
	Usage temperature	0℃~50℃
	Vibration frequency	Less than 0.5G(4.9m/s 2),10Hz to 55Hz(non-continuous operation)
	Use humidity	40-90%RH(No condensation)
	Installation ervironmen	Avoid places with dust,oil stains,corrosive gases,excessi ve humidity and strong vibration.Flammable gases and c onductive dust are strictly prohibited.
