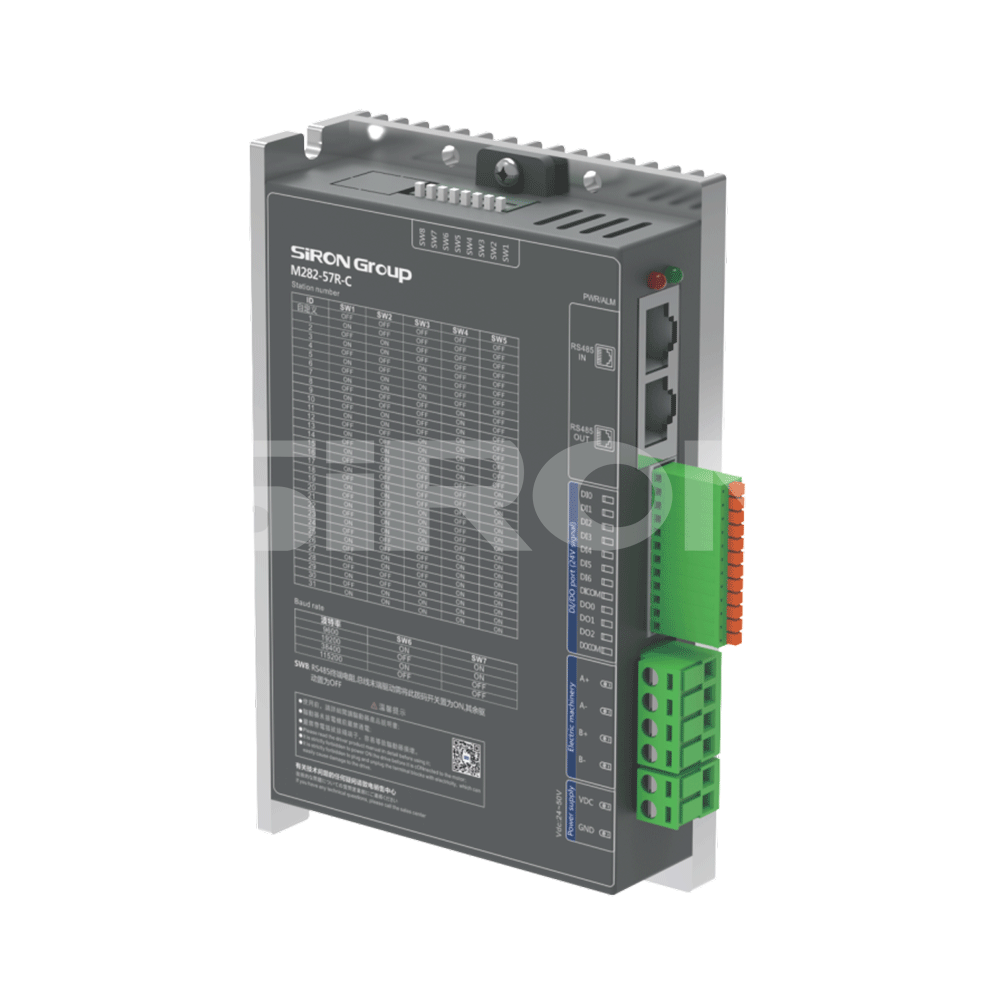

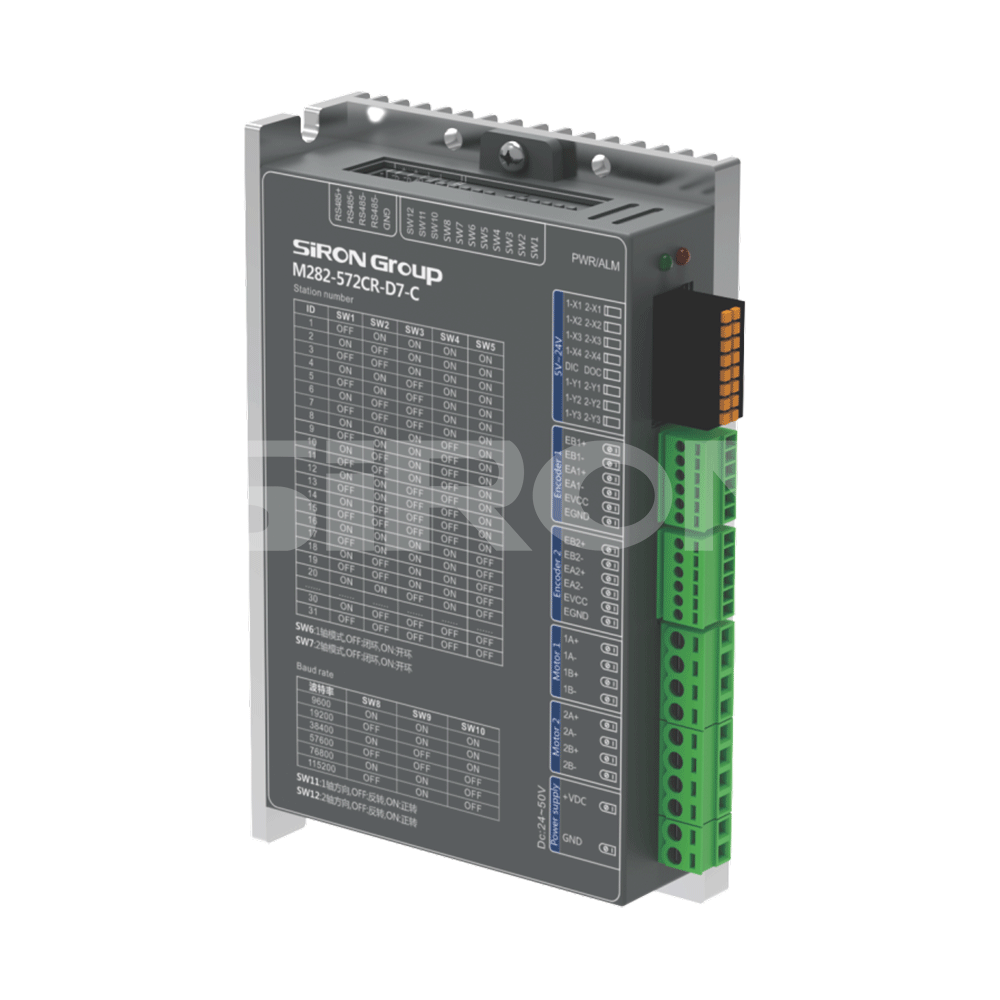

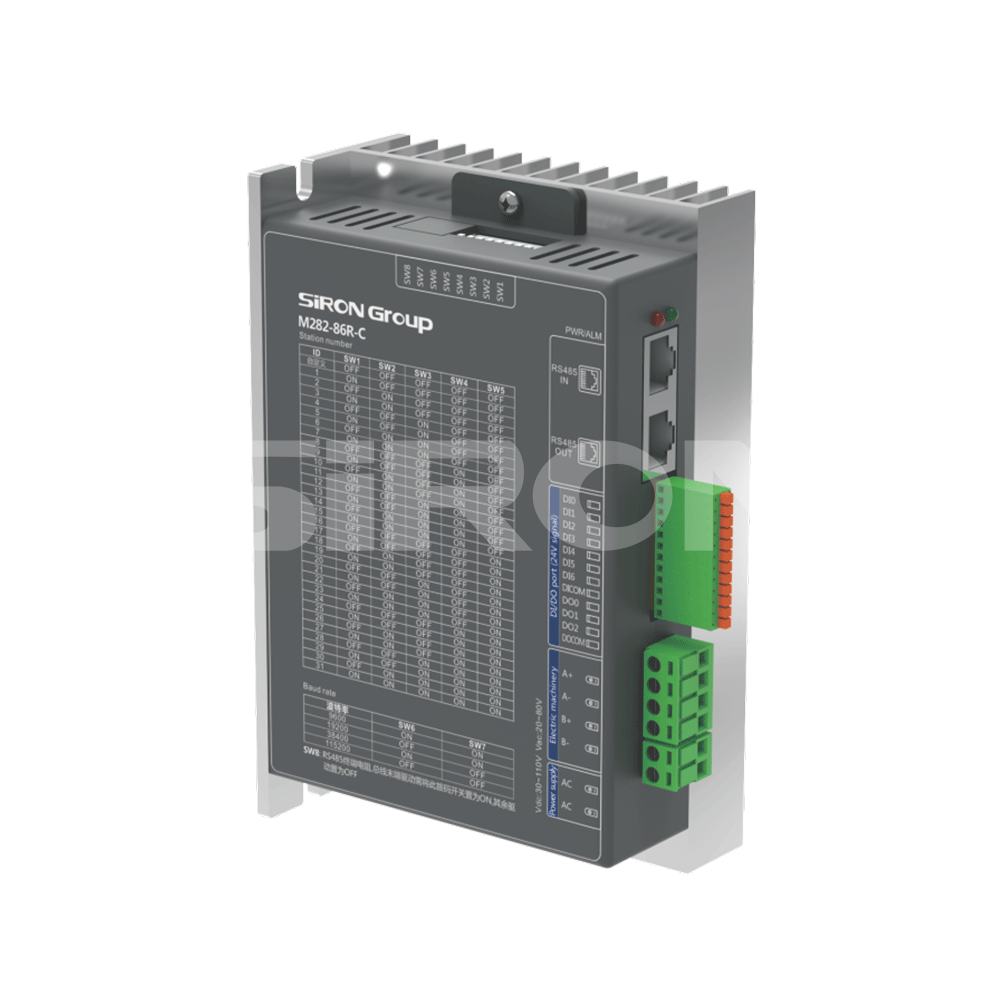

SiRON M282-57/86/572-C Series Bus type two-phase stepper driver - RS485

Name: SiRON M282-57/86/572-C Series Bus type two-phase stepper driver - RS485
Brand: SiRON
Rating: 5.0 (33 reviews)

Features

* The open-loop stepper drive motor parameter automatic setting function has protection functions such as overvoltage and overcurrent.
* The closed-loop stepper driver samples the new generation of 32-bit DSP technology, which can mount up to 31 axes and achieve
multi axis bus synchronization control. The driver has 15 internal positions and 15 internal speeds.
* Supports automatic zeroing, absolute/relative positioning, JOG and other functions, which can be directly controlled using a touch
screen or a controller with RS485 interface.
* Adopting RS485 interface and supporting standard Modbus RTU protocol, it is a fully digital drive control integrated closed-loop one to two stepper driver
* Up to 31 drives can be controlled simultaneously, and the drives have an 8-terminal internal position table that supports automatic internal position switching, zero return, position triggering, JOG, and other functions

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M282-57/86/572-C
Brand:
SiRON
Code:
8501109990

RS485 stepper driver EtherCAT stepper driver Open loop stepper driver Closed loop stepper driver

Product Description

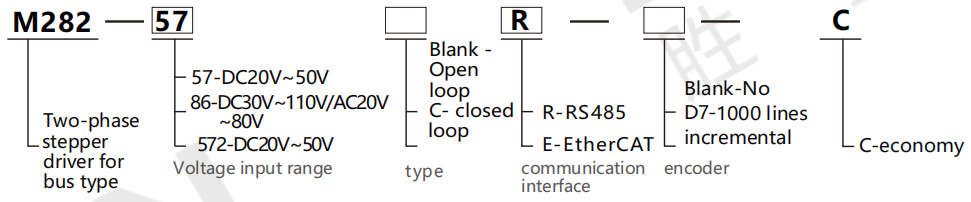

About selection

Selection example: M282-57R-C represents a two-phase stepper driver of the M282 series bus, with a voltage input range of DC20V to 50V and a maximum peak current of 5.0A. It is an open-loop type, has a communication interface of RS485, and is an economical encoder.

Specification

Model		M280-425-C	M280-542-C	M280-556-C	M280-860-C
Voltage input range(V)		DC18～36	DC20～50	DC20～50	DC24~110/AC18~80
IMaximum peak current(A)		2.5	4.2	5.6	7.2
Subdivision scope(ppr)		400～6400	200～25600	200～25600	400～51200
Impulse response(KHz)		0~200
Pulse form		Pulse +Direction
Environmental parameters	Storage temperature	-20℃~65℃
	Usage temperature	0℃~50℃
	Vibration frequency	Less than 0.5G (4.9m/s 2),10Hz to 55Hz(non-continuous operation)
	Use humidity	40-90%RH(No condensation)
	Insalationenvironmenl	Avoid places with dust,oil stains,corrosive gases,excessive humidity and strong vibration.Flammable gases and conductive dust are strictly prohibited
