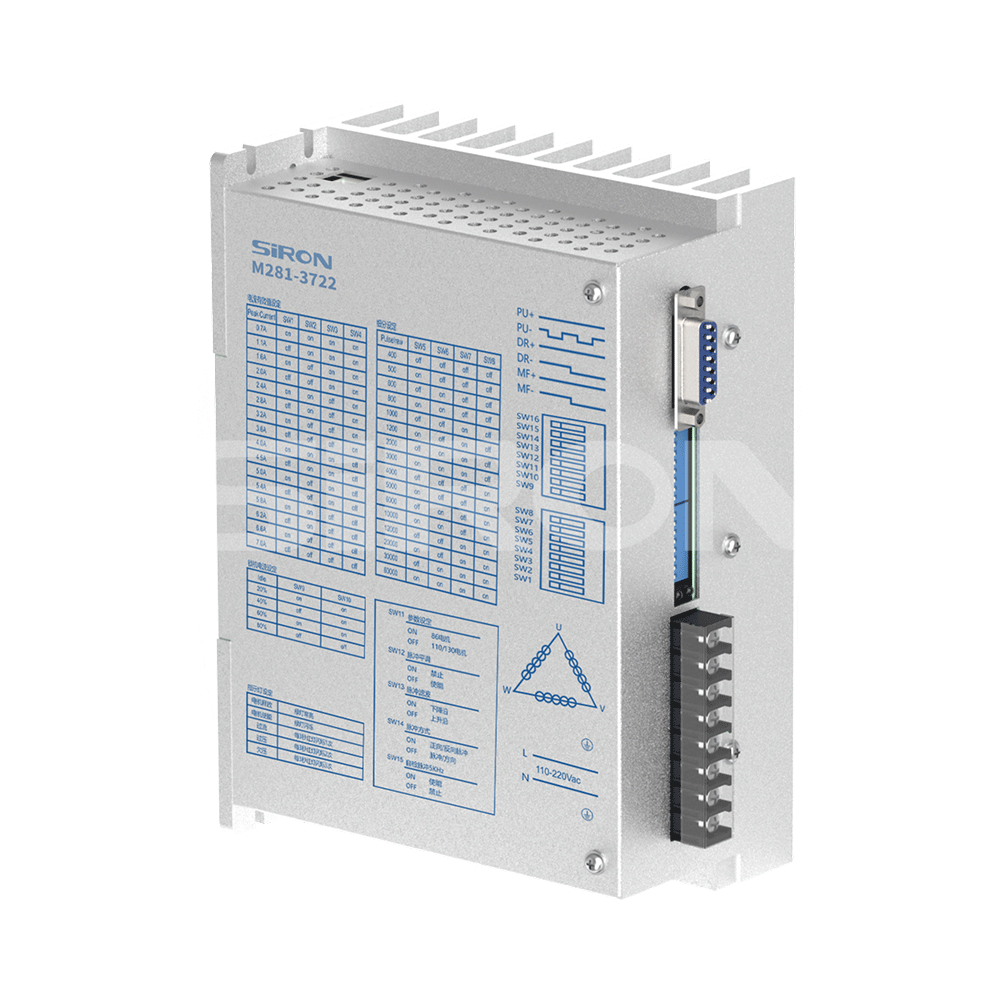

SiRON M281-3722 Series Three-phase open loop stepper driver

Name: SiRON M281-3722 Series Three-phase open loop stepper driver
Brand: SiRON
Rating: 5.0 (35 reviews)

Features

* New 32-bit DSP technology; with self-test pulse;
* The highest impulse response frequency can reach 400KHZ;
* Voltage input range: AC110-220V, maximum effective current 7.0A;
* The motor locking current is adjustable in four grades, when the pulse stops for more than 400ms, the current is reduced to the locking current;
* With the pulse micro-subdivision function, the subdivision is automatically inserted in the low subdivision to make the motor run more smoothly;
* The pulse filter frequency can be selected according to the speed and subdivision; it can flexibly match the pulse control mode of the upper computer

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M281-3722
Brand:
SiRON
Code:
8501109990

6A stepper driver 6 to 60v stepper driver pulse stepper driver

Product Description

About selection

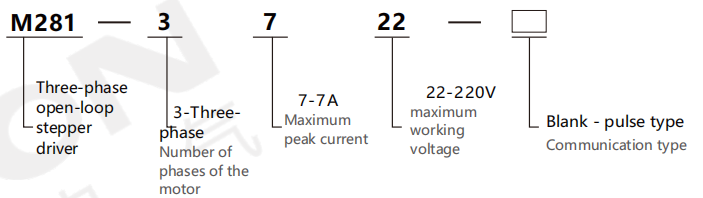

Selection example: M281-3722M represents the M281 series three-phase open-l oop stepping driver. The motor has three phases, a maximum peak current of 7A, a maximum operating voltage of 220V, and a communication type of pulse.

Segment settings
