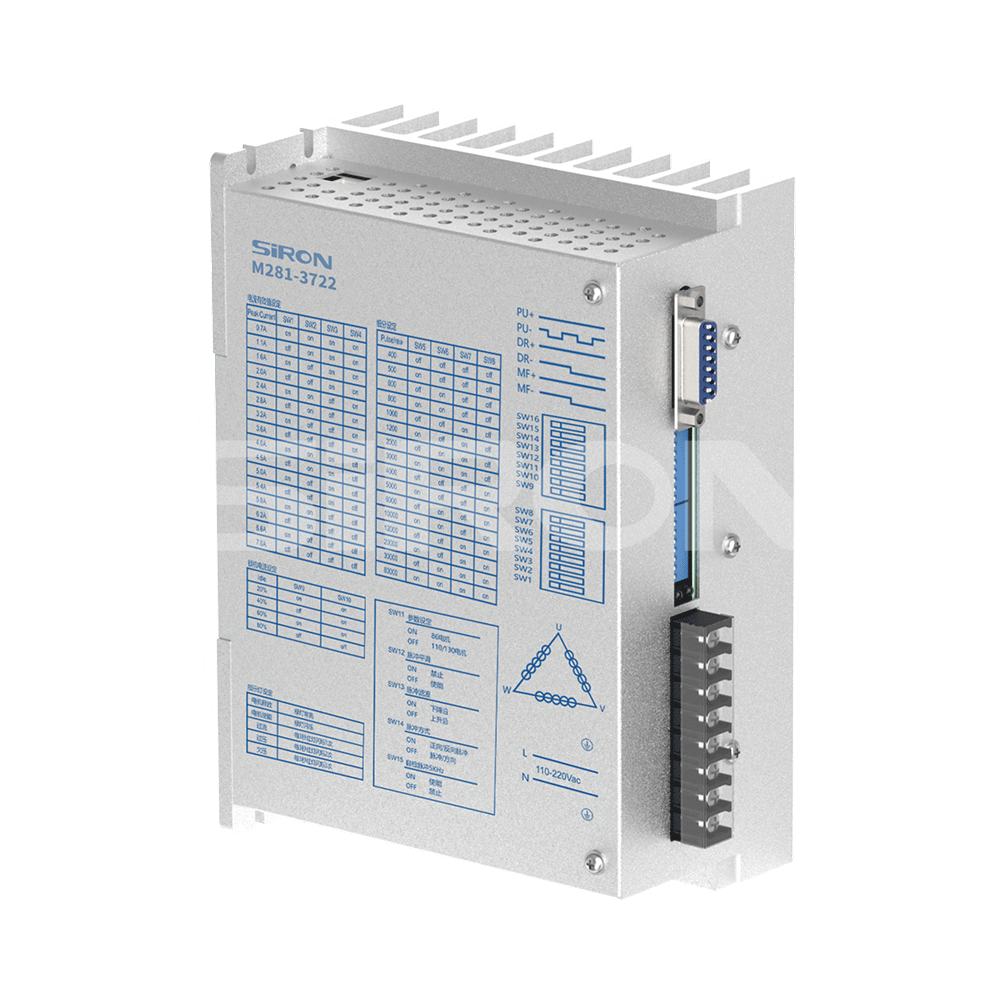

SiRON M281-3722-C Series Three phase open-loop digital stepper driver

Name: SiRON M281-3722-C Series Three phase open-loop digital stepper driver
Brand: SiRON
Rating: 5.0 (34 reviews)

Features

* Equipped with overvoltage, overcurrent, and motor phase loss protection functions
* Pulse stops for 1.5 seconds, and the coil current automatically decreases to half of the set value
* Pulse form: pulse+direction (dual pulse not supported)

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M281-3722-C
Brand:
SiRON
Code:
8501109990

7A stepper driver 110 to 280 voltage pulse communication type

Product Description

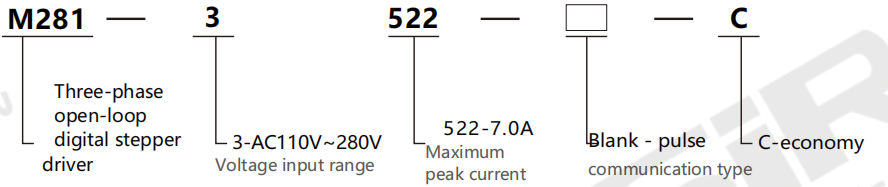

About selection

Selection example: M281-3722-C represents the M281 series three-phase open-loop digital stepper driver, with a voltage input range of AC110V to 280V, a maximum peak current of 7.0A, and a communication type of pulse type and economy type

Specification

Model		M281-3722-C
Voltage input range(V)		AC110~280
TMaximum peak curent(A)		7.0
Subdivision scope(ppr)		400～60000
Impulseresponse(MHz)		0～1
Pulse form		Pulse +Direction(Dual pulses are not supported)
Environmental parameters	Storage temperature	-20℃~65℃/0℃~50℃
	Vibration frequency	Less than 0.5G (4.9m/s 2),10Hz to 55Hz(non-continuous operation)
	Use humidity	4 0 ～ 9 0 % R H (No condensation)
	Installation environmer	Avoid places with dust,oil stains,corrosive gases,excessive humidity and strong vibration.Flammable gases and conductive dust are strictly prohibited
