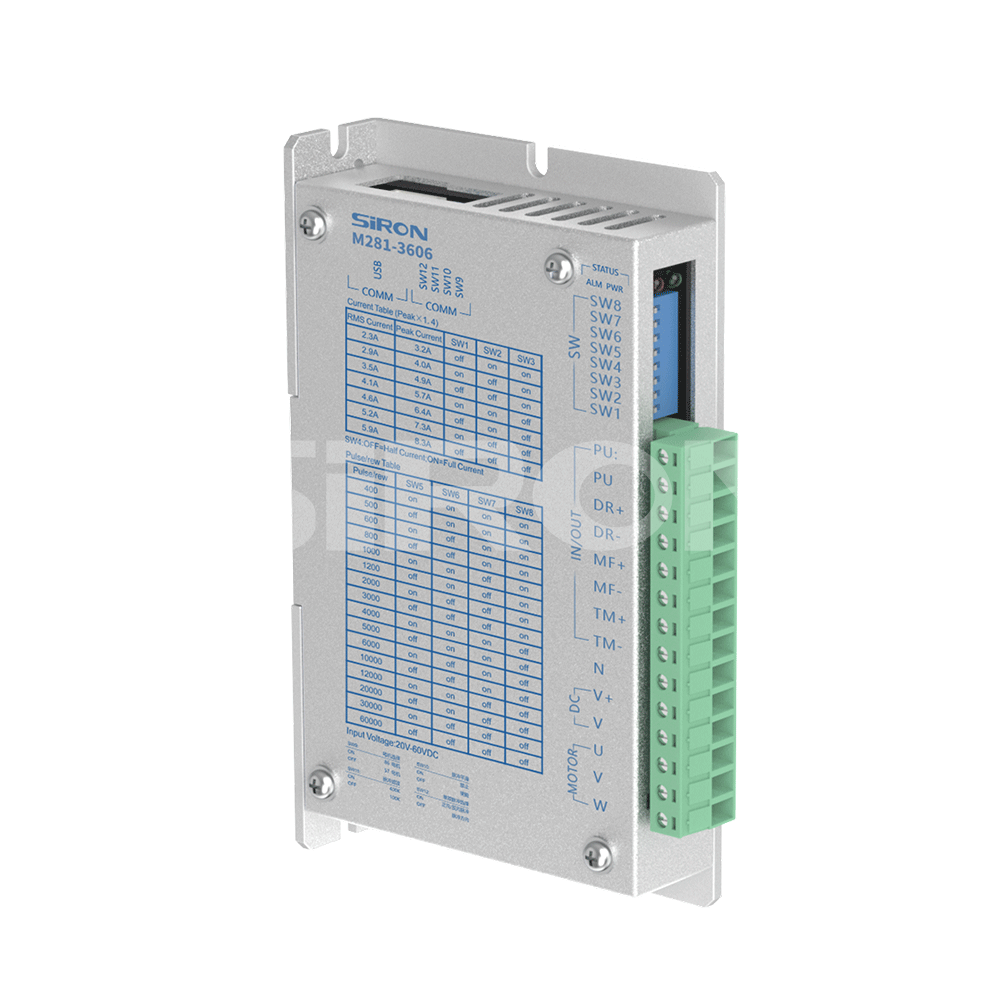

SiRON M281-3606 Series Three-phase open loop stepper driver

Name: SiRON M281-3606 Series Three-phase open loop stepper driver
Brand: SiRON
Rating: 5.0 (41 reviews)

Features

* With overvoltage, undervoltage, overcurrent and other protection functions;
* New 32-bit DSP technology, ultra-low vibration and noise, built-in high subdivision;
* Can drive 4, 6, 8-wire two-phase stepper motors; Optically isolated differential signal input;
* The subdivision setting range is 200-51200; the current setting is convenient and can be arbitrarily selected between 0.1 and 5.6A;
* Automatic tuning function on parameters, variable current control greatly reduces motor heating, and the current is automatically halved when stationary;
* The impulse response frequency can be up to 500KHz (factory default 200KHz).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M281-3606
Brand:
SiRON
Code:
8501109990

6A stepper driver 6 to 60v stepper driver pulse stepper driver

Product Description

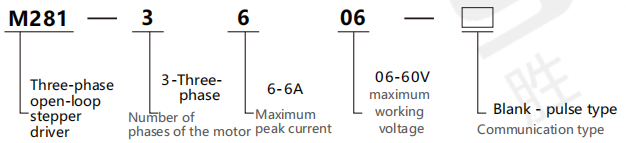

About selection

Selection example: M281-3606M represents the M281 series three-phase open-loop stepping driver. The motor has three phases, a maximum peak current of 6A, a maximum operating voltage of 60V, and a comm unication type of pulse.

Segment settings

PU/Rew	400	500	600	800	1000	1200	2000	3000
SW8	ON	ON	ON	ON	ON	ON	ON	ON
SW7	ON	ON	ON	ON	OFF	OFF	OFF	OFF
SW6	ON	ON	OFF	OFF	ON	ON	OFF	OFF
SW5	ON	OFF	ON	OFF	ON	OFF	ON	OFF
SW4	OFF=Half Current(Half-stream lock) ON=Full Current(Full-flow lock)

PU/Rew	4000	5000	6000	10000	12000	20000	30000	60000
SW8	OFF	OFF	OFF	OFF	OFF	OFF	OFF	OFF
SW7	ON	ON	ON	ON	OFF	OFF	OFF	OFF
SW6	ON	ON	OFF	OFF	ON	ON	OFF	OFF
SW5	ON	OFF	ON	OFF	ON	OFF	ON	OFF
SW4	OFF=Half Current(Half-stream lock) ON=Full Current(Full-flow lock)
