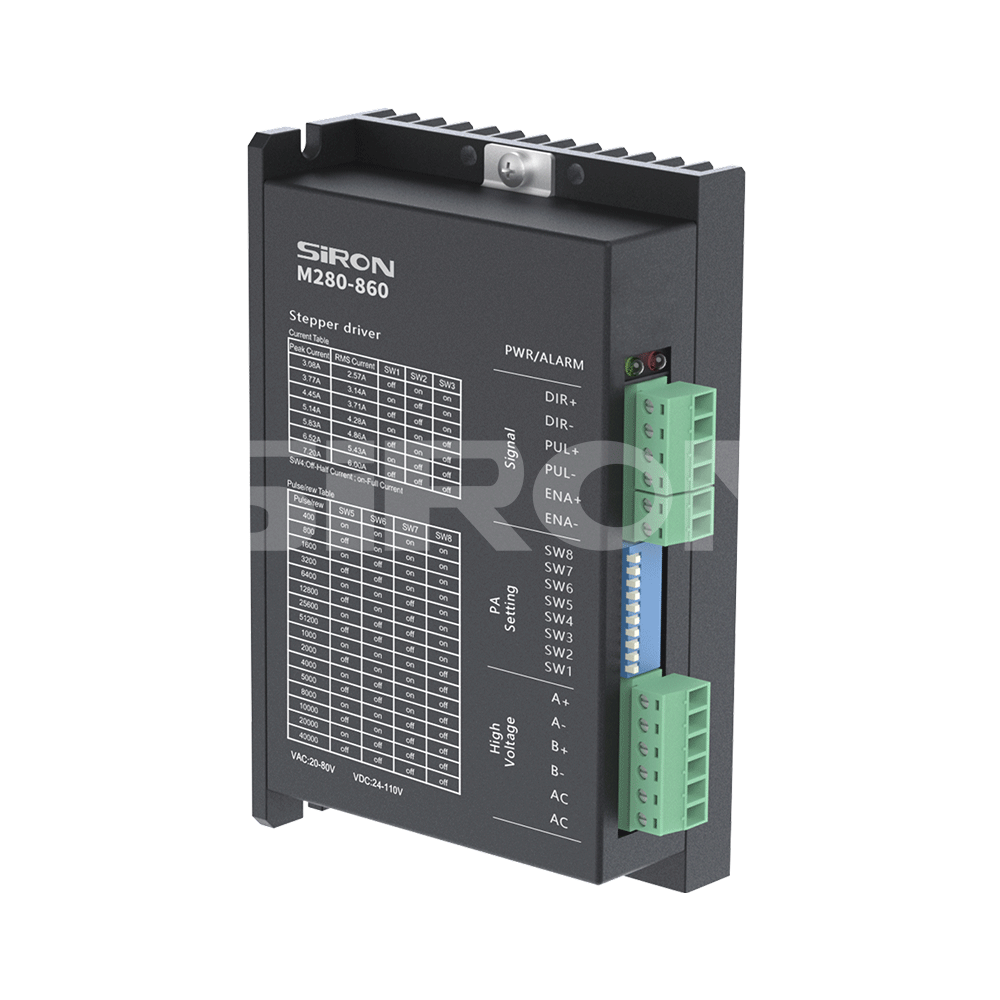

SiRON M280-860 Series Two-phase open loop stepper driver

Name: SiRON M280-860 Series Two-phase open loop stepper driver
Brand: SiRON
Rating: 5.0 (82 reviews)

Features

* With overvoltage, undervoltage, overcurrent and other protection functions;
* New 32-bit DSP technology, ultra-low vibration and noise, built-in high subdivision;
* Can drive 4, 6, 8-wire two-phase stepper motors; Optically isolated differential signal input;
* The subdivision setting range is 200-51200; the current setting is convenient and can be arbitrarily selected between 0.1 and 5.6A;
* Automatic tuning function on parameters, variable current control greatly reduces motor heating, and the current is automatically halved when stationary;
* The impulse response frequency can be up to 500KHz (factory default 200KHz).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M280-860
Brand:
SiRON
Code:
8501109990

6A stepper driver 8 to 80v stepper driver pulse stepper driver

Product Description

About selection

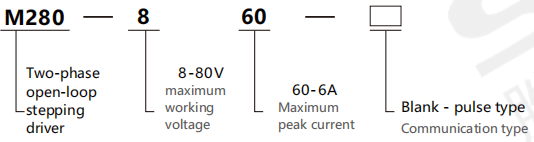

Selection example: M280-860 represents the M280 series two-phase open-loop stepping driver, with a ma ximum operating voltage of 80V, a maximum peak current of 6A, and a communication type of pulse.

Specification

Model	M280-860
Model	minimum value	typical value	maximum value
Output current(A)	2.1	/	7.2
nput supply voltage(VDC)	24	48	75
Control signal inputcurrent(mA)	6	10	16
Control signal interface level (Vdc)	4.5	5	28
nput signal minimum pulse width (us)	1.5	/	/
Step pulse frequency(Khz)	0	/	200
Insulation resistance(MΩ)	500	/	/
