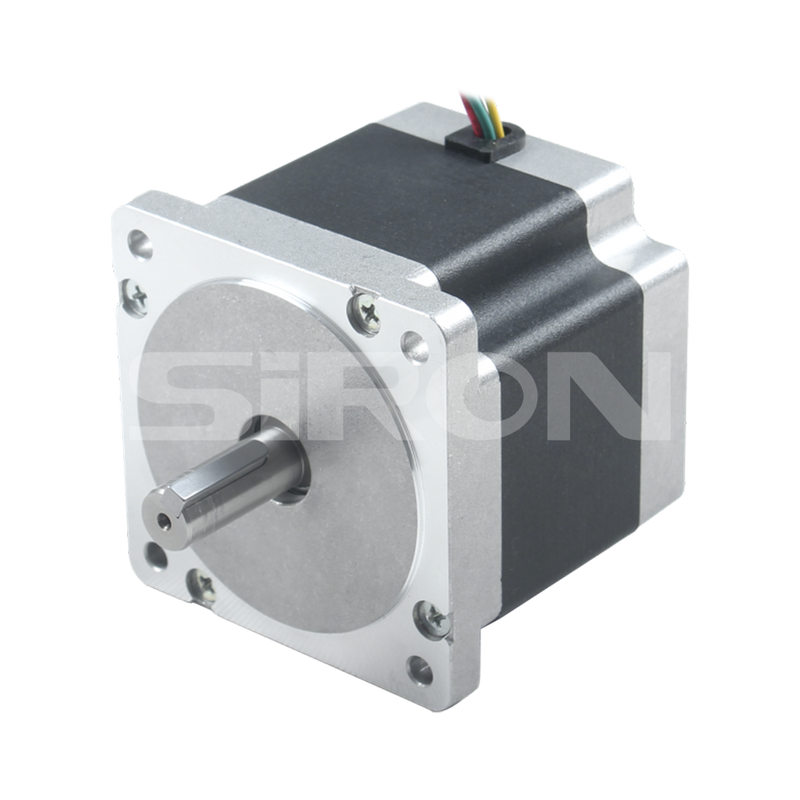

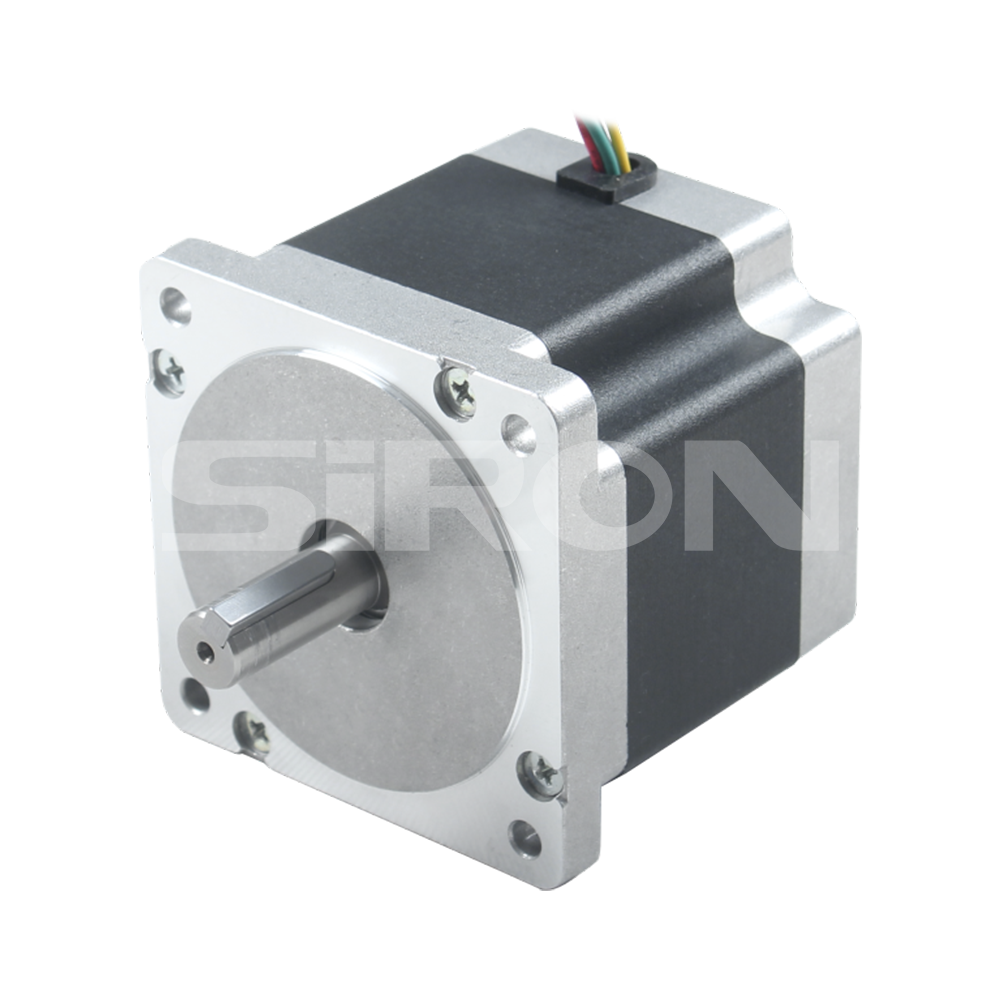

SiRON M272-C86 Series 1.8° 86mm Two-phase Stepper Economical Motor

Name: SiRON M272-C86 Series 1.8° 86mm Two-phase Stepper Economical Motor
Brand: SiRON
Rating: 5.0 (43 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-C86
Brand:
SiRON
Code:
8501109990

1.8° step angle 86mm frame size 4.5N.m holding torque 8.5N.m holding torque

Product Description

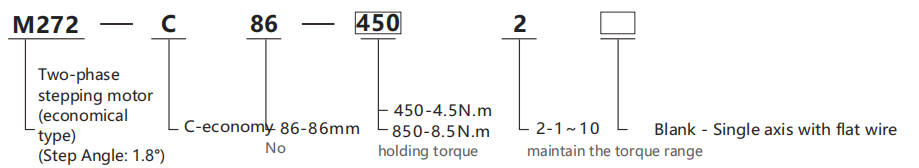

About selection

Selection example: M272-C86-4502 represents the M272 series two-phase stepping motor (economy type), with a frame size of 86mm, a holding torque of 4.5N.m, and a single-axis keyway

Specification

Model	M272-C86 Series
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	130N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	36N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	900VAC/1s	Insulation Class	Class B

Electrical properties

Model	M272-C86-4502	M272-C86-8502
Adapter drive	M280-860	M280-860
Current perphase	6	6
Holding torque	4.5	8.5
Positioning torque	0.12	0.24
Each resistance	0.39	0.55
Each inductance	3	6
Number of lead wires	4	4
Moment of inertia	1400	2700
weight	2.3	3.8
Body length	75	112
