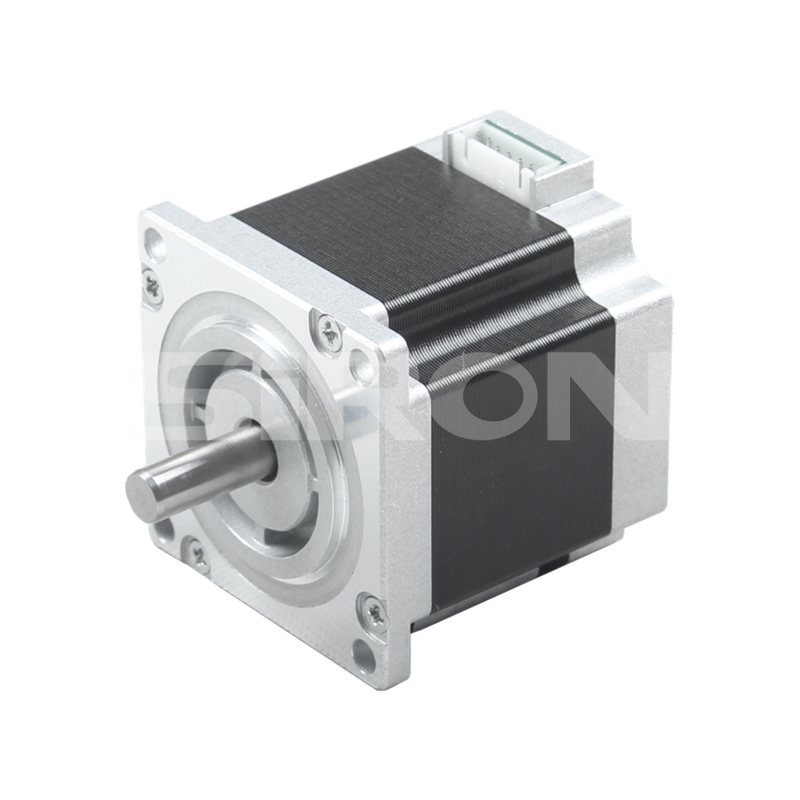

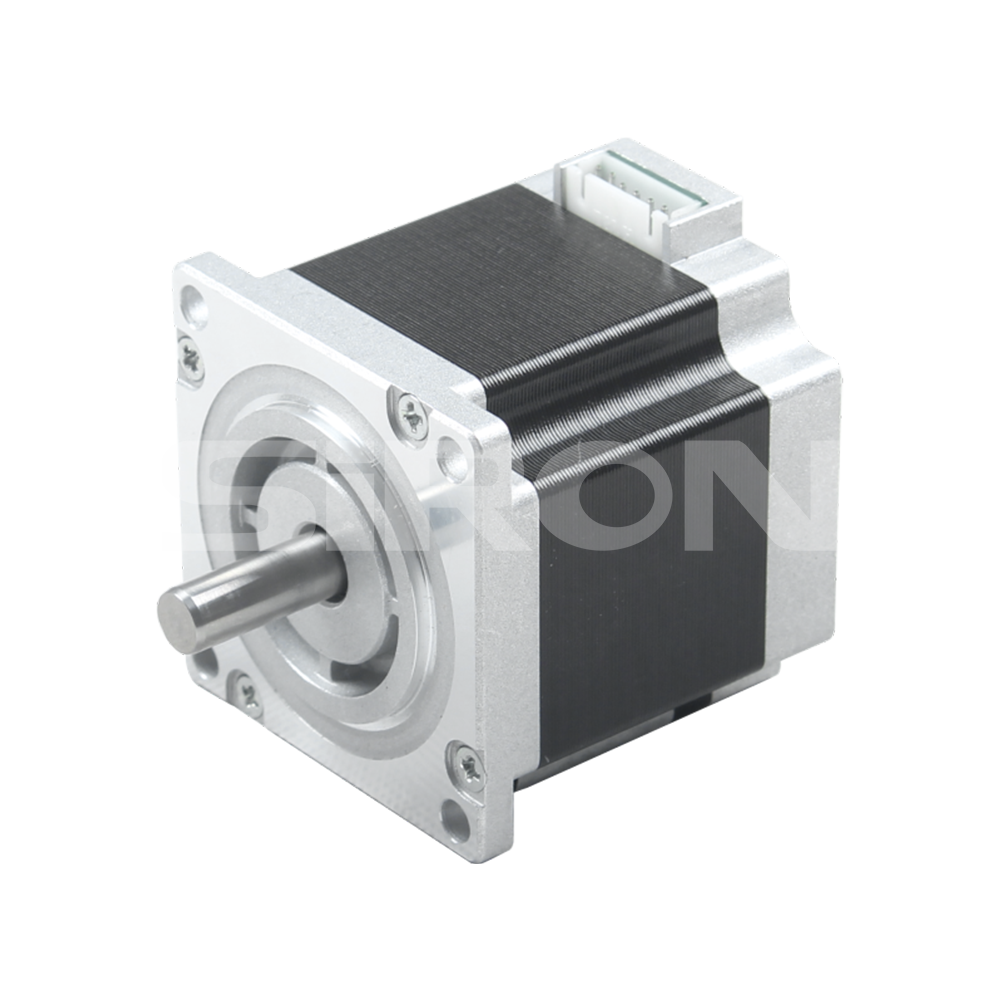

SiRON M272-C57 Series 1.8° 42mm Two-phase Stepper Economical Motor

Name: SiRON M272-C57 Series 1.8° 42mm Two-phase Stepper Economical Motor
Brand: SiRON
Rating: 5.0 (99 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-C57
Brand:
SiRON
Code:
8501109990

1.8° step angle 57mm frame size 1.4N.m holding torque 2.3N.m holding torque

Product Description

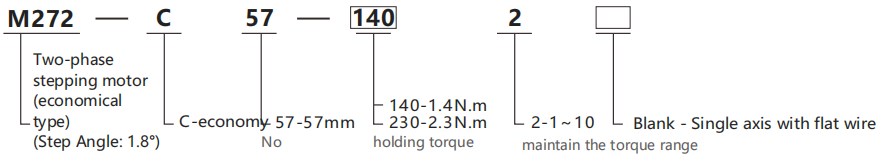

About selection

Selection example: M272-C57-1402 represents the M272 series two-phase stepping motor (economy type), with a frame size of 57mm, a holding torque of 1.4N.m, and a single axis with flat wire.

Specification

Model	M272-C57 Series
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	75N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	15N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

Electrical properties

Model	M272-C57-1402	M272-C57-2302
Adapter drive	M280-556	M280-556
Current per phase	2.8	2.8
Holding torque	1.4	2.3
Positioning torque	0.045	0.07
Each resistance	1	1.2
Each inductance	3.4	4.6
Number of lead wires	4	4
Moment of inertia	300	480
weight	0.7	1
Body length	54.5	75
