SiRON M272-C42 Series 1.8° 42mm Two-phase Stepper Economical Motor

Name: SiRON M272-C42 Series 1.8° 42mm Two-phase Stepper Economical Motor
Brand: SiRON
Rating: 5.0 (5 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-C42
Brand:
SiRON
Code:
8501109990

1.8° step angle 42mm frame size 0.22N.m holding torque 0.36N.m holding torque 0.44N.m holding torque

Product Description

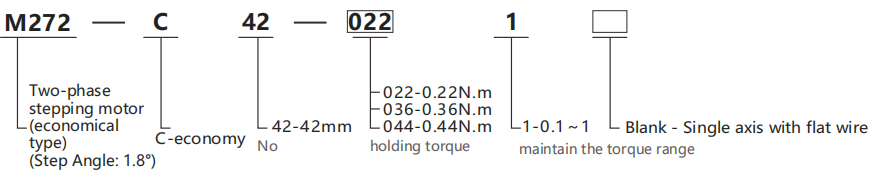

About selection

Selection example: M272-C42-0221 represents the M272 series two-phase stepping motor (economy type), with a frame size of 42mm, a holding torque of 11.2N.m, and a single axis with flat wire.

Specification

Model	M272-C42 Series
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	10N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B
