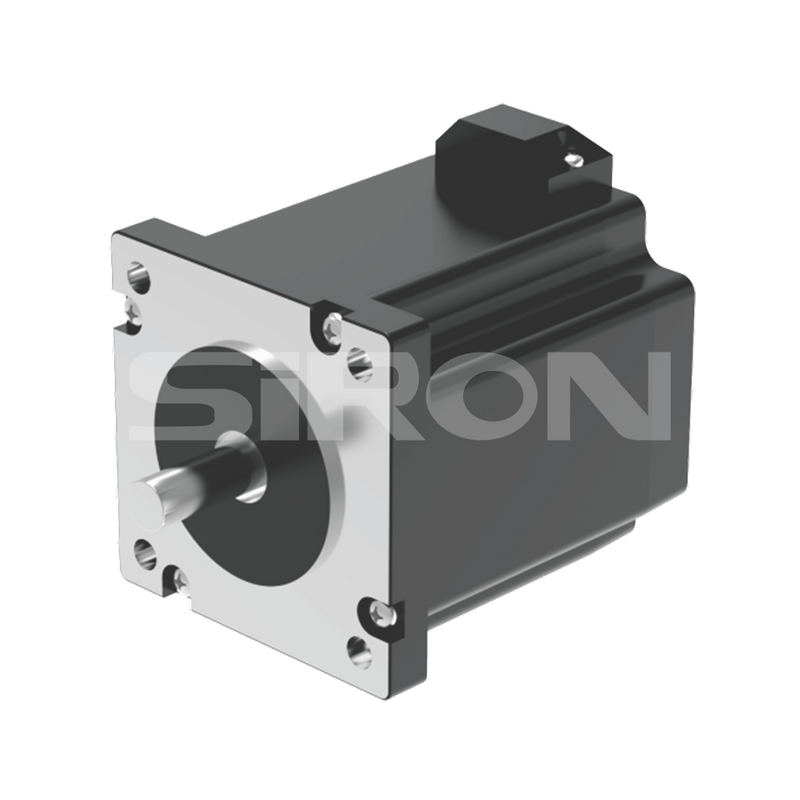

M272-C
SiRON
8501109990

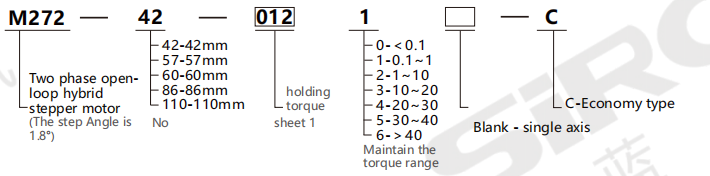

About selection
Selection example: M272-57-0121-C represents the M272 series two-phase open-loop hybrid stepping motor, with a frame size of 57mm, a holding torque of 0.12N.m, single-axis, and an economical type
| 0.12N.m~29N.m | |||||||||
| Code | 012 | 021 | 03 | 04 | 06 | 10 | 15 | 16 | 20 |
| Torque | 0.12N.m | 0.21.m | 0.3N.m | 0.4N.m | 0.6N.m | 1.0N.m | 1.5N.m | 1.6N.m | 2.0N.m |
| Code | 21 | 22 | 25 | 26 | 30 | 31 | 33 | 35 | 38 |
| Torque | 2.1N.m | 2.2N.m | 2.5N.m | 2.6N.m | 3.0N.m | 3.1N.m | 3.3N.m | 3.5N.m | 3.8N.m |
| Code | 45 | 69 | 85 | 10 | 12 | 15 | 22 | 29 | / |
| Torque | 4.5N.m | 6.9N.m | 8.5N.m | 10N.m | 12N.m | 15N.m | 22N.m | 29N.m | / |
Electrical properties
| Project | Parameter | Project | Parameter |
| Step Angle Accuracy | ±5%(synchronizing) | Voltage resistance | 500V AC1 minute |
| Resistance accuracy | ±10%(20℃) | Radial Play | 0.02mm Max(450g load) |
| Inductance accuracy | ±20%(1KHZ) | Axial Play | 0.08mm Max(450g load) |
| Temperature rise | 80℃ max(ated curent,2is conneted) | Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~50℃ |

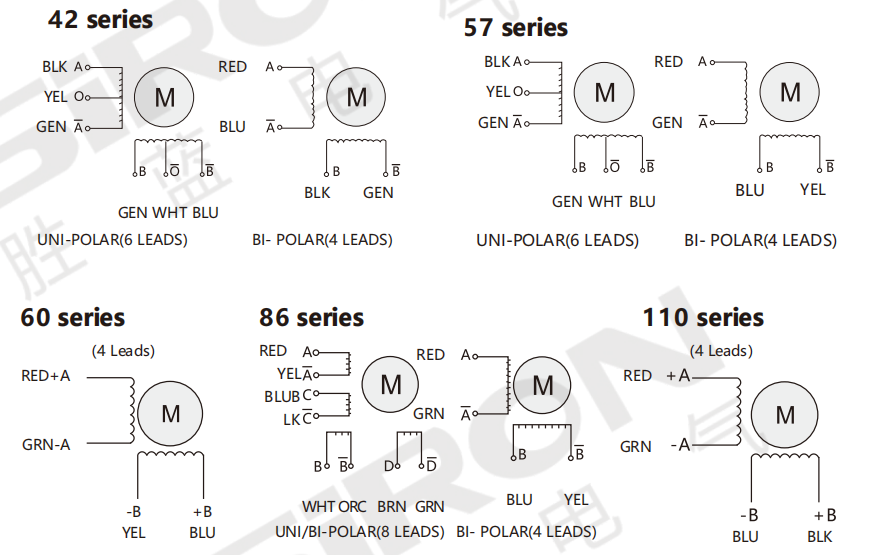

Wiring diagram
Specification

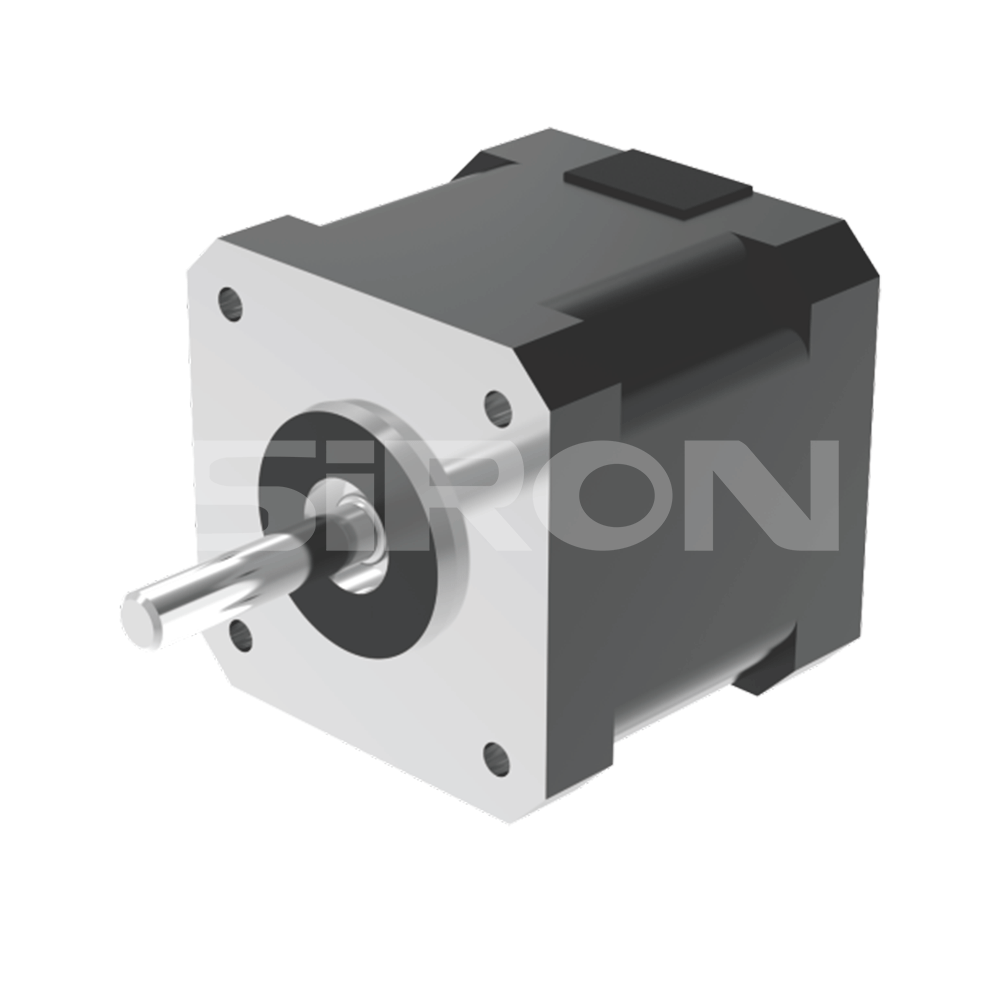

Ⅰ.42 series
| Machine base number | 42 Series | ||||
| Model | M272-42-0121-C | M272-42-0211-C | M272-42-031-C | M272-42-041-C | M272-42-061-C |
| Adapter drive | M280-425-C | ||||
| StepAngle | 1.8° | ||||
| Holding torque | 0.12 | 0.21 | 0.3 | 0.4 | 0.6 |
| Curent perphase | 1.2 | ||||
| Each resistance | 0.8 | 1.2 | 1.5 | 1.2 | 2.75 |
| Eachinductance | 1.0 | 1.8 | 2.8 | 1.6 | 6.4 |
| Moment of inertia | 30 | 35 | 54 | 68 | 102 |
| Numberoflead wires | 4 | ||||
| weiaht | 0.15 | 0.22 | 0.3 | 0.38 | 0.5 |
| Body length | 28 | 34 | 40 | 48 | 60 |
| ShaftdiameterD(mm) | φ5 | ||||
| Axis extension (mm) | platform 0.5x15 | ||||
| Axis length (mm) | 24 | ||||
| Max.radial force | 28N(20mm away from the flange) | ||||
| Max.axial force | 10N | ||||

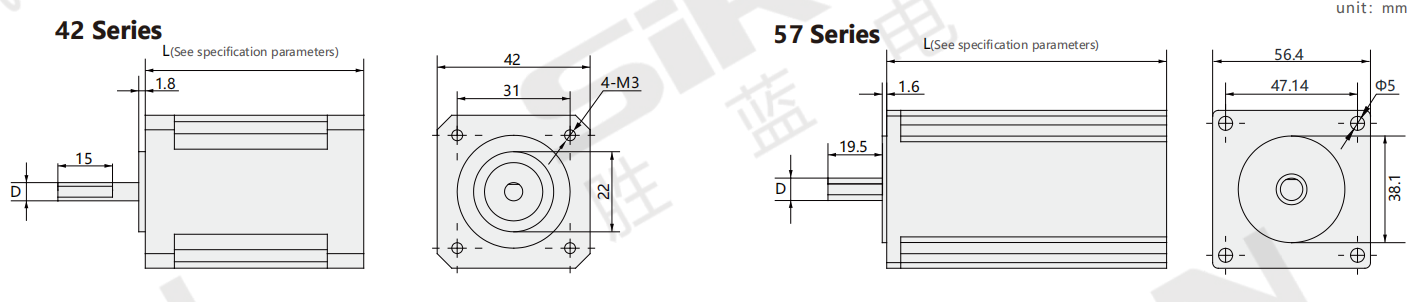

Dimensions

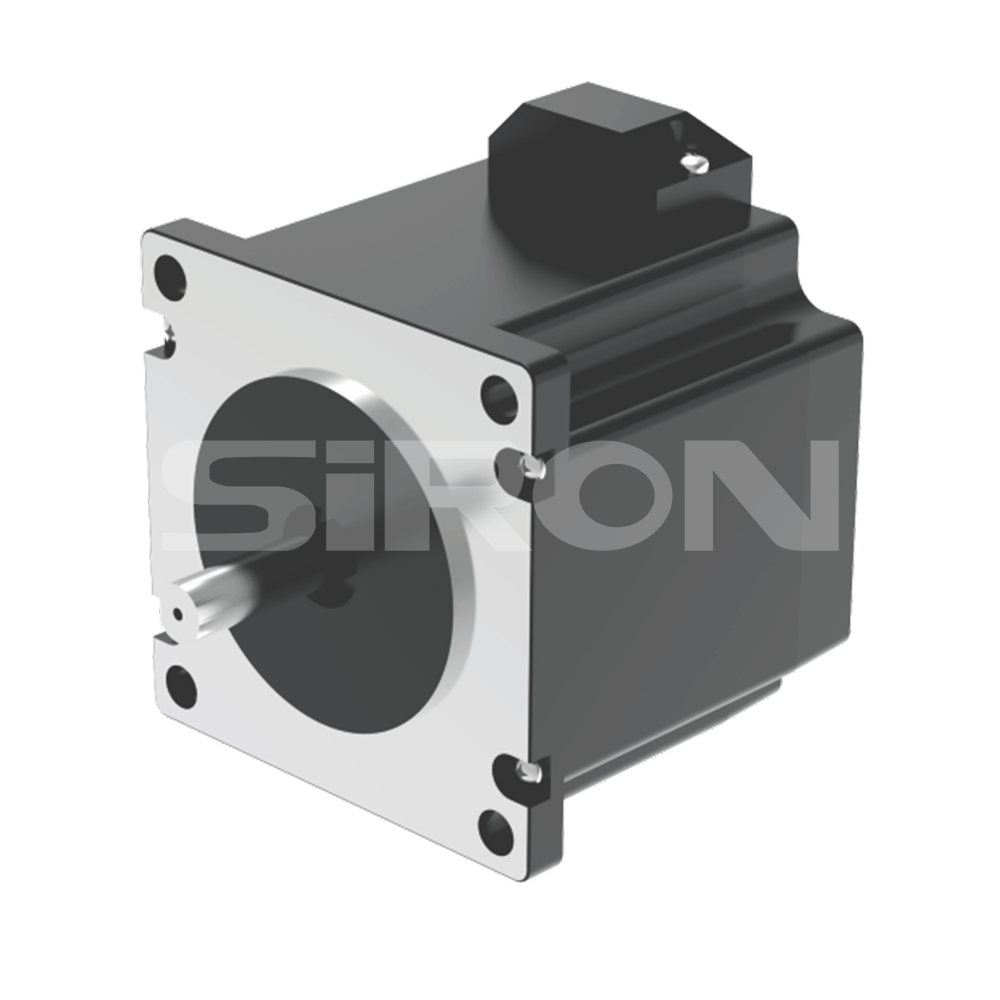

Ⅱ.57 Series
| Machine base number | 57 series | ||||||
| Model | M272-57-061-C | M272-57-101-C | M272-57-152-C | M272-57-202-C | M272-57-222-C | M272-57-262-C | M272-57-302-C |
| Adapter drive | M280-542-C、M282-57R-C(RS485)、M282-357E-C(EtherCAT) | ||||||
| StepAngle | 1.8° | ||||||
| Holding torque | 0.6 | 1.0 | 1.5 | 2.0 | 2.2 | 2.6 | 3.0 |
| Current perphase | 2.5 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 4.0 |
| Each resistance | 1.2 | 0.8 | 0.8 | 1.0 | 1.1 | 1.4 | 1.6 |
| Each inductance | 3.2 | 2.4 | 2.3 | 3.5 | 2.1 | 5.5 | 6.8 |
| Moment of inertia | 120 | 300 | 400 | 480 | 530 | 700 | 800 |
| Numberof lead wires | 4 | ||||||
| weight | 0.5 | 0.68 | 1.08 | 1.2 | 1.25 | 1.58 | 1.78 |
| Body length | 41 | 56 | 64 | 76 | 82 | 100 | 112 |
| Shaft diameterD (mm) | 中6.35 | φ6.35orφ8 | φ6.35orφ8 | φ6.35orφ8 | φ8 | φ8 | φ8orφ10 |
| Axis extension(mm) | platform 0.5×19.5 | ||||||
| Axis length(mm) | 21 | 21 | 21 | 21 | 21 or 24 | 21 | 21 |
| Max.radial force | 75N(20mm away from the flange) | ||||||
| Max.axial force | 15N | ||||||
Dimensions

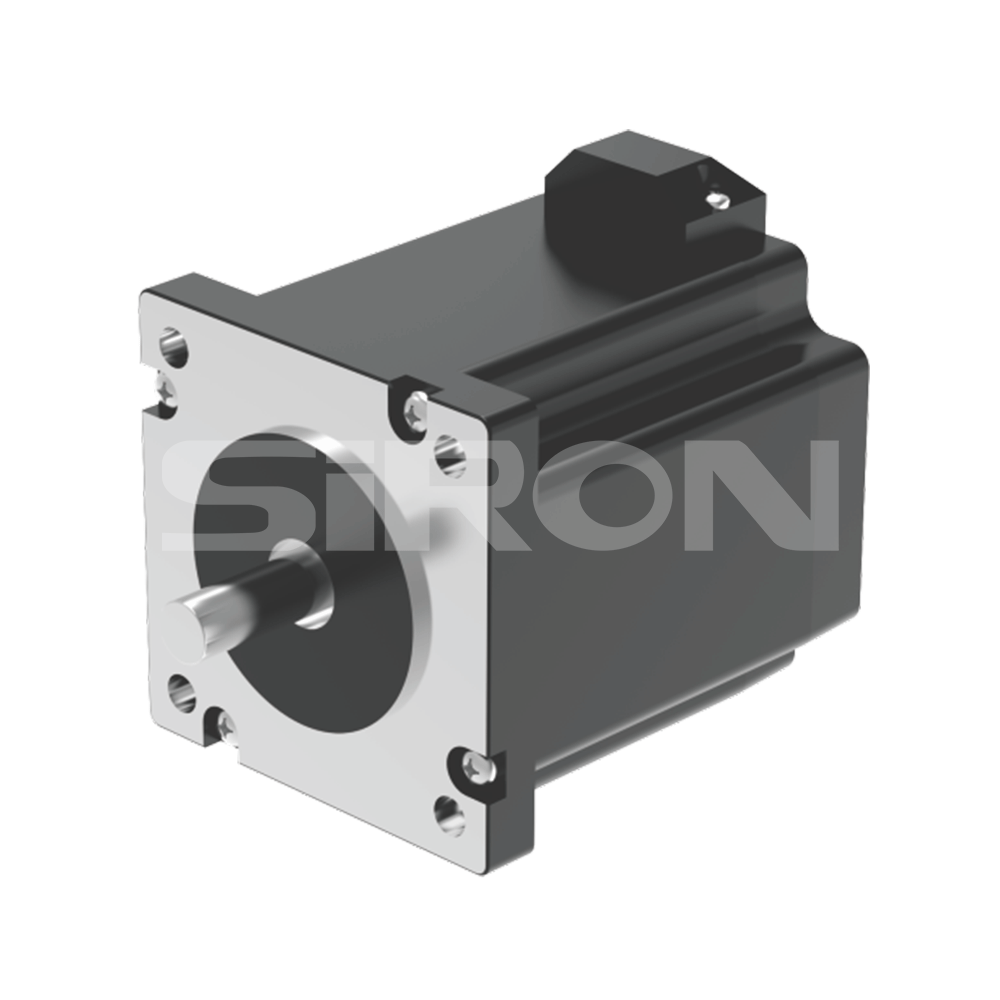

Ⅲ.60 Series
| Machine base number | 60 series | |||||
| Model | M272-60-162-C | M272-60-212-C | M272-60-252-C | M272-60-312-C | M272-60-352-C | M272-60-382-C |
| Adapter drive | M280-556-C、M282-57R-C(RS485)、M282-357E-C(EtherCAT) | |||||
| Step Angle | 1.8° | |||||
| Holding torque | 1.6 | 2.1 | 2.5 | 3.1 | 3.5 | 3.8 |
| Current perphase | 3.0 | |||||
| Each resistance | 0.42 | 0.65 | 0.5 | 0.63 | 0.75 | 1.56 |
| Each indudance | 2.65 | 1.6 | 1.66 | 1.8 | 2.4 | 3.9 |
| Moment of inertia | 300 | 570 | 620 | 840 | 1000 | 1200 |
| Number of lead wires | 4 | |||||
| weioht | 0.85 | 1.0 | 1.1 | 1.29 | 1.65 | 1.807 |
| Bodylength | 58 | 65 | 76 | 84 | 102 | 112 |
| Shaft diameter D(mm) | 中8 | |||||
| Axis extension(mm) | platform 0.5×20 | |||||
| Axis length(mm) | 21 | |||||
| Max.radial force | 75N(20mm away from the flange) | |||||
| Max.axial force | 15N | |||||

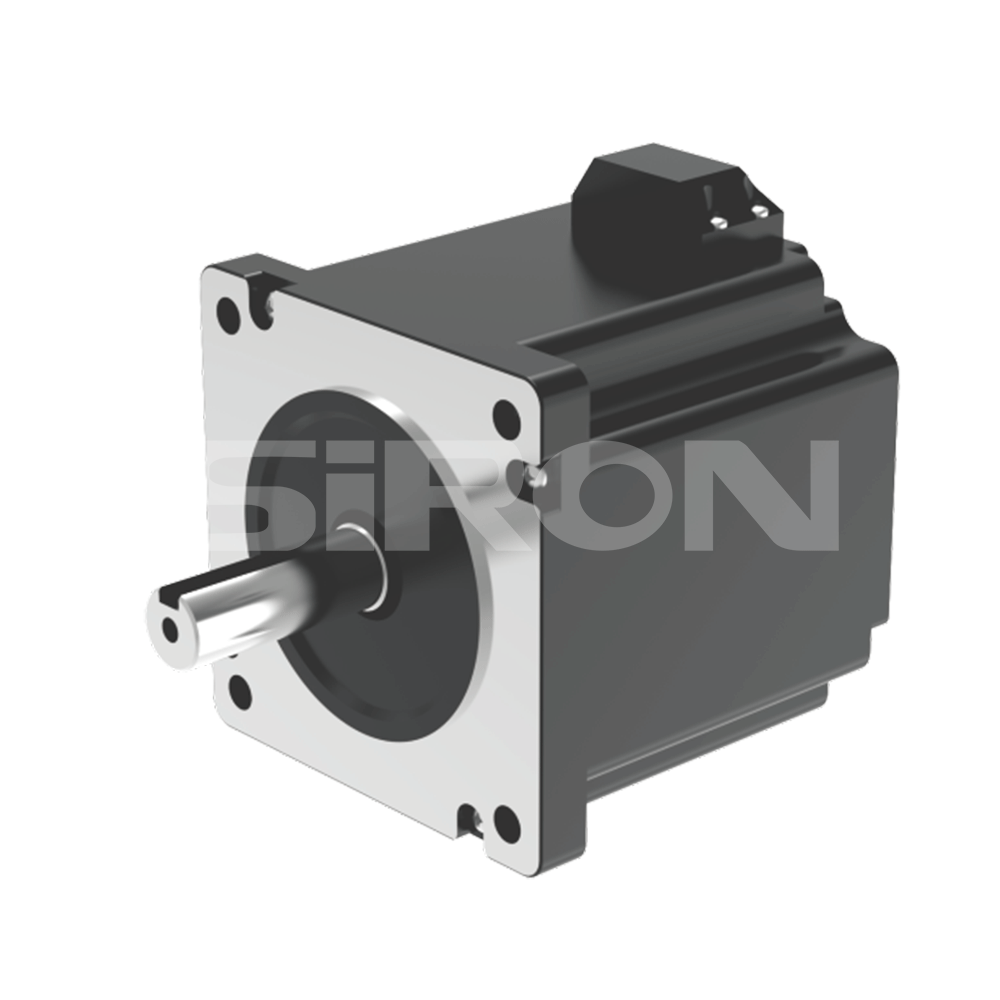

Ⅳ.86 Series
| Machine base number | 86 series | |||||
| Model | M272-86-332-C | M272-86-452-C | M272-86-692-C | M272-86-852-C | M272-86-102-C | M272-86-123-C |
| Adapter drive | M280-860-C、M282-86R-C(RS485)、M282-386E-C(EtherCAT) | |||||
| Step Angle | 1.8° | |||||
| Holding torque | 3.3 | 4.5 | 6.9 | 8.5 | 10 | 12 |
| Current perphase | 3.0 | 5.0 | 5.0 | 6.0 | 6.0 | 6.0 |
| Each resistance | 0.6 | 0.7 | 0.98 | 0.49 | 1.3 | 1.4 |
| Each indudance | 1.6 | 3.0 | 4.1 | 3.58 | 5.8 | 9.2 |
| Moment of inertia | 1000 | 1400 | 2100 | 2800 | 3200 | 4000 |
| Number of lead wires | 4 | |||||
| weiaht | 2.0 | 2.5 | 3.4 | 4.0 | 4.5 | 5.4 |
| Body length | 66 | 80 | 98 | 114 | 128 | 150 |
| Shaft diameter D(mm) | φ9.5 | φ12.7 orφ14 | φ12.7 or φ14 | φ12.7 or φ14 | φ12.7 or φ14 | φ12.7or φ14 or φ15.8 |
| Axis extension(mm) | platform 1×25 | platform 1×25 | flat key 5×5×25 | flat key 5x5×25 | flat key 5x5x25 | flat key 5×5×25 |
| Axis length (mm) | 32 | |||||
| Max.radial force | 130N(20mm away from the flange) | |||||
| Max.axial force | 30N | |||||
Ⅴ.110 Series
| Machine base number | 110 series | |||
| Model | M272-110-123-C | M272-110-153-C | M272-110-224-C | M272-110-294-C |
| Adapter drive | M280-2280-C | |||
| StepAngle | 1.8° | |||
| Holding torque | 12 | 15 | 22 | 29 |
| Current per phase | 6.0 | 6.0 | 6.0 | 6.5 |
| Each resistance | 0.5 | 0.47 | 0.8 | 1.1 |
| Each inductance | 6.0 | 7.5 | 13.5 | 22 |
| Moment of inertia | 5500 | 7200 | 10900 | 16200 |
| Numberof lead wires | 4 | |||
| weight | 5.0 | 6.0 | 8.4 | 11.7 |
| Body length | 99 | 115 | 150 | 201 |
| Shaft diameterD (mm) | φ1 6 | φ19 | φ19 | φ19 |
| Axis extension(mm) | flat key 6x35 | |||
| Axis lengh(mm) | 55 | |||
| Max.radial force | 220N(20mm away from the flange) | |||
| Max.axial force | 60N | |||

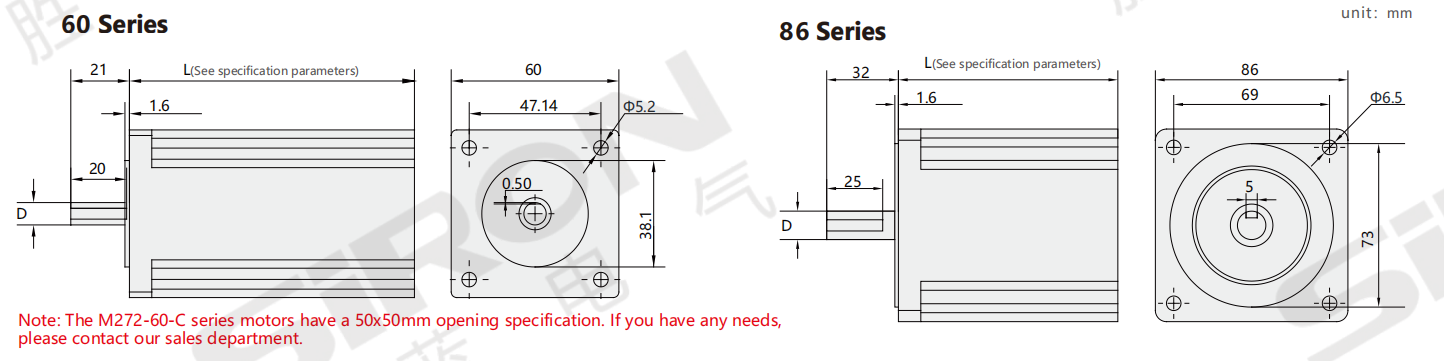

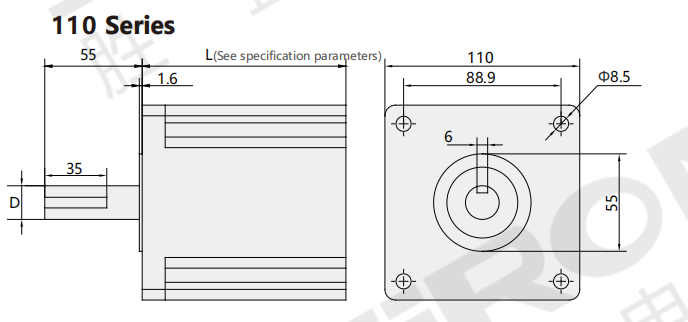

Dimensions

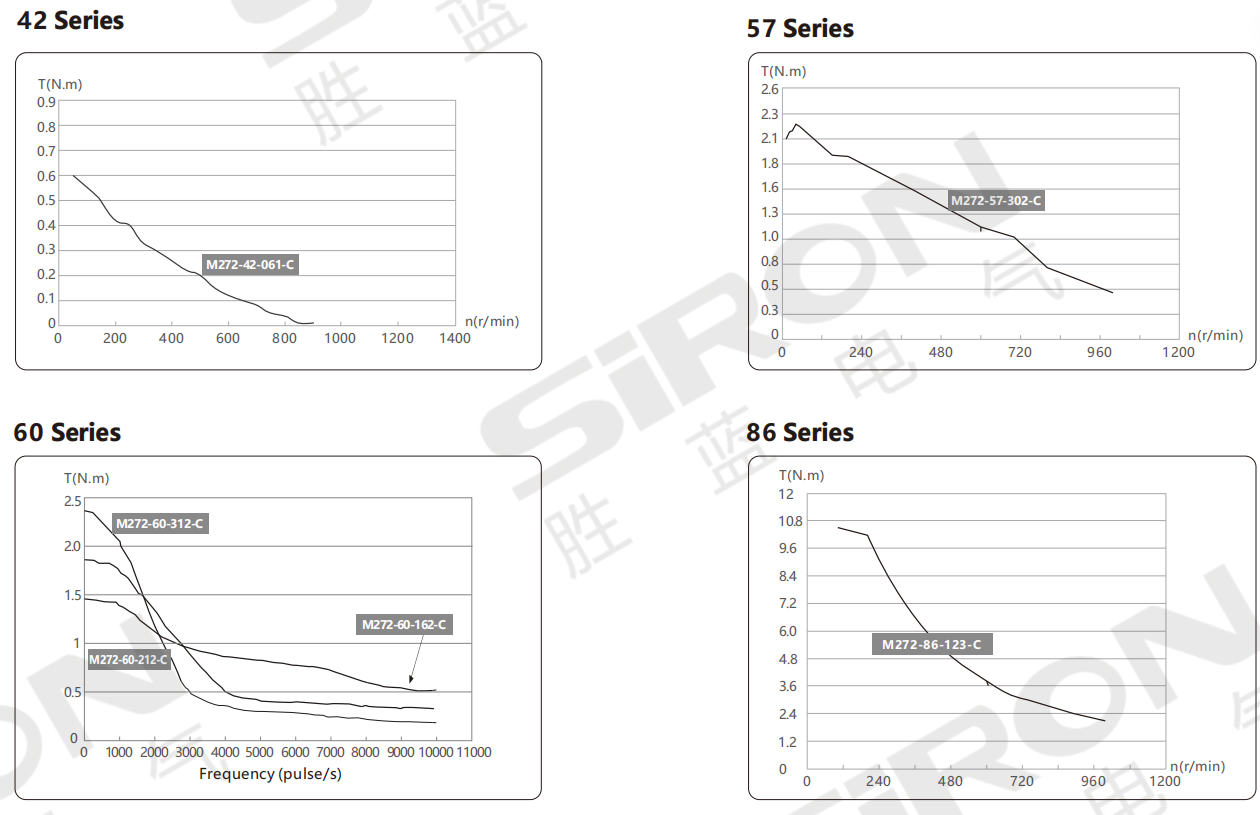

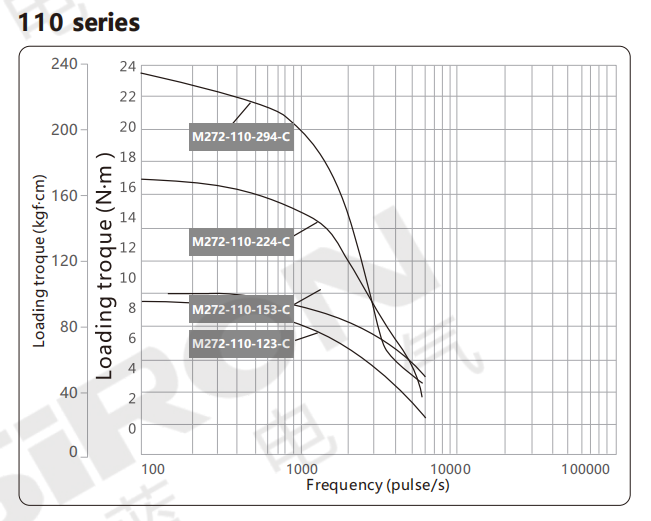

Distance frequency curve
