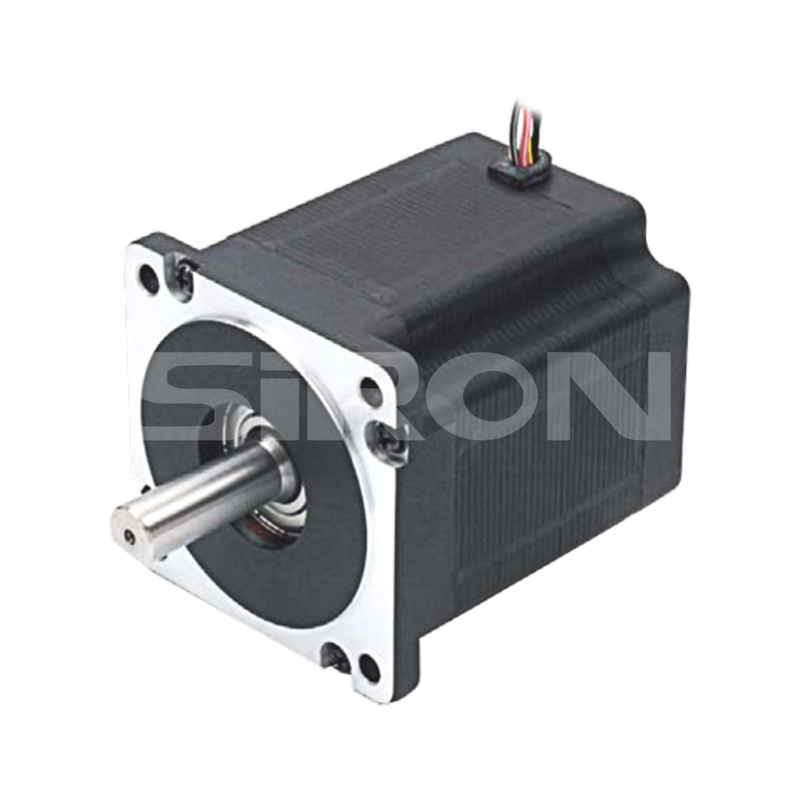

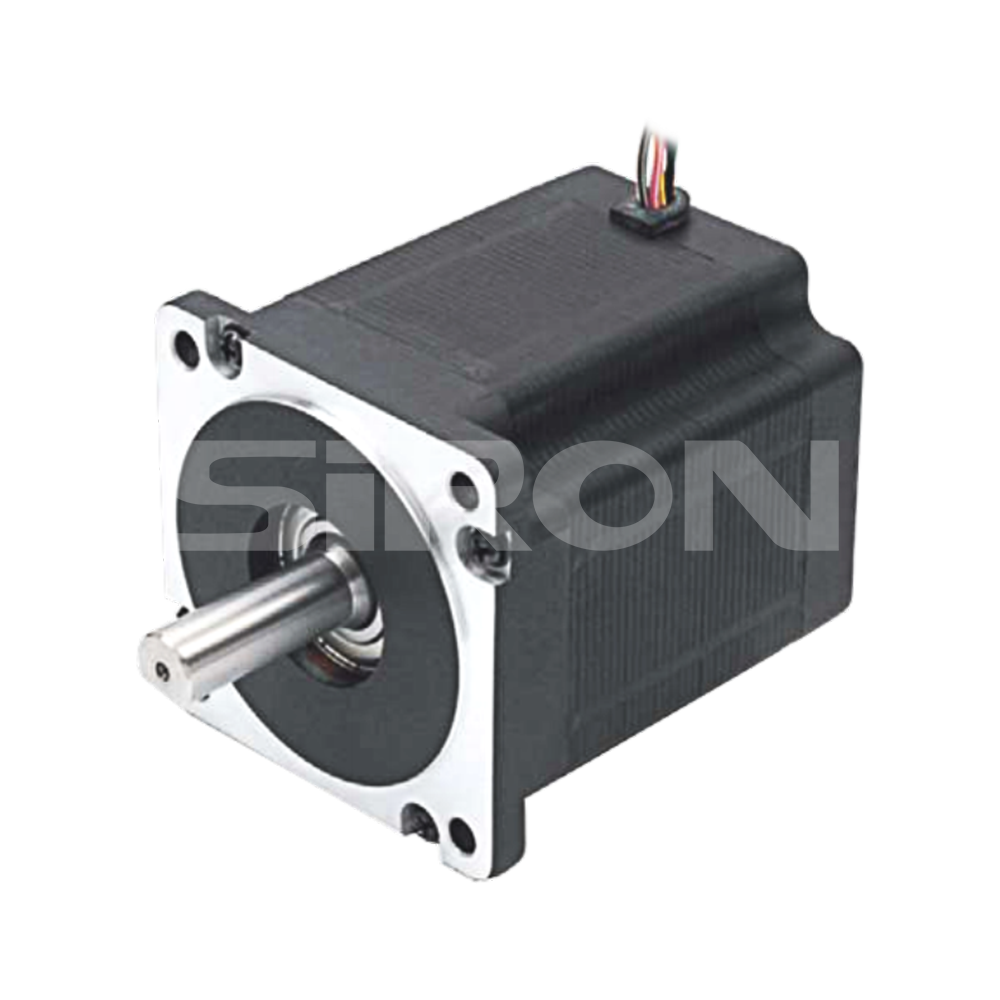

SiRON M272-86 Series 1.8° 86mm Two-phase Stepper Square Motor

Name: SiRON M272-86 Series 1.8° 86mm Two-phase Stepper Square Motor
Brand: SiRON
Rating: 5.0 (2 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-86
Brand:
SiRON
Code:
8501109990

1.8° step angle 86mm frame size 0.08N.m holding torque 0.12N.m holding torque 0.24N.m holding torque 0.36N.m holding torque

Product Description

About selection

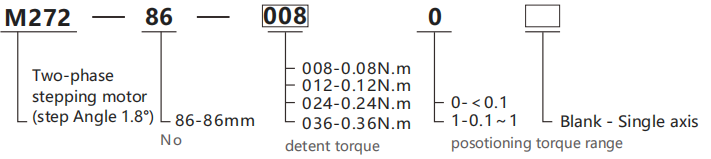

Selection example: M272-86-0080 represents the M272 series two-phase steppingmotor,with a frame size of86mm, a positioningtorque of 0.08N.m, and a single axis.

Specification

Model	M272-86 Series (square)
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	220N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	60N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	1200VAC/1s	Insulation Class	Class B

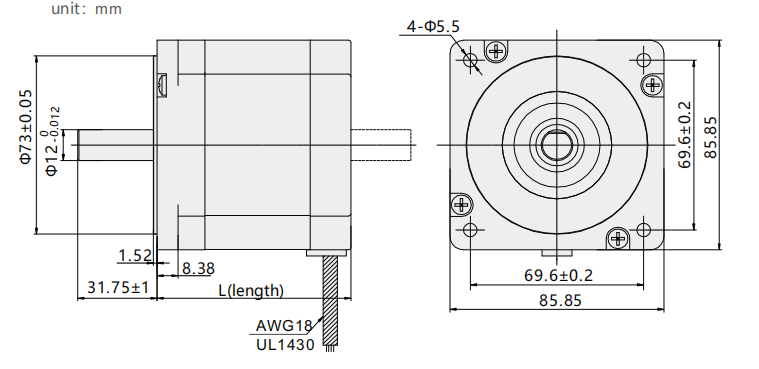

Dimensions

企业微信截图_17806504956709

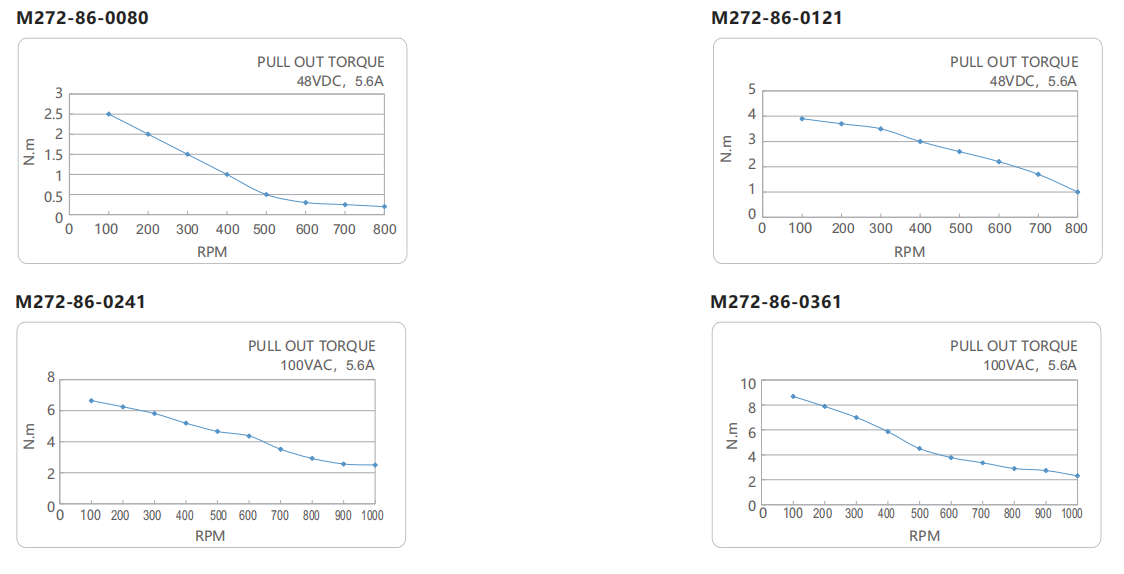

Electrical properties

Model	M272-86-0080			M272-86-0121			M272-86-0241			M272-86-0361
Model	Unipolar	In parallel	Tandem	Unipolar	In parallel	Tandem	Unipolar	In parallel	Tandem	Unipolar	In parallel	Tandem
Curent per phase	2.8	2	4	4.2	4.2	3	4.2	3	6	4.2	3	6
Each resistance	1.3	2.6	0.65	0.65	0.65	1.3	0.99	1.98	0.495	1.25	2.5	0.63
Each inductance	3.9	15.6	3.9	3	3	12	6	24	6	8	32	8
Holding torque	2.2	3.5	3.5	3.2	3.2	4.5	6	8.5	8.5	8.4	12	12
Positioning torque	0.08			0.12			0.24			0.36

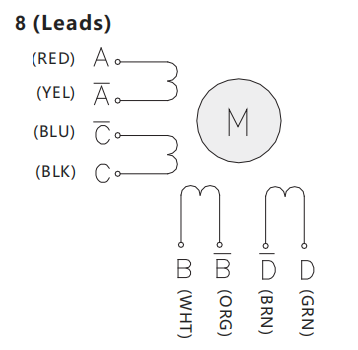

Number oflead wires	8			8			8			8
Moment of inertia	1000			1400			2700			4000
weight	1.7			2.3			3.8			5.3
Body length	65			80			118			156
Adapter drive	M280-860			M280-860			M280-860			M280-860
