SiRON M272-86 Series 1.8° 86mm Two-phase Stepper Square Motor

Name: SiRON M272-86 Series 1.8° 86mm Two-phase Stepper Square Motor
Brand: SiRON
Rating: 5.0 (3 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-86
Brand:
SiRON
Code:
8501109990

1.8° step angle 86mm frame size 3.5N.m holding torque 4.5N.m holding torque 8.5N.m holding torque 12N.m holding torque

Product Description

About selection

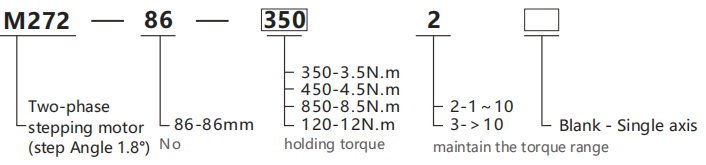

Selection example: M272-86-3502 represents the M272 series two-phase stepping motor, with a frame size of 86mm, a holding torque of 3.5N.m, and a single axis.

Specification

Model	M272-86 Series (square)
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	130N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	36N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	1200VAC/1s	Insulation Class	Class B

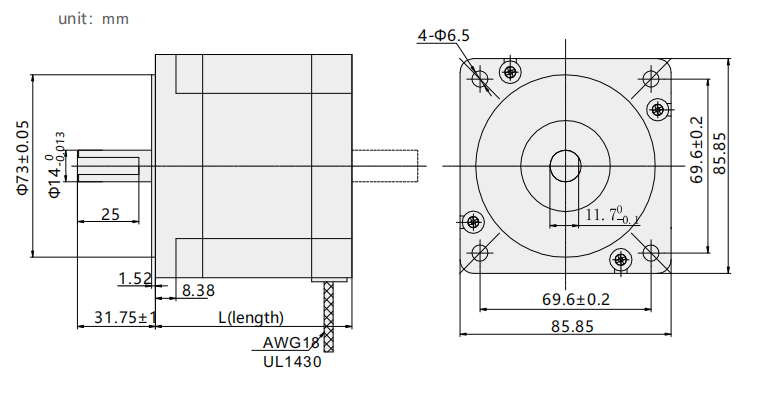

Dimensions

企业微信截图_17806507674340

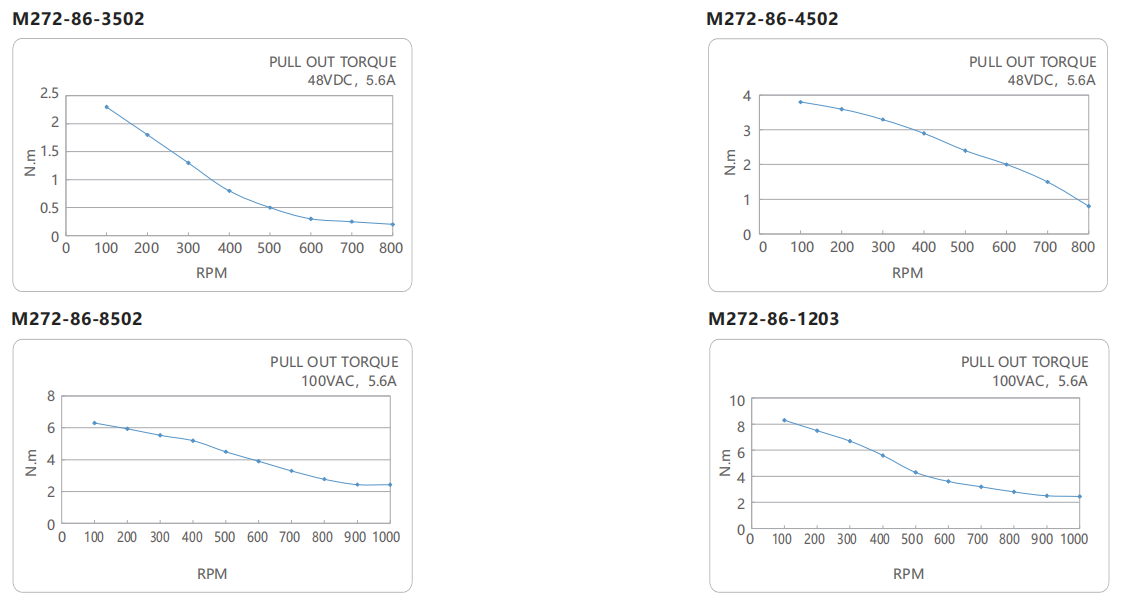

Electrical properties

Model	M272-86-3502	M272-86-4502	M272-86-8502	M272-86-1203
Adapter drive	M280-860	M280-860	M280-860	M280-860
Current per phase	6	6	6	6
Holding torque	3.5	4.5	8.5	12
Positioning torque	0.08	0.12	0.24	0.36
Each resistance	0.29	0.39	0.55	0.73
Each inductance	1.77	3	6	8.68
Number oflead wires	4	4	4	4
Moment of inertia	1000	1400	2700	4000
weight	1.7	2.3	3.8	5.3
Body length	63	75	112	150
