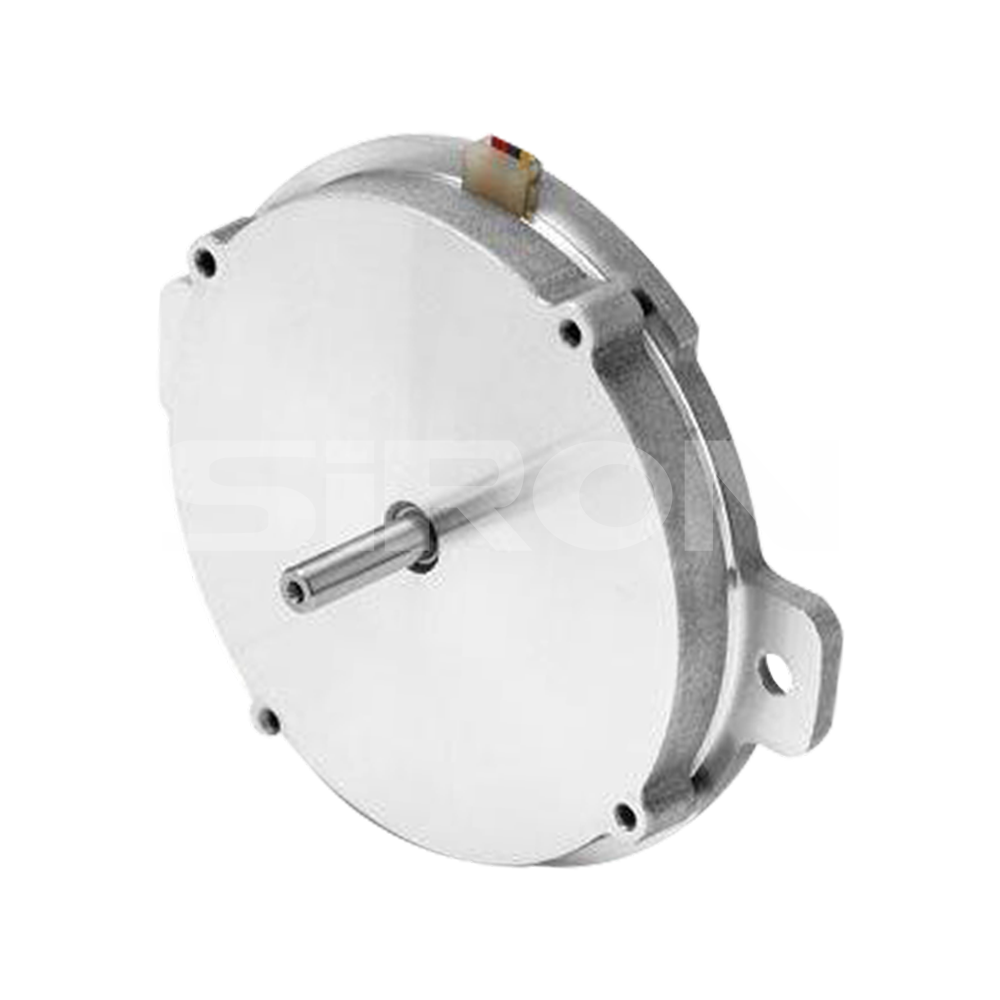

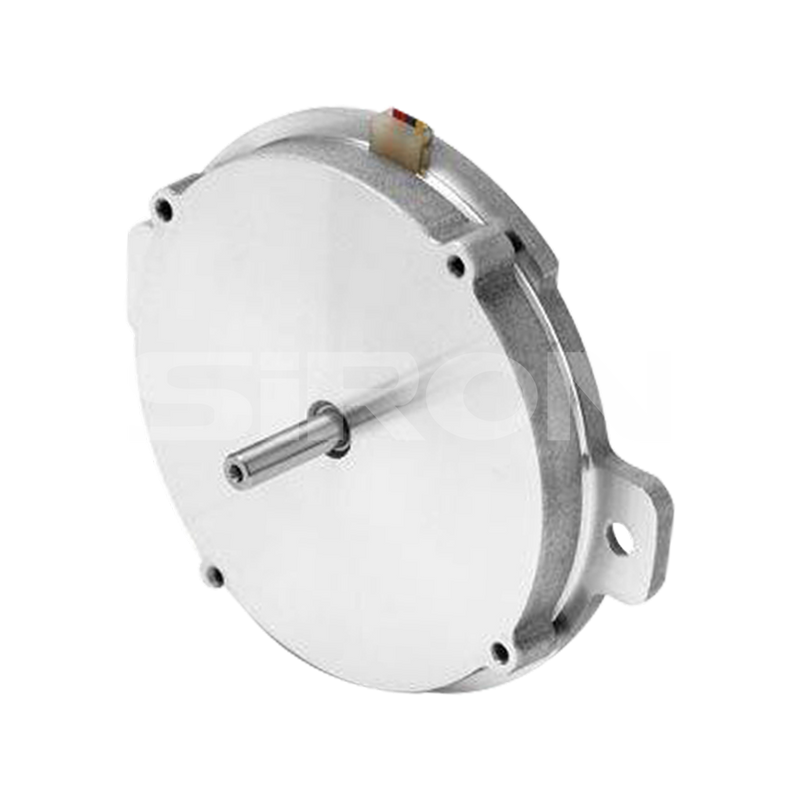

SiRON M272-63 Series 1.8° 63mm Two-phase Stepper Motor

Name: SiRON M272-63 Series 1.8° 63mm Two-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (63 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-63
Brand:
SiRON
Code:
8501109990

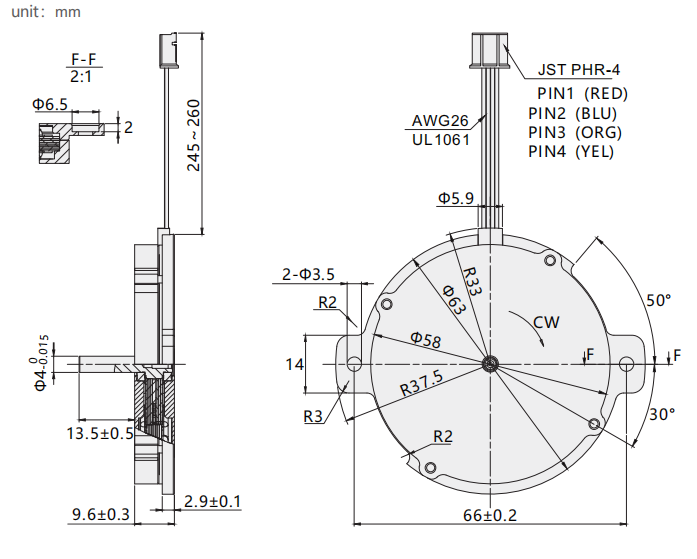

1.8° step angle 63mm frame size 0.06N.m holding torque

Product Description

About selection

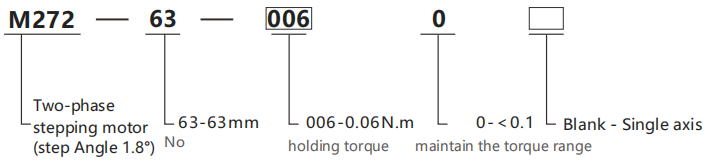

Selection example: M272-63-0060 represents the M272 series two-phase stepping motor, with a frame size of 63mm, a holding torque of 0.06N.m, and a single axis.

Specification

Model	M272-63 Series
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	10N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	2N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

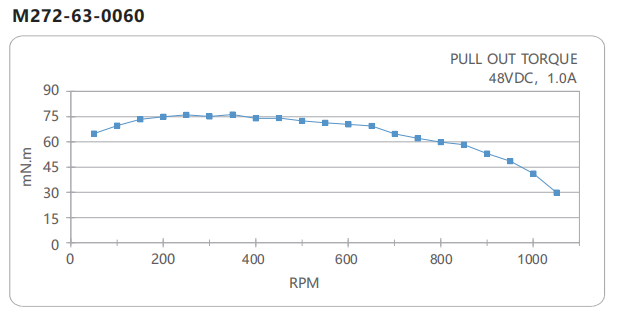

Electrical properties

Model	M272-63-0060
Adapter drive	M280-556
Current per phase	1
Holding torque	0.06
Positioning torque	0.005
Each resistance	3.8
Each inductance	2

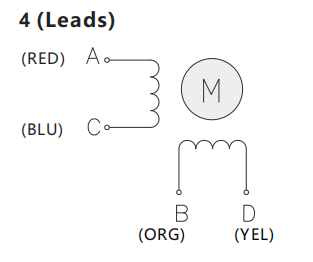

Number of lead wires	4
Moment of inertia	16
weight	0.095
Body length	9.6
