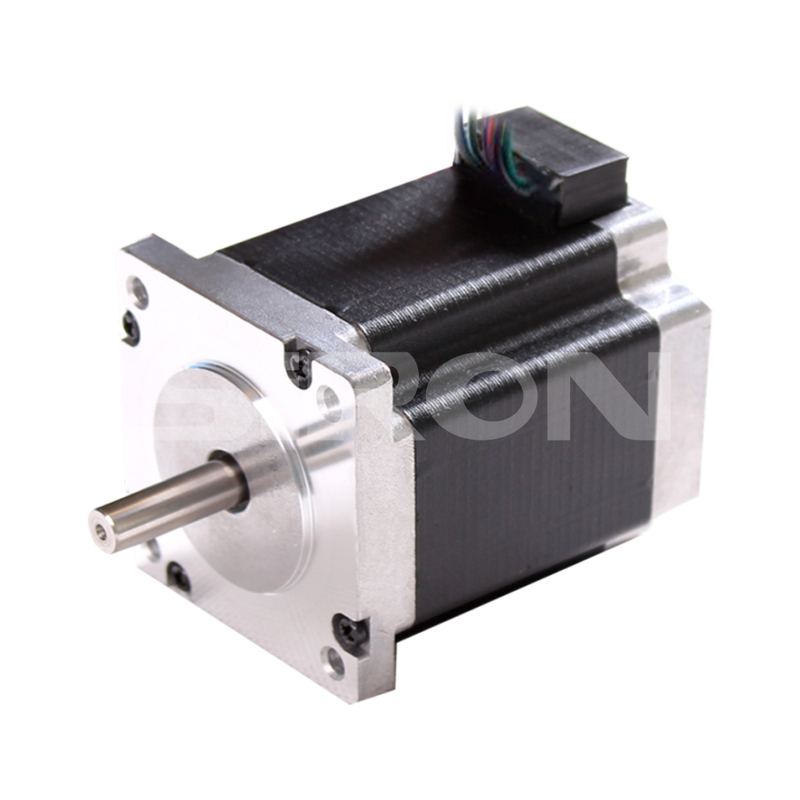

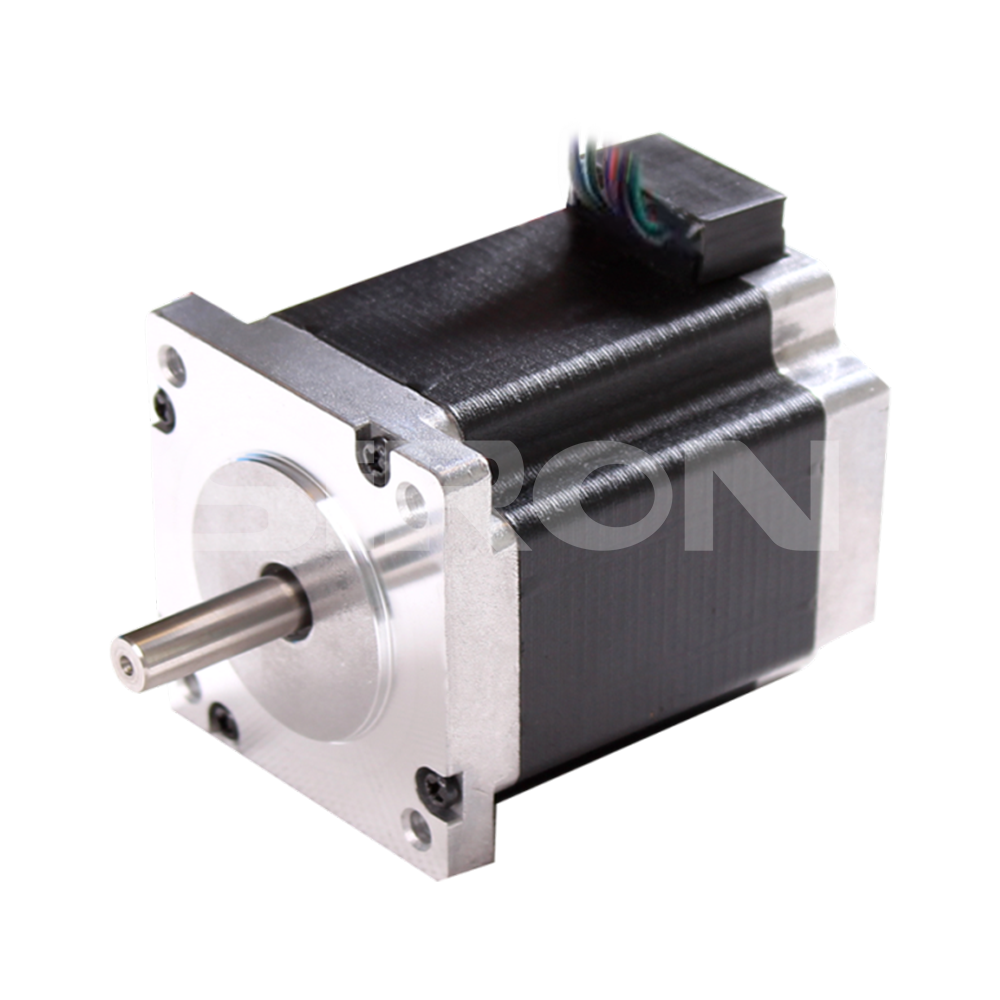

SiRON M272-60 Series 1.8° 60mm Two-phase Stepper Motor

Name: SiRON M272-60 Series 1.8° 60mm Two-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (97 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-60
Brand:
SiRON
Code:
8501109990

1.8° step angle 60mm frame size 0.05N.m holding torque 0.07N.m holding torque 0.09N.m holding torque 0.12N.m holding torque

Product Description

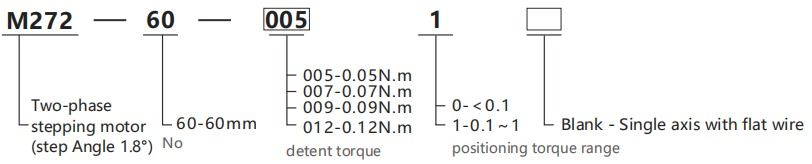

About selection

Selection example: M272-60-0050 represents the M272 series two-phase stepping motor, with a fram e size of 60mm, a positioning torque of 0.05N.m, and a single axis with flat wire.

Specification

Model	M272-60 Series
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	75N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	15N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

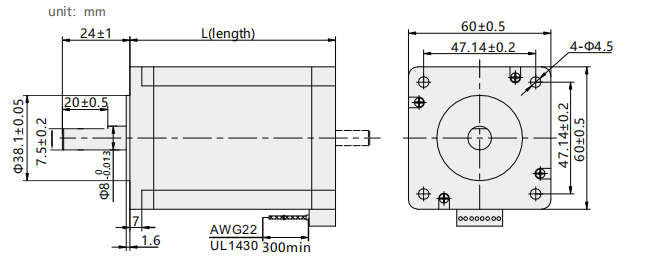

Dimensions

企业微信截图_17806494488763

Electrical properties

Model	M272-60-0050			M272-60-0070			M272-60-0090			M272-60-0121
Model	Unipolar	In parallel	Tandem	Unipolar	In parallel	Tandem	Unipolar	In parallel	Tandem	Unipolar	In parallel	Tandem
Current per phase	2	2.8	1.4	2	2.8	1.4	2	2.8	1.4	2	2.8	1.4
Each resistance	1.5	0.75	3	1.8	0.9	3.6	2.4	1.2	4.8	3	1.5	6
Each inductance	2	2	8	3.6	3.6	14.4	4.6	4.6	18.4	6.8	6.8	27.2
Holding torque	0.78	1.1	1.1	1.17	1.65	1.65	1.5	2.1	2.1	2.1	3	3
Positioning torque	0.05			0.07			0.09			0.12

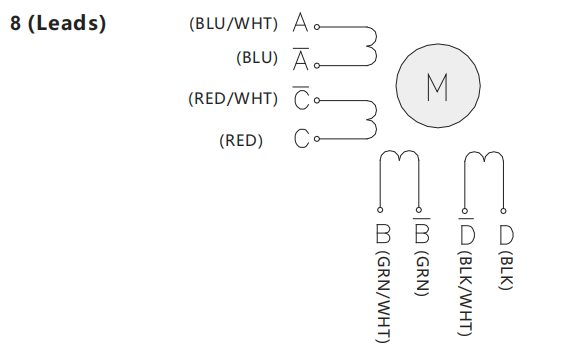

Number of lead wires	8			8			8			8
Moment of inertia	275			400			570			840
weight	0.6			0.77			1.2			1.4
Body length	47±1			56±1			67±1			88±1
Adapter drive	M280-556			M280-556			M280-556			M280-556
