SiRON M272-57 Series 1.8° 57mm Two-phase Stepper Motor

Name: SiRON M272-57 Series 1.8° 57mm Two-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (48 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-57
Brand:
SiRON
Code:
8501109990

1.8° step angle 57mm frame size 0.39N.m holding torque

Product Description

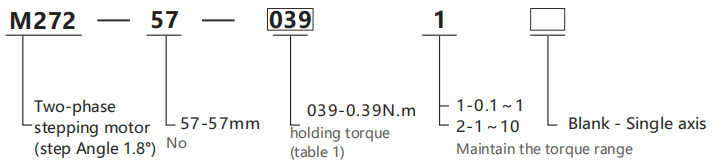

About selection

Selection example: M272-57-0391 represents the M272 series two-phase stepping motor, with a frame size of 57mm, a holding torque of 0.39N.m, and a single axis.

Table 1

Code	039	055	072	090	100	126	135	189	300
Holding torque	0.39N.m	0.55N.m	0.72N.m	0.9N.m	1N.m	1.26N.m	1.35N.m	1.89N.m	3N.m

Specification

Model	M272-57 Series
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	75N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	15N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

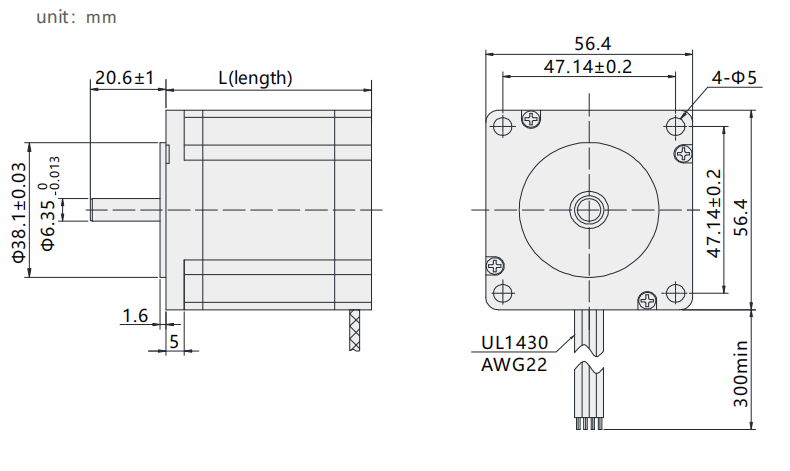

Dimensions

企业微信截图_17806489275794

Electrical properties

Model	M272-57-0391	M272-57-0551	M272-57-0721	M272-57-1002	M272-57-0901A	M272-57-1262	M272-57-1352	M272-57-1892	M272-57-3002
Adapter drive	M280-556	M280-556	M280-556	M280-556	M280-556	M280-556	M280-556	M280-556	M280-556
Current per phase	2	2.8	2	2.8	2	2.8	2	2.8	2.8
Holding torque	0.39	0.55	0.72	1	0.9	1.26	1.35	1.89	3
Positioning torque	0.02	0.02	0.035	0.035	0.04	0.04	0.068	0.068	0.1
Each resistance	1.4	0.7	1.65	0.83	1.8	0.9	2.25	1.13	2.1
Each inductance	1.4	1.4	2.2	2.2	2.5	2.5	3.6	3.6	10

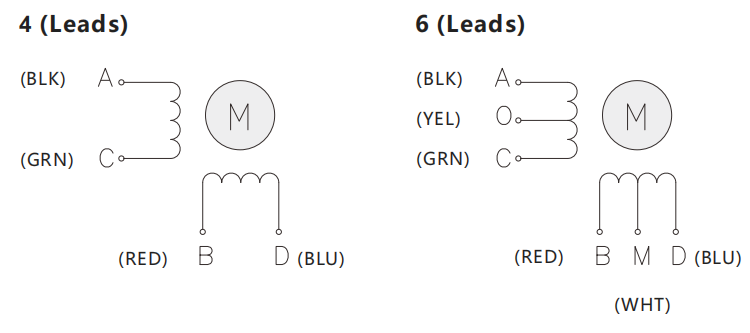

Number of lead wires	6	4	6	4	6	4	6	4	4
Moment of inertia	120	120	275	275	300	300	480	480	650
weight	0.45	0.45	0.65	0.65	0.7	0.7	1	1	1.8
Body length	40	40	50	50	54	54	75	75	115
