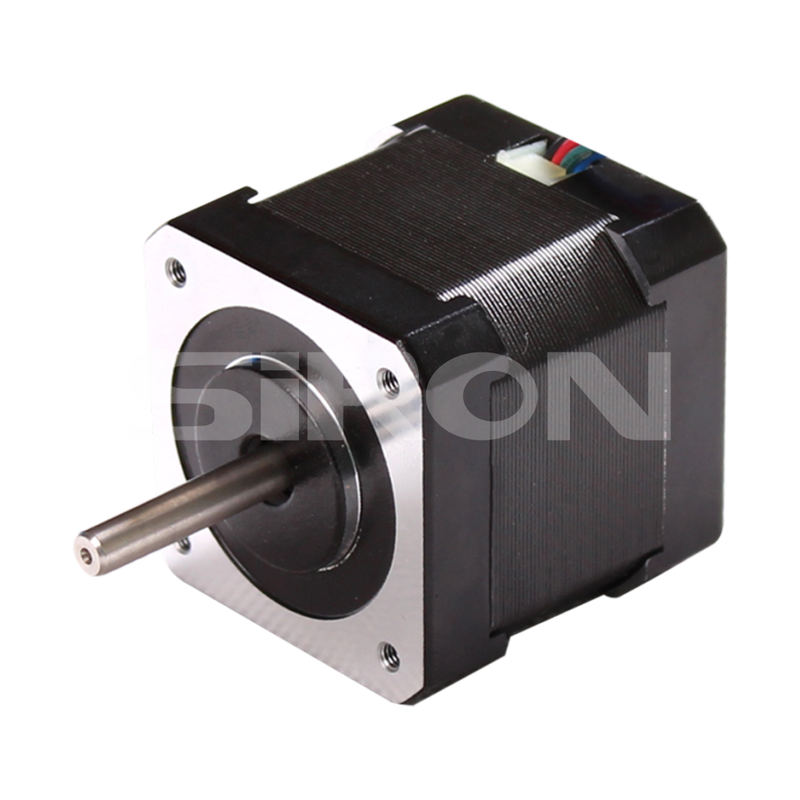

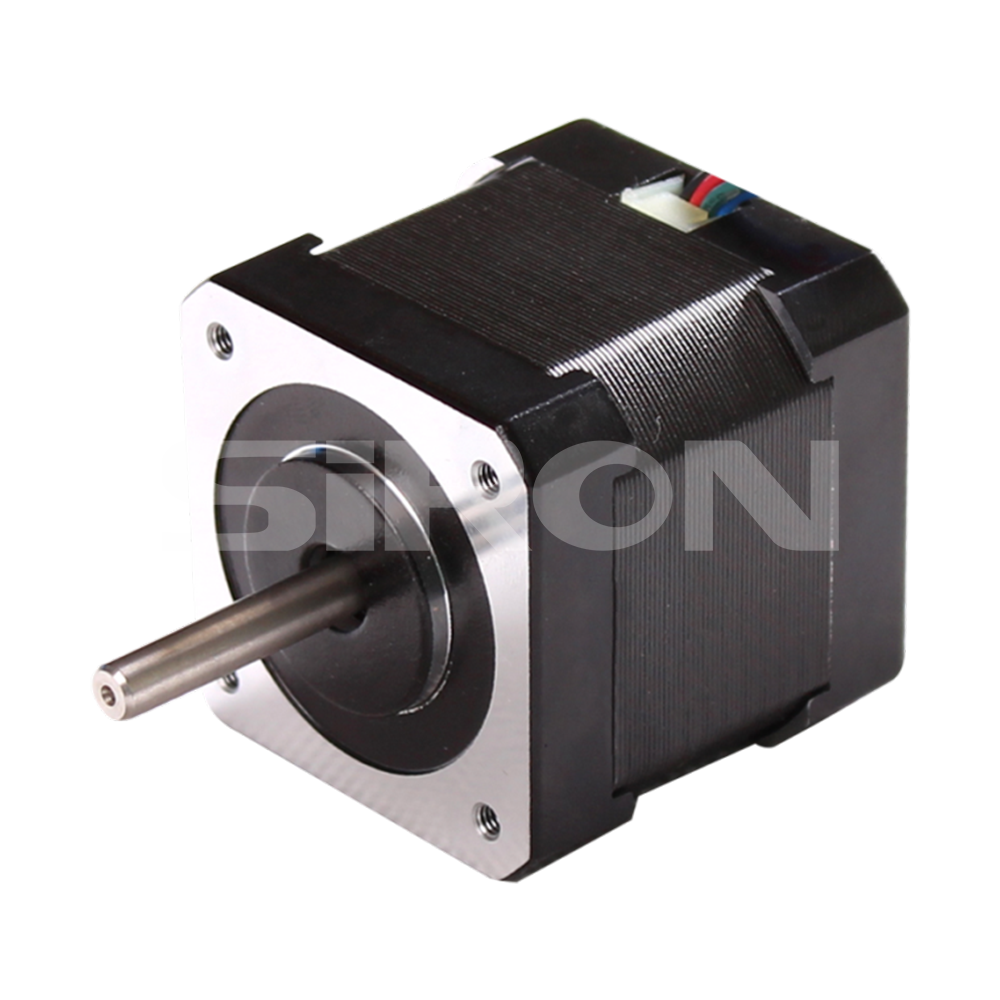

SiRON M272-42 Series 1.8° 42mm Two-phase Stepper Motor

Name: SiRON M272-42 Series 1.8° 42mm Two-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (8 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-42
Brand:
SiRON
Code:
8501109990

1.8° step angle 42mm frame size 0.17N.m holding torque

Product Description

About selection

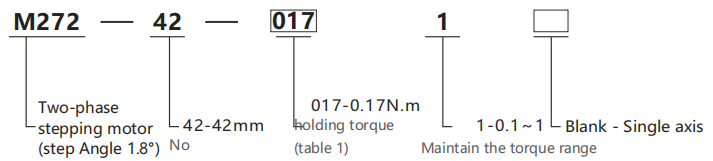

Selection example: M272-42-0171 represents the M272 series two-phase stepping motor, with a frame size of 42mm, a holding torque of 0.17N.m, and a single axis.

Table 1

Code	016	017	022	026	036	317	044	056
Holding torque	0.16N.m	0.17N.m	0.22N.m	0.26N.m	0.36N.m	0.317N.m	0.44N.m	0.56N.m

Specification

Model	M272-42 Series
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	10N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

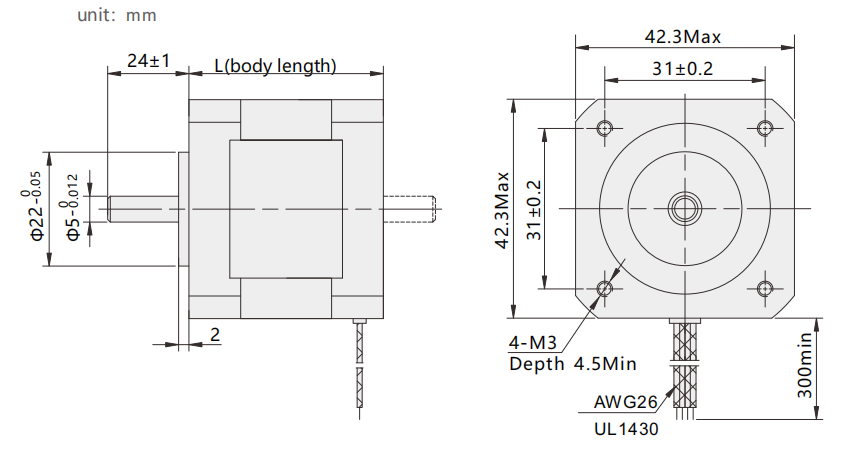

Dimensions

企业微信截图_17806480675115

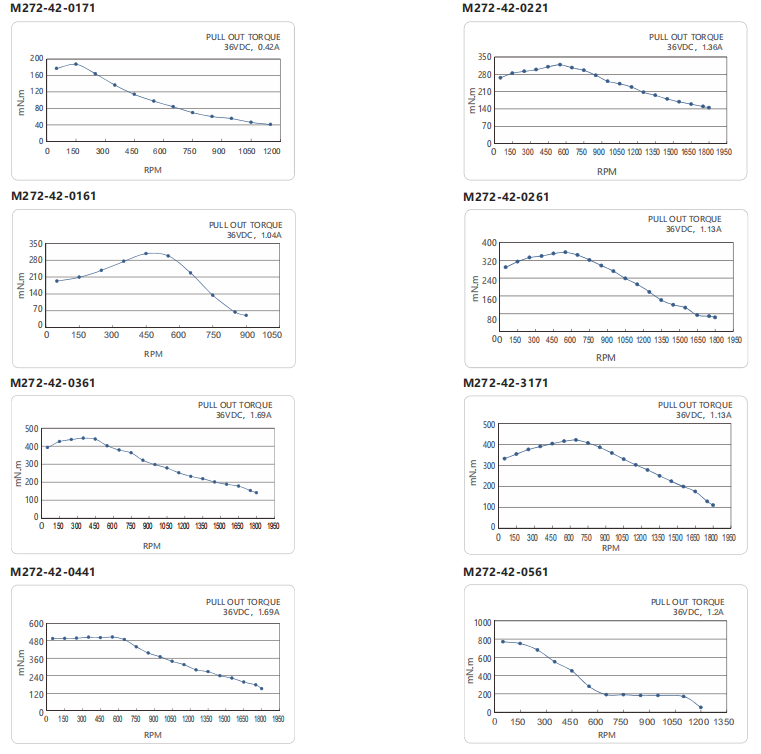

Electrical properties

Model	M272-42-0171	M272-42-0161	M272-42-0221	M272-42-0261	M272-42-0361	M272-42-3171	M272-42-0441	M272-42-0561
Adapter drive	M280-430	M280-430	M280-430	M280-430	M280-430	M280-430	M280-430	M280-430
Curent per phase	0.4	0.95	1.33	1.2	1.68	1.2	1.68	1.2
Holding torque	0.17	0.16	0.22	0.26	0.36	0.317	0.44	0.56
Positioning torque	0.0075	0.012	0.012	0.015	0.015	0.02	0.02	0.028
Each resistance	24	4.2	2.1	3.3	1.65	3.3	1.65	6
Each inductance	30	2.5	2.5	3.2	3.2	2.8	2.8	7

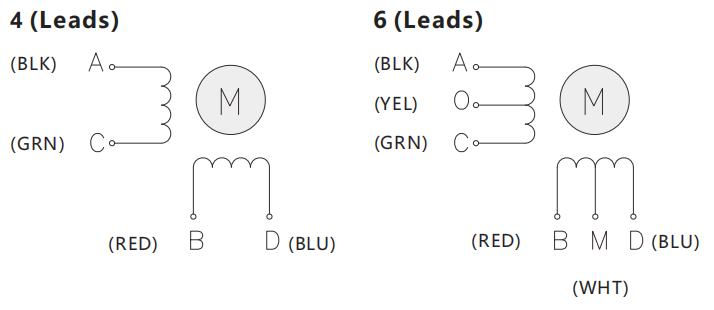

Number of lead wires	4	6	4	6	4	6	4	6
Moment of inertia	20	35	35	54	54	68	68	102
weight	0.15	0.22	0.22	0.28	0.28	0.35	0.35	0.5
Body length	26	33.5	33.5	39.5	39.5	47.5	47.5	60
