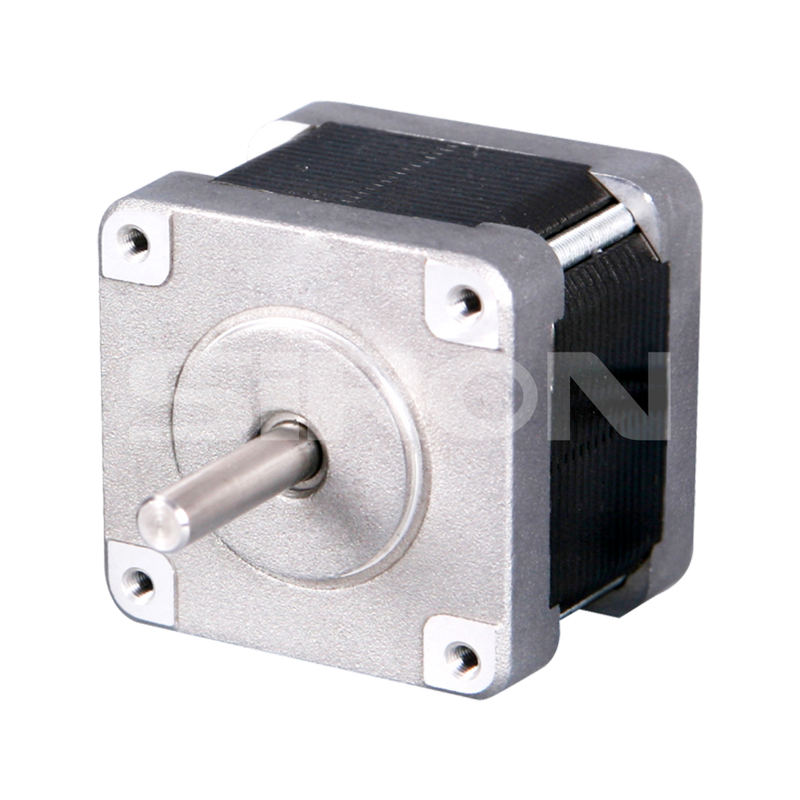

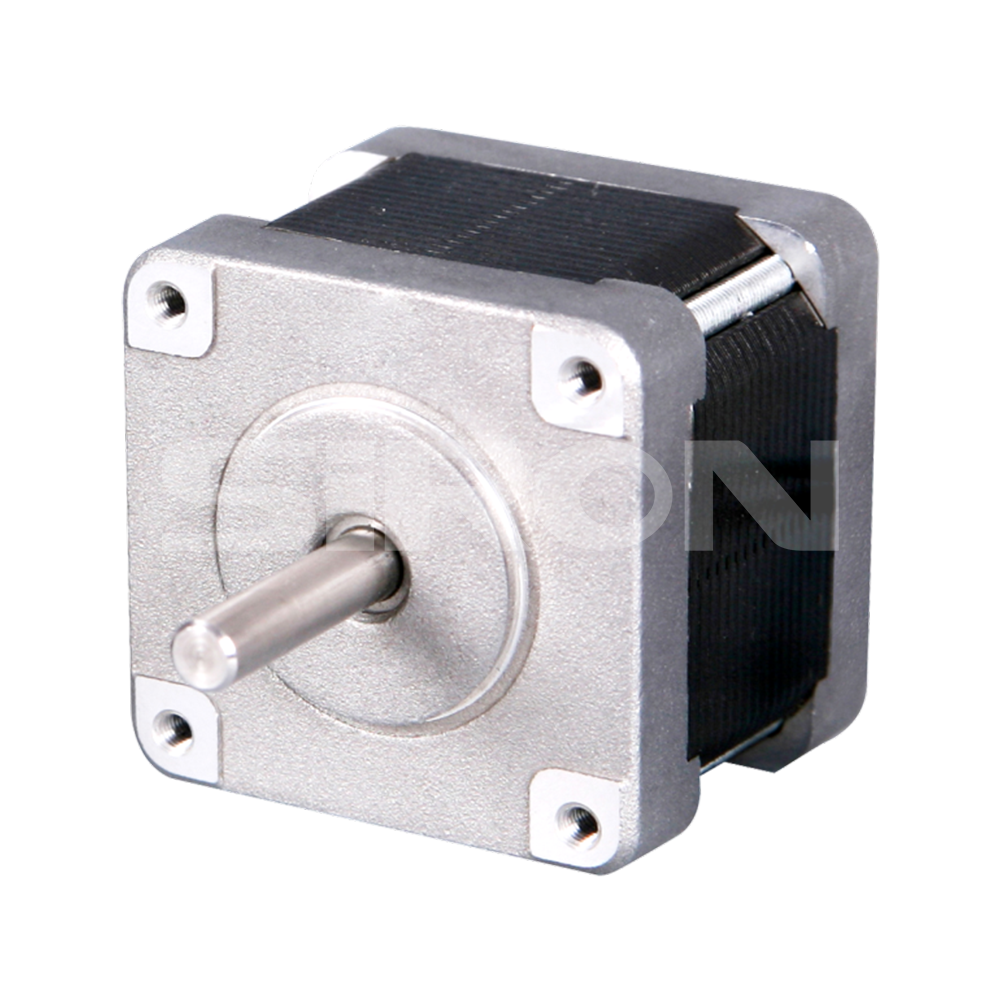

SiRON M272-39 Series 1.8° 39mm Three-phase Stepper Motor

Name: SiRON M272-39 Series 1.8° 39mm Three-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (1 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-39
Brand:
SiRON
Code:
8501109990

1.8° step angle 39mm frame size 0.085N.m holding torque 0.18N.m holding torque 0.36N.m holding torque

Product Description

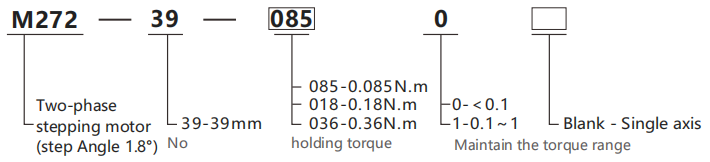

About selection

Selection example: M272-39-0850 represents the M272 series two-phase stepping motor, with a frame size of 39mm, a holding torque of 0.085N.m, and a single axis.

Specification

Model	M272-39 Series
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	10N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B
