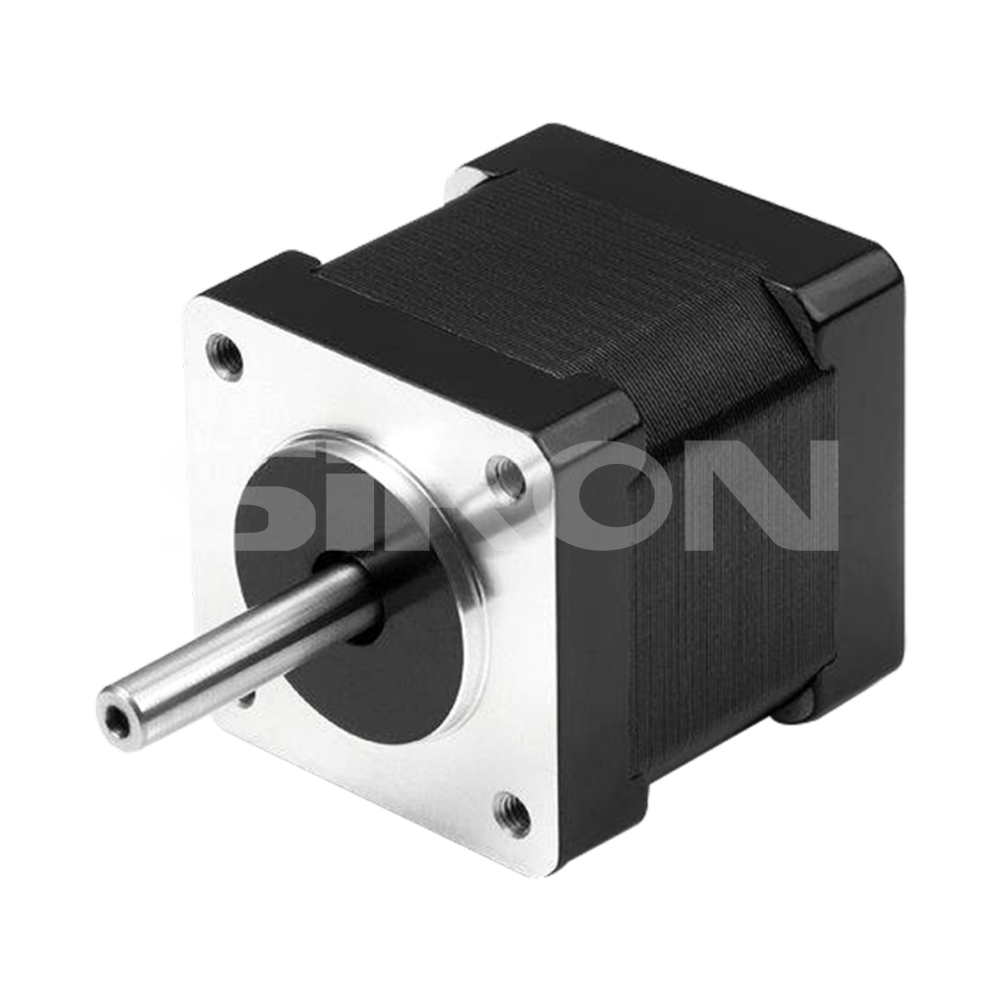

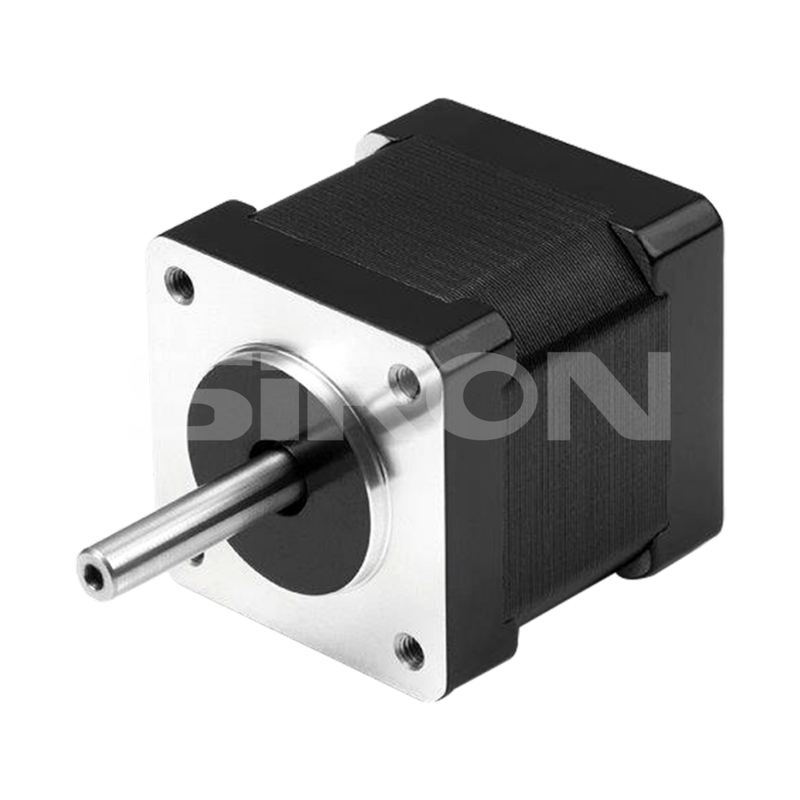

SiRON M272-35 Series 1.8° 35mm Two-phase Stepper Motor

Name: SiRON M272-35 Series 1.8° 35mm Two-phase Stepper Motor
Brand: SiRON
Rating: 5.0 (78 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-35
Brand:
SiRON
Code:
8501109990

1.8° step angle 35mm frame size 0.07N.m holding torque 0.1N.m holding torque 0.14N.m holding torque

Product Description

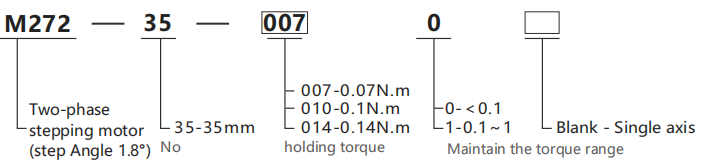

About selection

Selection example: M272-35-0070 represents the M272 series two-phase stepping motor, with a frame size of 35mm, a holding torque of 0.07N.m, and a single axis

Specification

Model	M272-35 Series
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	28N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	10N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	600VAC/1s	Insulation Class	Class B

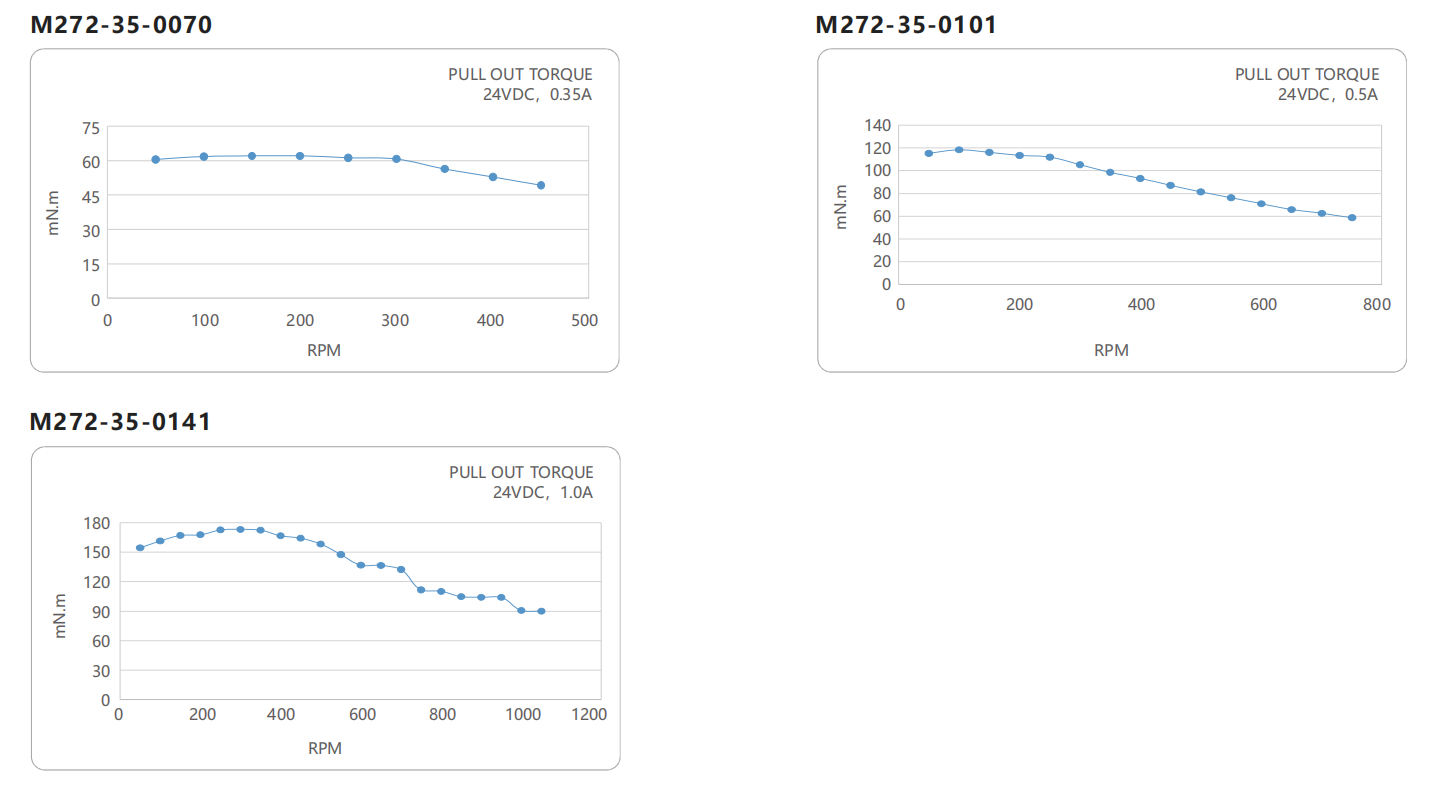

Electrical properties

Model	M272-35-0070	M272-35-0101	M272-35-0141
Adapter drive	M280-430	M280-430	M280-430
Current per phase	0.28	0.5	1
Holding torque	0.07	0.1	0.14
Positioning torque	0.006	0.008	0.01
Each resistance	26	20	2.7
Each inductance	27	14	4.3

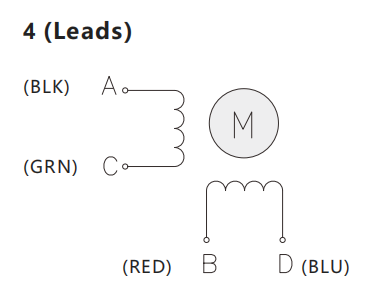

Number of lead wires	4	4	4
Moment of inertia	10	11	14
weight	0.13	0.14	0.18

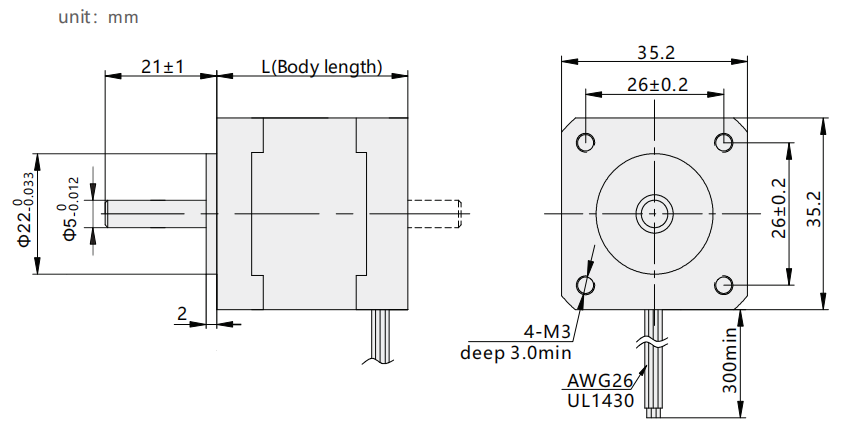

Body length	26	28	36
