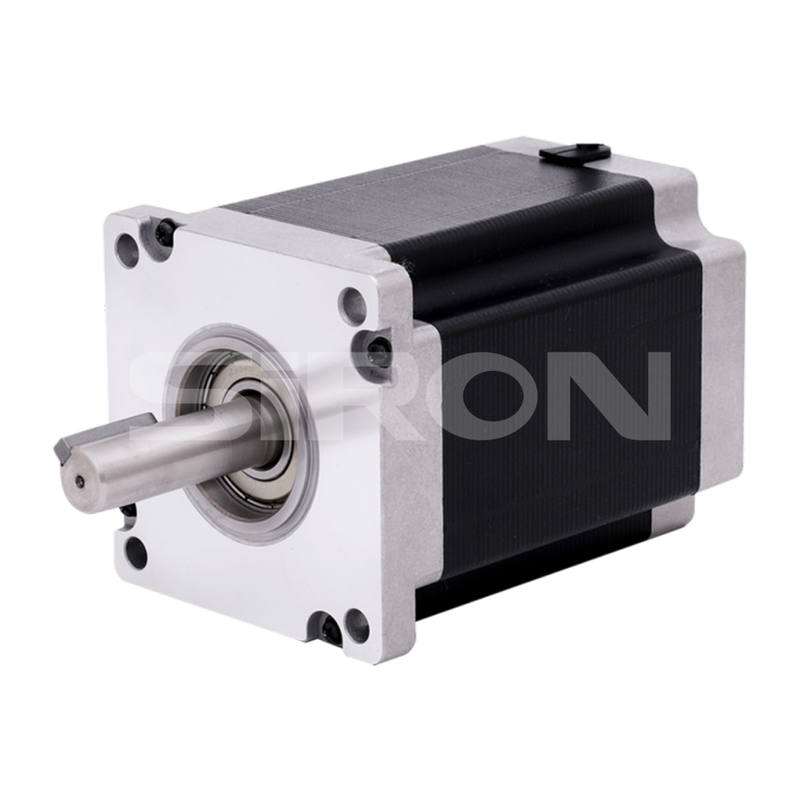

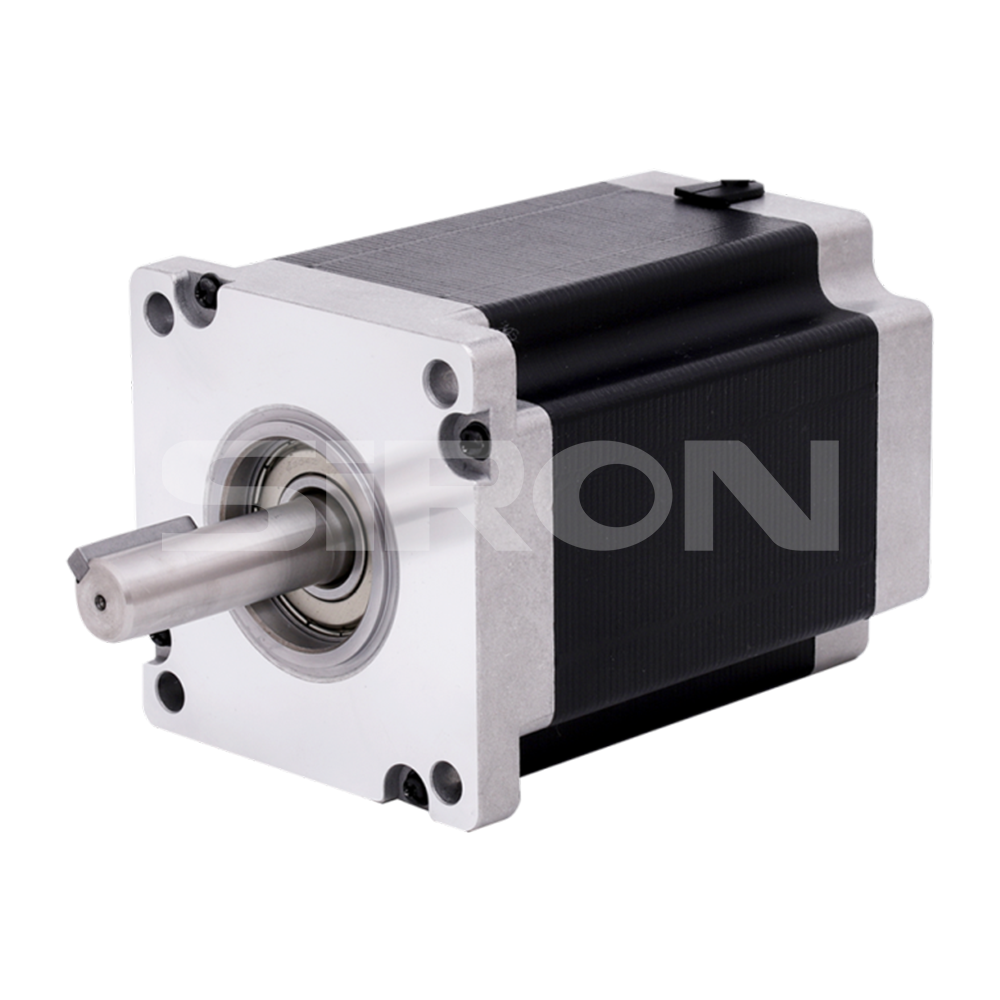

SiRON M272-110 Series 1.8° 110mm Two-phase Stepper Square Motor

Name: SiRON M272-110 Series 1.8° 110mm Two-phase Stepper Square Motor
Brand: SiRON
Rating: 5.0 (70 reviews)

Features

* 1.8°step angle, two-phase high-torque stepper motor;
* High precision, high efficiency and high reliability;
* Precise position control;
* It can realize precise control and convenient adjustment;
* Widely used in various motion control fields

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M272-110
Brand:
SiRON
Code:
8501109990

1.8° step angle 86mm frame size 3.5N.m holding torque 4.5N.m holding torque 8.5N.m holding torque 12N.m holding torque

Product Description

About selection

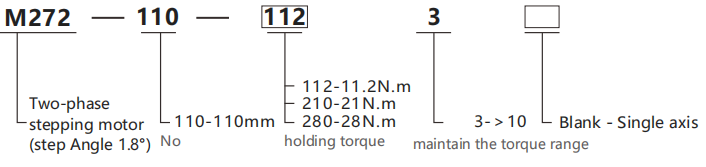

Selection example: M272-110-1123 represents the M272 series two-phase stepping motor, with a frame size of 110mm, a holding torque of 11.2N.m, and a single axis.

Specification

Model	M272-110 Series
Radial Play	0.02mm@450g	Step Angle	1.8°
Axial Play	0.08mm@450g	Step Angle Accuracy	±5%(The entire step is unloaded)
Max.radial force	330N(20mm away from the flange）	Insulation Resistance	100MΩ,500VDC
Max.axial force	100N	Ambient Temperature	-20℃~+50℃
Dielectric Strength	1200VAC/1s	Insulation Class	Class B

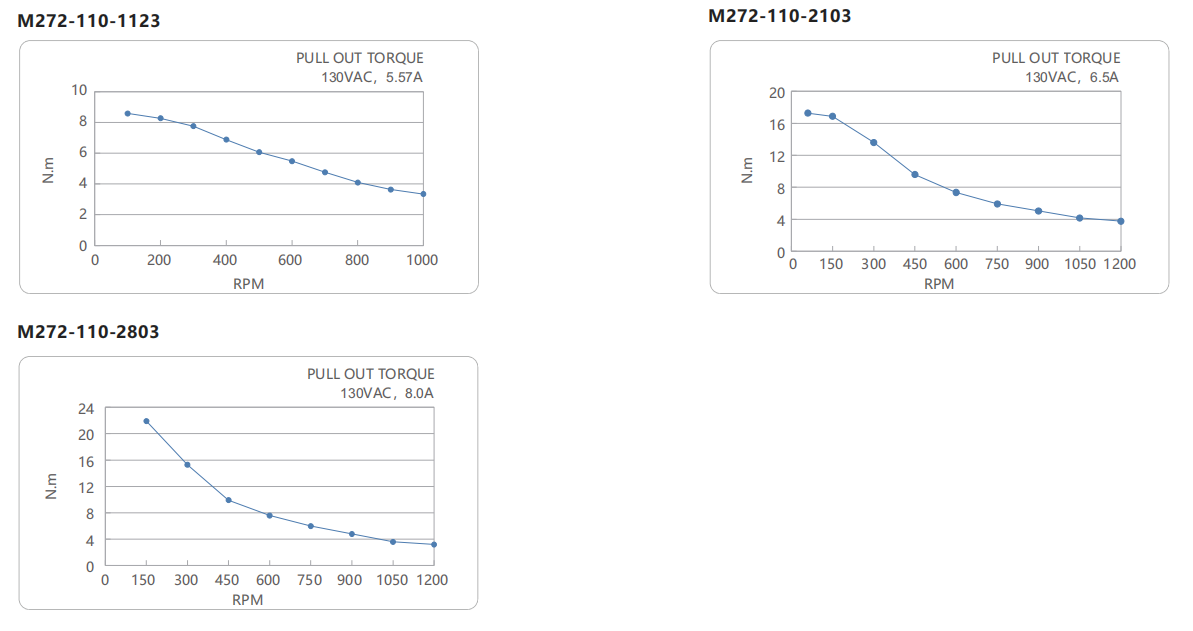

Electrical properties

Model	M272-110-1123	M272-110-2103	M272-110-2803
Adapter drive	M280-860	M280-860	M280-860
Current per phase	5.5	6.5	8
Holding torque	11.2	21	28
Positioning torque	0.55	1.09	1.62
Each resistance	0.7	0.72	0.67
Each inductance	9.8	11.5	12
Number of lead wires	4	4	4
Moment of inertia	5600	13000	173000
weight	5	8.4	11.7
Body length	99	150	201
